GM 2 Wire Alternator Wiring Guide with Step-by-Step Connection Diagram
For reliable power delivery in a GM charging system, use a 10-gauge conductive path for the excitation circuit and a minimum 8-gauge for the output circuit. The GM unit with two terminals relies on a self-exciting design, but improper routing can lead to voltage instability. Connect the excitation pin directly to the ignition switch with a 30-amp fuse to prevent overloading during startup.
Grounding must be solid–attach the generator’s chassis terminal to the engine block using a braided strap rather than a single strand. A loose connection here causes erratic voltage readings, often misdiagnosed as regulator failure. If the vehicle has electronic fuel injection, link the output terminal to the battery through an isolator to avoid feedback interference with sensitive modules.
Voltage drop tests are critical: measure across the excitation circuit when the engine runs at 2,000 RPM. A reading below 13.8 volts indicates resistance in the path–check connectors for corrosion or undersized conductive elements. For long-term durability, apply dielectric grease to terminals after securing connections, especially in humid or salt-prone environments.
Avoid tapping the excitation circuit into accessory switches, as this introduces voltage spikes that degrade the internal brush assembly. If retrofitting an older GM system, swap the original voltage regulator for a solid-state model to eliminate points wear and maintain consistent charging across varying loads. Always verify polarity before energizing–reverse polarity instantly destroys the rectifier diodes.
GM Dual-Terminal Charging System Connection Guide
Locate the primary output stud–marked “BAT” or “+”–on the rear of the unit; attach a 4 AWG cable directly to the battery positive terminal without intermediate splices. The secondary terminal, typically labeled “R,” “S,” or “1,” requires a 10–12 AWG lead to the ignition switch’s accessory side, ensuring the circuit energizes only when the key turns to “run” or “start.” Omit fusible links unless the factory harness included them; modern setups tolerate direct battery connections at these gauges. Verify polarity with a multimeter before final tightening: the BAT stud should register battery voltage at engine idle, while the auxiliary terminal should show 1–2 volts below battery potential when the ignition is on.
Critical Connection Parameters
| Component | Gauge Range | Max Current | Insulation Rating |
|---|---|---|---|
| Main output lead | 4–6 AWG | 80A | 90°C |
| Excitation circuit | 10–12 AWG | 10A | 80°C |
| Ground strap | 4 AWG | 80A | 90°C |
Route cables away from exhaust manifolds and moving belts; secure every 18 inches with heat-resistant loom or adhesive-lined clips. Strip insulation only at termination points to prevent strand fraying, then crimp terminals using a ratcheting tool–avoid solder for high-vibration applications. Test idle output at 13.8–14.5 volts; deviations below 13.2 volts indicate weak field excitation or faulty diode trio, while readings above 15 volts suggest overcharging–immediately disconnect to prevent battery electrolyte boil-off.
Key Components in a GM 2-Wire Charging System
Begin by identifying the voltage regulator terminal–often marked “R” or “1”–as the primary trigger for excitation. This connection, typically spliced to the ignition feed or a dedicated relay, must deliver a clean 12V signal when the engine cranks. Without stable input here, the unit won’t initiate magnetic field buildup, leaving the battery undercharged.
The output stud, labeled “Bat,” “B+” or “+,” demands heavy-gauge conductive path–minimum 10 AWG–to handle peak currents (50–150A). Route this directly to the battery positive terminal, avoiding intermediate connections that introduce resistance. Tinning stranded conductors prevents oxidation, ensuring consistent current flow.
- Battery sensing lead: Though absent in true two-connection designs, some variants include a third pickup point. If present, link it straight to the battery post to feed real-time voltage data back to the control module, preventing overcharging.
- Ground return path: The case must bond solidly to the engine block; omit paint, rust, or corrosion at the mounting surface. A star washer between the unit and block cuts resistance, avoiding voltage drop that saps performance.
Onboard capacitors, often overlooked, suppress transient spikes generated during switching. Install a 0.1µF ceramic disc between the regulator input and ground, placed as close to the terminals as possible. This step eliminates erratic behavior and extends transistor life.
Critical Spares for Field Servicing
- Diode trio assembly (if integrated): replaces failed rectifiers without full rebuild.
- Carbon brushes: worn contacts (under 0.2″ exposed length) cause erratic excitation.
- Voltage-limiting Zener diode: protects the control circuit from inductive kickback.
Stock only OEM-grade replacements; counterfeit parts underperform under sustained load.
Step-by-Step Connection Guide for GM 2-Pin Power Generator

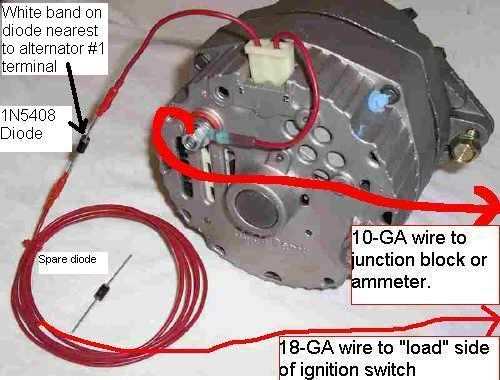

Locate the primary output terminal–typically a threaded stud marked BAT or +–on the rear of the unit. Attach a heavy-gauge conductor (minimum 10 AWG) directly to this post using a ring terminal secured with a locking washer and nut. Route this lead straight to the battery’s positive clamp, avoiding splices or intermediate junctions to prevent voltage drop. Use heat-shrink tubing or liquid electrical tape to insulate the connection fully.
Identify the secondary plug, often a spade-style connector labeled R or S. Connect this to the ignition circuit’s switched side–any 12V source activated when the engine cranks. A fused link (10A) inline is critical to protect against shorts. Confirm polarity with a multimeter: probe the ignition feed while cycling the key to ensure +12V appears only during “run” or “start” positions, never in “off.”
Ground the housing securely by bolting a dedicated conductor from the generator’s case to the engine block or chassis. Use star washers to penetrate paint or corrosion, and apply dielectric grease to the connection point. Test the setup by starting the motor and verifying voltage at the battery rises to 13.8–14.5V under load. If readings fall outside this range, check for loose fasteners or damaged conductors before proceeding.
Diagnosing Common Problems in GM Dual-Terminal Charging Systems
Start by verifying the battery’s state before assuming faults in the generator. Measure voltage across the battery posts with the engine off–readings below 12.4 volts indicate insufficient charge or a failing cell. If voltage holds but drops rapidly under load, inspect the ground path between the battery negative terminal and the engine block; corrosion or loose connections create resistance that mimics charging failures. Use a digital multimeter to check for voltage drop exceeding 0.2 volts when the starter engages.
Excessive noise from the pulley assembly often signals bearing wear or misalignment. Rotate the drive belt by hand while listening for grinding or squealing–any irregularities suggest internal wear requiring immediate replacement. If the belt appears cracked or glazed, tension adjustment alone won’t suffice; replace it entirely. Check pulley alignment using a straightedge; deviations over 0.5mm from parallel will accelerate belt degradation and reduce charging efficiency.
Intermittent charging typically stems from loose or oxidized connections at the generator’s output stud. Remove the terminal nut, clean both the stud and connector with a wire brush, then apply dielectric grease before reassembling. If voltage remains unstable, probe the field circuit with a test light while the engine runs–dim or flickering illumination confirms an internal regulator failure or broken excitation circuit. Swap the regulator as a unit if testing proves inconclusive.
Overcharging manifests as bulging battery cases or electrolyte boiling. Confirm suspicions by monitoring voltage at the battery with the engine at 2000 RPM–readings above 14.8 volts indicate a faulty voltage regulator or shorted field coil. Disconnect the field terminal temporarily; if voltage drops below 13 volts, the regulator is suspect. Replace it immediately to prevent battery damage and electrical system overloads.
Erratic gauge readings on the dashboard often trace back to a faulty sense circuit. Locate the voltage sense terminal (typically a small spade connector) and ensure it maintains clean, tight contact. Probe this point with a multimeter while revving the engine–fluctuations greater than 0.3 volts between idle and 2000 RPM point to poor grounding or a corroded connection. If cleaning contacts doesn’t resolve the issue, bypass the sense circuit by connecting the battery directly to the charging unit’s output terminal, but monitor closely for overheating.
Required Tools and Materials for GM Two-Conductor Charging System Installation
Begin with a multimeter capable of measuring at least 20V DC and 10A current–Fluke 87V or Klein MM700 are reliable choices. Verify the meter’s leads are rated for automotive-grade voltage spikes to avoid false readings. Include a 10-gauge crimping tool with ratcheting action; Knipex 97 52 12 or similar ensures gas-tight connections that resist corrosion. Select insulated butt connectors rated for 105°C, preferably tin-plated copper, to handle the 60-80A output typical of GM’s CS130 or CS144 units.
Specialized Hardware
Obtain a GM-specific pigtail harness–typically Delphi part #12162010–for the two-conductor plug. If repurposing an OEM connector isn’t feasible, use a 3/8″ ring terminal for the battery-positive lug, paired with heat-shrink tubing (minimum 3:1 ratio) to seal against moisture. For grounding, opt for a 5/16″ star washer between the terminal and chassis; this prevents paint-induced resistance that can trigger voltage regulator faults. A 10A fuse inline with the ignition-sense lead–ANL type or blade-style–protects against short circuits without adding parasitic resistance.
A torque wrench calibrated to 12-18 ft-lbs is non-negotiable for tightening the pulley nut; under-torquing risks slippage, while over-torquing warps the rotor shaft. Use dielectric grease on the plug terminals to prevent fretting corrosion, especially in high-humidity climates. If the vehicle lacks a dedicated charging lamp (e.g., pre-1990 models), install an LED indicator resistor–470Ω, 1/2W–between the ignition lead and ground to ensure proper regulator activation.
For diagnostics, a 500W halogen load tester or a carbon-pile rheostat verifies output under load without relying on battery voltage, which can mask regulator faults. Keep a roll of 3M 06147 electrical tape for temporary insulation during bench testing; it adheres better than vinyl tape at elevated temperatures. Finally, a magnetic pickup tool aids in retrieving dropped fasteners near the serpentine belt–misplaced washers often lodge in the timing cover, causing intermittent charging issues.
