GM MAF Sensor Circuit Guide with Wiring Color Codes and Pinout

Start with terminal A on the 5-pin connector: GM’s hot-film meter uses this as the ignition-switched 12 V supply. Splice a 18-gauge red wire directly to the fused ignition feed–never tap the MIL circuit or ECM relay output. Verify voltage at the pin with a multimeter set to DC volts while cranking; readings below 11.6 V indicate a corroded splice, undersized fuse, or chafed harness near the strut tower.

Pin B is the ground reference; route a 20-gauge black wire to a dedicated engine block stud adjacent to the starter, not the battery negative post. Resistance between pin B and the block should measure <0.2 ohms; anything higher reveals loose ring terminals, damaged crimp barrels, or oxidation under the cylinder head bolt. Clean mating surfaces with a stainless-steel wire brush, then secure with a lock washer to prevent vibration-induced high-impedance faults.

Signal return (pin C) and frequency output (pin E) must use the original twisted-pair wire loom–fabricate replacements with independent 22-gauge wires twisted at 20 turns per foot. Any untwisted segments introduce amplitude modulation from alternator ripple or ignition coil interference. Terminate pin C to ECM connector X1, pin 47 (LS1 24X CKP sensor return) and pin E to X1, pin 9 (5 V reference), confirming continuity with a dwell meter set to 6-cylinder scale–valid waveforms show 1.2–3.8 ms intervals at idle.

Shield the entire harness: wrap the twisted pair in 3M copper foil tape, ensuring 100 % overlap and grounding the foil at a single point–merge the foil tail with pin B using a soldered 16-gauge drain wire. Avoid multiple ground points; this creates ground loops that distort the 0–5 V DC analog output. If the meter outputs erratic voltage spikes during wide-open throttle runs, recheck for foil gaps, especially where the loom exits the intake manifold boot.

Calibration resistor R2 (3.3 kΩ, 1 % tolerance) sits inline between pin D and ECM X1, pin 6. Replace factory solder joints with silver-bearing solder and heatshrink tubing; confirm resistance remains ±5 Ω across temperature swings from −40 °C to +125 °C. Incorrect R2 values cause false lean codes (P0101) and throttle hesitation at 3,500 RPM due to incorrect voltage-to-airflow scaling.

Understanding GM Airflow Meter Circuit Layouts

Locate the 5-pin connector on the GM airflow meter–it’s the standard interface for most Gen III and IV engines (LS1, LS2, LS6, LQ4, etc.). Pin A (usually pink or purple) carries the 12V reference signal from the PCM; verify voltage at key-on without engine running, expecting 4.8–5.2V. Pin B (tan or light brown) is the ground return; probe it at chassis ground–resistance should read under 0.5 ohms.

For accurate readings, the signal wire (Pin C, often yellow or orange) must stay shielded; on a 1999–2007 LS1, it feeds the PCM at pin 52. If voltage drops below 0.5V at idle or spikes above 4.5V at WOT, suspect a short to ground or a faulty ECU driver. Use a back-probe test lead to monitor real-time voltage; idle should hover at 0.8–1.2V, WOT around 3.8–4.2V.

Pin	Color (Typical)	Function	Expected Voltage
A	Pink/Purple	12V Reference	4.8–5.2V KOEO
B	Tan/Light Brown	Ground	0–0.5 ohms to chassis
C	Yellow/Orange	Signal Output	0.8–1.2V idle, 3.8–4.2V WOT

When replacing the unit, ensure harness integrity: inspect for chafed wires near the throttle body or valve cover–common failure points. On trucks (Silverado, Sierra), check the intake snorkel for moisture ingress; a soaked element will skew readings, triggering P0102 or P0103 codes. For forced-induction setups, recalibrate the ECU–stock airflow meters clamp at ~23g/s; exceeding 28g/s requires a larger unit or scaled voltage tables.

Test drive verification: log grams-per-second data while accelerating through gears. Stock LS1 baseline: 4g/s at idle, 18–20g/s at 3000 RPM, cresting 22g/s at redline. Deviations exceeding 10% indicate either a faulty meter or intake leaks–use a smoke machine to trace unmetered air pathways, focusing on the MAF-IAT coupling on LS6 engines.

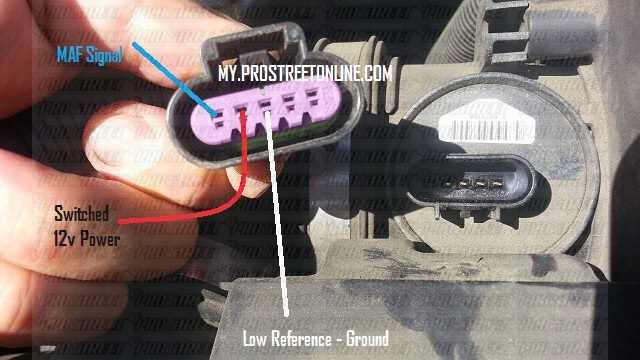

How to Identify GM Airflow Meter Connector Pinouts

Start by locating the original equipment part number etched on the housing–typically a four-to-six-digit GM service code (e.g., 25036745 or 17113194). Cross-reference this code with GM’s official service manual or a verified OEM wiring guide to isolate the exact pin configuration. Most GM airflow meters follow one of three standardized layouts: 5-pin (common in LS-series engines), 4-pin (pre-2000 Vortec), or 6-pin (later model diesel and turbo variants). Pin A or 1 (labeled “B+” or “Ign”) consistently delivers 12V switched power; measure voltage at the connector with a multimeter while the ignition is on to confirm.

Use a small-diameter probe or straightened paperclip to gently back-probe the female terminals without forcing–the terminal profile will reveal the intended signal type. Pins marked GND, RET, or SIG RTN are ground references; verify continuity between these and chassis ground. The output signal pin (SIG, OUT, or FREQ) usually sits opposite power–expect 0.5V to 4.5V DC for analog units or a 0-500Hz square wave for frequency-based designs. If the pinout legend is absent or faded, trace the harness wires by color: GM’s convention pairs yellow with a black stripe for power, black for ground, and tan or blue for the signal–though exceptions exist on vehicles built after 2010 with CAN bus integration.

Step-by-Step Guide to Diagnosing GM Airflow Meter Circuits with a Multimeter

Locate the connector for the airflow meter on your GM powertrain harness. Disconnect it from the intake assembly before proceeding. Identify the signal, ground, and power pins–typically labeled in service manuals as terminal A (12V reference), terminal B (signal return), and terminal C (ground). Use a wiring schematic specific to your vehicle’s year and model to confirm pin assignments, as discrepancies exist even between trim levels.

Set your multimeter to DC voltage mode (20V range). Probe the harness-side connector first: insert the positive lead into terminal A and the negative lead into terminal C. With the ignition on (engine off), expect a reading between 4.5V and 5.5V. A deviation below 4V indicates a faulty power supply–trace the wire back to the ECM or fusebox, checking for corroded terminals or open circuits. If voltage checks out, proceed.

Switch the multimeter to resistance mode (200Ω range). Test continuity across the signal wire (terminal B) by probing the harness-side pin against the corresponding terminal on the airflow meter itself (reconnect the component temporarily). A reading above 1Ω suggests a broken conductor–visually inspect the wire for chafing, especially near the engine bay firewall or underbody clamps. Replace damaged segments with OEM-grade wiring (18-20 AWG, cross-linked polyethylene insulation).

Verify signal integrity with the engine running. Reconnect the airflow meter and backprobe terminal B (signal) with the multimeter still in DC voltage mode. Start the vehicle and observe the reading: at idle, expect 0.5–1.5V; rev the engine to 2500 RPM–voltage should climb steadily to 2.0–4.0V. If the value spikes erratically or remains flat, the sensing element is contaminated–clean it with CRC Mass Airflow Sensor Cleaner (do not use carb cleaner or compressed air).

• Always disconnect the battery negative terminal before working on any circuit near the ECM to prevent voltage spikes.
• Use gold-plated multimeter probes to minimize contact resistance during backprobing.
• Inspect the wiring harness for rodent damage–chewed insulation is common in older GM trucks and SUVs.
• If the signal wire shows intermittent continuity, twist a thin gauge wire through the harness temporarily to confirm the fault location.
• Document voltage readings at key RPM intervals (idle, 1500, 2500, 3500) for accurate diagnosis–compare against factory service limits.

GM Airflow Meter Connector Color Standards by Model Year

For 1999–2004 Chevrolet Silverado and GMC Sierra 1500/2500 with the Vortec 4.8L, 5.3L, or 6.0L engines, locate the five-pin connector at the intake snorkel. Pin A (closest to the engine) carries the 5V reference–solid light blue. Pin B returns the signal–dark green with a white stripe. Ground is split: Pin C (black) is sensor ground, Pin D (tan) is chassis ground. Power is delivered on Pin E–pink for ignition feed.

On the 2005–2009 Buick LaCrosse 3.8L (L26/L36) and Pontiac Grand Prix, the same five-pin layout applies, but colors shift slightly. Signal return moves to yellow with a black tracer. The 5V reference stays light blue, while ground (black) remains dedicated. Ignition power jumps to red, and chassis ground swaps to brown.

The 2007–2013 Cadillac Escalade 6.2L (L92/L9H) adopts an eight-pin harness. Three pins are unused. Signal return splits: orange (low range), dark blue (high range). Reference voltage light blue stays constant. Ground (black) splits–sensor ground and chassis ground. Ignition feed switches to purple.

• 1996–2000 Chevrolet Camaro 3.8L (L36): signal tan/black, reference gray, power red, ground black/white
• 2001–2005 Pontiac Aztek 3.4L (LA1): signal yellow/black, reference light blue, power orange, ground black
• 2003–2007 Saturn Ion 2.2L (Ecotec LE5): signal light green, reference gray, power fuschia, ground brown

2010–2015 Chevrolet Equinox/Terrain 2.4L (Ecotec LE9) and 3.0L (LF1) simplify to a four-pin connector. Signal return swaps to white. Reference voltage remains light blue. Ground consolidates to black. Ignition feed uses pink.

For LS-swapped vehicles, GM’s LS1/LS6 (1997–2004) and LS2/LS3 (2005–2009) share a common six-pin harness. Signal return (tan/black) and reference (gray) match Camaro years. Power (red) and ground (black) stay unchanged. Two additional pins (dark green and light green) handle IAT integration.

Late-model GMT900 trucks (2014–2019 Silverado/Sierra) with the 4.3L LV3, 5.3L L83, or 6.2L L86 adopt a ten-pin connector. Only four pins carry airflow data. Signal return splits: yellow (low), green (high). Reference voltage light blue persists. Ground consolidates to black. Ignition feed pink stays consistent.

Verify before splicing: 2010–2016 Buick Regal, Chevrolet Malibu, and Cadillac SRX with the 2.0L LTG turbo use a unique six-pin harness. Signal return is orange, reference light blue, ground black, ignition red. IAT wires (brown and gray) are separate but adjacent.
