Complete Golf Cart Wiring Diagrams and Electrical System Schematics Guide
Start by identifying the primary power source–a 36V or 48V battery pack–depending on the vehicle’s model. Locate the positive and negative terminals and verify connectivity with a multimeter to prevent shorts or voltage drops. If readings deviate by more than 0.5V from the nominal value, inspect the battery bank for corroded terminals or loose connections.
Trace the main feed line from the battery pack to the speed controller. A 2 AWG or 4 AWG cable is typical, with thicker gauges required for systems exceeding 300 amps. Check for heat damage along the path, especially near contact points or splices. Replace any wire showing brittleness or discoloration, as it risks resistance buildup and potential failure under load.
Examine the solenoid–critical for engaging the drive system. It must receive a clean 12V signal from the ignition switch or key module. Test the coil resistance; values between 20Ω and 40Ω confirm functionality. If the solenoid clicks but doesn’t close, suspect a faulty relay or corroded contacts inside the unit.
Isolate the throttle potentiometer circuit. This component regulates motor speed by varying voltage (typically 0.5V to 4.5V). Use a scan tool or oscilloscope to confirm a smooth voltage ramp as the pedal depresses. Erratic readings indicate wear in the potentiometer or contamination in the throttle assembly.
Inspect the lighting and accessory circuits last. These often run on a separate 12V tap from the battery bank via a DC-DC converter. Verify fuse ratings (usually 10A–15A) and replace any blown fuses with the exact amperage. LED lamps and turn signals should illuminate without flickering; persistent flickering suggests a bad ground or insufficient wire gauge.
Label every wire before disassembly, using adhesive sleeves or color-coded tags. Store wires in labeled bags to prevent mix-ups during reassembly. For modifications, always refer to the original schematic–aftermarket upgrades (e.g., lithium batteries, regenerative braking) require matching wire gauges and connectors to handle increased current.
Grounding points demand attention: clean, bare metal surfaces, not painted or coated. Use star washers to penetrate oxidation, and secure connections with stainless steel bolts. A faulty ground causes intermittent power loss, dim lights, and unexplained system resets–symptoms often misdiagnosed as battery or controller issues.
Electrical Schematics for Small Utility Vehicles
Check the battery voltage first–most systems require a minimum of 36V for 3-wheel models and 48V for 4-wheel versions. Use a multimeter with a 200V DC range to verify readings at the charger port, controller terminals, and solenoid contacts. If voltage drops below 11.5V per 12V segment, replace the batteries individually rather than as a set to isolate weak cells. Label each cable with numbered tags before disassembly to avoid confusion during reassembly, especially for models with regenerative braking, which adds an extra lead to the motor.
Key Connection Points to Inspect
Begin with the accelerator pedal potentiometer–test for smooth resistance changes between 0.5kΩ and 4.7kΩ as the pedal moves. Clean the micro-switch contacts with 400-grit sandpaper if the vehicle hesitates at partial throttle. Examine the speed controller’s thermal paste; reapply Arctic MX-4 if the compound appears dried or cracked. For DC motors, verify brush length–replace if less than 5mm. Trace the forward/reverse switch wiring; frayed insulation here often causes intermittent operation. Use heat-shrink tubing rated for 125°C on all repaired joints.
Locate the main fuse holder near the battery pack–60A for standard setups, 100A for lifted or high-torque models. Replace blown fuses with the exact amperage; higher ratings risk fire. For LED taillight conversions, add a 330Ω resistor inline to prevent hyper-flashing. If the vehicle crawls at 50% normal speed, suspect a shorted field coil in the drive unit–ohm between terminals should read 0.3-0.6Ω. Keep a wiring looms repository for your specific make, as factory schematics often omit aftermarket upgrades like USB chargers or sound systems.
Core Elements of Compact Electric Vehicle Circuit Layouts
Begin by labeling all primary terminals before connecting any cables to avoid misalignment. The power source–a 36V or 48V battery bank–supplies energy to the main contactor, which acts as a safety disconnect between the batteries and motor controller. Install a 200-300A fuse or circuit breaker within 7 inches of the battery’s positive terminal to prevent overheating or electrical fires. Route heavy-gauge cables (4-6 AWG) directly from the batteries to the controller, minimizing bends to reduce voltage drop. The motor controller regulates speed by adjusting current flow to the traction drive, while a separate solenoid engages reverse operation when the direction key is toggled.
Critical Subsystems
- Speed Sensor: Mount near the traction unit’s output shaft; outputs pulses to the controller for accurate throttle response. Calibrate with a multimeter (1-4V signal range).
- DC Converter: Steps down voltage for accessories (12V for lights, horn, gauges). Verify output with a load test–expect 13.5-14.5V under active draw.
- Throttle Potentiometer: Replace if resistance deviates ±10% from the 0-5kΩ range. Clean contacts with electronic cleaner to eliminate erratic acceleration.
- Charger Receptacle: Use a 3-pin Anderson connector for 36V/48V chargers. Confirm polarity with a voltmeter before plugging in.
- Brake Switch: Wired in series with the throttle; disengages power during braking. Adjust activation point to engage 1/8″ before full pedal travel.
Secure all connections with heat-shrinking tubing or dielectric grease to prevent corrosion in humid conditions. Test each subsystem independently before full assembly–isolate faults by checking continuity and voltage at each node with the vehicle tilted (to simulate incline operation).
Decoding Electrical Blueprints for Vehicle Auxiliary Systems
Locate the power source symbol–typically a battery icon with “+” and “−” terminals–and trace the primary conductor lines outward. Solid lines indicate direct connections, while dashed lines denote switched or fused pathways. Components like solenoids, motors, and controllers are labeled with identifiers (e.g., “M1” for motor, “S1” for solenoid), cross-referenced in the legend. Measure voltage at key nodes: the battery terminals should read 36V, 48V, or 72V depending on the system’s nominal rating, while downstream nodes like the speed controller input must match within ±2V to confirm integrity.
Interpreting Fault Indicators
Observe color-coding: red wires carry positive current, black or brown serve as ground, and yellow or blue often handle accessory circuits. A variance in expected voltage at any point–e.g., 0V at the controller input when the ignition is engaged–signals an open circuit or failed relay. Use a multimeter in continuity mode to verify splices and connectors; a reading above 0.5 ohms suggests corrosion or loose terminals. Replace damaged wires if insulation is frayed or if splices show oxidation, as these faults cause voltage drops exceeding 0.3V per foot under load.
Step-by-Step Guide to Assembling a 36V Electric Vehicle Power Setup

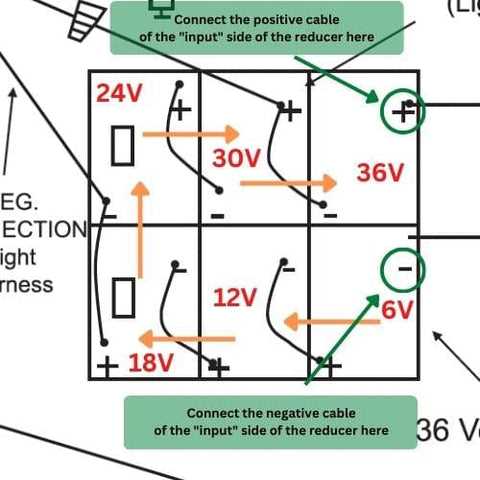

Begin by arranging six 6V deep-cycle batteries in series to achieve the required 36V output. Confirm each unit has a matching amp-hour rating–mixing capacities reduces efficiency and shortens lifespan. Use a multimeter to verify voltage before connecting; readings between 6.2V and 6.4V per cell indicate proper charge.
Select 4 AWG copper cable for main connections. Stranded wire resists vibration better than solid core, critical for mobile applications. Cut lengths precisely–excess cable creates voltage drop, while too little strains fittings. Strip 0.5 inches of insulation, twist strands tightly, and apply corrosion-resistant grease before crimping terminal lugs.
Essential Connection Order
| Step | From Battery | To Battery | Tool Required |
|---|---|---|---|
| 1 | Positive (1) | Negative (2) | Crimping tool, 10mm wrench |
| 2 | Positive (2) | Negative (3) | Insulated gloves |
| 3 | Positive (3) | Negative (4) | Heat shrink tubing |
| 4 | Positive (4) | Negative (5) | Torque screwdriver (12 Nm) |
| 5 | Positive (5) | Negative (6) | Cable cutter |
Attach the final positive lead from battery 6 to the main solenoid. Route cables away from moving parts and secure with nylon clamps every 12 inches. Avoid sharp edges–use spiral wrap for additional protection where bends occur near chassis contact points.
Install a 200A circuit breaker between the last battery’s positive terminal and the solenoid. This safety device trips at 135% of normal operating current (typically 150A for 5HP motors). Mount it within 7 inches of the battery pack to minimize resistance in fault conditions.
Final System Checks
Test continuity from the battery pack’s positive to the motor controller input using a low-ohm setting on the multimeter. Resistance should read below 50 milliohms–higher values indicate loose connections or corroded terminals. Check voltage sag under load: with the throttle engaged, readings should not drop below 35V at the controller input.
Apply dielectric grease to all exposed metal surfaces before sealing junctions with heat-shrink tubing. For environments with high moisture exposure, use marine-grade shrink tubing with adhesive lining. Label each cable with its corresponding destination (e.g., “Controller Input,” “Solenoid Coil”) to simplify future maintenance.
