How to Wire Goodman Heat Strip Step-by-Step Guide with Diagram
For installation involving a 5 kW auxiliary resistive coil, connect the red (R) terminal to the 240V hot leg of the circuit breaker. The black (Bk) wire should attach to the opposing hot leg, ensuring 30-amp double-pole protection is in place. Verify the wiring sequence matches the manufacturer’s schematic numbering, typically labeled L1, L2, and N on the control board to prevent reverse polarity faults.

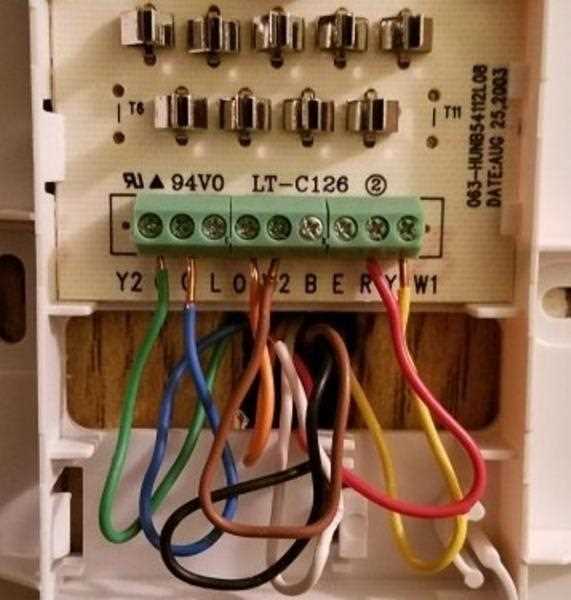

If integrating a sequencer relay, route the yellow (Y) control wire from the thermostat to the low-voltage input marked Y1 on the relay. Use 18-gauge solid copper for thermostat connections, avoiding stranded wire to reduce voltage drop over extended runs. Confirm the common (C) terminal is linked to a dedicated 24V transformer return, bypassing potential interference from shared neutral lines.
Check resistance readings across the element coils before energizing. A functional 5 kW unit measures between 9–12 ohms; readings outside this range indicate degradation or internal shorting. Secure all connections with crimped ring terminals rated for 60°C minimum–loose strands can cause arcing. Ground the chassis via a green/bare wire to the equipment grounding bus, never to the neutral bar.
Label all high-voltage wires with heat-shrink tubing or adhesive tags. Misidentified circuits during service can result in catastrophic failure of safety controls. Install an emergency disconnect within 3 feet of the unit, complying with NEC 422.31. For dual-element configurations, stagger activation through the sequencer to prevent simultaneous inrush current exceeding 40 amps.
Electrical Schematic for Supplemental Resistance Heating Components
Ensure the power disconnect switch is off before handling any connections. Verify the circuit breaker rating matches the unit’s voltage requirements–typically 208/240V for dual-pole breakers on residential systems. Locate the terminal block inside the air handler cabinet; label wires with masking tape to prevent misplacement during reassembly. Use 10-gauge copper wire for sequences rated above 10 kW and 12-gauge for lower capacities. Avoid aluminum conductors due to oxidation risks at connection points.
Key Connection Points
- Supply Lines (L1/L2): Attach to the dedicated double-pole breaker ensuring phase alignment; reverse polarity trips safety relays.
- Heating Element Terminals: Secure nuts with a torque wrench set to 15-20 in-lbs–overtightening cracks porcelain insulators.
- Sequencer Coil Wires: Connect to the thermostat’s auxiliary stage; miswiring causes erratic cycling.
- Internal Limit Switch: Bypass only for testing; permanent bypass voids UL certification.
Test functionality with a multimeter set to continuity mode. Place probes across each resistive element; infinite resistance indicates an open circuit requiring replacement. For 40-amp systems, expect ~6 ohms per kilowatt of capacity. Document voltage drops across leads–differences exceeding 5% signal corroded connections or undersized wiring. After verification, reassemble the access panel and restore power via the disconnect switch. Activate the thermostat’s emergency mode to confirm sequential engagement without arcing or overheating.

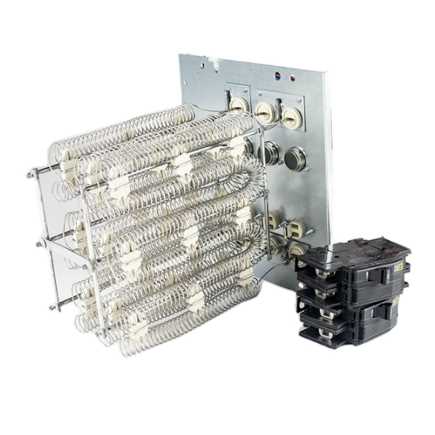

Pinpointing Critical Elements in Electric Resistance Heater Assembly Configurations
Begin by locating the sequencer–typically a relay-driven device measuring 2×3 inches with spade terminals marked “L1,” “L2,” “T1,” and “T2.” Verify its coil voltage matches the control circuit (24V for most residential units). If voltage drops below 22V under load, expect erratic cycling; replace the sequencer if resistance across coil contacts exceeds 3 ohms. Check adjacent fuses rated 3-5A–undersized fuses melt during startup surges common in 5kW+ elements.
| Component | Typical Specifications | Failure Indicators |
|---|---|---|
| Heating coils | 10-20A draw, nichrome wire on ceramic core | Discoloration, reduced airflow output, tripped breakers |
| Limit switch | Bimetallic disk, opens at 160-180°F | Intermittent cuts, welded contacts |
| Contactor | 24V coil, 30-60A contacts | Pitted contacts, humming under load |
| Transformer | 40VA rating, primary 208/240V | Burnt smell, secondary output |
Inspect resistive coils for uniform brightness–uneven glow signals imminent failure. Measure continuity between element terminals; readings above 5 ohms indicate degraded performance (replace if exceeding 10 ohms). Verify airflow first–blocked filters cause cascading overheating, triggering limit switches. Use a clamp meter to confirm current draw aligns with nameplate ratings (16-20A per 5kW bank).
Examine high-limit switches for proper reset; manual reset models require deliberate button presses, while auto-reset types may fail silently. Test switch operation with a multimeter: continuity should break at 160°F (±10°). For electronic boards, probe voltage regulators–output should stabilize at 5V for logic circuits, 12V for relays. Never bypass safety controls; doing so risks fire hazards from unrestricted current flow.

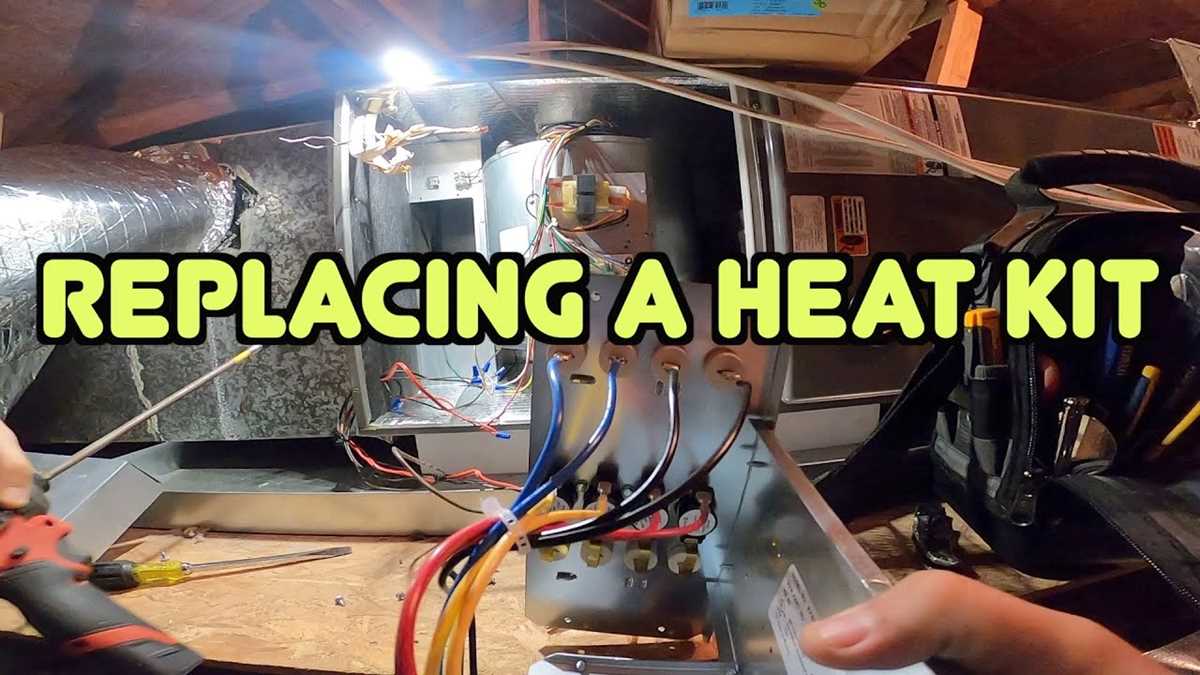

Installation Procedure for Auxiliary Heating Elements in Climate Control Units
Disconnect power at the circuit breaker before handling internal components. Ensure the breaker is labeled to prevent accidental reactivation. Use a multimeter set to voltage mode to verify absence of current between all terminals and the unit’s chassis. One probe on the input line and the other on a grounded surface confirms safe conditions. Failure to validate zero voltage increases risk of electric shock.
Remove the access panel from the air handler by unscrewing the fasteners–typically Phillips-head or hex screws. Locate the factory-installed heating coil bracket adjacent to the blower assembly. Compare the new coil’s rating plate to the original; mismatch in wattage or voltage requires recalibration of the sequencer. Align the mounting holes and secure the new coil with stainless steel screws to prevent corrosion. Torque to 8-10 in-lbs; overtightening damages threads.
Identify the low-voltage control wires (usually red and white) from the thermostat and high-voltage supply lines (typically black and red) from the breaker. Attach the coil’s lead wires–blue to the sequencer’s output terminal marked “H1” and black to “H2.” Use crimp connectors or solder with shrink tubing for secure joints; twist-and-tape methods degrade over time. Route wires away from moving parts and sharp metal edges, securing with zip ties every 8 inches to prevent abrasion.
Reinstall the access panel, ensuring the gasket seals fully to prevent air leaks. Restore power at the breaker and set the thermostat to emergency mode. Observe the coil’s operation for 5 minutes; listen for consistent humming and check for even warmth across the element. If tripping occurs, verify the sequencer’s delay settings–factory default is 30 seconds per stage. Record the installation details, including date, coil model, and breaker amperage, for future troubleshooting.
Frequent Electrical Configuration Errors and Correction Methods
Reversing line and load connections on the auxiliary heating element leads to immediate system failure. Verify the 240V supply lines are attached to the labeled terminals–typically marked L1 and L2–using a multimeter set to AC voltage. Confirm readings match the rated input (e.g., 208–230V) before proceeding. Miswiring here often trips breakers or blows fuses without heating activation, leaving diagnostic clues in the distribution panel.
Skipping the neutral conductor in single-phase configurations causes erratic operation. While some installations omit it, improperly balanced loads between hot legs may create excessive current draw, overheating contacts. Measure voltage across both legs to ensure symmetry (±5V tolerance). If imbalance exceeds limits, recheck conductor sizing against the manufacturer’s specifications–undersized wires generate resistance-based heat, degrading performance.
Improperly secured splices inside the unit’s junction box can loosen over time, creating intermittent connections. Use crimp connectors with heat-shrink tubing for solid-state joints, avoiding twisted wire nuts in high-vibration environments. Inspect terminations after reassembly–oxidation on aluminum components requires scouring with a wire brush and antioxidant compound. Loose strands increase resistance, elevating fire risk in confined spaces.
Neglecting to verify thermostat compatibility with staged auxiliary heating systems leads to short cycling. Ensure subbase relays match the unit’s ampacity rating; 20A relays fail under 25A loads, causing premature wear. Replace mismatched relays immediately–symptoms include delayed engagement or audible buzzing. Test continuity across relay contacts under load to confirm proper switching action.
Misaligned sequencers cause cascading failures by engaging heating coils out of order. Confirm wiring follows the schematic’s stage progression–typically stage 1 (fan-only), stage 2 (primary coil), stage 3 (secondary coil). Use a clamp meter to monitor current draw per stage during startup; abnormal readings indicate incorrect sequencing. Re-sequence modules by adjusting control board jumpers if errors persist.
Overlooking safety limit switches during installation risks overheating hazards. Bypass tests (with caution) can confirm switch functionality–tripped limits halt power to coils until manual reset. Locate switches near heat exchangers; debris accumulation triggers false trips. Clean contacts with isopropyl alcohol if corrosion is present, but replace defective switches immediately–modified units void certification, exposing occupants to fire hazards.
