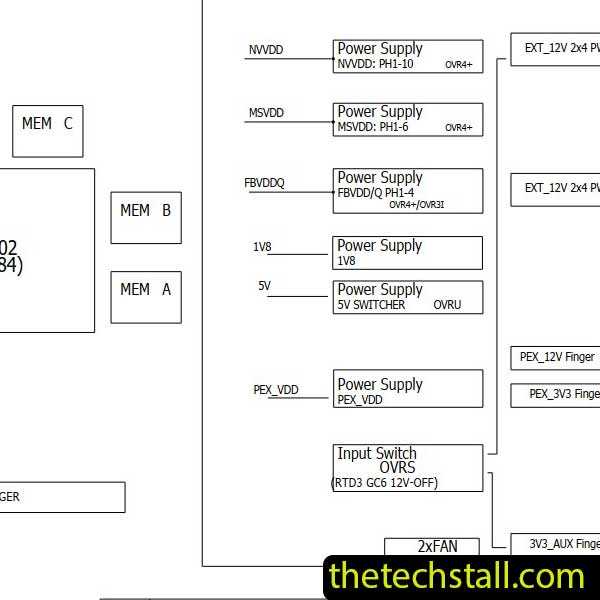

Complete Guide to GTX 560 Ti GPU Internal Circuitry and Block Diagram

To analyze the internal power distribution of the GF114 core–found in high-performance mid-range graphics cards like the 2011-era 1 GB GDDR5 variant–start with the voltage regulation modules (VRMs). The reference design uses four-phase buck converters for the GPU core, each phase delivering up to 25A at 1.0–1.175V. Trace the PCB pathways from the PWM controller (typically an uPI Semiconductor UP6206 or ON Semiconductor NCP5388) to the MOSFETs and output coils. Verify the feedback loop resistors (usually 0.5–1.5 mΩ shunts) for accurate voltage sensing.

The memory interface relies on two independent 64-bit GDDR5 channels, each controlled by Elpida or Samsung memory chips (model EDW1032BBBG or K4G10325FE-HC04). Examine the termination resistors near the memory pads–they should measure 10–30 Ω per line. Check the power delivery network for the memory, which typically uses single-phase VRMs with 1.5–1.6V output, often handled by an Anpec APW7166 or similar controller.

For signal integrity, focus on the PCIe lanes and the display outputs. The PCIe x16 interface connects directly to the GPU core via AC coupling capacitors (usually 0.1 µF) on the TX/RX pairs. The HDMI/DisplayPort outputs use redriver chips (e.g., Parade PS8381 for HDMI) to maintain signal strength over long traces. Check the pull-up/pull-down resistors around the redriver circuits–values should be 4.7–10 kΩ for I²C lines.

When diagnosing power delivery failures, measure the gate drive signals from the PWM controller. A healthy signal should show 5V pulses @ 200–600 kHz with sharp rise/fall times (~10 ns). If the output voltage sags under load, inspect the input capacitors (usually 22–47 µF ceramics) near the VRMs–bulging or discolored components indicate failure. For memory overclocking stability, adjust the memory VDDQ voltage in 25 mV increments, but keep it below 1.7V to avoid silicon degradation.

Reference board designs often include critical sense lines routed back to the GPU core for real-time voltage monitoring. These traces are susceptible to noise coupling–ensure they are shielded with ground planes and avoid running parallel to high-speed signals. For cross-die signal analysis, probe the internal PLLs (locked at 5.5 GHz in standard operation) and the ROP/L2 cache interfaces, which toggle at 1.5 GHz. Use a 500 MHz bandwidth oscilloscope with active differential probes to capture these signals without loading the circuit.

Understanding the Reference Board Layout of NVIDIA’s Fermi-Based GTX Variant

Locate the voltage regulator module (VRM) configuration near the PCIe connector–four phases for core power and two for memory, each paired with solid capacitors rated at 25V. This arrangement ensures stable power delivery under peak loads (up to 170W), but verify the inductors for signs of thermal stress if overclocking beyond 900 MHz; marginal cooling at these frequencies risks throttling. The auxiliary power pins (6-pin + 8-pin) must connect directly to the PSU rails without adaptors to prevent transient voltage drops.

Trace the memory interface from the GF114 core to the GDDR5 modules: eight 1 Gb chips from Samsung (K4G10325FE-HC05) or Hynix (H5GQ1H24AFR-T2C) operating at 4.0 GHz, organized in a 256-bit bus. Each chip tolerates 1.5V ±50mV; exceeding this during voltage tweaks shortens lifespan by accelerating electromigration. For signal integrity, ensure the termination resistors (33Ω) on the PCB’s backside remain intact–damaged resistors degrade memory bandwidth by 8-12%.

Examine the display output circuitry: one dual-link DVI, HDMI 1.4a, and mini DisplayPort 1.2, each routed through a Pericom PI3EQX7701 redriver IC. This IC compensates for signal attenuation over cables longer than 2 meters, but introduces ~50ms input lag–disable it via registry tweak (`TdrDelay=10`) if latency-sensitive tasks demand reaction times below 16ms. The fan header’s PWM control follows a linear curve up to 45% duty cycle, then switches to a more aggressive profile; replace the stock thermal paste (MX-4) with Conductonaut if temperatures exceed 78°C core under FurMark load.

Key Components Layout in Nvidia Fermi-Based Accelerator Board

Locate the GF114 processing cluster near the PCB’s center–this 3 billion-transistor die spans 332 mm² and must align within 1 mm of the designated power lanes (highlighted in red on revision B2 substrates). Misalignment beyond ±0.2 mm disrupts VDD_Core delivery, causing throttle cycles detectable via GPU-Z voltage readings below 0.95 V under TDP load. Verify the anisotropic conductive film pad array width: 12.5 mm x 10.8 mm, same as TI’s 4-phase VRM footprint surrounding it–deviations exceeding ±0.05 mm necessitate board respin.

Voltage Regulation and Memory Interface Mapping

VRM Phase	Controller IC	Coil Footprint	Output Capacitor (μF)	Thermal Margin (°C)
VDD_Core	IR3567B	8×8 mm (GoldDragon)	4x 270 (POSCAP)	15–20
VDD_Memory	UP1668	6×6 mm (Coiltronics)	2x 180 (MLCC X5R)	10–12
PLL_AVDD	Linear LT3080	None (LDO)	1x 10 (ceramic)	5

Prioritize trace routing from the memory controller to GDDR5 modules–keep impedance-matched lines (Z₀ = 60 Ω ± 5%) under 2.8 cm; lengths beyond risk signal integrity collapse at 4 GHz QDR, evidenced by artifacting in FurMark ‘Xtrem’ benchmark. Replace heat spreaders only after confirming thermal adhesive bond line thickness: Arctic MX-4 averages 45 μm, stock pads exceed 60 μm–excess material skews junction-to-case delta by +3°C/W.

Check the PCIe link training resistors near the bracket–values of 560 Ω (R37/R38, unpopulated pads) dictate Gen2 fallback; shorting them forces Gen3, but violates PCI-SIG specs unless the southbridge supports re-negotiation. The 3-pin fan header (J19) tolerates 2.5 A stall current; substitute with Molex LPH4 connector if replacing coolers exceeding 8 W input.

Step-by-Step Power Delivery Circuit Analysis for NVIDIA’s Fermi-Based TI Variant

Locate the primary voltage regulator module (VRM) near the PCIe power connectors. The TI variant employs a 4+1 phase design: three phases for the core, one for memory, and an auxiliary phase for auxiliary logic. Identify the UPI ug5341 PWM controller (labeled U1) on the PCB–this orchestrates the entire power sequencing. Probe pins 5 (VCC), 7 (EN), and 12 (PG) to confirm input voltages of 5V, 1.8V, and 3.3V respectively before proceeding.

• Core Phase Analysis: Each core phase uses an International Rectifier IR3553 high-side MOSFET (Q1-Q3) paired with two IR3556 low-side MOSFETs (Q4-Q9). Measure gate-to-source voltage on Q1-Q3–expect 12V pulses synchronized with the PWM signal from U1.
• Inductor Verification: Examine the three 0.68μH inductors (L1-L3) downstream of Q9. Under load, ripple current should not exceed 15% of the nominal 18A per phase. Use an oscilloscope to confirm DC bias and AC ripple remain within ±50mV.
• Sense Resistors: Check the 1mΩ, 1% precision shunt resistors (R1-R3) between the inductors and VCORE output. Voltage drop across these should align with U1’s current monitoring pins (22-24). Any deviation exceeding 20mV indicates a defective phase.

Memory rail stabilization requires precise decoupling. The single-phase memory VRM, controlled by a dedicated ug5341 channel (U2), feeds the GDDR5 modules through a Vishay Si7866AD MOSFET (Q10) and a 0.47μH inductor (L4). Capacitance at the output stage includes four 470μF electrolytic capacitors (C1-C4) in parallel with twelve 22μF ceramic capacitors (C5-C16). Remove any C5-C16 showing ESR above 3mΩ–compromised ceramics introduce 200MHz noise artifacts.

1. Attach a differential probe to Q10’s drain and output node (L4 junction). Verify switching frequency matches U2’s SRT pin (8) setting–typically 300kHz. Subharmonic oscillations (>2MHz) suggest gate drive starvation; replace R4 (4.7Ω) if gate charge exceeds 30nC.
2. Monitor the VMEM rail during load transitions. Overshoot must not exceed 1.575V (5% above 1.5V nominal). Insert a 10μF, 6.3V MLCC at C17 if transient spikes persist.
3. Cross-reference U2’s COMP pin (9) output with a simulated load step. A well-tuned loop should settle within 20μs–adjust R5 (33kΩ) and C7 (2.2nF) to correct slow recovery.

Auxiliary logic power (Vaux) originates from a linear regulator (U3, AP2112-1.8) stabilized by two 10μF MLCCs (C18, C19). Unlike the switched regulators, Vaux tolerates no PWM artifacts–any high-frequency noise here corrupts PLL operation. Check U3’s input voltage: PCIe 12V must remain between 11.8V and 12.2V to prevent dropout at the 1.8V output. Replace U3 if output ripple exceeds 10mVpk-pk.

• PLL Filtering: The PLL rail derives from Vaux through a π-filter (L5=1μH, C20-C21=1μF). Remove L5 if impedance sweeps reveal self-resonant frequencies below 1GHz–ferrite beads introduce phase shifts detrimental to clock stability.
• Protection Triggers: Scrutinize the OCP and OVP thresholds on U1’s pins 19 (OC_FAULT) and 20 (OV_FAULT). Inject a controlled overcurrent (asymmetrical pulse, 25A) and confirm U1 latches after 8μs–clearing requires PCIe reset. Replace U1 if hysteresis exceeds 5%.

Load-sharing integrity hinges on inter-phase synchronization. Probe U1’s pins 3 (CLK_OUT) and 4 (PWM_COMP) with a 100Ω, 5pF passive probe. Phase skew between core phases must remain under 10ns–any drift indicates cracked vias on U1’s 1.0mm pitch BGA. Reflow the PWM controller with lead-free solder (Sn96.5Ag3Cu0.5) if manual resync fails.

Final validation involves transient response under combined core and memory stress. Execute a synthetic load (e.g., FurMark + CUDA-Z) while capturing:

• VCORE ripple at L2’s output (≤40mVpk-pk).
• VMEM overshoot at C4’s positive terminal (≤1.58V).
• Vaux stability at C19 (≤5mVpk-pk).

Replace Q1-Q3 or Q4-Q9 if any MOSFET’s Rds(on) exceeds 4.5mΩ at 85°C. Document ESR for all bulk capacitors–values above 8mΩ at 100kHz necessitate recapping to prevent long-term drift.
