DIY H Bridge Motor Controller Circuit Design and Wiring Guide

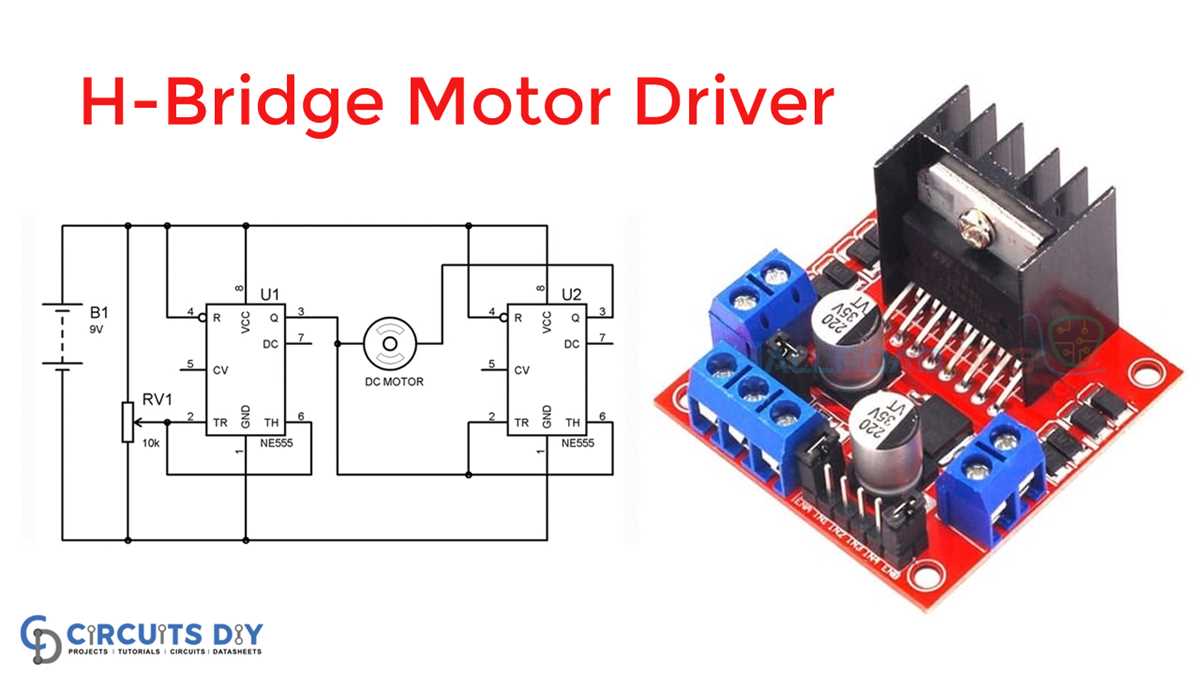

Select an H-bridge configuration with complementary NPN/PNP transistors for applications requiring precise speed regulation under 12V. Use TIP120/125 pairs for currents up to 5A; beyond this, opt for IRF540N/IRF9540 MOSFETs with integrated flyback diodes. Place 0.1µF ceramic capacitors between supply rails near switching elements to suppress voltage spikes exceeding 200kHz.
Integrate PWM frequency between 1kHz–20kHz–lower ranges reduce switching losses in inductive loads, while higher frequencies minimize audible noise. For microcontroller-based systems, ensure dead-time insertion of 1–5µs to prevent shoot-through; Arduino’s TimerOne library provides automated dead-band generation. Include 2.2kΩ pull-down resistors on MOSFET gates to prevent floating inputs during power-up.
Avoid simple diode-based protection for back-EMF; use bidirectional TVS diodes (e.g., 1.5KE18CA) across terminals for voltages above 18V. For battery-powered setups, insert a Schottky diode (SB560) in series with the supply to prevent reverse polarity damage. Test transient response with an oscilloscope–ringing above 5V peak indicates insufficient gate resistance; increase to 10Ω–100Ω empirically.
Thermal management dictates longevity: mount switching components on heatsinks with ≥10°C/W rating for continuous 3A+ operation. For compact designs, use PCB copper pours as thermal vias; aim for ≥2oz thickness to dissipate 2W/cm². Validate functionality by measuring current draw at stall–deviation beyond ±10% suggests incorrect component sizing or parasitic resistance in traces.
Designing a Robust Half-Bridge Control Assembly
Select MOSFETs with a low RDS(on) (under 10 mΩ for 10 A loads) and fast switching speeds (turn-on/off times below 50 ns). Pair IRF540N or SI4435DDY devices with gate resistors of 10 Ω–22 Ω to suppress ringing and prevent shoot-through during dead-time intervals of 0.5 µs–1 µs.

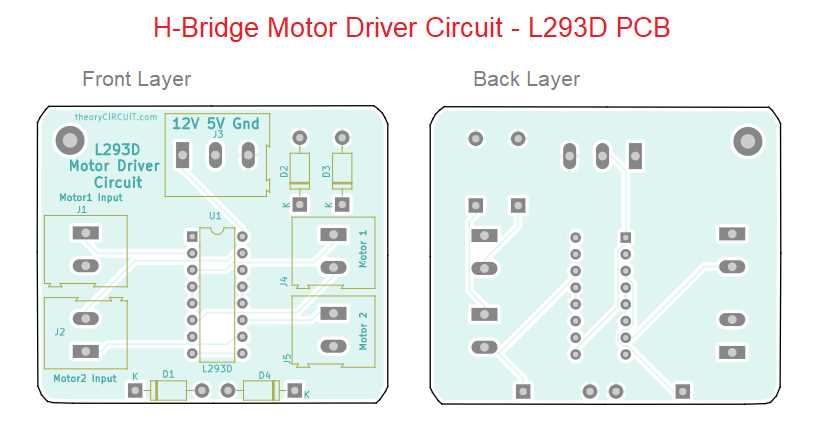

Integrate dedicated half-bridge ICs like DRV8871 or L298N only if layout constraints demand it; discrete FETs deliver 30–40% lower conduction losses. Place gate drivers (e.g., TC4427A) within 1 cm of FET gates to minimize parasitic inductance while ensuring logic-level isolation via optocouplers (6N137) for microcontroller PWM signals above 20 kHz.
Heat dissipation dictates trace width–use 2 oz copper with 3 mm traces per ampere for continuous loads; add thermal vias directly beneath FET tabs, spaced ≤ 2 mm apart. Snubber networks (10 Ω + 0.1 µF RC) across each FET pair suppress voltage spikes exceeding 1.5× VCC, while reverse polarity protection via a P-channel MOSFET saves from catastrophic failure during wiring errors.
Ground returns must converge at a single star point adjacent to the bulk capacitor (electrolytic 100 µF + MLCC 1 µF); split analog and power planes to eliminate PWM-induced noise coupling into hall sensor or encoder lines. Leave 5%–10% dead-time margin in firmware to guarantee no overlap regardless of propagation delays or temperature drift–code this as a timer interrupt rather than delay loops.
Step-by-Step Guide to Constructing a Simple Electronic Control Assembly from Ground Up

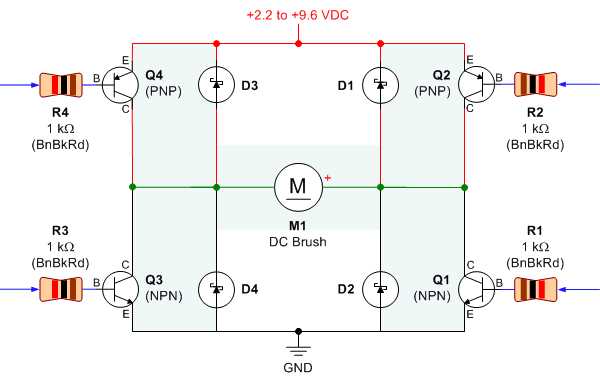

Gather these components first: four NPN transistors (e.g., 2N2222), four diodes (1N4007), a DC power source (5V–12V), a dual-channel switch or microcontroller (e.g., Arduino), jumper wires, and a load (e.g., small DC mechanism). Verify voltage ratings match your power supply to prevent component damage.
Arrange the transistors in pairs, forming an X configuration. Each pair must share a common emitter and collector connection. Place the first pair (Q1, Q2) with emitters tied to ground; the second pair (Q3, Q4) connects emitters to the positive rail. Cross-couple bases: Q1’s base links to Q4’s collector, Q2’s base to Q3’s collector.
Insert diodes parallel to each transistor, cathode toward the positive rail. This protects against back EMF generated when the load’s magnetic field collapses. Ensure diode orientation prevents short circuits–double-check with a multimeter in continuity mode before powering up.
Wire the control signals to the transistor bases. Use pull-down resistors (1kΩ–10kΩ) to prevent floating inputs. For manual testing, connect momentary switches between bases and positive rail; for automated control, attach a microcontroller’s digital pins (ensure current limits–use base resistors if needed).
Connect the load between the two central junctions where the transistor pairs intersect. If powering a coil-based device, confirm current draw doesn’t exceed transistor ratings (e.g., 2N2222 handles ~800mA). For heavier loads, substitute with MOSFETs (e.g., IRF540N) or add heatsinks.
Test polarity switching with a 5V supply and a low-power indicator (e.g., LED + resistor). Activate Q1/Q4 to drive the load in one direction, then Q2/Q3 for reverse. Observe voltage at the load terminals–expect near-supply voltage in one state, near-zero in the opposite. If inconsistent, measure base voltages; verify no shorts between transistor legs.
Troubleshoot by isolating sections. If the load fails to reverse, check base drive signals–ensure complementary activation (Q1/Q4 or Q2/Q3, never both pairs simultaneously). For overheating, reduce duty cycle or swap transistors. If diodes conduct continuously, reverse their polarity. Log measurements at each node for systematic debugging.
Optimize by adding capacitors (0.1µF) across the power rails to filter noise, especially near rapidly switching components. For PWM control, ensure transistor switching speeds match the frequency–older BJTs may struggle above 1kHz. Document your configuration, noting component values, wire colors, and test results for future reference or scaling.
Key Elements and Their Functions in a Bi-Directional Power Controller
Select switching transistors with current ratings exceeding your actuator’s peak draw by at least 30%. MOSFETs like the IRF540N handle 33 A continuously, while bipolar Darlington arrays such as the TIP120 manage 5 A but require less gate drive complexity. For inductive loads, ensure reverse voltage protection diodes are ultrafast recovery types (UF4007) or Schottky variants (1N5822) to clamp flyback transients below the transistor’s breakdown threshold.
Gate drivers must supply sufficient charge to fully enhance MOSFET channels within 100 ns. Dedicated ICs like the TC4427 deliver 1.5 A peak current, reducing switching losses by 40% compared to discrete BJT drivers. Opto-isolated drivers (ISO5852) introduce 15 ns propagation delay but eliminate ground loops in applications where the control logic shares no common reference with the power stage.
Pulse-width modulation frequencies between 20 kHz and 50 kHz balance audible noise and thermal efficiency. Below 15 kHz, mechanical resonance may occur; above 100 kHz, switching losses dominate. Use ceramic capacitors (X7R dielectric) rated for 1.5× the supply voltage across input terminals to absorb ripple currents exceeding 2 A. Film capacitors (MKP) offer lower ESR for high-frequency decoupling at the expense of bulkier footprints.
Component Trade-offs in High-Current Applications
| Component | Advantage | Disadvantage | Recommended Use Case |
|---|---|---|---|
| MOSFET (e.g., IXFN50N120) | Low RDS(on) (25 mΩ) | Requires >10 V gate drive | 12 V–60 V systems >10 A |
| IGBT (e.g., IRG4PC40W) | Simplified drive circuitry | Slower turn-off times | High-voltage DC (100 V+) >20 A |
| Integrated Half-Bridge (DRV8871) | Built-in protection (UVLO, OCP) | Limited to 3.6 A continuous | Battery-powered devices |
Snubber networks tame voltage spikes exceeding 100 V/μs during commutation. A series RC network (10 Ω, 0.1 μF) across each switching element can reduce peak overshoot by 60%. For microstepping applications, current-sense resistors must exhibit low thermal drift (
Thermal management dictates reliability. Calculate heatsink requirements based on worst-case conduction losses: Ploss = Iload² × RDS(on). For a 20 A load and 50 mΩ on-resistance, dissipation reaches 20 W. Extruded aluminum profiles with 5°C/W thermal resistance require forced-air cooling at ambient temperatures above 50°C. Consider liquid cooling for continuous loads exceeding 30 A.
Fault Protection Mechanisms
Implement hardware-based shutoff for overcurrent conditions exceeding 120% of rated capacity. A window comparator (LM393) with 100 ns response time disables both high-side switches if sense voltage surpasses a predefined threshold. Prevent shoot-through by introducing 50 ns dead-time between complementary signals using a dedicated IC (e.g., HIP4081A) or adjusting microcontroller PWM registers. Soft-start sequences limit inrush currents to 3× nominal by ramping duty cycle from 0% to 100% over 50 ms.
Common Mistakes When Wiring a Bidirectional Control Setup and How to Avoid Them
Reverse the power supply polarity during testing only after confirming the control inputs are inactive. Applying voltage backward with signals enabled instantly destroys low-side transistors due to shoot-through, often missed when bench-testing small prototypes. Always wire a dual Schottky diode pair (e.g., 1N5819) across each switching element as a failsafe–this clamps voltage spikes to ~0.3V, protecting against accidental polarity swaps.
Neglecting decoupling capacitors invites erratic behavior or thermal runaway. Solder a 0.1µF ceramic capacitor directly between the supply pins of each half-bridge IC and a bulk electrolytic (47µF–100µF) at the power entry point. Test with an oscilloscope set to 50mV/division to catch voltage droop exceeding 0.8V under load; if present, add parallel capacitance until droop stabilizes below 0.5V.
Overlooking dead-time insertion causes crossover conduction, even in integrated controllers with “built-in” protection. Manually verify complementary PWM signals on a dual-channel scope–adjust dead-time to at least 2µs for MOSFETs (e.g., IRF540N) and 1µs for IGBTs. Ignoring this guarantees unrecoverable failure within minutes under continuous 2A load.
Incorrect Heat Sinking Leads to Premature Failure
- Assume a TO-220 package dissipates 1W per °C rise–attach a heatsink capable of 15°C/W or better for 20W dissipation.
- Use thermal adhesive (not paste) for mechanical stability; recheck clamping pressure after 24 hours as adhesives cure unevenly.
- Mount sensors (e.g., TMP36) on the transistor tab, not the PCB, to measure true junction temperature within 5°C of actual.
Wrong gate resistor values oscillate or slow switching speeds, increasing losses. Start with 10Ω for high-side drivers (e.g., IR2104) and 22Ω for low-side–scope the gate-source waveform to ensure rise/fall times under 50ns. Replace resistors with ferrite beads (e.g., BLM18PG331SN1L) if ringing exceeds 1V peak.
Forgetting to isolate grounds creates ground loops, corrupting logic signals. Use a single-point star ground for all control circuitry and route heavy-current returns directly to the power source, never sharing traces with signal paths. Measure DC offset across the star point with a 6.5-digit multimeter–correct layouts show less than 10mV under full load.
