Complete Guide to Connecting a Hall Sensor Step by Step Wiring

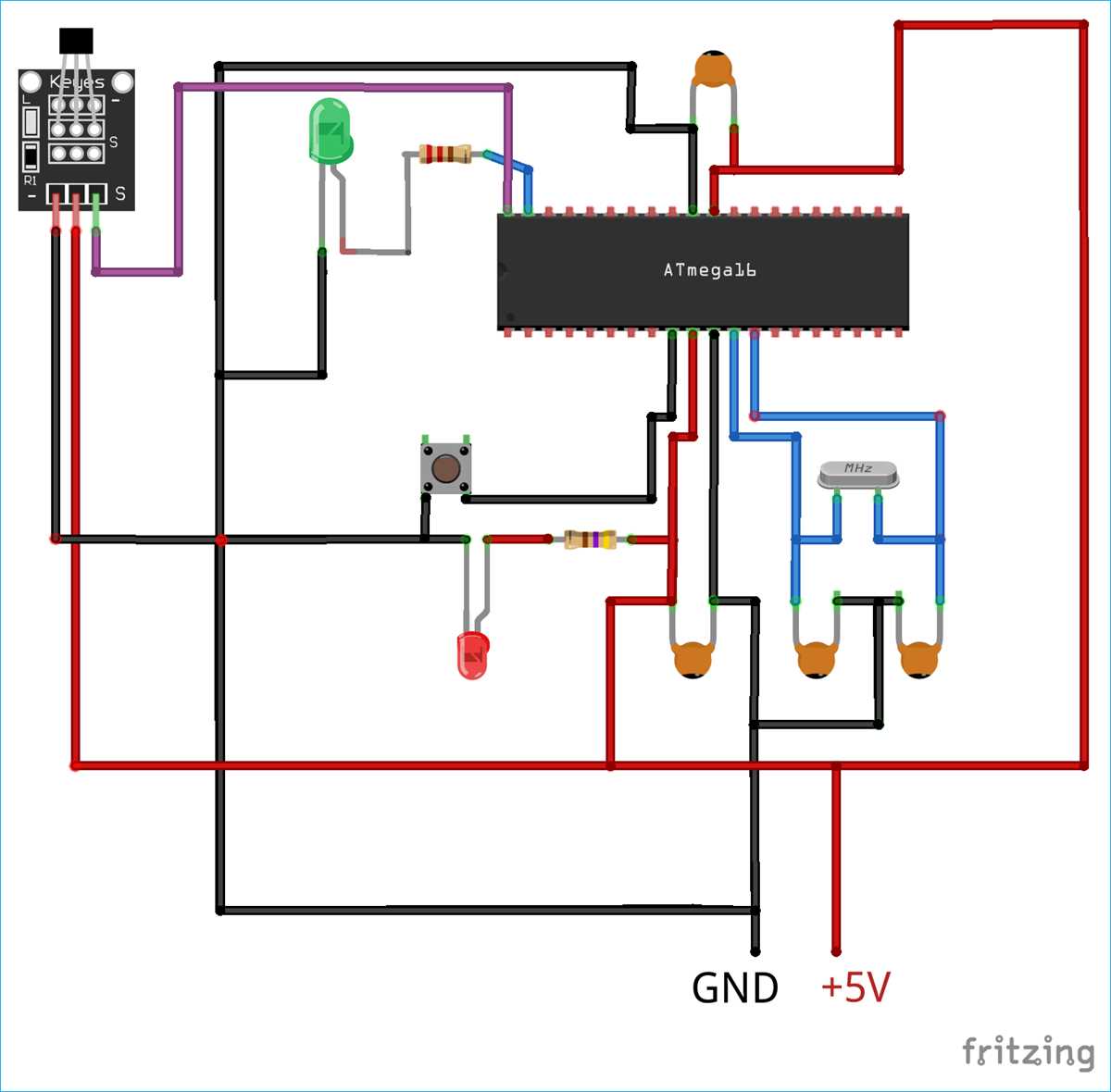

hall sensor wiring diagram

Begin by identifying the power supply requirements for your magnetic detection module–standard designs operate at 5V or 12V, though some variants support 3.3V for embedded systems. Connect the positive terminal to the module’s VCC pin and the ground to GND. Ensure the supply voltage matches the module’s specifications to avoid overheating or signal distortion. For applications demanding precision, use a decoupling capacitor (0.1µF or 1µF) between power and ground to filter noise.

Signal output typically follows one of three schemes: digital (on/off), analog (proportional voltage), or pulse-width modulation (PWM). For digital outputs, link the OUT pin directly to a microcontroller’s GPIO–use pull-up or pull-down resistors (1kΩ–10kΩ) if the module lacks internal biasing. Analog outputs require an ADC input, while PWM signals integrate best with timer-based peripherals. Verify the module’s output threshold: most switch states at ~2.5V (for 5V systems) or scale proportionally to the magnetic field strength.

Polarity matters–misaligned connections to the south or north poles of a magnet will invert the response. Position the magnet 2–5mm from the detector for optimal sensitivity, adjusting distance based on magnet strength (N35–N52 grades require closer proximity). For rotating assemblies (e.g., motors, encoders), space multiple detectors 120° apart for 3-phase systems or 90° for quadrature encoding. Ground planes or shielded cables minimize interference in high-noise environments like automotive or industrial setups.

Test configurations with an oscilloscope: digital outputs should transition cleanly between high/low states, while analog signals must avoid saturation (clip at ~0.5V–VCC-0.5V). If using interrupts, set microcontroller pins to falling/rising edge detection or change mode based on the switch behavior. For multi-channel setups, label wires clearly–red for power, black for ground, and yellow/white for signal paths. Store unused detectors in anti-static bags to prevent damage from electrostatic discharge.

Connecting Magnetic Field Detectors: Key Steps

Begin by identifying the detector’s power pins–typically labeled VCC (3.5V–24V DC) and GND–ensuring voltage compatibility with your microcontroller’s logic level (3.3V or 5V). Use a 10kΩ pull-up resistor between the output pin and VCC to prevent floating signals, or opt for an open-drain configuration if interfacing with sinking inputs like PLCs. For differential setups, pair two detectors spaced 1–2mm apart, wiring their outputs to an op-amp (e.g., LM358) for signal conditioning. Avoid long leads (>10cm) without shielding; twisted pairs reduce EMI from motors or relays. Test continuity with a multimeter–resistance should drop near-zero when a magnet approaches and return to infinity when absent.

Position the detector perpendicular to the target magnet’s pole face for maximum sensitivity; align the flat side (notched or marked) toward the moving element (e.g., gear tooth) to optimize signal strength. If using bipolar magnets, verify the detector’s switching behavior (unipolar/bipolar) via datasheet–some models require a specific pole (N/S) for activation. For pulse counting (e.g., wheel speed), pair the output with a Schmidt trigger (SN74HC14) to eliminate switch bounce; hardware debounce (0.1μF cap across output/GND) or software delays (10–50ms) work equally well. Calibrate by rotating the target at expected speeds–output frequency should match theoretical pulses per revolution (e.g., 12 pulses/rev for a 12-tooth gear).

Basic 3-Wire Magnetic Detector Linkup Steps

First, identify the three leads on your device: power (VCC), ground (GND), and signal (OUT). Connect VCC to a stable 4.5–24V DC supply–most modules operate reliably at 5V. Use a regulated source to prevent false triggers from voltage spikes. If your application involves motors or inductive loads, add a 0.1µF decoupling capacitor across VCC and GND near the component to filter noise.

Attach GND directly to the power supply’s negative terminal. Avoid sharing this line with high-current devices; a dedicated return path minimizes ground bounce. For environments with electromagnetic interference (EMI), twist the GND and OUT wires together to reduce coupling. Keep the wire length under 1 meter unless using shielded cable, which adds cost but improves signal integrity.

Route the OUT lead to your controller’s input pin. Pull-up/pull-down resistors are often unnecessary–most modern detectors include built-in circuitry for clean output switching. However, if your circuit lacks hysteresis (visible as rapid toggling at transition points), add a 10kΩ resistor between OUT and VCC to stabilize the signal. This adjustment is critical for precise rotation counting in speed-sensing applications.

Test the setup with a magnet positioned perpendicular to the detector’s sensitive face. The OUT line should toggle between low (~0.2V) and high (~VCC – 0.7V) states. If the response is sluggish, check for weak magnetic fields–most devices require a minimum of 30–50 Gauss for reliable detection. For bipolar configurations (detecting both poles), ensure the magnet’s alignment matches the detector’s polarity markings.

For microcontroller interfacing, use interrupt-driven inputs instead of polling to reduce latency. On an Arduino, for example, configure the input pin as INPUT_PULLUP and attach an interrupt to trigger on FALLING or CHANGE edges. This method avoids missing pulses during other code execution. In noisy environments, sample the signal multiple times (e.g., 3 consecutive reads) to confirm state changes before acting.

Secure all connections with solder or crimp connectors–twisted wires alone risk intermittent contact under vibration. For PCB-mounted devices, place the detector at least 10mm from sources of heat or strong magnetic fields (e.g., transformers) to prevent drift. If absolute accuracy is required, calibrate the switching point by logging the distance at which the OUT line toggles, then adjust the magnet’s position accordingly.

Connecting Magnetic Encoders for BLDC Motor RPM Monitoring

Use a trio of 5V-compatible latch-type pickups spaced 120 electrical degrees apart inside the motor stator. Connect the VCC leg to a stabilized 5V rail with a 100 nF decoupling capacitor soldered less than 3 mm from the IC body. Route the GND pin directly to the controller’s analog ground plane, avoiding shared digital return paths to prevent voltage spikes during commutation. The signal pin requires a 10 kΩ pull-up to VCC and a 33 Ω series resistor to limit ringing on long traces–keep signal traces shorter than 15 cm where possible.

Encoder Model Supply Range (V) Pull-Up Resistor (kΩ) Max Rise Time (μs)
Infineon TLE4964 3.0–5.5 4.7–10 2.0
Diodes Inc. AH180 2.5–24 2.2–5.6 1.5
Melexis US1881 3.5–24 5.1–12 1.8

Twist each signal pair with its ground return at 25 twists per meter to minimize EMI pickup from nearby switching regulators or PWM edges. If the controller lacks internal debounce, place a 1 nF ceramic capacitor across each latch output to GND to filter rotor slot harmonics above 5 kHz. Test skew with an oscilloscope; phase outputs should cross at mid-rail ±0.2 V within 1 μs of one another at 30 000 RPM–adjust static alignment screws if skew exceeds ±2 electrical degrees.

Connecting a Magnetic Detector to Arduino for Precise Position Tracking

Use a bipolar switch-type device (e.g., DRV5053 or A1324) to detect position changes reliably. Connect the supply pin to Arduino’s 5V out and ground the return pin. Route the signal pin to any digital input (D2-D13) with a 10 kΩ series resistor to prevent voltage spikes.

Required parts:

  • Arduino Uno/Nano (1 unit)
  • Bipolar switch-type magnetic detector (1 unit)
  • 10 kΩ resistor (1 unit)
  • Jumper wires (3 units)
  • Small neodymium magnet (Ø 5 mm, 2 mm thickness)

Position the magnet 2-4 mm from the detector’s active face; exceeding 8 mm reduces detection accuracy. Fasten the magnet to a rotating disk or linear slider to measure angular or linear displacement. Keep ambient magnetic fields below 50 µT to avoid false triggers.

Upload this minimal sketch to Arduino:

  1. const byte inputPin = 2;
  2. void setup() {
  3. pinMode(inputPin, INPUT_PULLUP);
  4. Serial.begin(115200);
  5. }
  6. void loop() {
  7. Serial.println(digitalRead(inputPin));
  8. delay(5);
  9. }

Monitor the serial output at 115200 baud; a LOW reading indicates magnet proximity. For rotational speed, count pulses per second and multiply by 60 (RPM = pulses × 60). For linear travel, track pulse count to compute distance (distance = pulses × mm-per-pulse).

Troubleshooting Common Issues

Weak detection:

  • Verify magnet orientation–align north pole facing detector.
  • Reduce air gap to ≤ 4 mm.
  • Substitute a stronger N52 magnet.

Erratic readings:

  • Add a 0.1 µF decoupling capacitor across the detector’s supply pins.
  • Route signal wires away from motors and power lines.
  • Switch to an analog latch variant (e.g., AH331) for hysteresis.

Enhancing Measurement Precision

Replace the 10 kΩ resistor with a 47 Ω one if response time exceeds 3 µs. For 360-degree rotation tracking, use two detectors spaced 90 degrees apart. Combine readings via software quadrature decoding to achieve 0.5-degree resolution. Avoid exceeding 50 mA detector current to prevent thermal drift.

Power Supply and Ground Requirements for Reliable Magnetic Detector Performance

Use a regulated DC supply between 4.5V and 24V for optimal detector stability, matching the device’s specified voltage range. Low-dropout regulators (LDOs) with output ripple below 50mVp-p prevent false triggering in noisy environments. For 5V systems, select an LDO with a maximum dropout of 200mV to maintain precision under load currents up to 50mA. Battery-powered setups demand decoupling capacitors (0.1μF ceramic + 10μF electrolytic) placed within 2cm of the detector’s power pins to suppress transients.

Ground loops introduce errors exceeding 10mV in systems with multiple loads; isolate the detector’s ground from high-current paths using a star topology. Connect the ground reference directly to the system’s primary return point, avoiding shared traces with motors or relays. In PCB layouts, dedicate a continuous ground plane beneath the component’s footprint, minimizing impedance to <0.1Ω. For modules with open-collector outputs, tie the output ground to the same star point to prevent voltage offset errors.

Handling Noisy Environments

Industrial equipment generates conducted noise up to 200mVp-p at 100kHz. Filter this interference with a pi-network (10Ω series resistor + 1μF capacitor + 10μH inductor) on the supply line. Automotive applications require ISO 7637-2 compliance; add a TVS diode (e.g., SMAJ16A) across the supply pins to clamp transients exceeding 18V. For 12V systems, ensure the diode’s reverse standoff matches the nominal supply to avoid leakage currents above 1μA.

Thermal stability impacts accuracy; linear regulators maintain tighter tolerances than switching supplies but dissipate more heat. For 24V inputs, use a buck converter with >85% efficiency to reduce power loss by 5W compared to linear solutions. Verify the detector’s quiescent current (<5mA typical) doesn’t cause unexpected voltage drops in high-impedance circuits. Always measure supply voltage at the component pads during full load–dropouts below 4.2V degrade repeatability by >15%.
