Complete Headlight Wiring Schematic Guide with Circuit Diagrams

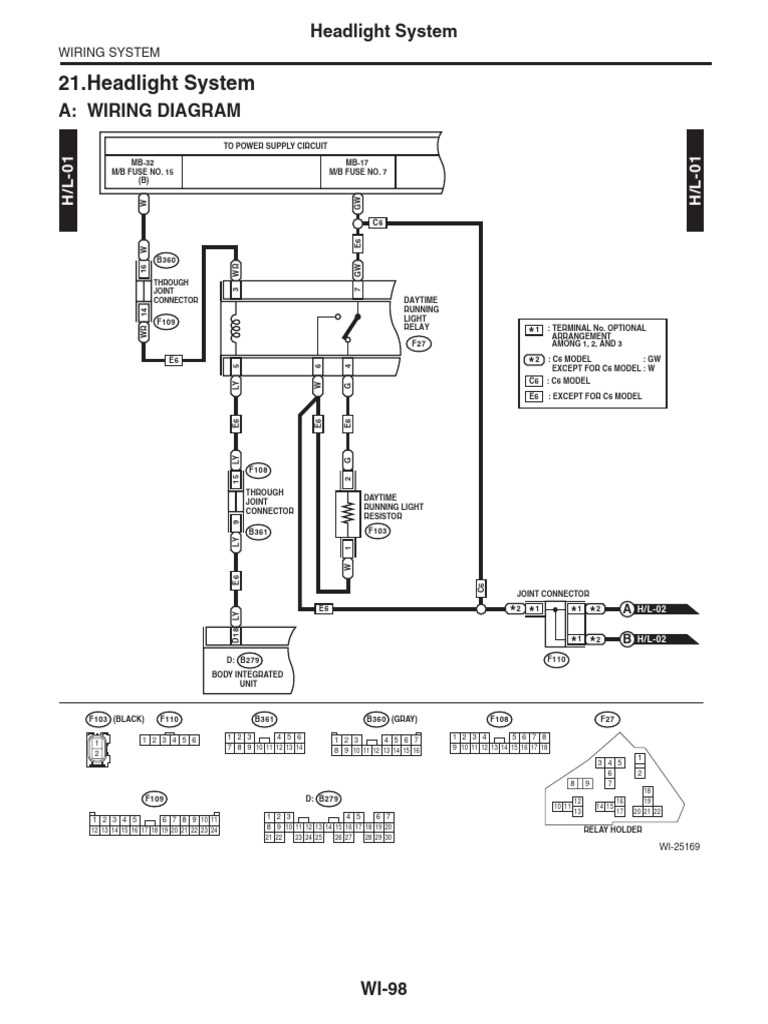

Start by identifying the main power source–typically the vehicle’s fuse box or a dedicated relay. Connect the positive terminal to a 15-amp fuse to prevent overload. Use 4-gauge wire for high-beam circuits and 6-gauge for low beams to handle current spikes without overheating. Ground the circuit directly to the chassis near the bulb housing, avoiding corroded or painted surfaces that increase resistance.

Install a double-pole relay for dual-filament bulbs, ensuring separate control for each beam. Pin 85 connects to the switch, 86 to ground, 30 to the battery (via fuse), and 87 to the bulbs. For HID or LED upgrades, add a ballast stabilizer between the relay and light unit to regulate voltage fluctuations. Skip this step only if the manufacturer certifies compatibility with the stock wiring.

Route wires through conduit sleeves along the frame rails, securing them with zip ties every 12 inches. Avoid sharp edges or moving parts–exposed copper risks short circuits. Test continuity with a multimeter before final assembly: 12.6V at the bulb socket confirms proper voltage delivery. Replace any wire showing over 0.5 ohms resistance per foot to maintain brightness.

Use weatherproof connectors (IP67-rated) for all joints, especially near the engine bay. For halogen bulbs, ensure the wiring harness includes a thermal fuse to cut power if temperatures exceed 140°C. Aftermarket LED kits often require a load resistor (typically 6 ohms/50W) to prevent hyper-flashing or error codes from the vehicle’s computer.

Label every connection with heat-shrink tubing or printed sleeves. Document the layout with a hand-drawn sketch–digital photos fade, but ink lasts. If adding auxiliary lights, run a separate 30-amp relay for each pair, isolating them from the primary circuit to avoid voltage drop.

Automotive Front Illumination Circuit Guide

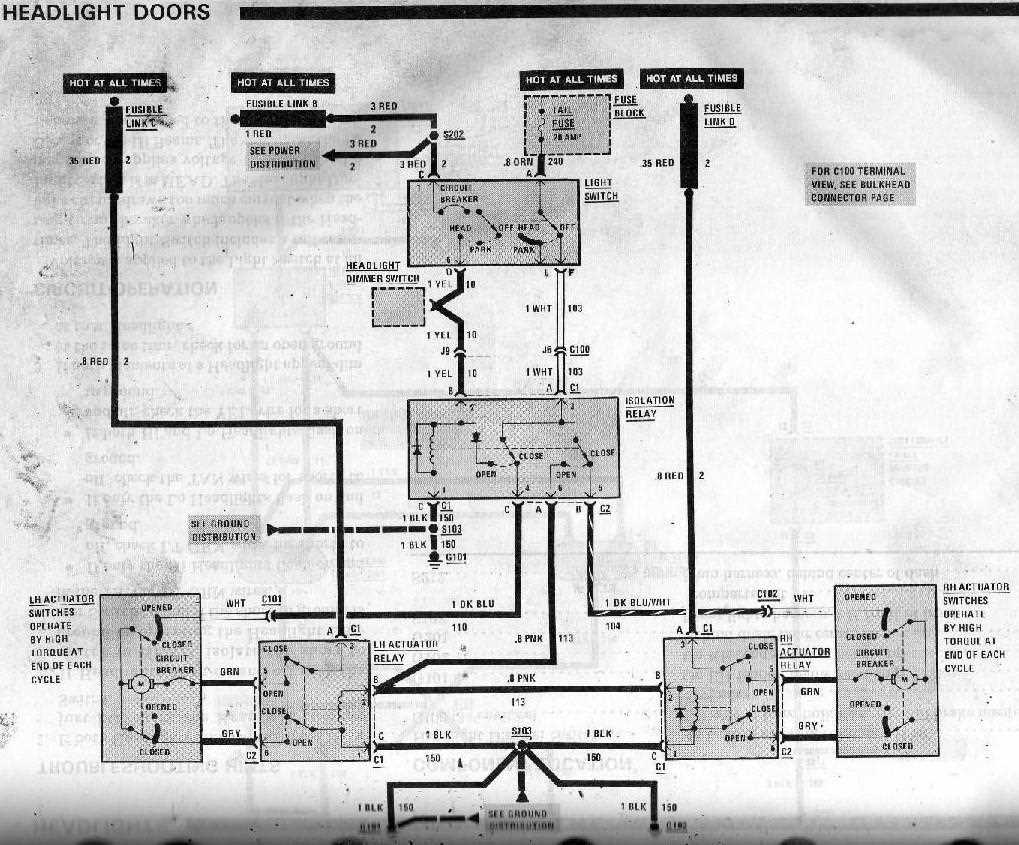

Begin by identifying the high-beam and low-beam terminals on the vehicle’s fuse box–most European models label them H1 (main beam) and L1 (dipped beam), while North American systems often use 30 (common) and 87 (switched) for relays. Connect the positive lead directly to a 15A-20A fuse for low beams and a 25A-30A fuse for high beams, using 14-gauge wire for currents under 20A and 12-gauge for higher loads. Ground the circuit at a dedicated chassis point, not near the battery or alternator, to prevent voltage spikes from damaging LED or HID modules.

Use a relay for halogen or xenon units with a draw exceeding 10A–ANSI/ISO relays (Type 4 or 5) handle 40A continuous, while mini relays (Type 3) suit 20A applications. Below is a reference for terminal assignments across common relay types:

Relay Type	Terminal 85	Terminal 86	Terminal 87	Terminal 30
ISO Mini (Type 3)	Coil (-)	Coil (+)	Normally Open	Common Input
ANSI/ISO Standard (Type 4)	Coil (-)	Coil (+)	Normally Open	Common Input
Bosch Heavy-Duty (Type 5)	Coil (-)	Coil (+)	Normally Open/Closed	Common Input

Route cables away from moving parts (e.g., steering column, suspension) and heat sources–xenon ballasts require a minimum 30cm clearance from the engine block. Use grommets when passing wires through firewall or frame holes to prevent chafing; silicone-lined split loom (5mm ID) works for bundles up to 6 wires. For adaptive systems, splice the auto-leveling sensor into the CAN bus at pin 14 (signal) and 16 (ground) on the OBD-II connector–check the manufacturer’s pinout, as Audi/VW uses Pin 6 (CAN-H) and Pin 14 (CAN-L), while Toyota reverses these.

Voltage Drop Troubleshooting

Measure voltage drop across the circuit with a multimeter–acceptable limits are and at full load. If readings exceed this, clean corrosion from connectors using CRC Electrical Contact Cleaner, then apply dielectric grease to aluminum terminals. For fleeting dimming at idle, bypass the factory wiring with a fused 10-gauge bypass directly to the battery’s positive terminal–ensure the alternator’s output exceeds 13.8V ± 0.2V before proceeding, or the issue lies upstream.

Critical Elements in Vehicle Illumination Circuitry

Begin by ensuring the fuse rating matches the circuit’s load–typically 10A for low beams and 15A for high beams in most passenger vehicles. A blown fuse is the first failure point to check, as it protects the entire system from overloads. Replace it with the exact amperage; never exceed the manufacturer’s specification, even temporarily, as this risks melting insulation and shorting adjacent wires.

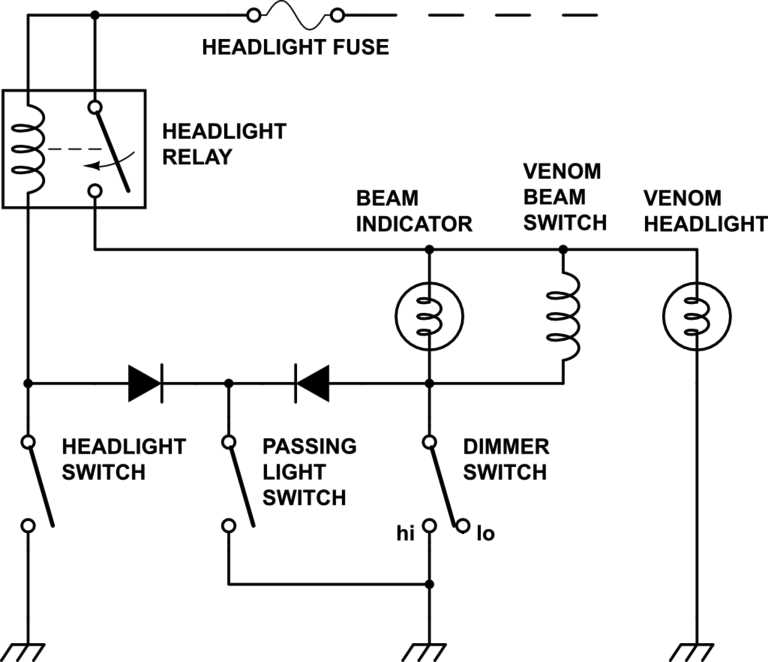

Relays act as silent switches, preventing voltage drops by separating the control signal from high-current paths. Install a 30/50A relay for main beams, connecting terminals 85 and 86 to the control switch, 87 to the bulb, and 30 to the battery via a dedicated 12-gauge wire. Use dielectric grease on all connections to block moisture and corrosion–failure here causes intermittent failures, especially in damp climates. Ground paths must terminate directly to chassis metal, stripped of paint, with a star washer to ensure conductivity; poor grounding is the leading cause of dim or flickering output.

How to Create a Clear Vehicle Lighting Circuit Blueprint

Gather precise specifications for the lighting setup before sketching. Check the manufacturer’s manual for bulb types (H4, H7, LED), relay requirements, fuse ratings (typically 10–20A), and switch current limits (usually 15–30A). Note color codes: red for power (+12V), black for ground, yellow or green for signal outputs. Low-beam circuits often use 2–3 wires, high-beam add 1–2 more, and fog elements require separate relays with dedicated fuses.

Use a grid paper or digital schematics tool scaled to 1:1 for wire lengths. Draw a vertical power busbar at one edge representing the battery terminal. From it, branch horizontal lines for each component:

• Fuse (inline, 10–20A, placed within 7 cm of power source)
• Relay (SPST or SPDT, coil resistance 50–120Ω)
• Switch (momentary or latching, rated for 20A continuous)
• Load (bulb socket or LED module, watts matching fuse rating)

Label each line with wire gauge (14–12 AWG for standard circuits, 10 AWG for high-current).

Component Placement Rules

Position the relay no more than 30 cm from the power source to minimize voltage drop. Locate the switch near the control panel but ensure it’s accessible for replacement. Ground connections must terminate at a chassis point with ≤0.1Ω resistance; sand paint and apply dielectric grease. For multi-beam systems, use a separate relay per function to prevent overload. Include a diode (1N4007) across relay coils if integrating with a pulse-width modulated controller.

Test the draft with a multimeter:

1. Measure battery voltage at the fuse input (should match 12.6V).
2. Actuate the switch; relay coil should pull 80–120mA, contacts close with
3. Verify load current: incandescent bulbs draw nominal wattage ±10%, LEDs ±5%.
4. Check ground continuity:

Adjust wire paths if voltage at the bulb drops below 11.8V (12V system) or 23.6V (24V system).

Finalize the layout with standard symbols:

• Straight lines for power paths.
• Right-angle bends at intersections.
• Circles for connectors, rectangles for relays.
• Dashed lines for shared ground paths.

Print two copies: one for installation, one for maintenance records. Use heat-shrink tubing for connectors exposed to moisture, and nylon cable ties every 15 cm to prevent chafing.

Common Electrical Errors in Vehicle Lighting Systems and Prevention

Use the correct gauge for power lines–18 AWG for LED circuits (under 5A), 14 AWG for halogen setups (up to 15A). Undersized cables overheat, melting insulation and causing shorts. Check the fuse rating: it must match the cable’s capacity. A 10A fuse won’t protect a 14 AWG wire rated for 15A, leading to potential fires.

Ground connections must terminate directly to bare metal, not painted surfaces or bolts sharing multiple circuits. A weak ground causes flickering or dim lights under load. Clean the contact point with a wire brush, apply dielectric grease, and secure it with a star washer to prevent corrosion.

Color Coding Missteps

• Never assume wire colors–verify against manufacturer specs. Aftermarket harnesses often swap high/low beams (black/red vs. red/black).
• European vehicles may use brown for ground instead of black–reverse polarity blows relays or bulbs.
• Daytime running lamps (DRLs) in Canadian models often share circuits with turn signals; isolating them prevents interference.

Relay placement should be within 18 inches of the load. Long runs from the battery to a relay then to lights drop voltage, reducing output by 10-20%. Mount relays near the front of the vehicle, using waterproof enclosures if exposed to elements.

Skip cheap inline connectors–they loosen over time due to vibrations. Crimp butt connectors with heat shrink tubing for a moisture-proof seal. For splices, strip only 5mm of insulation; exposed strands cause short circuits. Test continuity with a multimeter after installation–resistance should be under 0.5 ohms.

Protection Against Overloads

1. Install a fused distribution block for auxiliary lighting (off-road spots, underglow).
2. Avoid tapping into existing circuits like the radio or ignition–they’re already near capacity.
3. Use a dedicated 30A relay for high-power LEDs (50W+), as they draw more current than traditional filaments.

Ballasts for HID systems should be mounted vertically to prevent moisture buildup. Water entering the vent hole causes arcing, burning out the ballast in minutes. Seal all connectors with silicone dielectric compound, and route cables away from hot exhaust manifolds–heat degrades insulation faster than UV exposure.

Key Electrical Variations Among Halogen, LED, and HID Lighting Systems

Halogen bulbs operate on a simple circuit requiring only a 12V power source and a relay for stable current delivery. Their filaments demand steady voltage (13.2V nominal), with wiring gauges typically ranging from 14 to 18 AWG to prevent voltage drop. Unlike alternatives, halogens tolerate minor wiring inefficiencies but suffer from excessive heat–thermal dissipation becomes critical, necessitating heat-resistant connectors (e.g., silicone-insulated). Overvoltage protection is unnecessary, but undersized wiring accelerates filament degradation due to thermal stress.

LED assemblies introduce a low-voltage DC requirement, often 9–14V, with current draw as low as 0.3–1.5A per module. Their circuitry mandates precise current regulation via dedicated drivers–internal or external–to prevent thermal runaway. Unlike halogens, LEDs are polarity-sensitive; reversing wires renders them inoperative. Wiring must account for electromagnetic interference (EMI), especially in multi-LED setups, where shielded cables (e.g., twisted pair) reduce flicker. Ballast resistors are irrelevant, but surge protection (TVS diodes) guards against transient spikes common in automotive power networks.

Critical Load and Circuit Protection Divergences

HID (xenon) lamps deviate fundamentally, requiring 23–32kV ignition pulses and sustained 85V AC ballast operation. Their wiring must handle both high-voltage ignition pulses (10–15kΩ impedance) and subsequent lower-voltage arcs (35–85W). Unlike LEDs, HIDs rely on dedicated ballasts as current stabilizers, with wiring gauges (12–16 AWG) critical to minimizing resistive losses–particularly in long runs. Without proper grounding, electromagnetic interference disrupts radio frequencies and onboard electronics. Ceramic connectors prevent heat-induced oxidation, a failure mode absent in halogen setups but common in high-power HID installations.

LED systems excel in thermal efficiency but suffer from thermal saturation if drivers overheat–active cooling (fans or heat sinks) becomes essential beyond 50W total load. Halogens, in contrast, tolerate overheating temporarily (until filament burnout), while HID ballasts fail catastrophically if cooling is inadequate. Wiring for HIDs must incorporate high-voltage insulation (e.g., PTFE tubing) to prevent arching, whereas halogen and LED setups rarely exceed 60V potential. Circuit breakers or fuses must be tailored: 10–15A for halogens, 3–5A for LEDs, and 7.5–10A for HIDs, reflecting their distinct inrush currents during startup.

Grounding strategies further differentiate the three. Halogens perform adequately with chassis grounding, provided resistance stays below 0.2Ω. LEDs require dedicated returns to avoid dimming; shared grounds induce cross-talk in multi-beam configurations. HIDs demand isolated grounds to prevent interference with sensitive ECUs–floating grounds are mandatory in CAN bus-equipped vehicles. Connector selection varies: halogens use cost-effective spade terminals, LEDs need gold-plated contacts to prevent oxidation, and HIDs require waterproof connectors (IP67-rated) to withstand high-voltage moisture ingress.
