Complete Guide to Designing a Safe Home Electrical Circuit Layout
Begin by locating the main service panel–typically marked with a 100–200 amp rating–and trace each feeder to its designated breaker. Standard 12-gauge copper wire supports 20-amp breakers for general outlets, while 14-gauge handles 15-amp circuits; mix these ratings only if the load calculation confirms no overload. Label each wire run in the schematic with AWG size, breaker amperage, and connected device (e.g., #12-20-AWG → 20A breaker → kitchen counter GFCI). Ignoring this step risks voltage drop in runs longer than 50 feet or nuisance tripping under inductive loads like refrigerators.
Dedicated lines for high-wattage appliances (electric range: 6-gauge, 50A; dryer: 10-gauge, 30A) must bypass shared neutrals; use four-wire connections with isolated ground. For lighting circuits, divide loads evenly across phases–common error is clustering all luminaires on a single 15A breaker, creating imbalance detectable with a clamp meter. Ensure all connections are torqued to 12–18 inch-pounds; under-tightened terminals oxidize, causing intermittent faults traced via thermal imaging.
Include a legend with symbols: circles for junction boxes, dashed lines for concealed runs, triangles for three-way switches. Verify all splices inside listed enclosures–exposed wire nuts violate NEC §314.16. Schedule an insulation resistance test–minimum 1 megohm between conductors and ground; lower readings indicate compromised wire (common in NM-B aged beyond 20 years). Update the blueprint with test results and as-built changes to avoid rework during future expansions.
Designing a Residential Wiring Blueprint

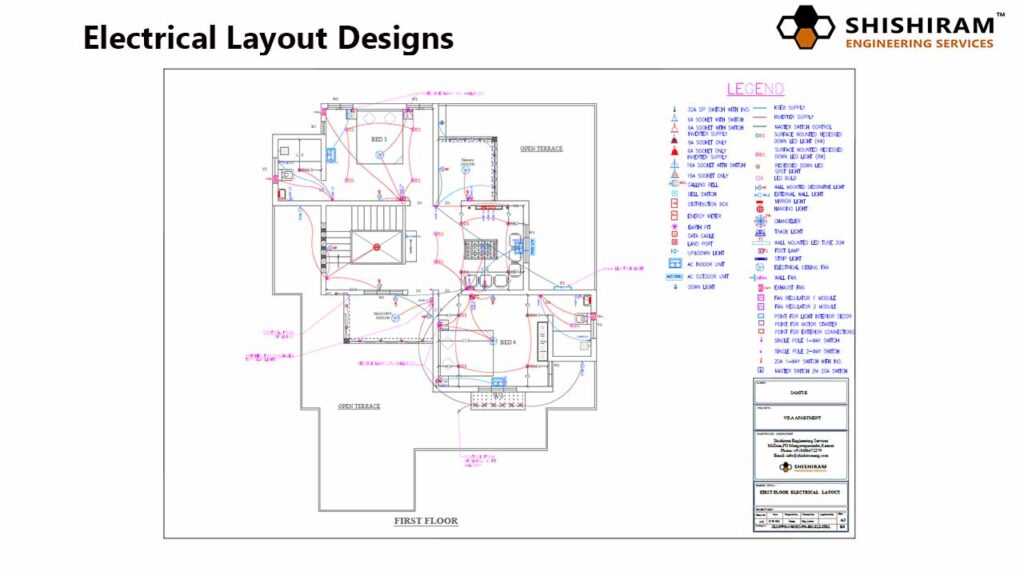

Begin by sketching a floor plan scaled to 1:50, marking all permanent fixtures–outlets, switches, appliances, and lighting points–with standardized symbols (IEC 60617 or ANSI Y32.9). Label each component with a unique identifier, such as “L1” for lighting circuits and “S3” for socket clusters, to simplify future troubleshooting. Group devices by function: dedicate separate lines for high-draw units (ovens, water heaters) and low-power ones (bedroom lamps, phone chargers). Ensure 20% extra capacity on each breaker to accommodate load spikes, particularly in kitchens where simultaneous use of toasters, blenders, and microwaves can exceed 15A circuits.
Use 12-gauge copper wire for 20A circuits and 14-gauge for 15A branches; aluminum wiring requires one size larger due to higher resistance. Install arc-fault circuit interrupters (AFCIs) on all bedroom and living area circuits, and ground-fault circuit interrupters (GFCIs) within 1.2m of sinks, outdoor outlets, and garages. Place junction boxes at accessible points–never conceal them behind drywall or under flooring. For multi-story builds, run vertical conduits alongside stairs to minimize cable runs; horizontal runs should follow joist cavities with 25cm spacing from insulation to prevent overheating.
Key Component Load Ratings
| Device | Voltage (V) | Current (A) | Breaker Size (A) |
|---|---|---|---|
| Electric range (8kW) | 240 | 33 | 40 |
| Clothes dryer (5kW) | 240 | 21 | 30 |
| HVAC compressor (3.5kW) | 240 | 15 | 20 |
| Refrigerator | 120 | 7.5 | 15 |
Distribute lighting evenly across three 15A circuits to avoid complete darkness during breaker trips. Use LED fixtures rated for 10-12W per m² in living spaces and 15-18W/m² in work zones like garages. For dimmable switches, verify compatibility with LED drivers; some require neutral wire connections at the switch box. Outdoor fixtures must meet IP65 ingress protection and use weatherproof junction boxes with silicone-sealed conduits. Avoid daisy-chaining more than four outlets per circuit to comply with NEC Article 210.11(B) and reduce voltage drop below 3% over 30m runs.
Color-code wires strictly: green/yellow for grounding, white or gray for neutrals, black/red/blue for line conductors. In split-phase systems, use red for the second 120V leg to prevent confusion. Label all panels with a directory, including circuit numbers, connected devices, and maximum load. Keep a digital backup of the blueprint updated with any modifications, such as rewiring or added detached structures. For detached garages or sheds, install subpanels with independent grounding electrodes spaced at least 3m from the main structure’s grounding system to prevent ground loops.
Common Wiring Mistakes to Avoid
Never splice wires outside junction boxes–exposed connections risk short circuits and fire. Ensure all boxes have enough volume for the number of conductors: a 4×4 inch box supports up to nine 12-gauge wires. Avoid aluminum-to-copper connections without proper antioxidant paste and UL-listed connectors; oxidation increases resistance, leading to overheating. Do not run cables parallel to gas lines or within 30cm of HVAC ducts to prevent insulation damage from heat or punctures. Test all circuits with a multimeter before energizing: verify 120V between line and neutral, 0V between neutral and ground, and no continuity between line and ground.
Key Parts of a Residential Wiring Layout
Install a main service panel rated for at least 100 amps in modern setups–older dwellings often settle for 60 amps, which fails to meet today’s power demands. Position it near the meter base, ideally indoors, to shield it from moisture and extreme temperatures. Use copper conductors for all panel connections, as aluminum–while cheaper–requires specialized compounds at terminals to prevent oxidation. Ensure the panel has spare breaker slots (minimum 12) to accommodate future expansions like EV chargers or solar inverters.
Branch wires should follow the 120/240-volt standard: 14-gauge for lighting (15-amp circuits), 12-gauge for outlets (20 amps), and 10-gauge for high-load appliances like microwaves or space heaters. Group similar loads: dedicate one path for kitchen countertop devices (minimum two 20-amp branches), another for laundry, and separate lines for fixed equipment such as water heaters or AC units. Avoid overloading any single path–adhere to the 80% rule (e.g., a 20-amp branch should carry no more than 16 amps continuously).
Grounding electrodes–typically an 8-foot copper rod or a metal water pipe–must extend into damp soil and connect to the panel via a 6-gauge bare copper conductor. Test resistance annually: values above 25 ohms mandate a second rod spaced 6 feet apart. Use GFCI outlets within 6 feet of sinks, in bathrooms, and outdoor spaces; these trip at 5 milliamps to prevent lethal shocks. For arc-fault protection, install AFCI breakers in all living spaces–these detect hazardous arcing (common in frayed cords) and cut power before fires start.
Label every breaker in the panel with a permanent marker, noting the corresponding room or device (e.g., “South Bedroom Lights”). Use color-coded tape on wires: black for hot, white for neutral, green or bare for ground. For overhead runs, secure cables every 4.5 feet with staples and maintain 1.25-inch clearance from drywall to prevent nail penetration. Where cables pass through joists, drill center holes to avoid crushing. Never bundle wires tightly–airflow matters; leave 0.5 inches of slack at junctions to ease future modifications.
Decoding House Wiring Schematics: A Practical Guide
Begin by locating the main service panel–often marked as a metal box with a hinged door. Inside, you’ll find rows of switches or fuses, each labeled with the area or appliance it controls. Trace the topmost breaker; this is the main disconnect, supplying power to the entire system. Verify its amperage rating (typically 100, 150, or 200 amps) and note whether it’s a single-pole or double-pole unit–double-pole breakers handle 240V loads like ovens or dryers, while single-pole manage 120V outlets and lights.
Examine the wires extending from each breaker or fuse. Use the following color codes as reference:
- Black/red: Hot conductors carrying current from the panel to devices.
- White: Neutral wires returning current to the panel, bonded to the grounding busbar.
- Green/bare copper: Ground wires directing faults to earth, preventing shocks.
- Blue/yellow (less common): Hot wires in multi-wire branch setups or three-phase systems.
Measure wire gauge with a caliper–12 AWG for 20-amp branches, 14 AWG for 15-amp, 10 AWG for 30-amp circuits. Cross-reference with local codes (e.g., NEC Table 310.16) to confirm suitability for the breaker’s rating.
Follow each branch from the panel outward. Outlets are depicted as rectangles with parallel slots (120V) or T-shaped slots (240V), often accompanied by a grounding hole. Switches appear as small gaps in the line–single-pole toggle switches interrupt one hot wire, while three-way variants (used for multi-location control) involve interconnected travelers (red wires). Check for dotted lines; these indicate wires concealed within walls or conduit. Note symbols for GFCI or AFCI protection–mandatory near wet areas or bedrooms respectively–and ensure they’re upstream of standard outlets.
Test continuity with a multimeter before energizing:
- Set the meter to ohms (Ω). Touch probes to the neutral and ground busbars; resistance should approach zero (confirms bonding).
- Switch to AC voltage mode (200V range). Probe neutral and hot wires at an outlet–expected reading: 110–125V for standard branches, 220–250V for heavy-duty appliances.
- Verify grounding by probing hot to ground–matching readings indicate proper earth connection.
Isolate faults by systematically disconnecting loads: if a breaker trips only when a specific device is plugged in, inspect its cord or internal wiring. For persistent trips, check for short circuits by inspecting damaged insulation or loose connections at terminals–tighten screws to 12–15 in-lbs torque.
