Step-by-Step Home Run Wiring Diagram Guide for Secure Installations

Begin by isolating the main breaker panel from the utility feed before handling any circuit modifications. A 200-amp service supports up to 48 branch circuits, but pre-wired setups typically use 30–40 for optimal load distribution across 120V and 240V lines. Use 10-gauge copper conductors for 30-amp circuits and 12-gauge for 20-amp branches–this ensures compliance with NEC 210.19 while preventing voltage drop over distances exceeding 50 feet.

Label every conductor at both ends with heat-shrink tubing or tagged ferrules. Neutral wires must terminate on the bus bar; grounds should bond to the panel’s chassis or separate grounding rod via 6-gauge bare copper. Avoid daisy-chaining neutrals–each circuit requires an individual return path to eliminate stray currents. For subpanels, run a dedicated grounding conductor alongside the feeder cable, never relying on the conduit as the sole ground path.

Install arc-fault circuit interrupters (AFCIs) on all 15- and 20-amp living-space circuits per NEC 210.12. Combine with ground-fault circuit interrupters (GFCIs) in kitchens, bathrooms, and outdoor outlets. Test AFCI/GFCI devices monthly–press the “Test” button; a tripped breaker confirms proper operation. Replace faulty units immediately; nuisance tripping often signals degraded contacts, not electrical faults.

Use metal-clad or PVC conduit for exposed runs; NM-B cable suits concealed installations in dry locations. Secure NM-B every 4.5 feet and within 12 inches of junction boxes, stapling within 8 inches of box entries. For 240V circuits (ovens, AC units), pull two hot conductors, a neutral, and a ground–never omit the neutral if the appliance requires 120V for timers or digital controls.

Measure voltage at the farthest outlet from the panel. A drop below 3% (e.g., 116V on a 120V circuit) necessitates upsizing conductors or installing a buck-boost transformer. For garage workshops, run a dedicated 20-amp branch with a twist-lock receptacle to handle 1.5 HP tools–standard 15-amp outlets risk overheating. Document every circuit in a spreadsheet: breaker number, wire gauge, connected outlets, and load amps.

Centralized Electrical Layout for Residential Buildings

Use a dedicated circuit breaker panel rated for 200-amp service when implementing a star topology in low-voltage installations. Position the distribution hub within 30 meters of the farthest endpoint to minimize voltage drop–calculate resistance losses using the formula V_drop = (2 × L × I × R) / 1000, where L is wire length in meters, I is current in amperes, and R is conductor resistivity (0.0172 Ω·mm²/m for copper at 20°C). For 12-gauge copper wire (2.05 mm²), expect a 3% drop at 20 amps over 25 meters.

Label each conductor at both ends with heat-shrink tubing or engraved tags specifying voltage, circuit number, and outlet type (e.g., “L1-120V-GFCI-Outdoor”). Isolate neutral and ground buses in the subpanel–bond only at the main service disconnect. For 240V circuits, double-pole breakers must share a common trip mechanism; avoid tandem breakers for MWBC (multi-wire branch circuits) to prevent neutral overload.

Terminate all aluminum conductors using irreversible compression lugs rated for 90°C and apply antioxidant compound to connection points. Verify torque settings with a calibrated screwdriver–inadequate tightening causes hotspots detectable by thermal imaging. Reserve the top positions in the breaker panel for high-priority loads (refrigeration, medical equipment) to simplify emergency disconnects. Test arc-fault and ground-fault protection monthly using the “TEST” button on each device.

Critical Elements of a Dedicated Circuit Installation

Begin by selecting a 20-amp double-pole circuit breaker for 240V applications or a 15/20-amp single-pole breaker for 120V setups–this ensures proper overcurrent protection. Use 12 AWG copper conductors for 20-amp circuits and 14 AWG for 15-amp, matching wire gauge to breaker rating to prevent overheating. Avoid shared neutrals, as dedicated circuits require isolated conductors to eliminate interference and voltage drop.

Install a junction box at the power source, positioned within 12 inches of the panel for code compliance. Secure cables with ⅛-inch staples every 4.5 feet and within 12 inches of boxes, maintaining a ¼-inch gap between conductors and structural elements. Label each conductor at both ends: hot (black/red), neutral (white), and ground (bare/green) to prevent miswiring during maintenance.

Recommended Conduit and Cable Specifications

Location	Conduit Type	Cable Type	Min. Diameter
Exposed Walls	EMT	THHN/THWN-2	½ inch
Wet Areas	PVC Schedule 40	UF-B	¾ inch
Underground	Rigid Metal	XHHW-2	1 inch
Attics/Crawlspaces	Flexible Metal	NM-B	½ inch

Terminate connections with UL-listed wire nuts sized for the conductor gauge–red for 12 AWG, yellow for 14 AWG. Apply torque values per manufacturer specs (typically 14-20 lb-in for 12 AWG) using an inch-pound screwdriver to prevent loosening. Test continuity with a multimeter before energizing: target

Troubleshooting Common Issues

If voltage drops below 115V (120V circuits) or 230V (240V circuits), check for undersized conductors or excessive length–calculate voltage drop using the formula Vdrop = (2 × L × I × R) / 1000 where L is one-way length in feet, I is current in amps, and R is wire resistance in ohms per 1000 feet. For persistent tripping, verify breaker compatibility with the load: motor-driven equipment may require a dual-element fuse or slow-blow breaker.

Creating a Dedicated Circuit Layout: A Practical Walkthrough

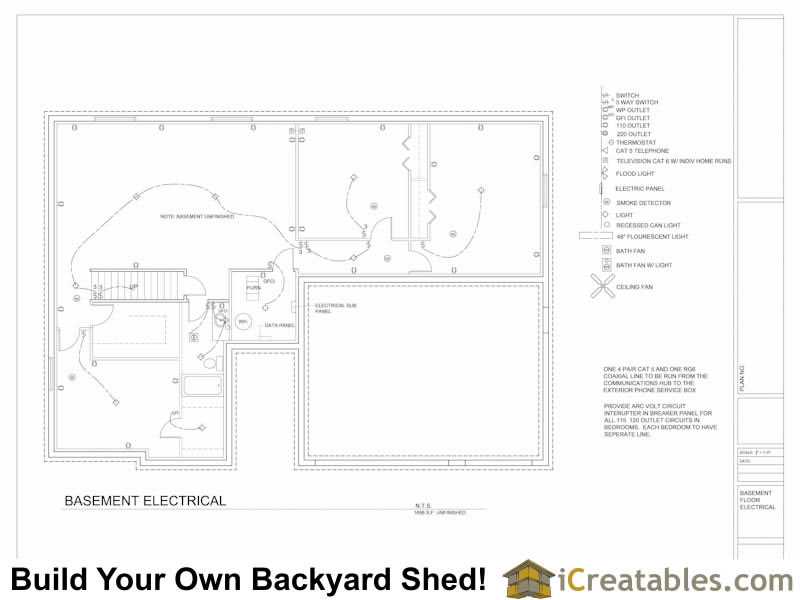

Begin by sketching a floor plan of the area where the electrical connections will be installed. Use graph paper or digital design software to scale measurements accurately. Mark all permanent structures–walls, doors, windows–and identify locations for outlets, switches, and appliances requiring direct power feeds. Label each point with its purpose (e.g., “refrigerator,” “wall socket”) to avoid confusion later. This initial draft serves as the foundation for the entire project, so verify distances between components to prevent overcrowding.

Select a central panel location before plotting paths. The panel should be easily accessible, ideally near the main entry point of utility lines. Draw straight lines from the panel to each endpoint, using right angles where necessary to minimize wire length and avoid crossing breaks in walls or obstacles. Prioritize shorter routes for high-demand devices like HVAC units or ovens, ensuring they have unshared circuits. For safety, keep paths at least 12 inches from plumbing, gas lines, or ventilation ducts.

Required tools and materials:

• Non-metallic sheathed cable (NM-B) rated for the amperage (e.g., 12 AWG for 20A, 10 AWG for 30A)
• Cable staples or clamps spaced every 4.5 feet
• Junction boxes for each connection point (minimum 4×4 inches for outlets)
• Breakers matching the circuit rating (e.g., 20A for general use, 50A for dryers)
• Fish tape or wire pulling tools for concealed installations
• Voltage tester and circuit finder

Annotate the layout with critical specifications. Add notes for wire gauge, breaker amperage, and conduit requirements if applicable. For example: “Basement sump pump–12/2 NM-B, 20A breaker, GFCI protected.” Include grounding paths, especially for outdoor or wet-area outlets. Cross-reference local electrical codes to confirm compliance–some jurisdictions mandate arc-fault circuit interrupters (AFCIs) for living spaces or tamper-resistant receptacles.

Finalize the schematic by tracing the paths with colored markers or layers in design software. Use red for hot wires, black for neutral, and green for grounding. Double-check that no circuit exceeds 80% of its breaker rating under continuous load (e.g., a 20A breaker should not carry more than 16A). Save digital copies and print physical backups, labeling each version with the revision date. Before implementation, have the plan reviewed by a licensed electrician to spot potential oversights.

Key Errors to Sidestep in Dedicated Circuit Installations

Overloading circuits by connecting multiple high-power appliances to a single breaker is a frequent misstep. Standard 15- or 20-amp breakers support up to 1,800–2,400 watts total, but devices like microwaves (1,200+ watts), space heaters (1,500 watts), or air conditioners (2,000+ watts) can exceed this when used simultaneously. Use separate lines for each major load to prevent trips or fire hazards.

Ignoring wire gauge specifications leads to overheating and inefficiency. For 15-amp circuits, 14 AWG copper wire suffices, but 20-amp circuits require 12 AWG. Anything thinner on a 20-amp line risks melting insulation over time. Verify local codes–some jurisdictions mandate 12 AWG for all lighting circuits regardless of breaker rating.

Improper termination at outlets or junction boxes creates loose connections, sparking, or intermittent failures. Strip wires to expose exactly 3/4 inch of copper, twist clockwise before securing under terminal screws, and ensure no insulation is pinched beneath the clamp. Backstab connectors, though faster, often fail–use screw terminals for reliability.

Skipping GFCI/AFCI protection where needed violates safety standards and increases shock or fire risks. Install GFCI outlets within 6 feet of sinks, outdoors, garages, and basements. AFCI breakers are required for bedroom circuits, even if not damp. Test devices monthly; a tripped GFCI without a reset button typically indicates a faulty outlet needing replacement.

Using cable without clamps or proper strain relief in junction boxes leaves wiring vulnerable to mechanical stress. Secure NM-B cable within 12 inches of boxes using approved clamps, and maintain at least 1/4 inch of sheathing inside the box. Loose cables can pull out, exposing live conductors, or chafe against sharp edges, causing shorts.

Incorrect Breaker-Fuse Pairings

Mismatching breaker amperage with fuse ratings or downstream wire capacity creates dangerous scenarios. A 30-amp breaker with 14 AWG wire (rated for 15 amps) will not trip before the wire melts. Similarly, plugging a 20-amp appliance into a 15-amp circuit risks overheating–check load requirements against circuit capacity before installation.

Poor Labeling and Documentation

Failing to label panel directories wastes time during troubleshooting or upgrades. Each circuit should note its purpose (e.g., “Kitchen: Fridge, Outlets Left Wall”) and breaker number. Use a multimeter to verify continuity–many electricians mislabel circuits, leading to confusion when modifications are needed. Keep diagrams updated as layouts change.

Neglecting bonding in subpanels is a critical oversight. Subpanels require a separate ground and neutral bus, isolated from each other. Omitting this separation can energize neutral paths, creating shock hazards. Ensure the bonding screw or strap is removed from subpanels, and run an independent ground wire back to the main panel’s bonded neutral.
