Step-by-Step Honeywell T3 Thermostat Wiring Guide for Installation
For proper installation, ensure you have a compatible low-voltage system (24V AC) and verify compatibility with your HVAC equipment before proceeding. The T3 model includes terminals labeled R, C, W, Y, G, and O/B–match these precisely to your system’s control board. If using a heat pump, confirm whether your system requires reversing valve energization during heating (O) or cooling (B). Incorrect connections risk damaging the thermostat or HVAC components.
Begin by turning off power at the circuit breaker to prevent electrical shock. Remove the existing thermostat cover to expose the wires, then label each wire according to its terminal (e.g., red to R, white to W). If the C-wire (common) is absent, check near the furnace or air handler for an unused wire that can be repurposed. For systems without a C-wire, consider using a power extender kit or a 24V adapter to avoid erratic performance or battery drain.
Strip 1/4 inch of insulation from each wire, then insert them into the corresponding terminals on the T3 baseplate. Use a screwdriver to tighten the terminal screws securely–loose connections cause intermittent operation. For multi-stage systems, connect W2/Y2 to the appropriate terminals if your HVAC supports auxiliary heat or second-stage cooling. Double-check all connections against the system’s manual before restoring power.
After securing the wires, attach the baseplate to the wall using the provided screws, ensuring it’s level for accurate temperature readings. Snap the T3 display unit onto the baseplate, then restore power at the breaker. The thermostat will initialize–follow on-screen prompts to configure settings. If the display fails to power on, recheck the C-wire connection and verify the transformer output with a multimeter. For advanced configurations (e.g., zoning or geothermal), consult the installer’s guide for specific terminal adjustments.
Connecting the T3 Thermostat: Field-Tested Steps

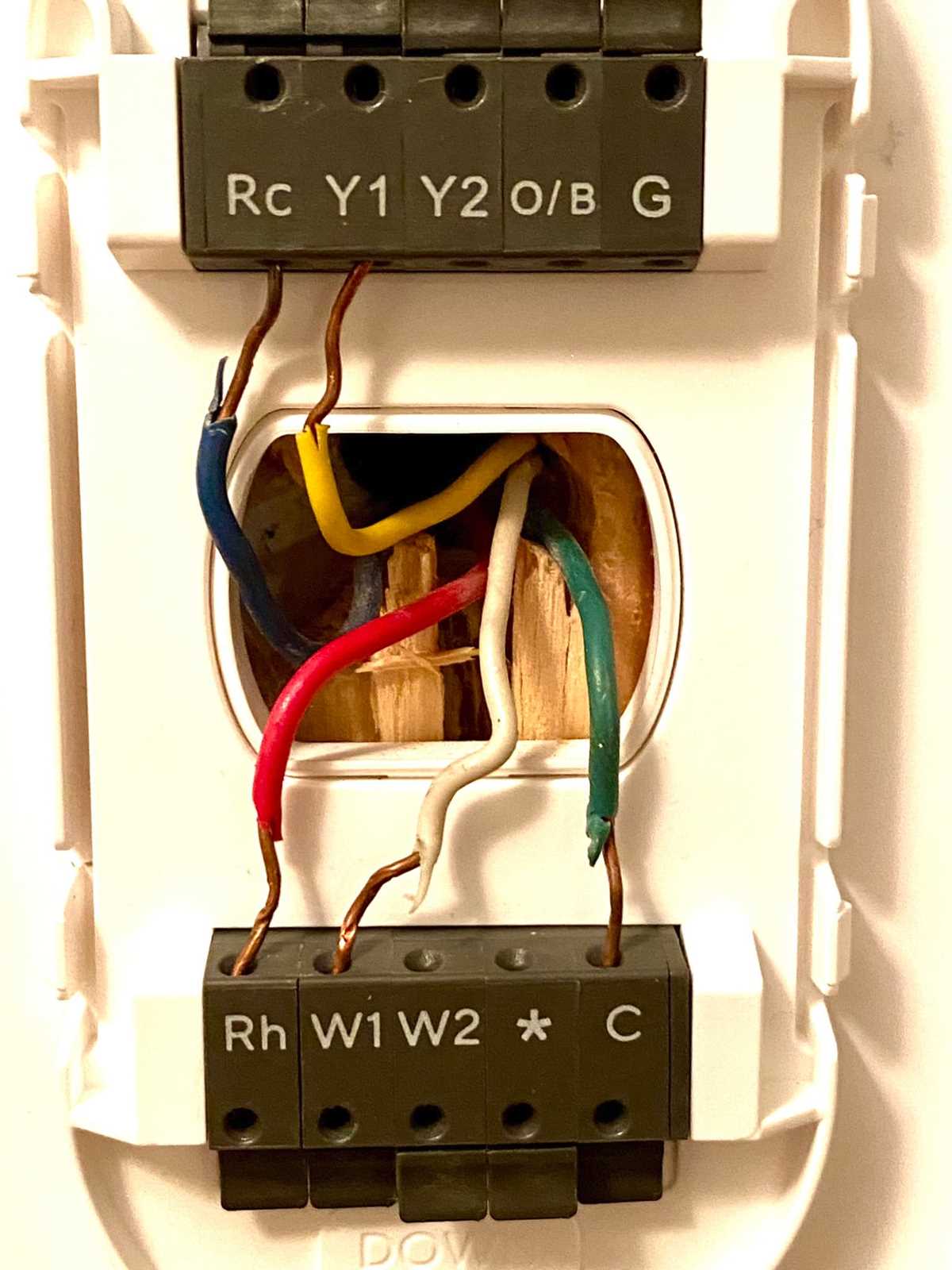

Identify terminals Rc and Rh first–unlike single-transformer setups, these must be bridged with a jumper wire if your system uses one 24V supply. For dual-power configurations, leave the bridge out and connect each heater lead to its matching terminal. Missteps here cause erratic behavior or total failure, so verify transformer output with a multimeter before proceeding.
Label Y1, W1, and G cables before inserting them: Y1 to cooling, W1 to heating, G to fan. Swap these and the controller triggers wrong stages. Clip excess insulation; exposed copper beyond 1/4″ invites shorts. Secure each wire with the terminal screw–loose connections create intermittent faults and require re-opening the faceplate later.
For heat pumps, add O/B wire to the corresponding slot; polarity matters–incorrect orientation reverses valve operation, leading to 15°F+ temperature swings. If the display remains blank after power-up, check C terminal–missing common wire is the most frequent issue. Use 18-gauge solid copper; stranded wire deforms under clamp pressure and causes voltage drops.
After securing all leads, snap the faceplate closed and restore power. Test cooling first–set 65°F and confirm outdoor unit engages within 90 seconds. Then switch to heating; if the system cycles rapidly, reopen and inspect W1–dust buildup under terminals mimics poor connections. If the fan runs continuously on AUTO, G wire was inserted into C slot–swap immediately.
Power Supply Connections for T3 Smart Climate Controls
Connect the T3’s R and C terminals to a 24V AC transformer with at least 0.5A capacity–undersized power sources cause erratic behavior. Verify transformer voltage under load using a multimeter; readings below 23V indicate insufficient output or excessive wire resistance, requiring thicker gauge (18 AWG minimum). Avoid daisy-chaining transformers; a dedicated circuit prevents voltage drops during simultaneous heating/cooling cycles.
Grounding and Isolation Best Practices
Ensure the transformer’s secondary side is fully isolated from primary wiring–shared neutrals introduce noise, corrupting thermostat communication. Ground the C terminal only to the transformer’s designated common bus; mixing grounds with furnace chassis or other systems risks feedback loops. For HVAC units with variable-speed fans, add a 1μF 50V ceramic capacitor across R and C to filter high-frequency interference from ECM motors.
Label all power feed lines at both ends with heat-shrink tubing to prevent misconnections–reversing R and C wires will disable Wi-Fi and display backlighting permanently. Use crimp connectors rated for 90°C on connections exceeding 10 feet; solder joints can fracture under vibration. Test continuity from transformer to thermostat before energizing; broken conductors often mimic transformer failure.
Monitor voltage stability during system startup–initial current draw spikes up to 0.8A when the T3 boots. If flickering displays or reboots occur, install a 24V bridge rectifier (e.g., KBPC2504) upstream to smooth voltage fluctuations. Never substitute the C wire with a ground return; improper grounding voids safety certifications and creates shock hazards.
Connecting the T3 Thermostat for Heat-Only Installations
Shut off power to the heating system at the circuit breaker before handling any terminals. Locate the R (power), W (heat), and C (common) ports on the T3 subbase–verify these against the system’s control board labels. Strip 1/4 inch of insulation from each wire end, then secure the red wire to R, white to W, and blue (or another designated low-voltage neutral) to C. Use a screwdriver with a torque-limited tip to tighten terminal screws to 0.5 Nm; overtightening risks thread damage, while loose connections cause intermittent faults.
| Terminal | Wire Color (Standard) | Control Board Match | Voltage Check (Multimeter) |
|---|---|---|---|
| R | Red | RH or R | 24V AC between R-C |
| W | White | W or W1 | 0V when idle, 24V when calling |
| C | Blue/Black | C | 0V reference |

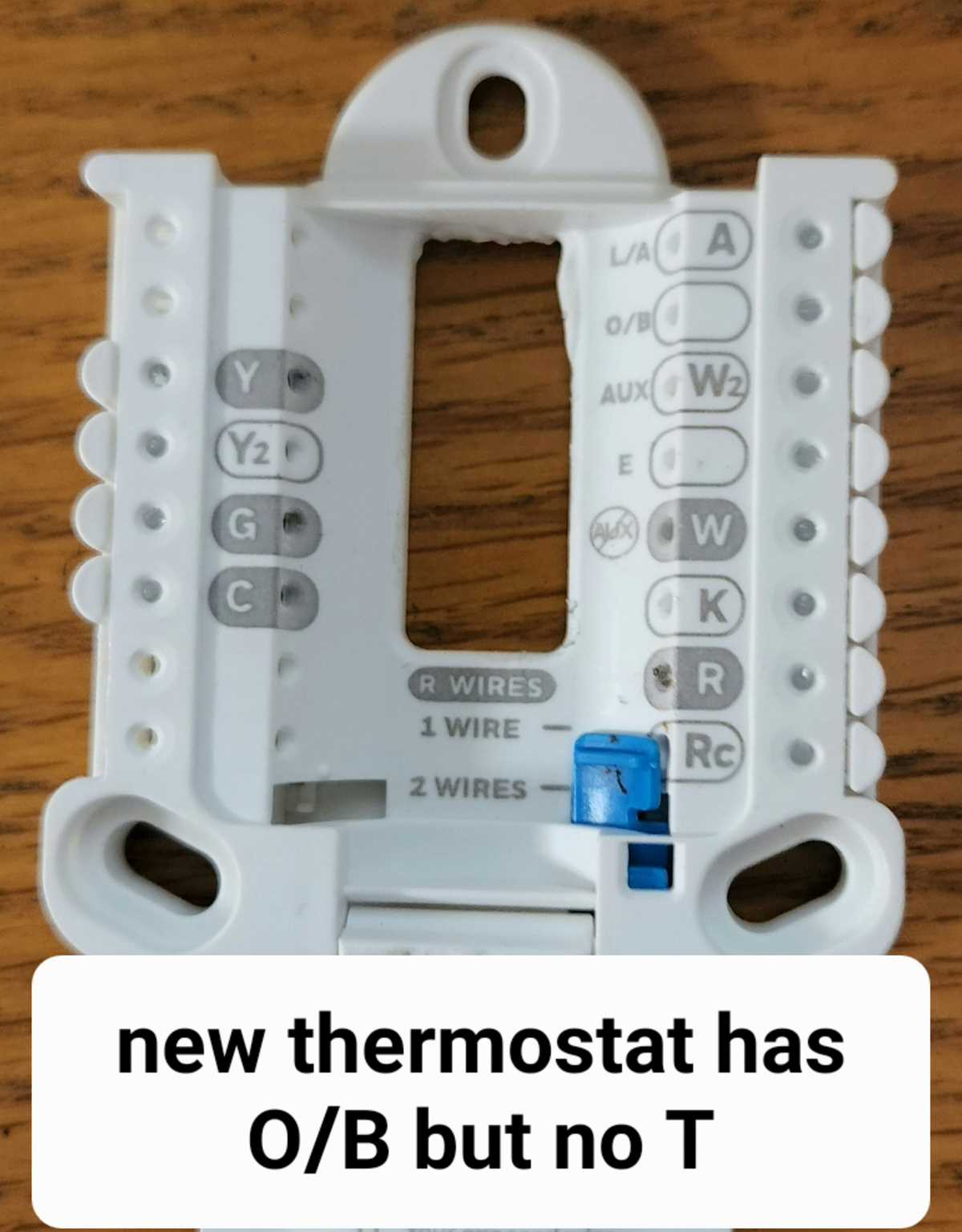

After fastening all wires, re-energize the circuit and confirm the T3 powers on with a stable display. Press the up arrow once; if the heat relay engages (audible click from the furnace) and the flame sensor activates within 15 seconds, the setup is correct. If the system cycles erratically, recheck wire gauge (minimum 18 AWG for runs under 100 feet) and insulation integrity–nicked wires cause voltage drop, mimicking thermostat failure. For zoned systems, jumper R to Rc on the T3 if using a single power source; omit the jumper if separate transformers supply heating and cooling loops.
Proper Integration of T3 Thermostat with Heat Pump Systems
Begin by identifying the labeled terminals on the T3 control unit and the heat pump’s outdoor unit. Match the R (power), C (common), Y (cooling), O/B (reversing valve), W (auxiliary heat), and G (fan) connections precisely. Misalignment here causes erratic operation or complete system failure.
For standard heat pump configurations, connect the reversing valve (O/B) to the corresponding terminal on the T3 device. If the system uses O for cooling and B for heating, verify the manufacturer’s settings–most modern setups default to O for cooling mode. Reverse this only if explicitly required by the pump’s specs.
Power supply must come from a dedicated 24V transformer. Avoid sharing the C-wire with other low-voltage components, as voltage drops can disrupt communication between the T3 unit and the pump. Use a multimeter to confirm stable 24V AC between R and C before proceeding.
- Single-stage heat pumps: Link Y directly to the compressor contactor. No additional relays are needed.
- Two-stage or variable-speed pumps: Connect Y1 and Y2 to their respective stages. Configure the T3’s staging settings via the interface to match the pump’s requirements.
- Emergency/auxiliary heat: Wire W2 to the backup heat strip or gas furnace control. Ensure the T3’s heating algorithm prioritizes the pump over auxiliary sources unless outdoor temperatures drop below the balance point.
Fan control requires linking G to the blower relay. For systems with multistage fans, verify whether the pump uses a single-speed or variable-speed blower. The T3 supports both, but settings must align with the pump’s capabilities–incorrect fan staging leads to poor airflow or excessive cycling.
Advanced Configuration Steps
Enable defrost mode by setting the T3’s defrost termination option. Most pumps trigger defrost at 30°F (-1°C), but adjust this threshold based on local climate conditions. Failure to configure this correctly results in ice buildup on outdoor coils, reducing efficiency.
Test the system in all operating modes (heating, cooling, emergency heat, defrost) before finalizing the setup. Use a clamp meter to measure current draw on each circuit–unexpected amperage spikes indicate miswiring or component stress. Document actual readings against the pump’s rated values.
For communicating systems (e.g., T3 with a modulating pump), ensure compatibility between devices. Some pumps require a proprietary adapter for full feature support. Refer to the pump’s technical bulletin for specific protocol requirements–generic connections may limit functionality.
Troubleshooting Common Errors
- Short cycling: Check for loose connections on Y and O/B terminals. Verify the pump’s minimum runtime settings align with the T3’s delay parameters.
- No cooling/heating output: Confirm R and C are energized. Test the reversing valve solenoid–if stuck, the system may default to heating only.
- Erratic fan behavior: Inspect G terminal wiring for shorts. Ensure the blower relay coil resistance matches the pump’s specifications (typically 50–100 ohms).
- Auxiliary heat not engaging: Validate W2 is wired to the correct stage. Review the T3’s outdoor reset curve settings–incorrect thresholds prevent backup heat from activating.
Finalize the setup by securing all connections with terminal blocks or crimp connectors. Avoid electrical tape as a primary insulation method–vibration can degrade adhesion. Label each wire at both ends for future diagnostics.
