Complete Guide to Hopkins 7 Way Blade Trailer Connector Wiring
Begin by locating the central power feed on the vehicle harness–this is typically the thick yellow wire for a standard 7-way round plug. Verify its voltage with a multimeter: 12 volts DC should register when the ignition is active. If absent, trace the fuse box for a blown 20-amp circuit. Connect this wire directly to the corresponding pin on the trailer side, ensuring a secure crimp or solder joint protected by heat-shrink tubing.
Avoid relying on generic schematics; color codes vary between manufacturers. For example, the brown wire (running lights) may be red on older Ford models. Always confirm functions by testing each pin individually before final assembly. Use a dedicated pin-out tester or a basic LED probe–never guess based on wire thickness or insulation color alone.
Ground the system properly: attach the white wire to a clean, bare metal surface on the vehicle frame, not to painted or coated areas. Poor grounding causes intermittent failures, especially under load. For auxiliary functions like trailer brakes or reverse lights, ensure the blue (brakes) and purple (reverse) lines have continuous conductance without voltage drop. Measure resistance–values above 0.5 ohms indicate corrosion or weak connections.
If the harness includes a 12V auxiliary circuit, verify its intended use (e.g., battery charging, accessories) and fuse it appropriately. A missing or undersized fuse risks overheating the wiring loom. Route all cables away from sharp edges, moving parts, and excessive heat sources like exhaust systems. Secure them at 12-inch intervals using nylon ties or conduit clamps.
After installation, perform a full system check: activate each light and function sequentially while observing voltage levels. Flickering or dim outputs suggest loose terminals or insufficient power delivery. Address these issues immediately–do not tow until all circuits operate reliably under every condition, including wet weather or high electrical demand.
Store spare terminals, dielectric grease, and wiring diagrams in the vehicle for quick repairs. Keep a continuity tester in the toolkit; troubleshooting trailer connectivity issues without one wastes hours. Replace any damaged connectors–improvised fixes like tape or wire nuts degrade rapidly under vibration and moisture.

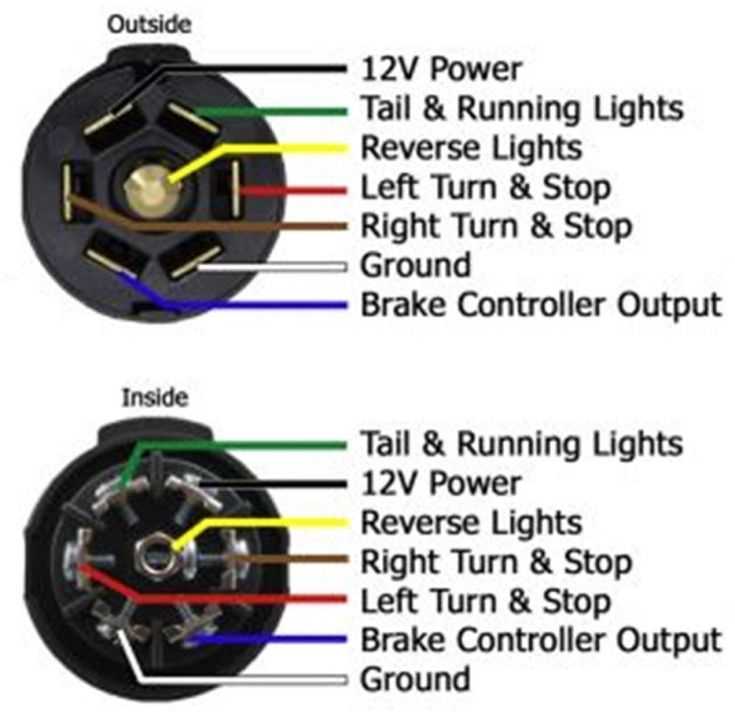

Understanding the 7-Pin Trailer Connector Schematic
Begin by identifying pin assignments before any connection attempt. The standard layout for a 7-way round connector follows this sequence:
- Pin 1 (Center): 12V auxiliary power (often used for interior lights or charging). Verify the circuit supports at least 25A continuous draw to prevent overheating.
- Pin 2 (Clockwise): Right turn signal and brake light. Ensure the vehicle’s flasher relay matches the trailer’s current draw (typically 5-8A).
- Pin 3: Electric brake control. Connect only after confirming compatibility with the trailer brake system–most require a dedicated controller with 10-12V output.
- Pin 4: Ground. Use a 10-gauge minimum wire, directly bonded to the trailer frame via a clean, corrosion-free surface. Avoid daisy-chaining grounds.
- Pin 5: Left turn signal and brake light–identical requirements as Pin 2.
- Pin 6: Running lights. Use trailer-specific LEDs or bulbs rated for 12V and ≤2A per fixture.
- Pin 7 (Bottom Center): Reverse lights. Requires a relay if the vehicle’s backup circuit can’t handle additional load (common in older models).
Test each circuit with a multimeter before finalizing connections. A 12V reading at the connector plug (with vehicle ignition on) confirms correct wiring. Skip this step only if using a pre-wired harness with manufacturer-tested compatibility.
Route cables away from moving parts, sharp edges, and heat sources. Secure every 18 inches with zip ties or adhesive-backed clips. For longer trailers (>20 ft), use a junction box to split circuits and reduce voltage drop–calculate required wire gauge using this formula: (Length × Current × 0.02)/Voltage Drop (allow 0.5V drop max for 12V systems).
Label all wires at both ends with heat-shrink tubing or numbered tags. Store a spare fuse (20A for brake/turn circuits, 30A for auxiliary) and dielectric grease on hand–apply grease to all metal contacts during assembly to prevent oxidation. Replace any connector showing green corrosion immediately; use contact cleaner and a wire brush for minor buildup.
Verify trailer functions in this order: running lights, turn signals, brakes, reverse lights, then auxiliary. If brakes engage incorrectly, reverse polarity on Pin 3 (controller-dependent). For intermittent faults, check the vehicle-trailer ground loop–connect a jumper wire from the trailer frame to the vehicle chassis as a diagnostic step.
Decoding Pin Layouts and Cable Hues in 7-Pin Vehicle Connectors
Start by locating the central pin (ground) on the plug–it’s invariably the thickest wire, typically white or black-striped. This serves as your reference point for mapping the remaining six contacts. If the ground isn’t immediately obvious, probe the wires with a multimeter set to continuity mode against the vehicle’s chassis; the wire with zero resistance is your anchor.
Use the table below to cross-reference standard color codes against their functions. Variations exist between manufacturers, but this baseline covers 90% of North American and European trailers:
| Pin Position | Function | Common Wire Color | Voltage (Key On) |
|---|---|---|---|
| Center | Ground | White, Black-striped | 0V |
| Upper Left | Running Lights | Brown | 12V |
| Upper Right | Right Turn/Brake | Green | Pulsing 12V |
| Lower Left | Left Turn/Brake | Yellow | Pulsing 12V |
| Lower Center | Electric Brakes | Blue | 12V+ (Controller Signal) |
| Upper Center | Backup Lights | Pink, Purple | 12V (Reverse Gear) |
| Lower Right | 12V Power (Hot Lead) | Red, Black | 12V Constant |
For connectors with non-standard hues, prioritize function over color. The electric brake circuit (blue) may appear as teal or light blue–confirm by tracing the wire to the brake controller output. Similarly, the 12V hot lead (red/black) might merge with other circuits; track it to the fuse box or auxiliary power source.
Mark each wire at the connector end with heat-shrink tubing or colored tape matching the trailer-side harness. This prevents misalignment when reconnecting. If wires are grouped in a harness, separate them individually to avoid short circuits–particularly critical for the brake and power circuits, which carry higher current.
When testing, attach a 12V light probe to each contact while cycling through turn signals, brakes, and running lights. Watch for:
- Steady illumination on brown (running lights)
- Rapid blinking on yellow/green (turn/brake)
- Bright flash on blue (brake signal)
Absence of response indicates either an open circuit, faulty ground, or reversed polarity–swap the probe polarity to check.
For trailers with.reverse lockouts or hydraulic brakes, the backup light pin (pink/purple) may double as a solenoid trigger. Verify by engaging reverse gear–if the trailer disengages brakes or unlocks couplers, this pin carries dual functionality and must be isolated from standard backup lamps if interference occurs.
Corrosion-resistant pins use gold or tin plating. If contacts appear dull or greenish, clean with a wire brush and apply dielectric grease before reassembly. Avoid abrasives like sandpaper–these can strip the plating, leading to premature failure. For pitted contacts, replace the entire connector rather than crimping new wires, as compromised connections overheat under load.
Document any deviations from the standard pinout by photographing the plug before disassembly. Label the trailer-side socket identically to avoid guesswork during reinstallation. If integrating a new harness, match the amperage rating of the original–typically 20A for brakes and 10A for lighting circuits–to prevent wire meltdown under prolonged use.
Step-by-Step Connection Guide for 7-Pin Trailer Plug Installation
Start by securing the vehicle’s harness connector near the rear bumper with zip ties or mounting clips. Remove ¼ inch of insulation from each colored conductor using wire strippers, ensuring no strands are nicked–bare copper should remain fully intact. Match the exposed ends to the following pin assignments:
- White – Ground (attach to unpainted metal frame or dedicated bolt with star washer)
- Brown – Running lamps (connect to side marker and tail lamp circuit)
- Yellow – Left brake/turn signal (verify compatibility with vehicle’s flasher relay)
- Green – Right brake/turn signal (test with multimeter before finalizing)
- Blue – Electric brakes or auxiliary power (fuse at 30 amps if supplying 12V)
- Red – Reverse lights (confirm activation when shift lever is in reverse)
- Black – Battery hot lead (use 40-amp circuit breaker for protection)
Crimp each joint using tinned copper butt connectors and heat-shrink tubing; avoid solder-only connections as vibrations can fracture the bond. Slide tubing over the connection, heat with a heat gun until adhesive seals the joint, then let cool for 30 seconds before handling. Route excess cable through split loom tubing and fasten every 12 inches to prevent chafing against sharp edges. For vehicles with LED trailer lights, add a load resistor (50-watt, 6-ohm) across brake/turn circuits to prevent hyperflashing.
Test each circuit individually with a 12V probe–insert one lead into the socket contact and touch the other to ground. Brake and turn signals should illuminate both sides simultaneously; any dimming indicates a poor ground or voltage drop. Check running lamps with parking lights on; they should burn steadily at full brightness. Electric brake current draw should register below 10 amps per magnet. If reverse lights fail, trace the vehicle’s reverse wire to its fuse block–most use a 10-amp fuse labeled “backup.”
Attach the matching trailer-side plug by aligning the flat side of the plastic housing with the vehicle’s socket. Push connectors in until they click, then tighten the retaining collar. For trailers over 15 feet, install an inline diode kit to isolate brake/turn signals from running lamps, preventing feedback that can trigger false bulb-out warnings in the vehicle’s computer. Seal unused conductors with dielectric grease and cap them with silicone plugs to block moisture.
Verify ground integrity by measuring voltage between the trailer frame and vehicle ground–readings above 0.5V demand a secondary ground strap bolted directly to the hitch receiver. For dual-axle trailers, link ground wires from each side to a central bus bar mounted on the tongue. If LEDs flicker, replace standard flasher relays with electronic models rated for low-current bulbs–mechanical units require filament resistance to function properly. Always disconnect the trailer’s battery before servicing live circuits to avoid shorting brake magnets.
Document each step with photos and label all connectors–future troubleshooting becomes significantly faster. Store spare fuses, wire nuts, and extra dielectric grease in a small container mounted inside the vehicle’s toolbox. Re-test entire setup every six months or before long trips, focusing on ground connections first–they account for 80% of lighting failures on older trailers.
