Step-by-Step Air Horn Electrical Wiring Guide for Trucks
Start by identifying the relay switch as the core component–most failures trace back to incorrect voltage handling. Standard 12V setups require a 30/40A relay to manage the current surge when activating the compressor. Use 16-gauge wire for signal circuits and 12-gauge for power delivery to prevent overheating. Avoid connecting the relay directly to the battery’s positive terminal without a 20A fuse–position it within 7 inches of the power source to minimize short-circuit risks.
Ground the compressor to the vehicle’s chassis using a dedicated bolt, ensuring it’s free of paint or corrosion. Scrape the contact area to bare metal for a less than 0.5-ohm resistance. If the setup includes dual trumpets, wire them in parallel–never series–to maintain uniform air pressure. Test each trumpet individually before final connections to confirm airflow consistency; a clogged valve will starve the system even with proper electrical integration.
For the control switch, place it within 10 feet of the relay to reduce voltage drop. If using a button rather than a toggle, opt for a momentary-on switch to prevent compressor burnout from sustained activation. Route wires away from exhaust manifolds and sharp edges–secure them with plastic loom tubing to prevent chafing. When troubleshooting, measure voltage at the relay’s terminal 85 (input); anything below 11.5V indicates a weak power source or corroded connections.
Air compressors consume 15–25 amps under load–ensure your vehicle’s alternator can handle the additional demand. If installing on a diesel engine, confirm the alternator’s minimum output exceeds 80A. For motorcycle setups, use a solid-state relay to avoid interference with ignition systems. Document your layout with simple labels–”Relay to Compressor,” “Switch Input”–to simplify future diagnostics or upgrades.
Air Compressor Electrical Connection Manual
Install a 30-amp fuse between the power source and compressor motor to prevent overheating. Use 10-gauge wire for optimal current flow; thinner wires risk voltage drop and inconsistent performance.
Ground the system by attaching a dedicated 8-gauge wire from the compressor frame to the vehicle’s chassis. Ensure the connection point is free of paint or corrosion–clean surfaces with a wire brush before securing.
- Disconnect the battery before starting any work to eliminate short-circuit hazards.
- Route cables away from moving parts, sharp edges, and hot surfaces to prevent abrasion or melting.
- Label each connection with heat-shrink tubing or permanent marker for future reference.

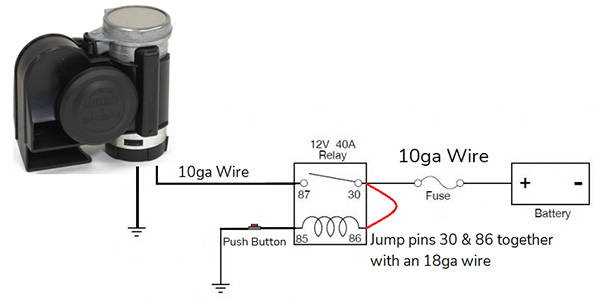

For dual compressor setups, split the power feed using a 30-amp relay. Connect the relay’s 85 terminal to a momentary switch and the 86 terminal to the battery positive. Link the 30 terminal to the compressor input and the 87 terminal to the power source.
Test the circuit with a multimeter before finalizing connections. Voltage at the compressor should match the battery’s output–any drop below 12V indicates resistance in the line. Replace damaged wires immediately.
Seal all connections with dielectric grease and adhesive-lined heat-shrink tubing. This prevents moisture ingress, which can cause corrosion and intermittent failures within weeks.
- Verify torque on terminal bolts–loose connections create heat and reduce efficiency.
- Mount the compressor on rubber grommets to minimize vibration and noise transfer.
- Recheck all ground points after 50 operational hours; oxidation can develop quickly.
Pinpointing Critical Elements in Air Signal Installation Schematics

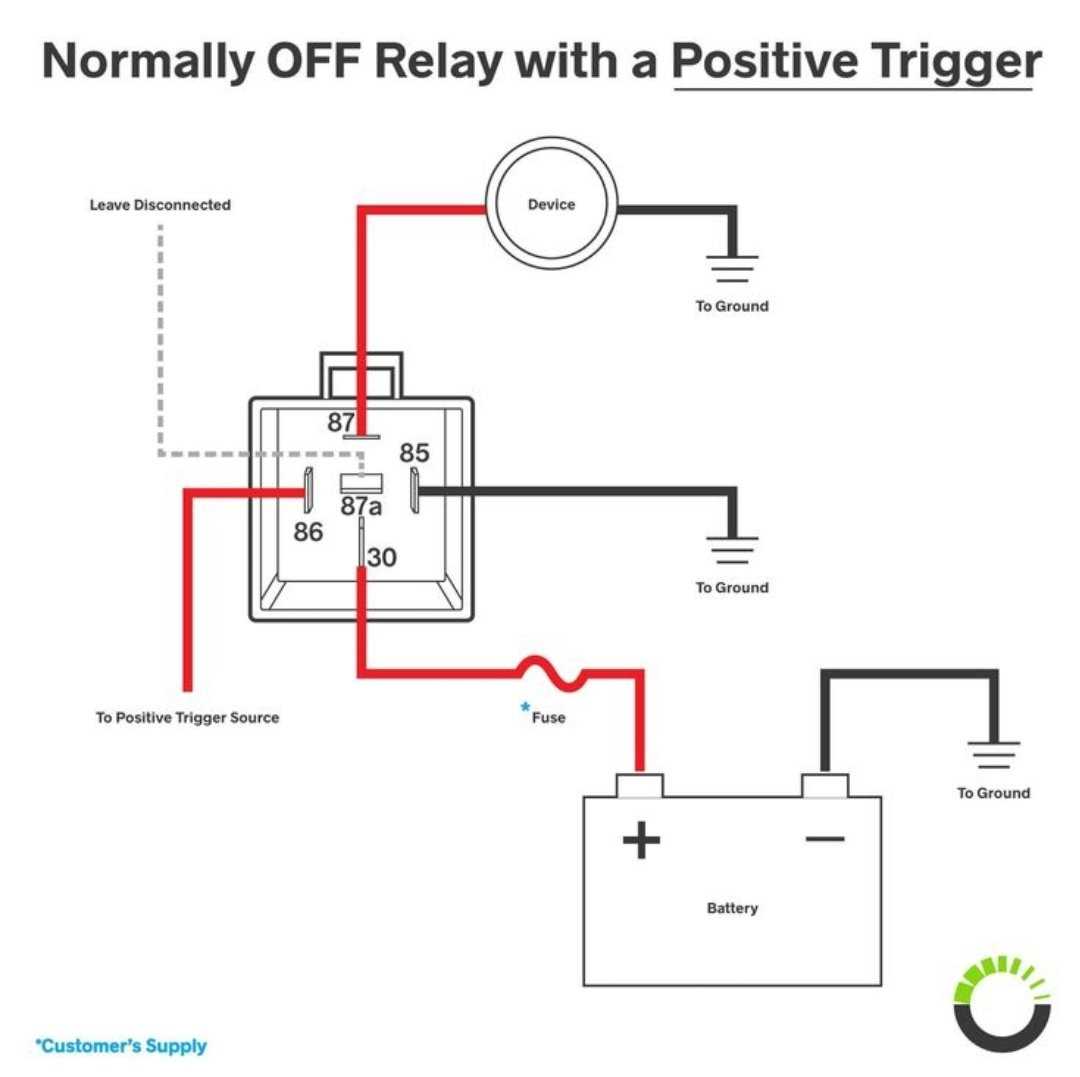

Locate the relay switch first–typically a 40/30-amp cube unit with numbered prongs. Confirm connections: terminal 85 to the trigger source (e.g., dashboard switch or remote module), 86 to ground, 87 to the compressor or solenoid positive lead, and 30 to the battery’s main feed via a fused link. Misalignment here causes silent failures or continuous operation; test continuity with a multimeter before securing.
Inspect the compressor valve manifold–identify the pressure switch (annotated as PS) and unloader valve (UV). The PS triggers at 150-175 PSI, cutting power to prevent over-pressurization; verify its sensitivity with a calibrated gauge. The UV vents residual air post-cycle, critical for preventing moisture buildup; a clogged unit risks compressor burnout. Clean these components with compressed nitrogen annually, avoiding petroleum-based solvents.
Trace the air line routes from the tank to the trumpets via nylon tubing (minimum 3/8″ ID for dual-trumpet setups). Label junctions with heat-shrink tags to avoid back-feeding through unintended paths. Secure tubing to rigid mounts every 18-24 inches to prevent vibration-induced fatigue; cross-reference against the truck manufacturer’s OEM torque specs for mounting brackets.
Step-by-Step Air Horn Relay Connection Process
Locate the vehicle’s battery and identify the positive (+) and negative (-) terminals–use a multimeter to confirm polarity if corroded or unclear. Cut two 16-gauge automotive-grade cables: one 8-foot length for the power feed and another 6-foot for the horn trigger circuit. Strip ½ inch of insulation from both ends of each cable, then tin the exposed copper strands with solder to prevent fraying and improve conductivity.
Connect the 8-foot power cable directly to the battery’s positive terminal, securing it with a ring terminal and bolt–use heat shrink tubing over the joint to shield against vibration and moisture. Route this cable along the firewall through grommeted holes, avoiding sharp edges or moving components like the steering column or suspension. Ground the relay’s 85-pin by attaching a 12-gauge cable (minimum 12 inches) to the chassis using a self-tapping screw; verify the grounding point is free of paint, rust, or undercoating for a solid connection.
Install an inline 30-amp fuse holder within 7 inches of the battery terminal on the power cable–this protects the circuit from shorts and fire hazards. Select a relay with a 40-amp rating (SPST or SPDT) and match the pinout: 30 (power in), 87 (power out to horns), 85 (ground trigger), 86 (switch trigger). Use a terminal crimper for relay sockets, ensuring connections are tight and vibration-resistant–loose terminals cause intermittent failures.
| Component | Wire Gauge | Max Current (A) | Terminal Type |
|---|---|---|---|
| Battery Feed | 16 | 20 | Ring (crimped) |
| Horn Output | 14 | 30 | Spade (female) |
| Ground | 12 | 40 | Ring (soldered) |
| Switch Trigger | 18 | 10 | Bullet (insulated) |
Attach the 6-foot trigger cable to the vehicle’s existing horn button or steering wheel switch, using a butyl rubber sealant at the connection point to block moisture ingress–failure here causes erratic relay activation. Route this cable through the steering column conduit, avoiding areas where cables may twist or pinch during wheel rotation. Connect the trigger cable to relay pin 86 and ground the opposite end (pin 85) to complete the control loop.
Test the setup before final assembly: press the horn button–listen for a crisp relay click and check for voltage drop at the horns (should be
For dual-air horns, split the output from relay pin 87 into two 14-gauge cables using a busbar or Y-adapter–ensure both horns receive equal voltage to maintain synchronized output. Avoid daisy-chaining horns, as this causes voltage loss and weaker performance. Seal all splices with adhesive-lined heat shrink and cover exposed terminals with dielectric grease to prevent oxidation–critical for longevity in moist or salty environments.
Reinstall interior panels and test drive the vehicle at varying speeds–listen for consistent airflow through the horns (distortion indicates partial blockage or loose components). Park on an incline and activate the horns for 10-second bursts to verify heat dissipation in the relay–excessive warmth signals inadequate current handling. If the relay fails within 50 activations, upgrade to a 80-amp model and double-check cable integrity around the battery terminals.
Solving Frequent Air Horn Connection Issues
Check for loose terminal connections first–vibration from vehicle movement often disrupts even well-secured assemblies. Tighten every crimp and bolted joint with an insulated tool to prevent arcing. Corroded terminals require immediate cleaning with a wire brush and dielectric grease application; oxidation increases resistance by up to 30% in copper contacts under 12V systems.
Misrouted cables cause shorts when pinched between metal panels or chafed by sharp edges. Use grommets at every body panel penetration, securing bundles with zip ties spaced no farther than 8 inches apart. Verify polarity at the relay–reversed inputs will silence compressors instantly while drawing excessive current, risking solenoid burnout within 20 seconds.
Verifying Relay and Switch Functionality
Test the relay with a multimeter: coil resistance should read 50-80 ohms, and contacts must show zero ohms when closed. Replace relays with resistance readings outside these ranges immediately–failed units lead to intermittent operation or compressor overload. Ensure the switch handles no more than 30A; higher loads require a secondary relay for protection.
- Ground path resistance: <0.2 ohms between battery negative and compressor frame
- Voltage drop test: <0.5V across power leads under full load
- Solenoid click test: audible activation confirms control circuit integrity
Compressor-Specific Diagnostics
Compressor cycling too frequently indicates air leaks or faulty unloader valves. Inspect hoses for cracks using soapy water–bubbles reveal leaks under 20 PSI. Replace unloader valves if the compressor runs continuously without building pressure; worn diaphragms prevent proper tank pressurization, causing premature motor strain.
Internal wiring faults show as erratic compressor behavior. Measure current draw with a clamp meter–15A-25A is normal; readings above 40A suggest shorted windings or seized pistons. Disconnect all accessories before testing to isolate the problem; parasitic loads skew readings and mask the actual issue.
Power interruption symptoms include partial horn activation or inconsistent volume levels. Check fuse ratings–too low and they blow under load; too high and they fail to protect circuits. Replace fuses with the exact amperage specified: 20A for single-horn setups, 30A for dual assemblies. Never substitute automotive fuses with higher-rated glass types–fire risk increases tenfold.
