How to Wire a Hot Water Heater Step-by-Step Guide with Diagram
Begin by disconnecting the main power supply at the circuit breaker before examining or modifying any internal connections. Use a multimeter to verify zero voltage across all terminals–never assume disconnection is complete based on switch position alone.
Standard tankless models typically require a dedicated 240V circuit with a minimum 30A breaker for residential use. Check the manufacturer’s specifications: some high-demand units may need 40A or 50A protection. Undersized wiring leads to overheating and tripped breakers, while oversized conductors waste resources without improving performance.

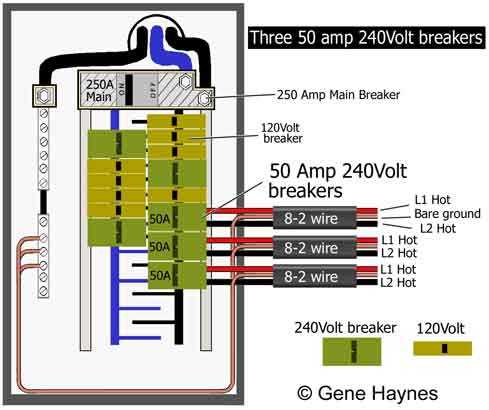

Connect the black (live) and red (secondary live) wires to the top two breaker terminals, ensuring torque meets NEC requirements–loose connections cause arcing and failure. Ground the unit via a copper wire to the panel’s ground bus, using at least #10 AWG for 30A circuits, #8 AWG for 40A. The neutral wire is not used in most configurations but must remain capped if present in the cable.
Route wiring through conduit if exposed to moisture or physical damage. EMT (electrical metallic tubing) is preferred for durability, while flexible conduit suits tight spaces–but never use Romex (NM cable) outside approved protected areas. Label all wires at both ends for future troubleshooting.
After installation, test with a clamp meter under load. Current draw should match the nameplate rating (±10%). Excessive amperage indicates incorrect voltage supply, undersized conductors, or internal faults. If the display panel shows error codes, consult the troubleshooting tables–codes E-01 to E-12 usually signal electrical issues.
Thermal protection switches inside the unit often require manual reset after overload. Locate the reset button behind the lower access panel and press firmly. If the problem recurs, inspect for scale buildup on heating elements or faulty thermostats.
For three-phase units, follow the phase sequence diagram precisely. Reversing L1/L2/L3 causes erratic heating or damage to the control board. Use colored tape to mark wires: brown (L1), black (L2), gray (L3), green/yellow (ground). Double-check polarity at the terminal block before energizing.
Electrical Layout for Geyser Installation
Always verify the circuit breaker matches the appliance’s voltage requirements. A 240-volt system requires a double-pole breaker, typically 30 amps for residential units, while 120-volt setups use a single-pole 20-amp breaker. Label wires at both ends before disconnecting power to prevent confusion during reconnection. Copper conductors sized at 10 AWG are standard for 30-amp circuits, but check local codes–some regions mandate 8 AWG for longer runs.

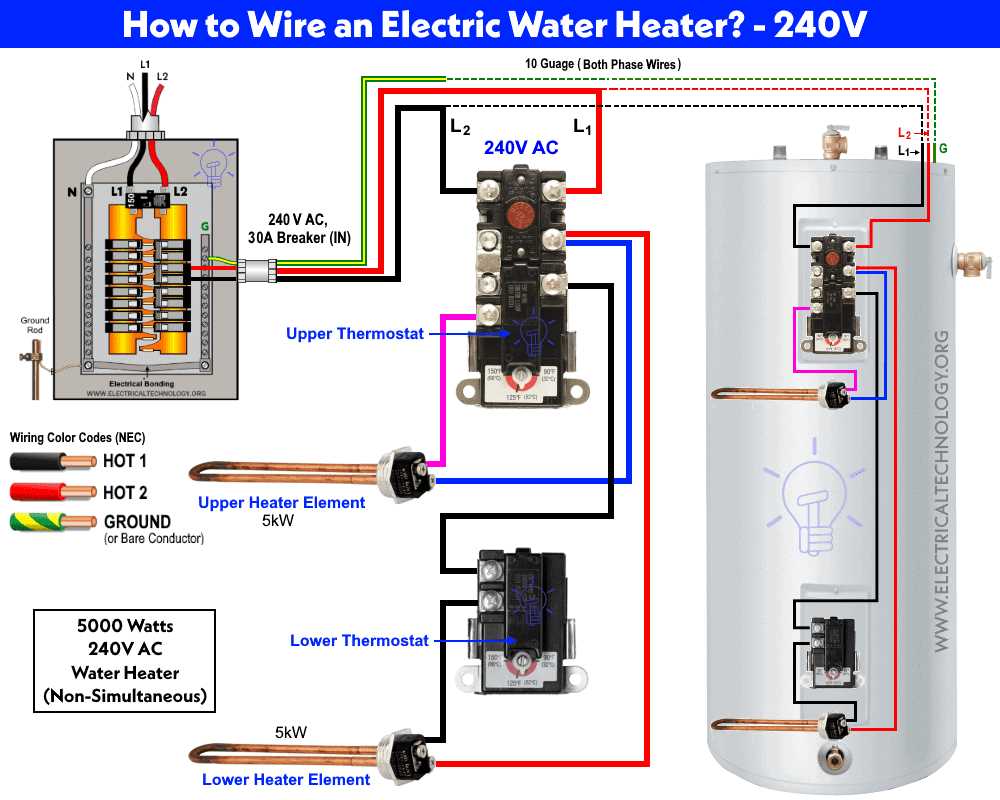

Locate the thermostat’s upper and lower terminals–these control the heating elements independently. The upper element activates first, ensuring rapid initial heating, while the lower one maintains temperature. Connect the black (live) wire to the terminal marked “L” and the white (neutral) or red wire to “T” on single-phase models. For dual-element systems, wire both elements in parallel to the same power source, ensuring consistent voltage across each.
Grounding Principles
Attach the green or bare grounding wire to the designated screw on the unit’s metal frame. Never rely on gas or water pipes for grounding–use a dedicated grounding rod if the main panel lacks a ground bus. Test continuity between the appliance frame and neutral bus before energizing the circuit. A non-contact voltage tester confirms power is off before handling wires; recheck after wiring to validate no accidental shorts exist.
Thermostat settings directly impact energy use. Factory presets often default to 120°F (49°C), but adjusting to 110°F reduces scalding risks while saving 5–10% on electricity. High-limit switches, set to trip at 150°F, prevent overheating–replace if tripping occurs without recovery. For hard water areas, flush the tank annually to remove sediment, which insulates elements and forces longer heating cycles.
Troubleshooting Circuit Issues
If the breaker trips immediately, suspect a short in the element or faulty thermostat. Disconnect power, then use a multimeter to test for continuity between the element’s terminals and ground–ohms should read between 10–20 per element. Infinite resistance indicates a burned-out coil, requiring replacement. If voltage measures correctly but the unit fails to heat, check for loose connections at the terminals or a degraded contactor in the thermostat.
Step-by-Step Guide to Identifying Your Tank’s Electrical Specifications
Locate the manufacturer’s rating plate on the side or rear of the unit; this metal or adhesive panel lists voltage, wattage, and amperage figures. Typically, residential storage vessels operate on 240V circuits, though some compact models may require 120V. Scan the plate for the wattage value–often between 3,000 and 5,500 watts–and divide it by the voltage to confirm the required breaker size. For example, a 4,500-watt appliance on a 240V line demands a 18.75-amp circuit, so round up to a 20-amp breaker for safety margins.
Examine the thermostat access panel; modern dual-element units split the load, but single-element versions concentrate power at one point. Look for a diagram stamped inside the panel door or imprinted on the thermostat itself–it outlines element placement and wiring terminals. Verify whether the device uses a dedicated neutral wire (rare) or a standard two-pole configuration. Check the junction box where the power cables enter–if it houses three wires (two hot, one ground), the setup aligns with standard 240V specifications. Absence of a ground wire signals an outdated or unsafe installation.
Confirm Wire Gauge and Circuit Breaker Compatibility
Cross-reference the calculated amperage with a wire gauge chart: 10-gauge copper suffices for up to 30 amps, 8-gauge for 40–50 amps. Older installations may use aluminum wiring, which requires thicker gauges or dedicated connectors to prevent oxidation. Inspect the existing cable–if it appears frayed, discolored, or undersized, replace it before energizing the system. Label each conductor at the breaker box to match the unit’s terminals, ensuring the neutral wire (if present) connects to the ground bus, not the neutral bar.
Test and Validate Before Energizing
Use a multimeter to confirm no voltage leaks into the storage vessel’s housing after disconnecting the old setup. Set the meter to 1kΩ resistance mode; probes on the element terminals should return open circuit readings (OL)–any continuity indicates a failed component. Reattach wires strictly per the schematic, securing all connections with heat-resistant wire nuts. Energize the circuit, then check for a 240V reading between the two hot terminals at the junction. If voltage drops below 220V, inspect the breaker, wire run, or utility supply for potential faults.
Electrical Safety Steps for Disconnecting a Tank-Scale Appliance
Locate the circuit breaker panel serving the storage vessel. Identify the breaker controlling the unit–it should be labeled, but if not, check each switch individually while someone monitors the appliance for power loss. Most residential units draw 240 volts and require a double-pole breaker.
Flip the breaker fully to the “off” position. Confirm the disconnect with a non-contact voltage tester near the unit’s electrical compartment. Hold the tester within 1 inch of wires or terminals; a lit indicator or audible alert means live current persists. Repeat the test on all incoming conductors.
If the unit lacks a dedicated breaker, shut off the main panel switch. This cuts power to the entire residence, so ensure sensitive electronics are protected. Work quickly to avoid disruption–most breaker panels restore safely within 30 minutes.
For hardwired units, remove the access cover on the appliance’s side or top. Use a screwdriver to detach the panel, exposing wiring connections. Wear insulated gloves rated for 600 volts. Check for residual charge using the voltage tester again before handling any wires.
If the installation includes a disconnect switch near the appliance, use it as an additional safety measure. These switches–often a lever or rotary type–must be turned to “off” even after flipping the breaker. Label the switch clearly for future reference.
Verify absence of power at the thermostat or control board, if present. Some models retain low-voltage circuits even when main power is off. Disconnect these separately by removing the relevant fuse or switching off a dedicated transformer circuit.
Tape the breaker in the “off” position with electrical-rated vinyl tape. This prevents accidental reactivation while working. If multiple technicians or household members are present, assign one person to guard the panel during the procedure.
Before reconnecting power, double-check all connections. Loose wires or improper grounding create fire hazards. Restore power incrementally–first the breaker, then the disconnect switch, and finally any secondary circuits. Test the appliance’s operation with a multimeter before closing the access panel.
- Use only tools with insulated handles.
- Avoid standing in water or wet areas during the process.
- Never assume wires are dead based on color alone–test all conductors.
- If unsure, consult an electrician rather than risk injury.
Detailed Circuit Connections for Single and Dual-Element Storage Tanks
Begin by confirming the tank’s voltage rating matches the local power supply–typically 240V for residential units. Single-element tanks require a dedicated 30-amp double-pole breaker with 10-gauge copper conductors. Connect the black supply wire to the upper terminal and the red (or second black) to the lower terminal, ensuring the ground wire secures to the green screw or grounding strap. For dual-element tanks, the same voltage applies, but internal sequencing governs power distribution: the upper thermostat receives priority, activating only when the top portion cools below its setpoint, while the lower element operates during high-demand periods.

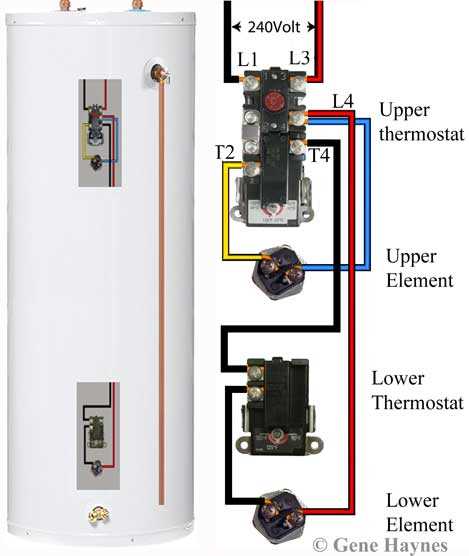

Use this reference for terminal identification on standard dual-element setups:
| Component | Top Element Terminals | Bottom Element Terminals | Thermostat Connections |
|---|---|---|---|
| Single-element | L1 (Black), L2 (Red/Black) | N/A | N/A |
| Dual-element (upper) | L1, L2 | N/A | Two load terminals (T1, T2) |
| Dual-element (lower) | Indirect via thermostat | L3, L4 (via thermostat) | Two load terminals (T3, T4) |
Strip insulation precisely–no more than 0.75 inches–to avoid exposed conductor contact with the tank’s outer casing. Twist stranded wire clockwise before securing under terminal screws, tightening to 15 in-lbs torque. For aluminum wire (rare but present in older installations), apply antioxidant compound to each connection and use copper-only rated lugs to prevent galvanic corrosion. Always label conductors at both ends with their corresponding circuit designation (e.g., “Bathroom Storage Tank”) before energizing.
Verify proper operation by cycling the unit: set both thermostats to 120°F, then monitor amp draw with a clamp meter at the breaker. A single-element tank should pull 20-25 amps during heating; dual-element configurations will show a sequential pattern–upper element draws first, followed by the lower after a 1-2 minute delay. If the breaker trips immediately, isolate the circuit and test for shorted elements using a multimeter: resistance across terminals should read 10-16 ohms for a functional 4500W unit, with infinite resistance to ground.
Modifications for Non-Standard Configurations
Tanks exceeding 55 gallons or rated above 4500W may require 8-gauge wire and a 40-amp breaker. Check the manufacturer’s data plate for specific requirements–some industrial units utilize 208V or 277V, demanding recalibration of conductor sizing per NEC Table 310.16. For off-peak usage, install a 24-hour timer between the breaker and tank, wiring the load terminals in series with the existing supply. Program timer delays to coincide with utility rate reductions, but ensure the total runtime remains sufficient to maintain temperature.
In regions with hard water, replace stock thermostats every 3-5 years or upon erratic cycling, as mineral buildup insulates sensors. When retrofitting a single-element tank with a dual-element controller, ensure the new thermostat’s ECO (Emergency Cut-Off) resets properly–test by manually tripping it and confirming the circuit opens. Always de-energize the system before performing any adjustments, and after completion, inspect for voltage at the tank’s disconnect before reapplying power.
