Step-by-Step Hotpoint Dryer Wiring Diagram Guide with Connection Details
Before attempting any repairs or inspections, locate the technical schematic attached to the rear panel of your machine or inside the owner’s manual. This document reveals the precise path of current flow, from the power inlet to each component. Without it, guessing connections risks damaging internal circuits or creating fire hazards. Models built after 2015 employ a three-wire L-N-G configuration, while older units may use a four-wire system–check the label near the terminal block for exact specifications.
Identify the main components on the schematic: the motor (often denoted as M or DRV), heating element (H), thermal cutoff (TCO), and door switch (DS). Each symbol correlates to a color-coded conductor–black (L), white (N), red or blue (load), and green or bare (ground). Trace these lines from the terminal block to their termination points, noting splices or connectors that could degrade over time. A multimeter set to continuity mode confirms integrity; any reading above 1 ohm indicates potential failure.
Safety precautions must precede any work. Disconnect power at the breaker, then verify absence of voltage with a non-contact tester. Capacitors retain charge even when unplugged–discharge them by shorting terminals with an insulated screwdriver after removing the back panel. Miswired connections can overheat within minutes; double-check polarity before re-energizing. If the schematic’s legend includes fuse ratings (typically 15-20A), replace blown fuses with identical amperage–deviations compromise protection.
Common failure points include burnt motor windings (accompanied by a burnt odor) and corroded terminal blocks (visible as green oxidation). Replace frayed conductors with 14 AWG copper wire rated for 600V. For models with digital controls, ensure the neutral line isn’t shared with low-voltage circuits–this can cause erratic behavior. If the schematic doesn’t match the physical layout, consult the manufacturer’s service bulletin for revisions.
Understanding Your Appliance’s Electrical Blueprint: A Hands-On Walkthrough
Locate the schematic tucked inside the machine’s rear panel–typically printed on a white or yellow label. Study the terminal block layout first: neutral (center, often silver), live (right, brass), and ground (green screw). Cross-reference each wire with the color-coding on the label–black for power, red for secondary circuits, and white for return paths. If replacing a burned element or motor, trace the red wire from its origin at the thermal fuse to the heating coil; this confirms continuity before reassembly.
Disconnect power at the circuit breaker before handling any internal components. Use a multimeter set to ohms (200Ω range) to test resistance across the heating coil–expected values range between 7-20Ω. If readings deviate significantly, inspect the coil for visible breaks or scorching near the ceramic insulators. A common failure point is where the coil meets the element bracket; tighten loose connections with pliers, ensuring no copper strands fray onto nearby metal parts.
For motor issues, focus on the start capacitor–usually a cylindrical unit with two terminals. Discharge it by placing a 20,000Ω resistor across the leads for 10 seconds. Measure capacitance (µF) while disconnected; a drop below 80% of the rated value (e.g., 10µF →
Safety Checks Before Reconnecting Power
Verify all wire nuts (marrette connectors) are securely fastened–tug each one firmly. Exposed strands should not extend beyond the nut’s base; trim excess with wire strippers. Reattach the rear panel only after confirming no wires interfere with moving parts like the drum belt or blower wheel. For gas models, ensure the igniter’s ceramic base sits flush against the burner assembly–misalignment causes intermittent ignition failures.
Test the door switch with a continuity meter: it should beep when closed and go silent when opened. If faulty, pry off the plastic cover with a flathead screwdriver, then squeeze the release tabs to remove the old switch. Align the new switch’s mounting bracket precisely–improper seating creates a 1/8″ gap that prevents proper operation. Use the original screws; longer replacements risk piercing internal wiring.

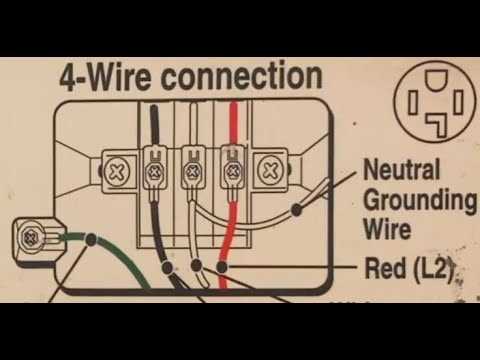

Reconnect the power cord following the terminal block’s L-N-G sequence. Tighten each screw until the wire deforms slightly–this prevents vibrational loosening. For 4-prong cords, attach the green ground wire to the chassis with a star washer between the wire and screw to ensure conductivity. After securing, plug in the unit and run a test cycle: listen for unusual humming (motor strain) or clicking (relay issues), and monitor the control panel for error codes.
If the appliance trips the breaker immediately, split the circuit into sections: disconnect the heating coil first, then the motor. A tripped breaker with only the motor connected suggests a short in the winding; inspect the insulation on the windings for dark brown patches (indicating overheating). Replace the motor if continuity tests show infinite resistance between windings and the core. For heating coil issues, check the hi-limit thermostat–it should reset manually if tripped (press the red button).
Document every step with photos before disassembly–this saves hours during reassembly. Label each wire with masking tape if colors fade (e.g., “BLK → HEATER,” “RED → CAPACITOR”). Store spare parts like belts or fuses in labeled zip-top bags taped inside the cabinet door for future reference. When in doubt, consult the technical manual’s exploded views; generic schematics rarely match exact component positions for specific models.
Locating the Proper Electrical Layout for Your Appliance
Begin with the manufacturer’s support portal. Access the official site by entering the model number of your unit into the search bar. Most brands provide a dedicated section for documentation, including schematics, user guides, and service manuals. If the exact layout isn’t listed under the primary product page, check the “Downloads” or “Technical Resources” tab–these often house PDFs for older or discontinued models.
Product labels hold critical information. Examine the interior door panel, rear enclosure, or beneath the lint trap for a sticker displaying the model, serial number, and occasionally a QR code. Scanning this code frequently directs you to the precise schematic online, eliminating guesswork. If the QR isn’t present, note the full model identifier–partial numbers may return inaccurate results.
Third-party repair databases offer an alternative if official sources fall short. Platforms like
- ManualsLib
- PartSelect
- AppliancePartsPros
- Fixya
archive thousands of electrical layouts. Search these sites using the full model number, verifying the version matches your appliance’s production year. Exercise caution: unofficial diagrams may lack updates or correct fuse ratings.
Contact customer service directly when online resources prove insufficient. Provide the agent with the model, serial number, and purchase date. Some brands mail physical copies of the schematics upon request, especially for units under warranty or commercial use. Response times vary, so inquire about expedited options if required for urgent repairs.
Retailer and Distributor Archives
Appliance dealers often retain internal documentation for sold units. Visit or call local retailers where the machine was originally purchased–they may have retained the schematic in inventory records or service logs. Major chains like
- Home Depot
- Lowe’s
- Best Buy
- Sears Outlet (for legacy models)
maintain detailed databases accessible to store managers. Requesting assistance from the service department yields better results than general sales.
Forums and community-driven sites compile firsthand experience. Search threads on
- Reddit (r/appliancerepair)
- AVForums
- eRepair
- ApplianceBlog
using the model number paired with keywords like “internal layout” or “circuit path.” Users frequently upload scanned or photographed schematics in comments or attached files. Cross-reference these with official sources to confirm accuracy.
Service Centers and Technicians
Licensed repair technicians possess branded schematics not always available online. Schedule an on-site diagnostic–even if you plan self-repair, some centers will photocopy relevant diagrams during the visit for a small fee. Independent shops, rather than corporate service hubs, are more likely to share these materials without upselling services.
Physical documentation may accompany the appliance. Check the original packaging for a folded insert labeled “Technical Specifications” or “Installation Guide”–these often include condensed layouts. If misplaced, reference the owner’s manual, typically stored in a kitchen drawer or filing cabinet. Thumb through technical appendices; schematics are often tucked between safety warnings and part lists.
Step-by-Step Process to Access the Appliance’s Internal Control Board
Unplug the unit from the power outlet before attempting any disassembly. Locate the rear access panel–most models secure it with four to six screws, typically 1/4-inch hex or Torx T20. Use a magnetic screwdriver to prevent fasteners from falling into the housing. Place screws in a labeled container to avoid misplacement during reassembly.
| Tool | Size/Type | Quantity Required |
|---|---|---|
| Hex driver | 1/4-inch | 1 |
| Torx bit | T20 | 1 |
| Phillips screwdriver | #2 | 1 |
| Flathead screwdriver | 3/16-inch | Optional |
Gently tilt the machine forward to slide out the lower kickplate, if present. Some designs integrate tabs that require a slight flex to release. With the rear panel removed, identify the control module–usually mounted near the upper left corner. Disconnect all attached harnesses by squeezing the release tabs; label each connector with masking tape to ensure correct reattachment.
Rotate the machine upright, then lift the top cover by pressing inward on the front clips while pulling upward. This exposes the internal framework; set the cover aside on a soft surface to prevent scratches. Trace the ribbon cables leading to the control module–use needle-nose pliers to carefully extract them if grip space is limited. Document each step with clear photographs for reference during reassembly.
