Mastering Electrical Schematics A Step-by-Step Explanation Guide

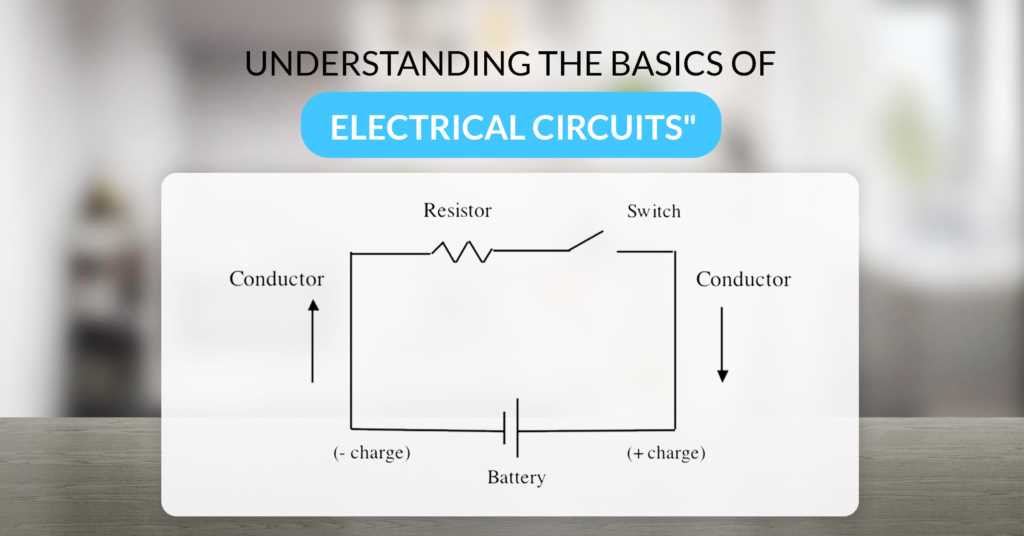

Begin by segmenting the layout into functional blocks. Group components handling power regulation, signal processing, and control logic separately. Label each block with a concise identifier–PSU for power supply, MCU for the microcontroller core, IO for input/output interfacing. This partitioning prevents visual clutter and clarifies the data flow.

Use standardized symbols and annotate every element with its exact value. Resistors require ohms, capacitors specify microfarads or picofarads, inductors denote henries. Avoid vague labels like “R1” or “C2” without context; append pull-up, decoupling, or timing for immediate recognition. Include part numbers for critical ICs, such as ATmega328P or LM7805, ensuring reproducibility.

Trace signal paths with horizontal and vertical lines, minimizing crossovers. When unavoidable, employ a small jump arc–never a diagonal shortcut. Ground references converge at a single node marked with a downward triangle; power rails use a horizontal line with voltage notation (+5V, +3.3V). Highlight high-current routes with thicker strokes to warn of thermal constraints.

Add test points near oscillators, sensor inputs, and feedback loops. Label these TP_x where x matches the signal name (TP_CLK, TP_SDA). Annotate edge-sensitive nodes–clock edges, interrupt triggers–with arrows indicating active transitions (↑ for rising, ↓ for falling).

Include a legend in the bottom-right corner listing symbol meanings, color codes (red for power, blue for ground, green for signals), and layer conventions if multiple sheets exist. Number each sheet sequentially (Sheet 1 of 3) and embed a revision history with dates, author initials, and brief change notes.

Verify connectivity by cross-referencing net labels. Identical labels signify electrical connection regardless of physical separation. Use GND, VCC, or custom net names like PWM_OUT consistently. Rotate polarized components–diodes, electrolytic capacitors–to show anode/cathode orientation without relying on silkscreen.

Breaking Down Electronic Schematics for Clear Communication

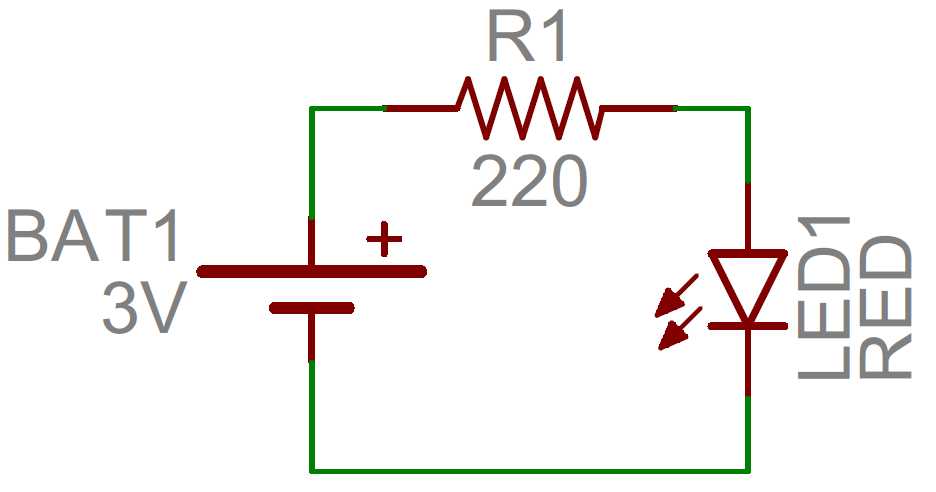

Start with a systematic naming convention for components. Label resistors as R1, R2, capacitors as C1, C2, and so forth. Include voltage ratings for critical parts like electrolytic capacitors (e.g., C3 100µF 25V) and wattage for resistors (e.g., R4 1kΩ 0.5W). This eliminates guesswork when verifying or assembling the design.

Use standardized symbols consistently. Replace generic triangles with logic gate types (AND, OR, NAND) and differentiate between MOSFET and BJT transistors. Indicate polarity for diodes with a clear cathode line (|) and annotate LED colors if relevant. For integrated circuits, reference pin numbers directly on the drawing–avoid relying on external datasheets during review.

Group related elements spatially. Place power regulation components (transformer, rectifier, voltage regulator) in one quadrant, signal processing in another. Separate high-current paths (thick traces) from low-noise analog lines to prevent interference. For multi-stage designs, organize left-to-right or top-to-bottom to mirror signal flow.

Document key specifications in a table adjacent to the schematic:

Parameter	Value	Notes
Input Voltage Range	10–24V DC	Reverse polarity protection via D1
Regulated Output	5V @ 1A	LD1117V33 with 10µF tantalum caps
Microcontroller	STM32F030R8T6	3.3V logic, 48MHz max
Switching Frequency	300kHz	PWM via TIM1, 50% duty cycle max

Highlight test points (TP1, TP2) with circles and labels specifying expected voltages or waveforms. If the design includes a microcontroller, mark critical pins (reset, clock, UART TX/RX) with both schematic names (PD2/USART_TX) and physical pin numbers (Pin 41). For programmable components, add a footnote referencing the firmware version or configuration bits.

Add concise legends for non-obvious details. For example: “All resistors 0.25W unless specified,” “Unlabeled capacitors = 0.1µF 50V X7R,” or “JTAG connector follows ARM 10-pin standard, 1.27mm pitch.” Include a revision history block in the corner listing date, author, and changes (e.g., “v1.2: Added R12 for LED current limiting, changed Q2 to 2N7000”).

Recognizing Critical Elements in Schematic Representations

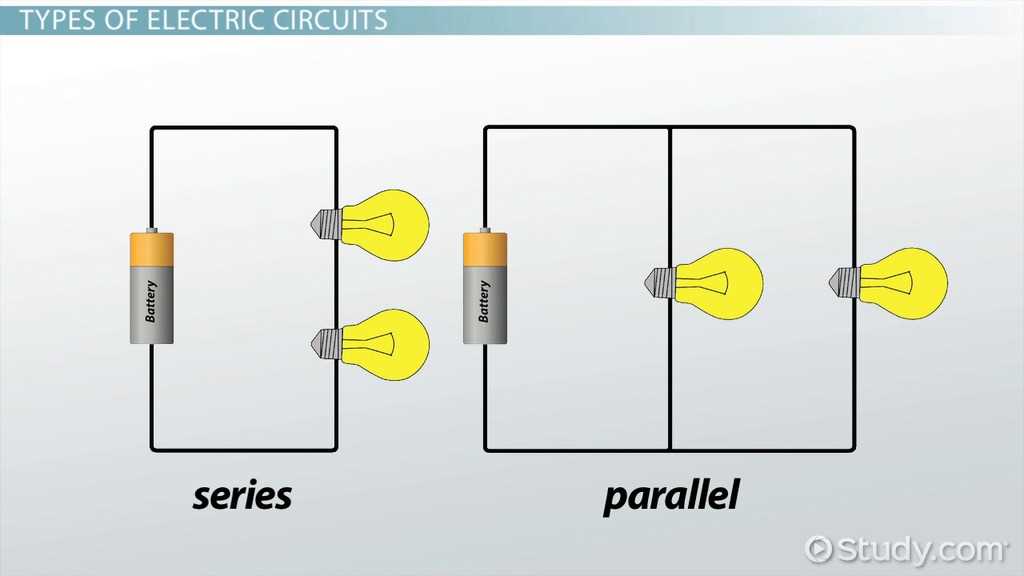

Begin by locating power sources–batteries, voltage rails, or connectors marked with standardized symbols like VCC, GND, or +5V. Trace their paths to verify polarity and ensure they feed all active components without interruptions. Common indicators include:

• Short thick lines for ground references.
• Arrowheads or plus signs (+) for positive terminals.
• Dashed or dotted lines often denote shared rails or isolated supplies.

Passive elements require precise interpretation–resistors, capacitors, and inductors feature distinct icons:

• Resistors: zigzag lines with values in ohms (e.g., 10kΩ).
• Capacitors: two parallel lines for non-polarized, curved lines or one straight/one curved for electrolytic types. Markings like 10μF or 22pF clarify capacity.
• Inductors: coiled lines or filled rectangles, labeled in henries (e.g., 1mH).

Check for accompanying notes–tolerance (±5%), voltage ratings (e.g., 25V), or material composition (film, ceramic). Unlabeled parts suggest default assumptions; verify against datasheets if ambiguity exists.

Active components–transistors, ICs, and switches–carry unique identifiers:

1. Transistors: BJTs show emitter/base/collector leads in specific layouts (NPN/PNP), FETs use source/gate/drain with directional arrows. Labels like 2N3904 or IRF540 pinpoint exact models.
2. Integrated circuits: rectangles with numbered pins (U1, IC2). Cross-reference pinouts with part numbers (e.g., LM741, ATmega328)–even a single flipped pin disrupts operation. Look for dotted outlines indicating optional or alternative placements.
3. Switches/relays: mechanical toggles use angled lines for poles/throws; solid-state types (e.g., MOSFETs) mirror FET symbols with added diode paths for flyback protection.

Isolate control signals–clock lines (CLK), enable pins (EN), or reset inputs (RST)–often grouped with thicker traces or color highlights. Missing or misrouted signals are primary failure points.

Verify interconnects last:

• Nodes: dots at junctions confirm electrical connections; crossed lines without dots indicate no contact. Errors here create “ghost” paths or dead ends.
• Buses: thick lines or multiple parallel traces (e.g., DATA[7:0]) denote grouped signals. Confirm each branch splits correctly–solder bridges on prototypes often stem from overlooked splits.
• Jumpers/test points: labeled pads (TP1, J2) allow probing. Trace these to nearby components to avoid mistaking them for decoupling capacitors or pull-ups.

Annotate any ambiguous symbols immediately–refer to IPC-2221/2222 standards or vendor-specific notation guides. Tools like KiCad or Altium integrate searchable symbol libraries; leverage them to resolve unclear markings without guesswork.

Decoding Symbols and Notations in Schematic Representations

Begin by memorizing three core components: resistors, capacitors, and inductors. Resistors appear as zigzag lines or rectangles with labeled resistance values (e.g., R=10kΩ). Capacitors split into two types–polarized (curved plate with a “+” sign) and non-polarized (two parallel lines). Inductors use coiled loops or a series of arcs, often marked with “L” and inductance (e.g., 10μH).

Transistors demand attention to detail. Bipolar Junction Transistors (BJTs) show an arrow indicating current flow direction: NPN (arrow outward) or PNP (arrow inward). Field-Effect Transistors (FETs) like MOSFETs display gate (G), source (S), and drain (D) terminals, with a gap at the gate for depletion-mode symbols.

Power sources follow consistent patterns. Batteries stack long and short lines–longer lines for positive terminals. Voltage sources use circles with “+” and “-” marks, while current sources add an arrow inside the circle. AC sources often include a sine wave symbol within the circle.

Switches and relays simplify complex interactions. Single-pole single-throw (SPST) switches show a gap in the line. Double-pole variants split into parallel connections. Relays combine coil symbols (inductors) with switching contacts, marked as normally open (NO) or normally closed (NC).

Integrated circuits (ICs) use rectangles with numbered pins. Digital logic gates (AND, OR, NOT) adopt distinct shapes: AND gates curve inward, OR gates bulge outward, and NOT gates add a small circle. Microcontrollers often replace generic rectangles with specific pin layouts directly on schematics.

Ground symbols come in three forms: chassis (three descending lines), earth (a triangle), and signal (three stacked lines). Digital schematics prefer signal grounds, while analog designs favor chassis or earth symbols for clarity. Mixed-signal layouts may differentiate analog and digital grounds with separate symbols.

Light-emitting diodes (LEDs) mirror standard diodes but add two parallel arrows pointing outward. Photodiodes reverse the arrow directions. Zener diodes include an angled line at the cathode. Thyristors combine diode symbols with an extra gate line, crucial for identifying trigger requirements.

Passive components like transformers show coupled inductors with dots indicating winding polarity. Crystals use two parallel lines with frequency labels. Fuses appear as a rectangle crossed by a diagonal line, often with current rating (e.g., 500mA). Verify symbols against datasheets–manufacturers occasionally deviate from standards.
