Step-by-Step Guide to Converting Circuit Diagrams into PCB Layouts

Begin by exporting your schematic into a netlist format compatible with your chosen ECAD software. KiCad, Altium, and Eagle each support distinct file types–ensure the netlist includes component footprints, reference designators, and connectivity data. Missing or mismatched footprints are the primary cause of early errors, so verify these before proceeding.

Place critical components first: microcontrollers, power regulators, and high-speed signals like clocks or buses. Orient them to minimize trace lengths and avoid crossing noisy lines over sensitive analog sections. A ground plane beneath RF or high-frequency paths cuts interference–keep it continuous and prioritize direct vias for return currents. For mixed-signal boards, split ground planes only at a single star point near the power source to prevent ground loops.

Route power nets before signal traces, ensuring adequate copper width for current demands. A 1oz copper layer tolerates ~1A/mm of trace width at 20°C ambient; use online calculators for precise margins. Decoupling capacitors must sit within 5mm of their IC pins, with vias placed directly beneath pads to reduce inductance. For differential pairs, maintain consistent spacing and length matching–tolerances tighter than 5 mils prevent skew in high-speed signals.

Label every net, test point, and silkscreen identifier with clear, non-overlapping text. Avoid placing silkscreen over vias or thermal pads–this prevents fabrication errors. Generate Gerber files with aperture checks enabled, then validate them in a viewer like GerbView or an online tool such as Tracespace. Look for unexpected gaps, overlapping traces, or incorrect drill sizes, which are common causes of assembly failures.

Export a bill of materials (BOM) with supplier part numbers and alternate sources early. Cross-reference the BOM against the schematic to catch discrepancies in footprints or values. For prototype runs, add fiducial marks near fine-pitch components and breakaway tabs on panelized designs to streamline assembly.

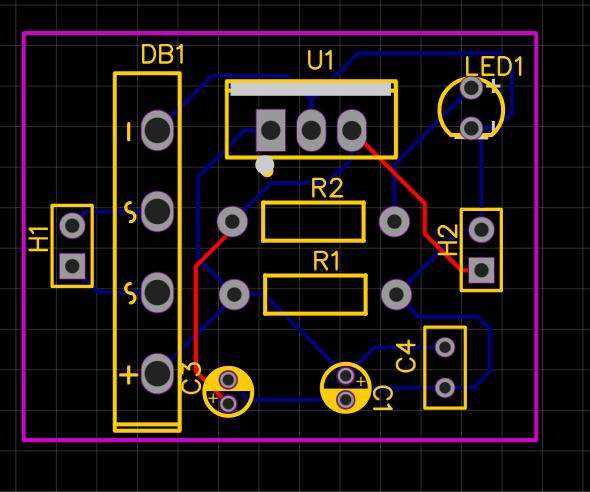

Transforming Schematics into Board Designs

Begin by segmenting the schematic into functional blocks–power delivery, signal paths, and control logic. Assign each block a designated area on the board to minimize trace crossings and ensure high-speed signals remain shielded from interference. For instance, keep analog and digital sections separated by at least 5mm, with their ground planes tied at a single point near the power supply. Use a ground plane under critical traces to reduce loop inductance, particularly for clocks and data lines exceeding 50MHz.

Trace width depends on current and thermal constraints. A common rule is 10 mils (0.254mm) per ampere for standard 1oz copper, but derate by 50% for temperatures above 80°C. For high-current paths, such as power rails, verify widths with a calculator like Saturn PCB or IPC-2221 formulas. Below is a reference table for minimum widths based on copper weight:

Current (A)	1oz Copper (mm)	2oz Copper (mm)
1	0.25	0.13
3	0.75	0.38
5	1.25	0.63
10	2.5	1.25

Via placement impacts signal integrity and manufacturability. Use through-hole vias for general connections, blind vias for dense BGA fan-outs, and buried vias for multilayer boards where layer count exceeds 6. For signals above 1GHz, maintain a via aspect ratio under 8:1 (diameter to depth) to avoid impedance discontinuities. Stagger vias on differential pairs to reduce crosstalk, spacing them no closer than 3 times the via diameter.

Finalize the design by annotating component footprints with reference designators and polarity markers, then generate fabrication outputs–Gerber files for each layer, drill files in Excellon format, and a pick-and-place file with rotation angles in degrees from pin 1. Verify drill hits align with pad centers within ±0.05mm tolerance, especially for fine-pitch components like QFN-48. Export assembly notes as a separate PDF, specifying solder mask expansion (typically +0.1mm) and silkscreen clearance (minimum 0.5mm from pads).

Choosing the Optimal EDA Tool for Schematic-to-Board Conversion

For beginners, KiCad remains the undisputed free option with zero restrictions–no node limits, no feature locks, and full Gerber export support. Version 8 introduced a revamped footprint editor with real-time DRC checks, reducing manual error-prone tasks by 40% compared to earlier releases. The built-in library now includes over 20,000 verified symbols and footprints, covering common microcontrollers, passives, and connectors without requiring manual creation. Teams report a 3-day reduction in prototype cycles when using KiCad’s interactive push-and-shove router for dense designs like USB hubs or sensor arrays.

Mid-range projects demanding tighter integration with MCAD or advanced simulation should evaluate Altium Designer.

• Native 3D STEP export with precise collision detection prevents enclosure clashes, critical for wearable or aerospace boards.
• The xSignals tool automates length-matched traces for DDR3/DDR4 buses, ensuring signal integrity without manual tuning.
• ActiveRoute reduces layout time by up to 60% for high-speed designs, using machine learning to optimize trace paths during interactive editing.
• Cloud-based collaboration via Altium 365 allows simultaneous schematic and board edits, syncing changes across teams in under 5 seconds.

Licenses start at $3,500 annually but drop to $1,200 per seat for universities–compare this to OrCAD’s $8,200 perpetual license for similar capabilities.

For high-frequency RF or flex-rigid stacks, Cadence Allegro’s constraint-driven flow is non-negotiable. The software enforces over 50 signal integrity rules (impedance, crosstalk, return path) during placement, not just routing. Its “Dynamic Shape” engine recalculates copper pours instantly when components are moved, a feature missing in Altium and KiCad. While the base package runs $12,000, the “RF Option” adds EM simulation and stackup impedance planning tools, validating traces for 5G mmWave up to 77 GHz. For low-volume production, Autodesk Fusion 360’s $60/month plan includes generative routing, letting the software propose multiple trace layouts based on thermal or performance constraints–a 50x time-saver for high-power LED drivers or motor controllers.

Preparing Schematics for Component Footprint Correlation

Annotate each symbol with unique designators before proceeding–resistors (R1, R2), capacitors (C1, C2), ICs (U1, U2)–to eliminate ambiguity in later stages. Tools like KiCad or Altium allow automatic renumbering, but manual verification prevents conflicts.

Double-check electrical connections against the intended netlist. Discrepancies–missing junctions, floating nodes, or incorrect pin assignments–cause routing errors. Use the ERC (Electrical Rule Check) function early; fixing issues here saves hours during placement.

• Group related components by function (power section, signal chain, I/O interfaces).
• Label these blocks with descriptive tags (e.g., “VREG_3V3”, “GPIO_EXPANSION”).
• Color-code nets within each block for visual clarity.

Verify footprint assignments against datasheets. A misaligned 0603 resistor footprint may fit a 0805 package, but transistor pinouts (e.g., SOT-23) or connector orientations often differ. Cross-reference every symbol’s assigned pattern with the manufacturer’s specifications.

Export the netlist in multiple formats (e.g., IPC-D-356 for fabrication, Spice for simulation) to ensure compatibility. Some ECAD tools strip metadata during conversion–validate the exported file before relying on it for layout work.

1. Identify critical signal paths (high-speed differential pairs, analog traces).
2. Flag these nets with clear notes (e.g., “IMPEDANCE_50OHM”, “KEEP_SHORT”).
3. Mark components requiring thermal pads (MOSFETs, LDOs) or shielding (RF modules).

Add mechanical constraints directly to the schematic:

• Board outline dimensions.
• Mounting hole locations and sizes.
• Keepout zones for heatsinks or external connectors.
• Silkscreen text for assembly instructions (e.g., “DO_NOT_POPULATE”).

Omitting these forces later revisions.

Include a revision table tracking changes–date, author, and description of modifications. Even minor updates (e.g., swapping a resistor value) impact the layout. A missing entry here risks rework during prototyping or production.

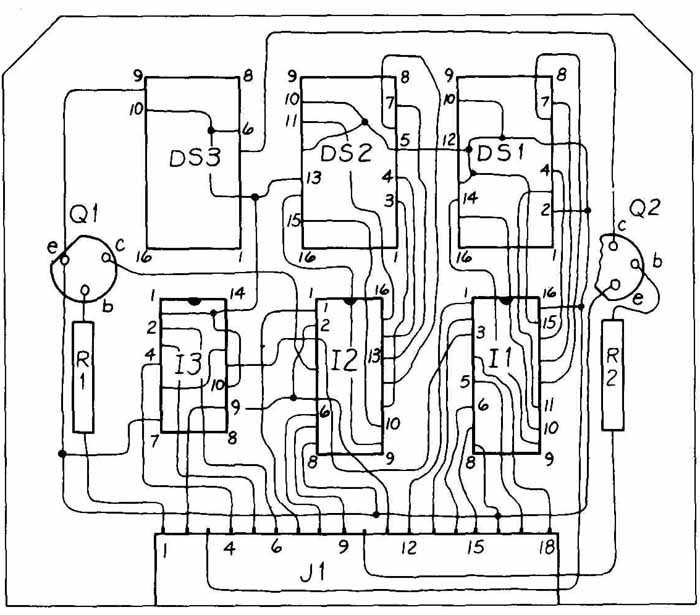

Strategic Component Positioning for Optimal Board Design

Prioritize critical signal paths by arranging high-speed traces between connectors and processing units first. Place microcontrollers, FPGAs, or SOCs at the geometric center of the board to minimize trace lengths to peripheral components like memory modules, ADCs, or clock generators. For DDR interfaces, maintain matched lengths within ±0.5mm to prevent skew; use serpentine routing if necessary. Keep decoupling capacitors–as close as 0.5mm–to power pins, preferably on the same layer without vias interrupting the return path.

Group analog and digital circuits into distinct zones, separated by at least 5mm of clearance or a ground plane barrier. Position sensitive analog components (op-amps, PLLs) away from switching regulators or noisy digital ICs; a minimum 20mm spacing reduces radiated interference. Route low-level analog signals on inner layers shielded by continuous ground planes above and below. Avoid running high-speed digital traces perpendicular to analog lines–angle them by 45° to reduce crosstalk.

Thermal and Power Distribution Considerations

Locate high-power components (MOSFETs, voltage regulators) near board edges for efficient heat dissipation. If forced-air cooling isn’t an option, allocate 10–15% additional copper area around these parts or add thermal vias spaced 2mm apart under the thermal pad. Distribute power rails radially from the source, using thick traces (2–3mm wide for 2A currents) or planes; avoid daisy-chaining sensitive loads. Place fuses or PTCs immediately after the power input connector to isolate faults.

Align connectors along the board periphery based on enclosure constraints. USB, HDMI, or GPIO headers should face the direction of external access–misalignment increases assembly complexity and cable strain. Maintain a 3–5mm clearance between connectors and nearby components; taller parts (heatsinks, transformers) often dictate standoff heights. For modular designs, cluster signal connectors near their controller ICs to shorten trace runs, but avoid crowding–leave 1mm gaps for solder mask relief.

Reserve the board corners for mechanical mounting holes, ensuring a minimum 3mm annular ring for M3 screws. Avoid traces within 1.5mm of hole edges to prevent drill breakout. Position fiducials (0.5mm diameter, non-soldermasked pads) near BGAs or fine-pitch components, spaced at least 5mm apart. For automated assembly, place no components within 10mm of the board edge unless specified by the SMT vendor’s panelization requirements.
