Practical Methods for Measuring Current in Circuit Schematics
Insert an ammeter in series with the component under evaluation to capture the exact charge movement. Ensure the device’s internal resistance is negligible–industry-standard models range below 0.1 ohms–to prevent voltage drops that skew readings. For low-power applications (e.g., microcontrollers at 5–20 mA), opt for a shunt resistor (1–100 mΩ) paired with a voltmeter; Ohm’s law (I = V/R) will derive the flow. Select resistor values to generate measurable voltages (10–100 mV) without altering the layout’s behavior.
For high-frequency or transient flows (kHz–MHz range), employ a current probe. Hall-effect sensors avoid breaking the path, offering isolation and bandwidths up to 100 MHz. Calibrate probes using a known signal (e.g., 1 A at 50 kHz) to eliminate noise; typical accuracy hovers around ±1%. In pulsed systems, validate probe response time–rise times under 10 ns are critical for capturing sharp edges.
When analyzing printed traces, use a precision multimeter with 4-wire Kelvin sensing to compensate for lead resistance. For traces carrying >1 A, calculate trace width using IPC-2221 standards: 1 oz copper requires ~1 mm/A for a 20°C temperature rise. Logarithmic scales on test equipment help track wide-ranging flows (e.g., 10 μA–10 A) without manual adjustments, but note resolution drops at extremes–0.01% of full scale is typical for high-end meters.
In high-voltage layouts (> 1 kV), isolate measurement tools with optical coupling or fiber optics to prevent ground loops. For AC flows, differentiate between RMS and peak values; sinusoidal waveforms require 1.414× the RMS for true current assessment. Non-sinusoidal loads (e.g., switching regulators) demand true RMS meters, as averaging types introduce errors up to 40% in distorted waveforms. Always verify meter bandwidth exceeds the highest harmonic of interest (5th for 50 Hz systems).
Practical Ways to Gauge Electrical Flow in Schematics
Place a multimeter in series with the component where amplitude needs assessment. Ensure the device is set to the appropriate range–DC for direct paths, AC for alternating ones–to prevent damage. For low-amplitude checks, select the lowest practical setting to capture subtle variations; higher ranges mask small fluctuations. Verify polarity when examining DC paths: red probe connects to the positive terminal, black to ground. Misalignment risks incorrect readings or meter overload.
Shunt resistors offer precision without disrupting operation. Select a low-value resistor (typically 0.1Ω to 1Ω) to minimize voltage drop while maintaining accuracy. Calculate amplitude using Ohm’s law: divide the voltage across the shunt by its resistance to derive the flow rate. This method excels in high-power scenarios where series insertion isn’t feasible. Avoid shunts in sensitive designs where added resistance alters behavior.
Clamp Meters for Non-Invasive Detection
Clamp meters enable indirect assessment by encircling a conductor. This approach avoids breaking paths, ideal for live systems. Position the jaws perpendicular to the cable, ensuring full closure to prevent magnetic interference. Larger conductors demand wider clamps; verify the meter’s rating matches the expected amplitude before use. For AC, standard clamps suffice; DC requires Hall-effect sensors–confirm compatibility first. Accuracy degrades with bundled cables; test individual wires where possible.
Tracer LEDs or audio probes simplify troubleshooting. Insert these tools in series to confirm presence or absence of flow; LEDs illuminate, while probes emit audible tones. Though less precise, they reveal open/closed states instantly without calculations. Limit use to low-amplitude paths–excessive flow burns out the indicator. For transient signals, oscilloscopes outperform meters, capturing dynamic behavior missed by static tools.
Choosing the Optimal Instrument for Tracking Electrical Flow
Opt for a multimeter when diagnosing low-power setups under 10A–its fused 10A input protects fragile traces while offering ±1.5% accuracy for DC and 2% for AC readings. For industrial loads (20A–1000A), clamp meters like the Fluke 381 provide non-contact sensing with ±2% precision and jaws accommodating 53mm conductors. Ensure the tool’s bandwidth exceeds the signal’s highest harmonic; a 20kHz meter will distort 100kHz PWM waveforms, necessitating oscilloscope-grade probes for switching power supplies.
Match the tool’s impedance to the monitored path. A 1MΩ multimeter input will load a 10kΩ sensor, skewing results by 10%. In contrast, a 10GΩ oscilloscope probe maintains
Proper Ammeter Integration for Accurate Readings

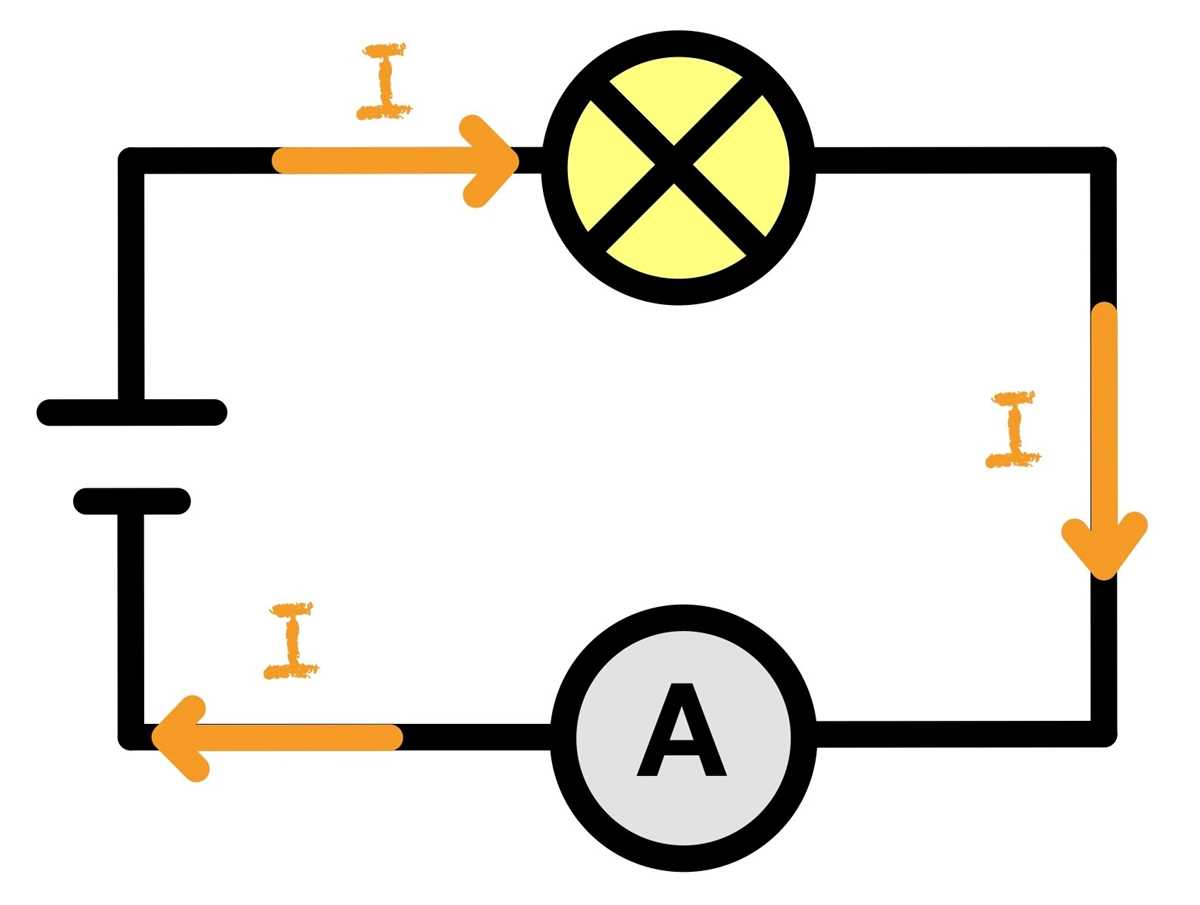

Position the instrument directly in line with the conductive path to ensure uninterrupted electron flow. Breaking the connection at the point of interest–whether between a power source and load or along a branch–prevents resistance buildup that skews results. Use terminals labeled “A” (positive) and “COM” (negative) to match polarity; misalignment introduces reverse readings that damage analog models or distort digital displays.
Critical Placement Scenarios
| Scenario | Placement Rule | Avoid |
|---|---|---|
| Single-loop systems | Insert after power supply, before first component | Placing parallel to resistors or capacitors |
| Branched networks | Locate on the specific branch requiring analysis | Common ground points where multiple paths converge |
| High-frequency signals | Use a clamp probe around conductors to minimize interference | Direct series insertion increasing circuit impedance |
Verify low internal resistance (typically <0.1Ω) before connecting; cheap meters add load that alters behavior. For transient analysis, set the device to peak hold mode to capture short-duration surges. Always disconnect power during placement–hot insertion risks arcing or component failure. When scaling diagrams for documentation, mark the insertion point with a distinct symbol (e.g., a circle with an “A“), ensuring clarity for future reference or troubleshooting.
Predicting Electrical Flow Prior to Practical Validation
Begin by identifying all resistive elements in the schematic using Ohm’s law: V = I × R. Isolate each branch where potential difference and resistance values are known–for instance, a 10V source across a 1kΩ resistor yields 10mA. Ensure calculations account for series and parallel configurations; in parallel, use the reciprocal sum method to derive equivalent resistance before determining the expected amperage through the combined path.
Factor in active components like transistors or ICs by consulting their datasheets. A microcontroller’s GPIO pin, rated for 20mA at 3.3V, will demand roughly 1.65mW per active output. If the design includes multiple outputs switching simultaneously, sum their individual draws to avoid underestimating total load. For MOSFETs, verify ID vs VGS curves–operating in the linear region may deviate predicted values by 10-15% due to temperature coefficients.
Apply Kirchhoff’s laws to complex layouts. Trace loops, assigning algebraic signs to each drop; a loop with a 5V source, 220Ω resistor, and 2V LED will enforce 3V across the resistor, necessitating 13.6mA. Verify node equations at junctions–current splitting between two 470Ω resistors from a single source should halve at each branch, producing 7.5mA per path for a 7V supply.
Accounting for Tolerances and Real-World Deviations
Resistor tolerances (e.g., ±5%) shift calculated values. A 100Ω resistor with 5% variance may actually range from 95Ω to 105Ω, altering the expected flow by ±2.5%. Use worst-case scenarios for critical applications–if a sensor’s pull-up requires 5mA ±0.5mA, plan for 5.5mA during design. Capacitive loads introduce transient spikes; a 10µF capacitor charging through 1kΩ can temporarily draw 100mA before stabilizing, so include short-duration surges in estimates.
Voltage regulator dropout margins directly impact downstream amperage. A linear regulator outputting 5V with a 2V dropout and 7V input may only sustain 120mA before thermal limits engage, not the 200mA claimed on the label. Switching regulators improve efficiency but add ripple; a buck converter at 85% efficiency with 1A input may deliver 850mA, but layout parasitics can reduce this to 800mA if ground paths aren’t optimized.
Tools to Automate Pre-Build Estimations
Use SPICE-based simulators like LTspice for transient and DC analysis. Model each component’s behavior: a diode’s forward voltage drop (~0.7V) will reduce available potential across adjacent resistors. For op-amps, simulate with ideal values first, then add realistic parameters–open-loop gain limits or slew-rate constraints may require iterative refinement. Export netlists from EDA tools (KiCad, Altium) to pre-fill simulation profiles, reducing manual errors.
Compare simulated data against theoretical calculations. A 2N2222 transistor biased to 10mA collector flow should match its hFE curve in the datasheet; divergence beyond 5% suggests either incorrect biasing or flawed component assumptions. Log discrepancies and adjust models–repeating this cycle refines accuracy before committing to hardware.
Avoiding Common Mistakes When Designing the Signal Route
Place the sensing element directly in series with the load to prevent parallel leakage. Even a small branch–such as a resistor divider or a bypass capacitor–can divert part of the flow, skewing results by 5–25%. Verify the chosen path carries the full intended magnitude before recording values.
- Keep the route uninterrupted; avoid adding unnecessary junctions or test points.
- Ensure all splices and connector contacts have resistance below 0.1 Ω.
- Label both entry and exit points to prevent reversed polarity errors.
Use a single ground reference for the entire tracing path. Mixing chassis, signal, and power grounds creates loops, introducing noise as high as 50 mV p-p. Dedicate a separate trace or wire for the return line, avoiding shared conductors with other signals.
Minimize lead length between the sensing point and the display device. Every 1 cm of copper trace adds ~0.5 mΩ; a 10 cm stretch can drop 1% of a 1 A signal. Route wires perpendicular to AC lines to cut induced interference by over 90%.
Test the path with a known reference before relying on readings. Apply a 100 mA source through the path and check for voltage drop across every segment. Any deviation above 5 mV signals flawed connections or hidden parallel paths.
- Choose wires sized for the expected amplitude: 24 AWG for up to 500 mA, 20 AWG for 1 A, 18 AWG for 3 A.
- Secure connections with solder or crimp terminals rated for 125 °C.
- Avoid routing near switching regulators or motors; maintain ≥2 cm clearance.
