Mastering Circuit Schematic Reading Step by Step Guide

Begin by identifying power rails immediately. Look for lines marked VCC, VDD, or +5V–these denote primary voltage sources. Ground symbols (⏚ or ↓) act as reference points; trace connections back to them to confirm continuity. Components tied directly between power and ground often serve critical roles like bypass capacitors or pull-up resistors.

Track signal flow from input to output. Follow arrows or label sequences–common in microcontroller-based plans–to avoid misinterpreting feedback loops. Passive parts (resistors, inductors) alter phase or amplitude, while active devices (transistors, ICs) switch or amplify. Note pin numbers on integrated blocks; datasheets clarify obscure markings.

Recognize recurring motifs. Zigzag lines denote resistors; their value may be printed or omitted if standardized. Parallel lines with a curve indicate capacitors, critical for filtering or timing. Coils appear as loops or tightly wound spirals. Transistors–BJTs or FETs–use three-terminal symbols; circles around them distinguish MOSFETs from bipolar types.

Highlight annotations. Arrows inside op-amps point to inverting/non-inverting inputs. Oscillators incorporate crystals with two parallel lines and frequency labels. Voltage regulators (like LM7805) show input/output arrows; heat dissipation demands attention.

Cross-reference nets across sheets. Global labels (e.g., SDA, CLK) link discrete sections. Bus entries bundle multiple signals; expand them mentally for troubleshooting. Test points–circles with labels–simplify debugging, ensuring probes access key nodes without dismantling.

Validate connections against functional intent. Aura around power lines suggests thermal relief pads, while thick traces handle higher currents. Unlabeled wires between identical components (e.g., diodes) often form redundant paths–confirm via continuity checker.

Decoding Circuit Blueprints

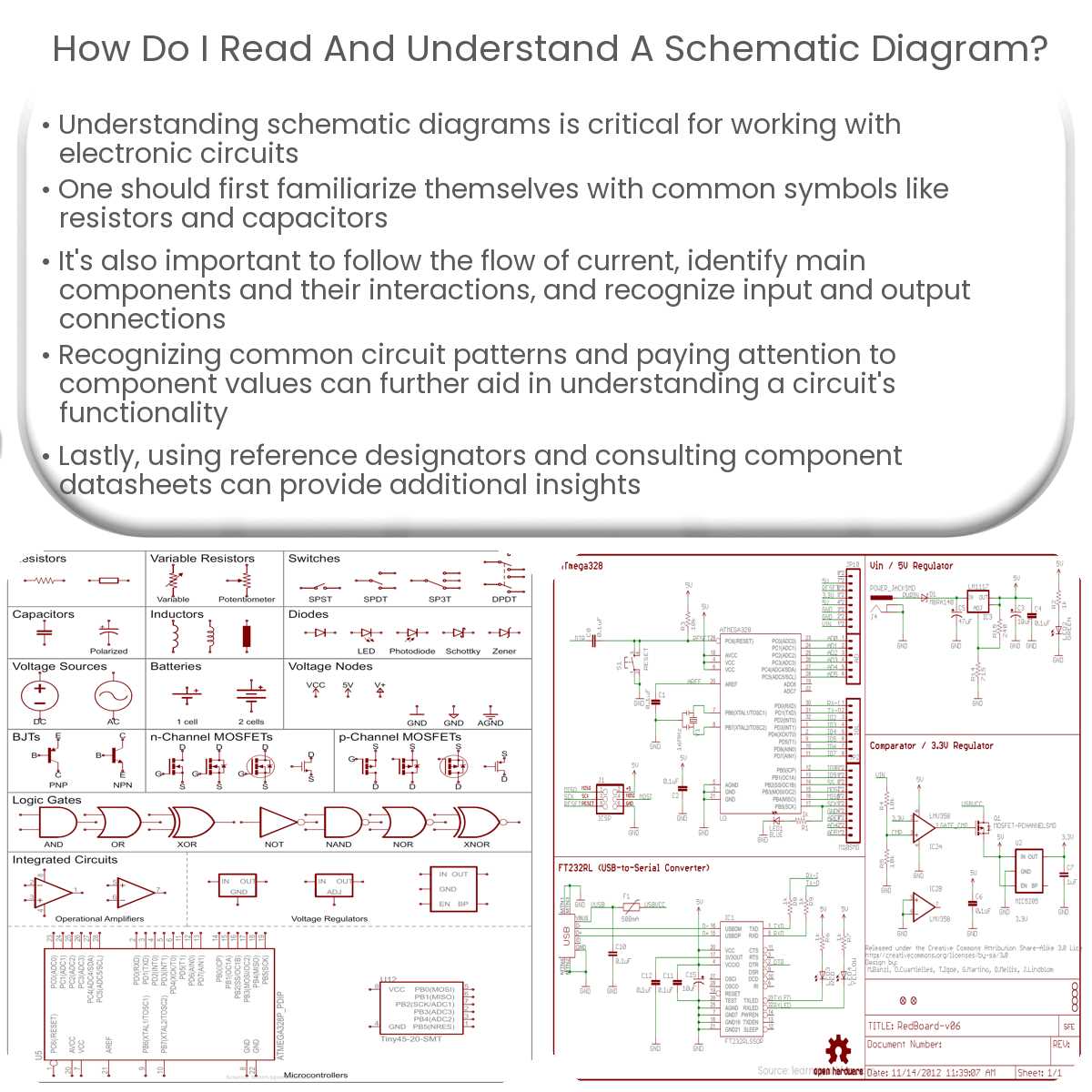

Identify symbols first–resistors look like zigzag lines, capacitors resemble parallel lines or curved plates, and transistors appear as three-terminal combinations with arrows. Ground nodes are typically downward triangles or lines branching into a flat bar. Cross-reference these shapes with a standardized reference guide if unfamiliar variations appear.

Trace power rails immediately. Positive voltage rails usually run along the top or left edges, marked VCC, +5V, or similar, while ground lines cluster at the bottom or right. Consistency here prevents misinterpretation of component connections.

• ICs show pin numbers sequentially, often starting from an upper-left notch or dot. Verify pinouts in datasheets–misplacing even one can disrupt signal flow.
• Switches toggle states visually: a gap indicates open, a connecting line signals closed. Toggle symbols between poles to track routed paths.
• Diodes block current one way; arrows mark permitted flow direction. Locate these early to avoid reverse-polarization errors.

Signal paths carry priority. Dashed or dotted lines often represent feedback loops or control signals, distinct from solid power lines or direct component links. Follow these trails end-to-end, noting intersections–where two lines cross without a node, no connection exists; nodes (dots) confirm junctions.

Annotations clarify ambiguity. Voltage ratings next to capacitors (10µF/16V), resistor values (2.2kΩ), and IC designators (U3) merge visual cues with functional specs. Ignore generic labels like R? until confirmed; substitute known values when prototyping.

Check revision marks–small alphanumeric codes near borders or footer (Rev 1.2) signal updates. Compare against correct versions; outdated prints may omit critical fixes or include deprecated components.

Decoding Key Circuit Symbols and Their Functions

Begin with resistors: zigzag lines mark fixed values, while arrows through them indicate adjustable types. Color bands on physical parts correspond to resistance ratings–black (0) to white (9)–with a separate band showing tolerance. Memorize common pairings like 4.7kΩ (yellow-violet-red) or 10kΩ (brown-black-orange) to speed interpretation during troubleshooting.

Capacitor symbols split into two core types: parallel lines for non-polarized ceramic or film variants, and curved lines with a straight counterpart marking electrolytic versions requiring specific orientation. Tiny-value caps often use three-digit codes (e.g., 104 = 100nF) while larger ones print µF ratings directly. Reverse polarity risks explosive failures–always verify voltages match datasheets.

Active Components and IC Pinouts

Transistors show emitter, base, and collector connections through arrowed leads–NPN arrows point outward, PNP inward. MOSFETs swap arrows for thick lines at the gate (G), source (S), and drain (D). Darlington pairs combine two transistors in one symbol, doubling gain but requiring higher base drive voltages. Pin numbering wraps counterclockwise from a dot or notch marker.

Integrated circuits group logic gates into standardized shapes: >-shaped AND, ¤-like OR, and inverter triangles with circles. Microcontrollers adopt block diagrams with labeled pins (e.g., VCC, GND, PORTx) while generic op-amps use “+” and “–” inputs inside a triangular outline. Always cross-reference symbols with part-specific datasheets–generic representations omit critical details like power rails or slew rates.

Power and Signal Routing Patterns

Ground symbols vary: three descending lines denote earth, a single flat line marks chassis, and parallel lines signal common reference points. Power rails appear as thick horizontal traces or labeled nodes (e.g., +5V, +12V) with decoupling caps placed nearby to suppress noise. High-current paths use wider traces or separate copper pours–thermal dissipation requires heatsink annotations.

Switches break into momentary (buttons) and maintained (toggles) types, with actuators drawn as dashed lines. Relays show coil windings adjacent to contact sets, often marked NC (normally closed) or NO (normally open). Headers use rectangles with pin numbers or labels (e.g., JP1, ISP) while jumpers appear as short lines bridging adjacent pads. Misidentifying these can swap signals unintentionally during assembly.

Coils and transformers curl counterclockwise in right-handed flux convention, with dot markers indicating polarity. Ferrite beads use small rectangles, and antennas adopt zigzag or loop shapes. Crystals pair with two capacitors to ground, labeled with frequency values (e.g., 8MHz, 16MHz). Ignoring orientation in these components risks circuit instability–always validate layout matches the bill of materials.

Connectors adopt distinct shapes: USB ports show standardized icons, while generic headers use labeled pin grids. Fuses appear as rectangles or hourglass outlines with current ratings noted beside them. LEDs flip between simple diode symbols with an extra arrow indicating light emission; current-limiting resistors must sit in series. Overlooking these details introduces subtle faults–verify each symbol against its physical counterpart before powering up prototypes.

Tracing Signal Paths from Input to Output in Circuit Blueprints

Identify signal entry points first–look for labeled pads, connectors, or terminals marked IN, V_in, or AUDIO. Follow lines extending from these nodes, noting component symbols like resistors (R), capacitors (C), or IC pins that intersect the path. Use net labels to avoid chasing long traces; matching labels indicate electrical continuity without visual connection.

Map each transition through active elements: transistors amplify or switch, op-amps condition waveforms, and logic gates alter states. Check datasheets for pin numbering if paths enter chip symbols–misinterpreting GND or V_cc as signal lines wastes hours. Probe branching paths individually; compare voltages or frequencies at key nodes against expected values from annotations like 5V or 1kHz.

Critical Shortcuts for Complex Layouts

Highlight power rails with a colored pen–signals often return through V_ss or ground, not directly. Ignore decoupling capacitors (C_dec) unless troubleshooting noise; their role is stabilization, not routing. For multi-layer boards, cross-check against stack-up notes–inner layers may carry critical paths invisible on the top overlay.

Mastering Ground and Power Links in Circuit Blueprints

Always locate ground symbols first–⏚, ⏛, or GND labels mark reference points for voltage levels. Identify them across components to ensure consistent signal return paths. A disconnected ground breaks functionality even if power rails appear correct. Use multimeter continuity mode to verify ground continuity between nodes labeled identically.

Power rails demand equal attention. Look for VCC, VDD, VBAT, or +5V marks indicating supply lines. Check voltage ratings–mixing 3.3V and 5V rails risks damaging microcontrollers. Use decoupling capacitors (0.1µF–10µF) near IC power pins to stabilize voltage fluctuations. Without them, noise corrupts digital signals, causing unpredictable behavior.

• For analog circuits: separate analog and digital grounds at ADC inputs to prevent noise coupling.
• For high-current paths: use thick traces (≥1mm) or dedicated planes to minimize voltage drop.
• For battery-powered devices: add reverse-polarity protection with a Schottky diode on the power line.

Bypass capacitors belong adjacent to power pins, not grouped elsewhere on the board. Place 1µF capacitors within 2mm of IC power pins for low-frequency stability; add 0.1µF ceramics for high-frequency noise suppression. Forgetting these invites ground bounce, resets, or erratic operation. Test power integrity with an oscilloscope–clean rails should show ≤50mV ripple under load.

Treat star grounding as non-negotiable in mixed-signal designs. Tie analog, digital, and power grounds at a single point near the power source. Avoid daisy-chaining grounds–it creates ground loops, injecting interference. Verify ground connections with thermal imaging if possible; hot spots reveal poor connections or undersized traces.
