Step-by-Step Guide to Reading and Troubleshooting Circuit Diagrams

Begin by isolating each component in the electrical layout. Identify power sources first–batteries, generators, or voltage rails–then trace their connections to resistors, capacitors, transistors, and integrated circuits. Use a multimeter to verify voltages at critical nodes before assuming theoretical values. Misidentifying even a single trace can lead to false assumptions in the entire system.

Break complex networks into functional blocks. Group sections by purpose: amplification stages, filtering segments, power regulation zones. Label each block with its intended function (e.g., signal conditioner, PWM driver). This reduces cognitive load and prevents overlooking minute but critical details like pull-up resistors or decoupling capacitors.

Simplify parallel paths. When confronted with multiple resistors or capacitors in parallel, calculate their combined values first–R_total = 1 / (1/R₁ + 1/R₂)–then redraw the schematic with these consolidated values. This technique reveals hidden equivalences and avoids redundant calculations in later steps.

Apply Kirchhoff’s laws selectively. Use voltage law for loops with known potentials and current law at junctions where currents split predictably. Avoid applying both simultaneously unless the circuit demands it–over-analysis wastes time. For instance, in a voltage divider, applying KVL suffices; KCL is unnecessary until current distribution becomes uncertain.

Cross-reference pins on ICs immediately. Retrieve datasheets early and highlight power, ground, input, and output pins. Mis-wiring V_cc and GND, even momentarily, risks permanent damage. Mark non-standard pins (e.g., thermal pads, NC (no connect)) as they often serve secondary roles like heat dissipation or future compatibility.

Probe dynamically rather than relying solely on static diagrams. Toggle inputs while observing outputs–an unexpected delay or phase shift can uncover faulty components or parasitic effects not apparent on paper. Use an oscilloscope for transient behavior; a DMM alone will miss ringing, overshoot, or noise coupling between traces.

Validate assumptions through iterative testing. Start with a single path, confirm expected behavior, then incrementally add branches. If a section fails, revert to the last known working state. This divide-and-conquer method isolates faults faster than wholesale debugging.

Mastering Electrical Schematic Analysis

Label every component with unique identifiers before tracing paths. Use a consistent naming convention: resistors as R1, R2; capacitors as C1, C2; voltage sources as V1, V2. Record values like resistance (ohms), capacitance (farads), or voltage (volts) directly on the drawing. For complex networks, split the layout into smaller blocks–each handled separately–to avoid overwriting or misinterpreting connections.

Apply Kirchhoff’s laws systematically:

• Current Law: Sum of currents entering a junction equals the sum leaving. Use arrows to mark direction; reverse if calculations yield negative values.
• Voltage Law: Total potential difference around a closed loop must zero. Note polarities (+ to -) on sources and drops across passive elements.

Measure voltages at critical nodes relative to ground–this simplifies troubleshooting by isolating faulty segments.

Use Ohm’s Law to verify calculations:

1. V = IR for resistors; Q = CV for capacitors.
2. For series resistances: R_total = R₁ + R₂ + … + R_n.
3. For parallel resistances: 1/R_total = 1/R₁ + 1/R₂ + … + 1/R_n.

Check for breadboard errors: jumper wires often cause accidental shorts when inserted incorrectly.

Leverage simulation tools like LTSpice or Tinkercad for pre-assembly validation. Model transients: capacitors charge/discharge curves (τ = RC), inductors oppose sudden current changes (V = L di/dt). For mixed AC/DC sources, use superposition–analyze each independently, then combine results. Document abnormalities (unexpected phase shifts, thermal drifting) as they often indicate design flaws.

Identifying Components and Their Symbols in Schematics

Begin by locating resistors–represented as zigzag lines or rectangles with “R” labels–and verify their values in ohms. Capacitors appear as two parallel lines (non-polarized) or a curved line with a straight line (polarized), often marked “C” followed by microfarad values. Use a multimeter to cross-check if visual identification is ambiguous, especially with surface-mount devices.

Recognize active elements like transistors (NPN/PNP with three leads) and integrated circuits (ICs) by their unique shapes: transistors resemble a “T” with a diagonal line, while ICs are rectangular blocks with numbered pins. Refer to the schematic’s legend or manufacturer datasheets for pinouts, as symbols vary–some use dotted outlines for heat sinks or enhanced silicon junctions.

Common Symbols and Variations

Element	Standard Symbol	Alternate/Regional Symbol	Key Attributes
Resistor	Zigzag or rectangle	Square spiral (Japan)	Wattage indicated by size; precision resistors may include tolerance bands
Diode	Triangle + line	Arrow pointing to bar (Europe)	Cathode marked with stripe; Zener diodes include angled lines
Inductor	Series of loops	Filled rectangle (U.S. military)	Core material (air/iron/ferrite) affects symbol shape
Switch	Break in line with lever	Crossed lines (SPDT)	Pole/throw configuration varies (e.g., DPDT adds extra lines)

Note power sources immediately: batteries display unequal parallel lines, while AC sources use sine waves. Ground symbols differ–three descending lines for chassis, a single line for signal, and a triangle for earth. Trace connections from power to load, ensuring polarity markers (e.g., “+” or color codes) align with the physical layout to avoid reversed components.

For complex assemblies, isolate subsections by following nets (lines connecting nodes). Label nets with reference designators (e.g., “VCC,” “GND”) if absent, using consistent naming conventions. Cross-reference symbols with the bill of materials (BOM) to resolve discrepancies–some schematics merge similar parts under one symbol, requiring BOM checks for exact specifications like voltage ratings or package types.

Mapping Electrical Flow and Potential Differences Methodically

Begin by isolating each conductive segment in the schematic. Label every junction where the flow splits or merges–these are critical reference points for tracking direction. Use a highlighter to mark verified segments, distinguishing them from unchecked paths. This prevents backtracking and ensures no branch is overlooked. If the network contains parallel branches, trace them sequentially, starting with the simplest path to establish a baseline before tackling complex loops.

• De-energize the system mentally–assume no current exists initially to avoid bias.
• Assign directional arrows based on conventional flow (positive to negative).
• For components like resistors, note ohmic values immediately; their impact on potential drop is direct.
• In series arrangements, cumulative resistance dictates total voltage division.
• For parallel setups, calculate individual branch currents first, then reconcile at common nodes.

Measure potential differences across each element sequentially. Attach a multimeter’s probes at component terminals–red to the side where conventional flow enters, black where it exits. Record values in a table, cross-referencing with expected drops (Ohm’s Law: V = IR). Discrepancies indicate incorrect assumptions or hidden faults like unintended short circuits. Repeat measurements at different supply voltage levels to confirm linearity.

Verify continuity at every node. Probe between adjacent points–zero reading confirms uninterrupted flow. Non-zero values reveal open paths or unintended resistances (e.g., corroded contacts). For complex topologies, segment the analysis: trace source-to-load paths first, then return loops. Document each step in a flowchart, noting conditional branches (switches, diodes) that alter flow based on polarity or state.

Leveraging Ohm’s and Kirchhoff’s Principles for Precise Calculations

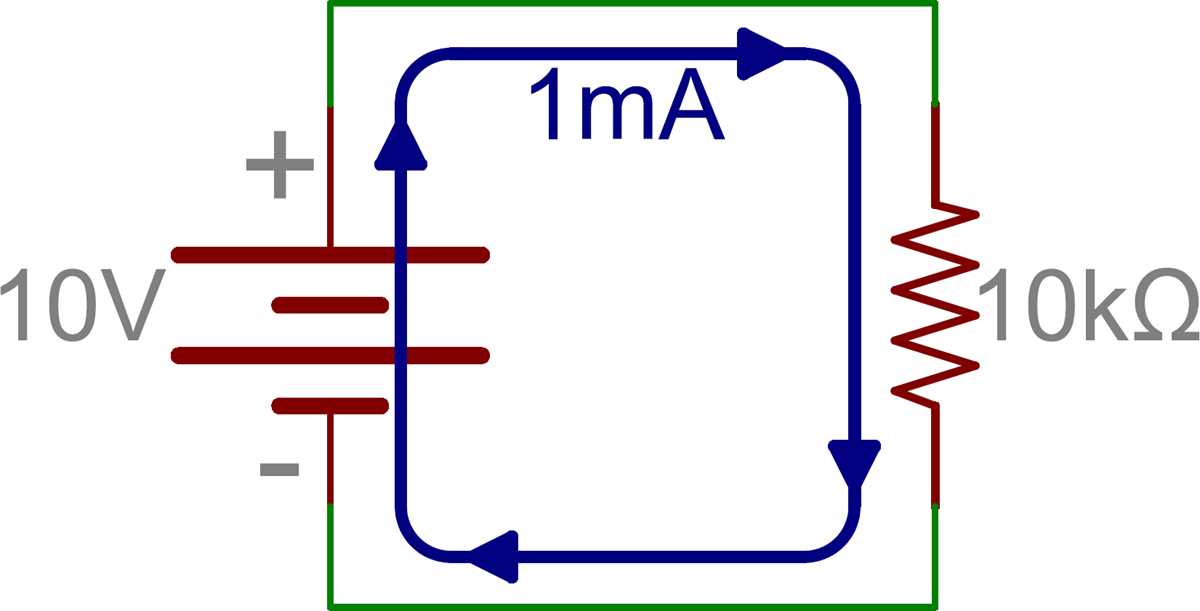

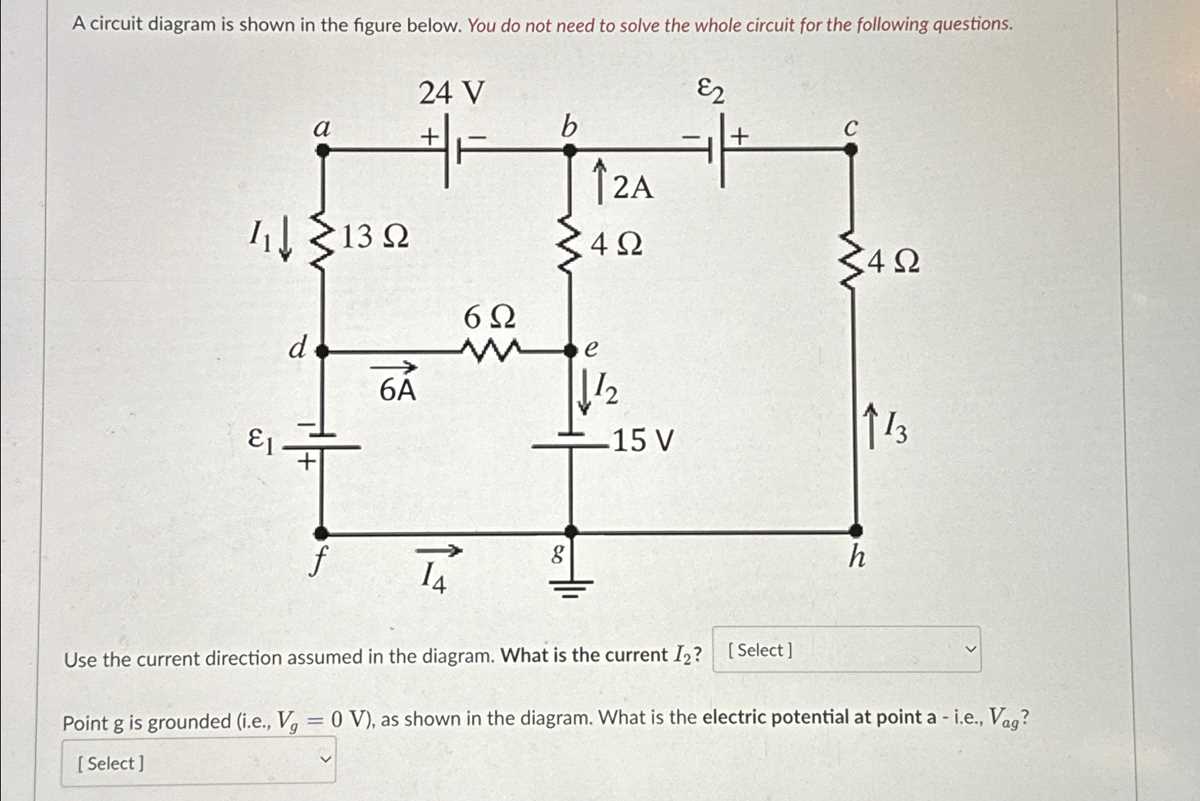

Begin by labeling each component in the schematic with known currents, voltages, or resistances. Use Ohm’s law (V = IR) to derive unknowns when two values are established–measure voltage drops across resistors with a multimeter if needed. For series configurations, sum resistances (R_total = R₁ + R₂ + …); in parallel, apply 1/R_total = 1/R₁ + 1/R₂ + …. Kirchhoff’s current law (KCL) demands that the sum of currents entering a junction equals those exiting–assign algebraic signs (+ for incoming, – for outgoing) and solve simultaneous equations. For Kirchhoff’s voltage law (KVL), trace closed loops, noting polarity; sum voltage rises and drops to zero (ΣV = 0). Prioritize loops with the fewest unknowns to minimize computation.

Verify results by cross-checking power dissipation (P = IV = I²R = V²/R); mismatched values indicate calculation errors. In complex networks, substitute Thévenin or Norton equivalents to simplify analyses–replace sections with a single voltage source and series resistance or current source and parallel resistance, respectively. Use superposition for multi-source systems: evaluate each source’s contribution while others are nullified (replace voltage sources with short circuits, current sources with open circuits). Document each step to isolate mistakes swiftly, especially in non-linear elements like diodes or transistors, where iterative approximations may be necessary.
