Understanding the Internal Battery Circuit Layout of HP Laptops for Repairs

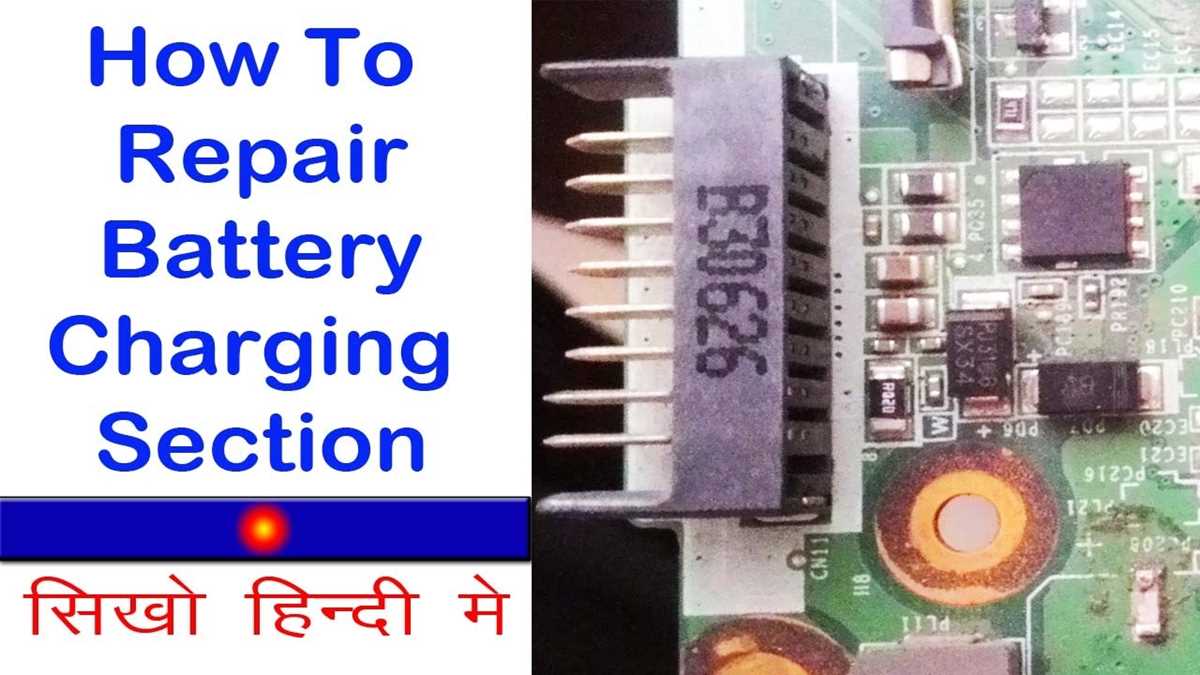

For accurate diagnostics and repairs of HP notebook power systems, start with the charge controller IC. Models like the BQ24725 (common in EliteBook 840/1040 series) or MAX17055 (found in Spectre lines) manage voltage regulation and protection thresholds. Locate the IC on the mainboard–usually near the DC jack–then verify its connections to the fuel gauge and MOSFET array.
Trace the primary power path from the AC adapter input through the P-channel MOSFET (e.g., SI4368DDY). Check for voltage drop across the current-sense resistor (typically 10-20mΩ) to confirm proper charging amperage. If the system fails to detect input, inspect the smbus lines (pins 24/25 on BQ24725) for continuity to the EC.
Monitor the battery authentication chip (e.g., DS28E15 in Pavilion 15 series) via I2C communication. A corrupted EEPROM often triggers “replace battery” warnings–reprogram using a PICkit or Arduino Uno with the original OEM firmware dump. For older ZBook models, the ISL6251 charge controller requires strict adherence to TI’s datasheet thresholds (4.2V ±50mV).
Critical test points include:
– V_BAT (output to cells)
– V_CHG (charge input)
– SYSON (system enable)
– ACOK (adapter detection)
Use a multimeter to confirm 3.3V on SYSON during adapter connection. Isolate faults by measuring gate voltages on MOSFETs–0V indicates a dead IC, while floating voltages suggest a shorted load switch.
Replace damaged protection FETs (e.g., IRFHM8330) only with matched pairs to prevent thermal runaway. For schematic verification, cross-reference HP’s service manual PCB layouts (e.g., Quanta LA-A621P for Envy 13) against the TPS51125 buck converter’s switching waveform (1.2MHz nominal).
Understanding Power Cell Schematics for HP Portable Computers: A Hands-On Reference

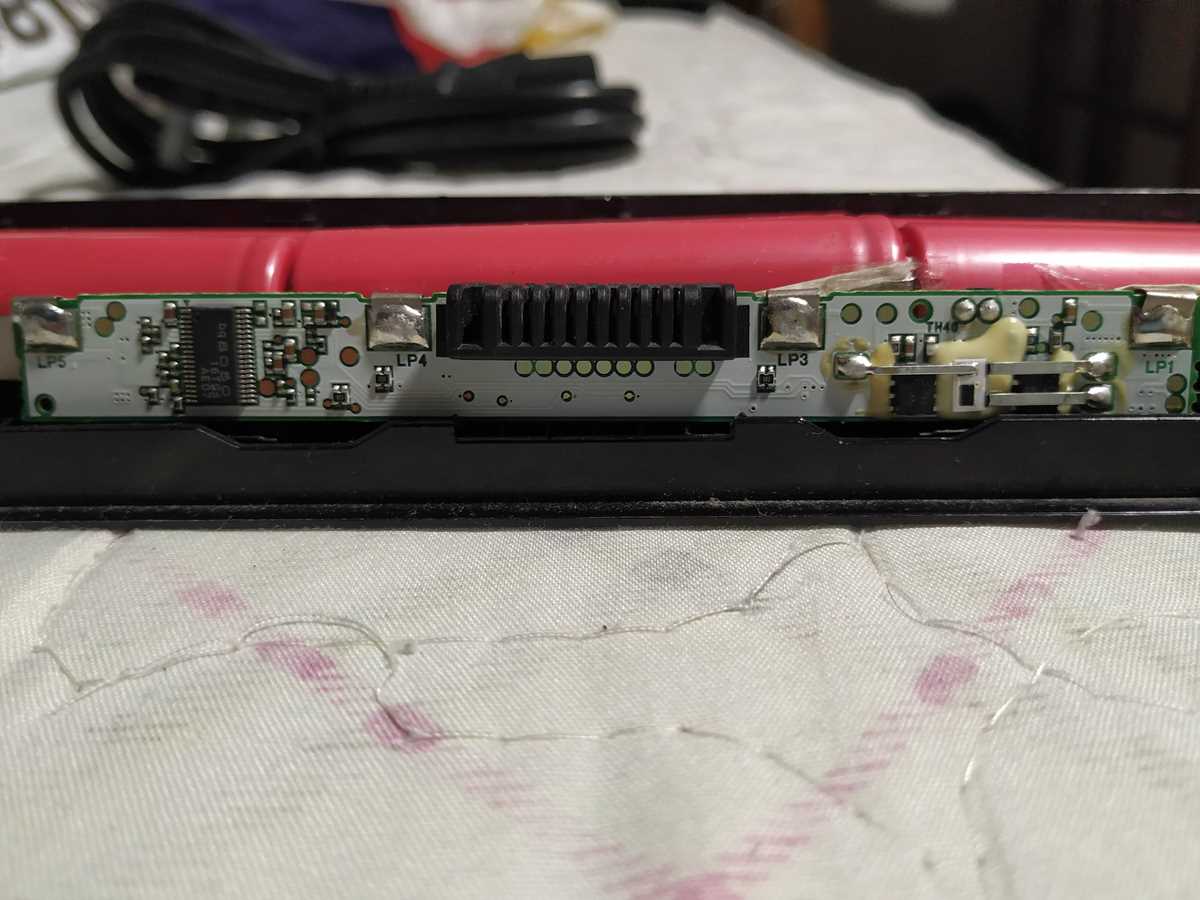

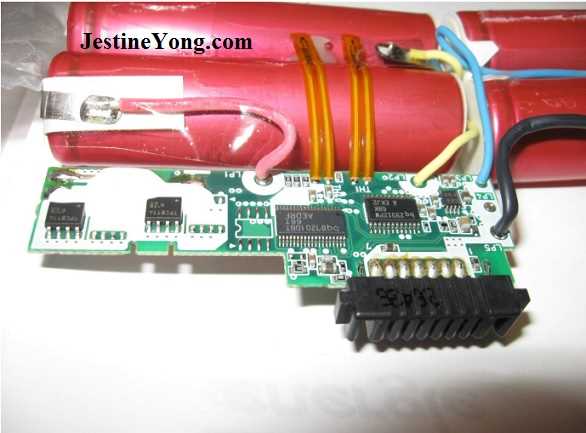

Locate the smart chip (often a TI BQ-series IC) on the protection board before disassembling any power pack. This 12–24-pin controller manages charging cycles, voltage cutoffs, and cell balancing for 3–6 lithium-ion cells arranged in 2S2P or 3S2P configurations. Pin 3 typically handles voltage sensing; shorts here trigger immediate low-voltage shutdowns.
Trace the thick red and black wires to the main terminals–these carry 11.1V–14.8V DC, not the thinner signal leads. Each cell should register 3.7V–4.2V when fully charged; deviations above 4.3V risk thermal runaway. Use a multimeter to verify individual cell voltages before reconnecting balance connectors.
Replace fuse links rated 10A–15A if the unit fails to power on despite normal voltage readings. These ceramic elements (marked “F” or “0”) sit adjacent to the PTC thermistor, which thermal-cycles to 125°C during overcurrent events. Bypass the thermistor only during diagnostics–permanent removal voids overheat safeguards.
Update embedded firmware via HP Support Assistant if charge percentages fluctuate unpredictably. Navigate to BIOS → Advanced → Power Settings and disable “Adaptive Battery Optimizer” to isolate whether calibration errors stem from hardware (e.g., degraded cells) or software (misreported capacity).
Desolder swollen cells individually–never cut leads–which can breach the separator layer and cause internal shorts. Match replacement cells precisely: 2200mAh–3000mAh, cylindrical 18650 format, with welded nickel tabs. Avoid spot-welding; hand-solder at 300°C for
Validate protection board functionality by simulating a 5A load with a resistor bank. Monitor voltage sag–healthy boards maintain >10.8V under load; defective units drop below 9V within 30 seconds. Check SMD capacitors (marked “106” or “225”) for bulging or leakage; these filter noise and stabilize gate drivers.
Reassemble with Kapton tape isolating the board from cells–even minor contact can create parasitic drains. Secure the flex cable to the outer shell with adhesive strips to prevent connector strain during physical impacts. Test cycle stability by charging to 80% and discharging to 20% five consecutive times; inconsistent runtimes indicate faulty balancing.

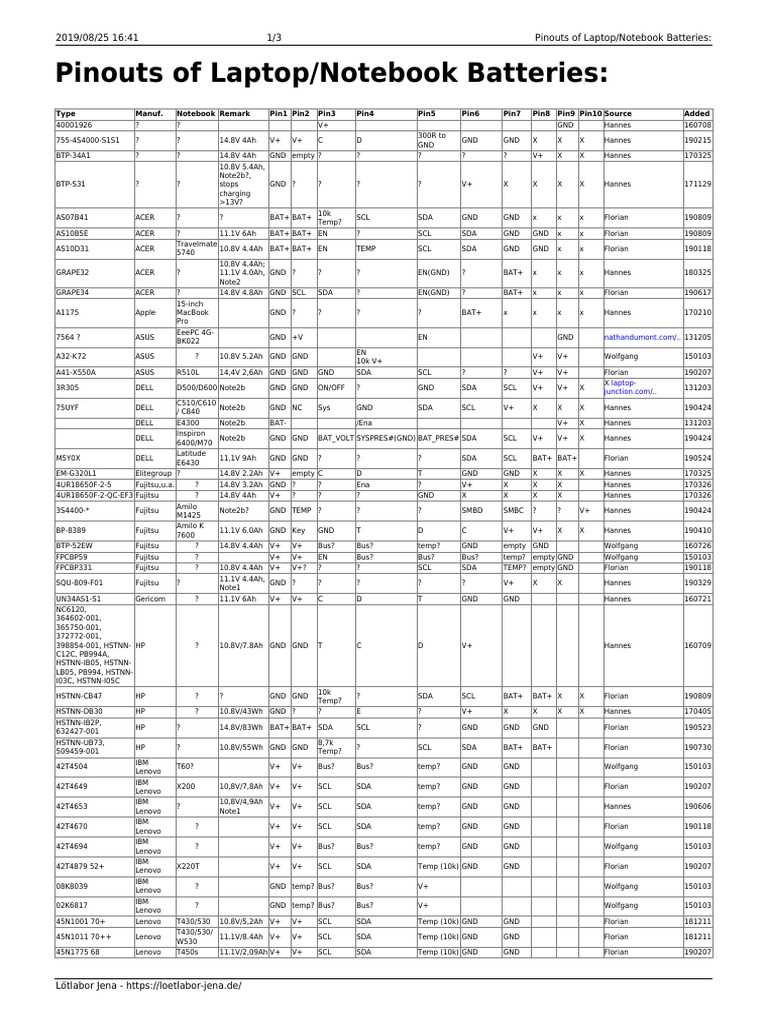

Document pin assignments before disconnecting any ribbon cables–HP models (e.g., Pavilion 15-cs, Envy x360) use proprietary connectors with 0.5mm pitch. Label each wire with its measured voltage: system rail (3.3V–5V standby), charge enable (active-low), and battery presence (open-drain). Reversing these signals can brick the mainboard.
Critical Elements in an HP Portable Power Cell Electrical Layout

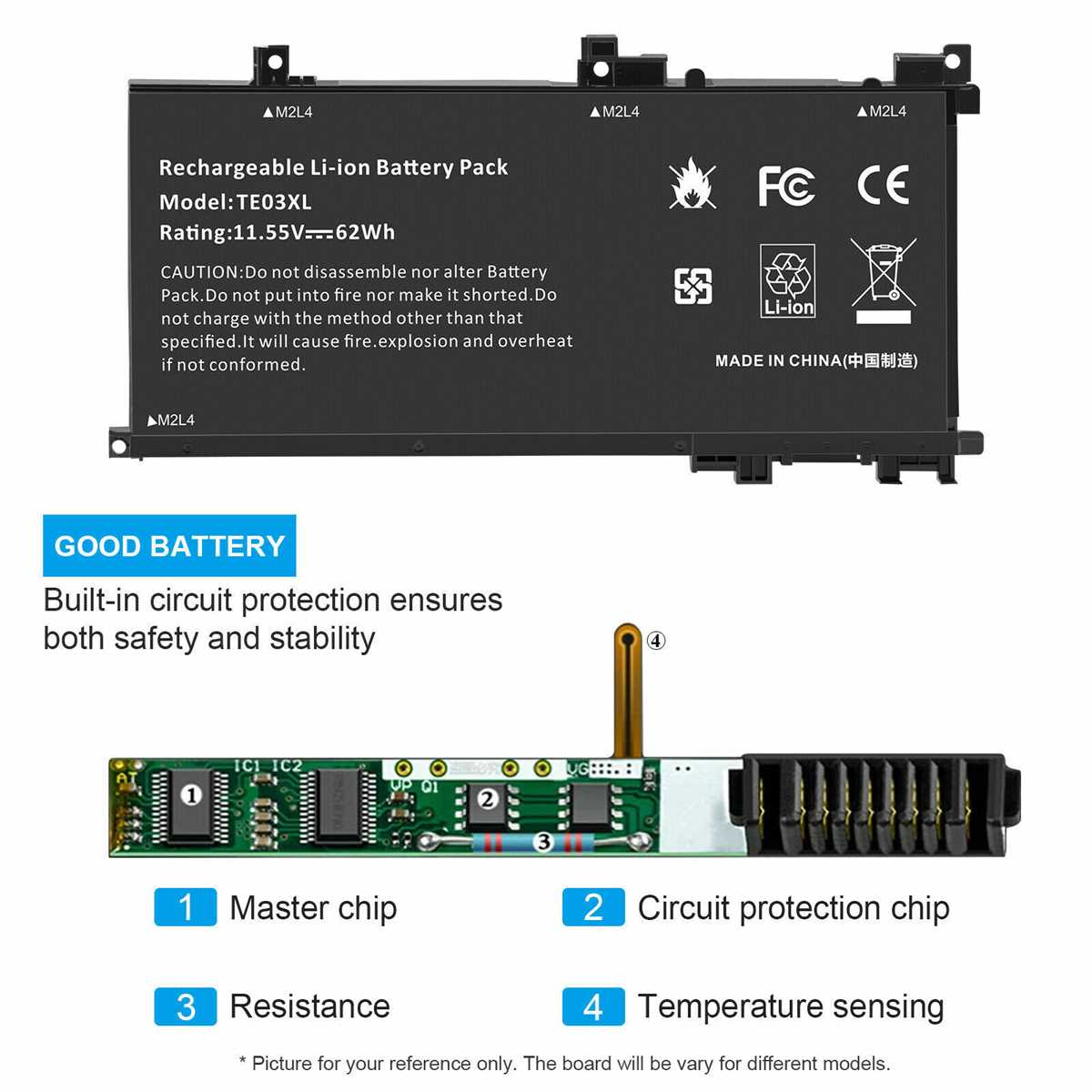

Begin by locating the fuel gauge IC–this microcontroller (typically BQ20Z95 or similar) monitors charge states, capacity, and health metrics. Without accurate readings from this component, thermal runaway or premature failure becomes likely. Verify its firmware version against HP’s support documentation; mismatches often cause false “replace” warnings.
Examine the protection MOSFETs (commonly SI7300DN or CSD17305). These switches regulate current flow during charging and discharging cycles. A single failed MOSFET (detected via multimeter in diode mode) can trigger overvoltage or undervoltage shutdowns. Replace in pairs to maintain balanced impedance.
| Component | Part Number Examples | Failure Symptoms |
|---|---|---|
| Fuel Gauge IC | BQ20Z95, BQ3050 | Erratic percentage readouts, sudden drops to 0% |
| Protection MOSFETs | SI7300DN, CSD17305 | Intermittent power loss, overheating at charge port |
| Thermistor | NTC 10kΩ | Fan spinning at max RPM, throttle under light load |
Identify the thermistor (10kΩ NTC)–it prevents thermal damage by signaling the system when temperatures exceed 60°C. A degraded thermistor (resistance drift > ±5%) leads to incorrect thermal throttling. Test with a heat gun and ohmmeter; resistance should halve between 25°C and 50°C.
The charge controller (often MAX17205) manages input current from the AC adapter. Check for 19.5V input compliance; deviations beyond ±0.5V indicate a failing controller. Replacement requires matching the component’s maximum charge current rating to the original specification (typically 3.25A for 65W packs).
Inspect cell balancing resistors (0.1Ω, 1%, 1W)–these ensure uniform voltage across series-connected cells. A single failed resistor (open or short) causes uneven wear, shortening cycle life. Measure each resistor in-circuit; values outside 0.09Ω–0.11Ω warrant replacement.
Trace the communication lines (SMBus or I²C) connecting the gauge IC to the motherboard. Cold solder joints here mimic dead power cell behavior. Reflow joints with flux-core solder (Sn60/Pb40) and verify continuity with an oscilloscope–pulses should be sharp, not degraded or noisy.
Evaluate the safety fuse (usually 10A, 277°C melting point). If blown, inspect for root causes (e.g., shorted MOSFETs) before replacement. Use a fuse with identical amperage; higher ratings risk fire during faults.

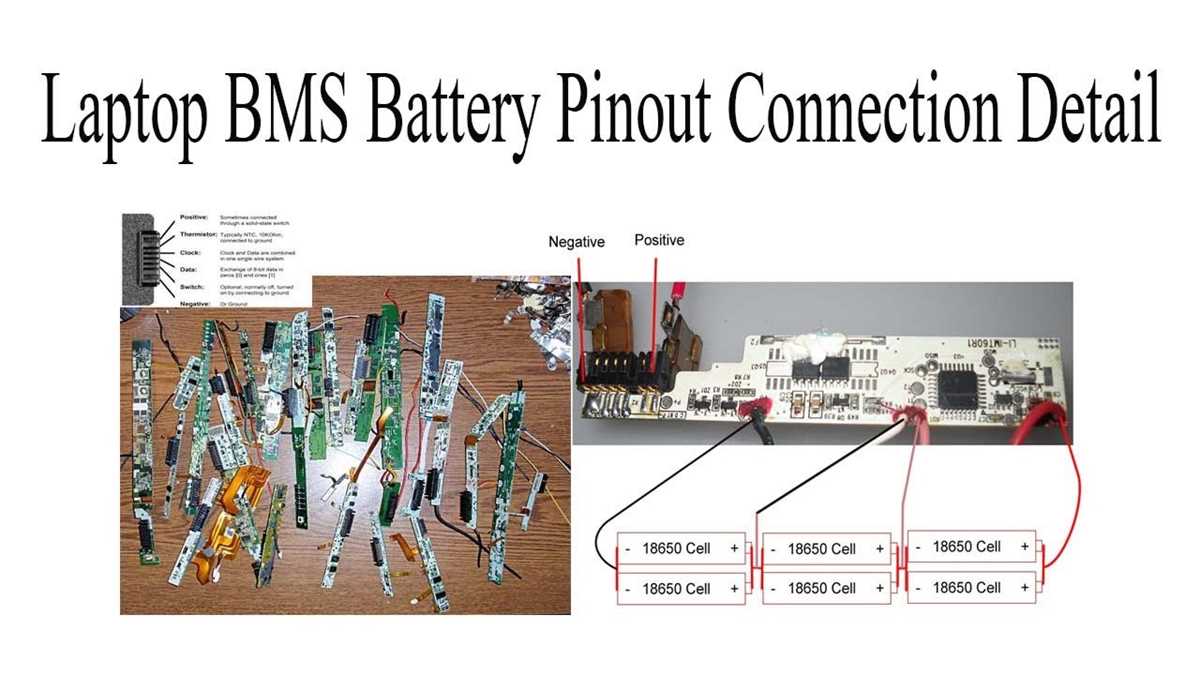

Document the cell configuration (e.g., 3S2P vs 4S1P) before disassembly. Misaligned cells during reassembly bypass protection circuits. For multi-pack setups, verify inter-pack MOSFETs (e.g., AO4488)–these isolate cells during storage or shipping to prevent deep discharge.
Decoding HP Power Pack Schematic Blueprints
Identify the main components first–charge controller IC, MOSFETs, thermistors, and protection ICs–marked with standardized labels like U1, Q2, or RT1. Trace their connections to understand signal flow between the cells and the charging port.
Locate the communication lines–SMBus, I2C, or similar–often drawn as dashed or thin solid lines. These carry critical data for voltage monitoring and state-of-charge calculations, and faults here typically trigger shutdowns.
Voltage Rails and Their Purpose
Measure each rail’s voltage directly at test points if available. The primary rail feeds the cells, while secondary rails power the control logic–differences between them exceeding 0.2V suggest resistive losses or faulty traces.
Examine the protection mechanism paths–over-charge, over-discharge, and short-circuit safeguards are usually tied to dedicated ICs or comparator networks. Check for series resistors or capacitors that might limit response time.
Note the thermal sensor placement–NTC thermistors or digital temp sensors–positioned near the cell stack or charge IC. These often connect to ADC pins on the controller, with thresholds set via firmware.
Grounding and Noise Isolation
Verify star grounding–main power grounds should converge at a single point to avoid ground loops. Analog and digital grounds are frequently separated, linked only at the power source to minimize interference.
Inspect decoupling capacitors–small-value ceramics near IC power pins filter high-frequency noise, while larger electrolytics stabilize voltage during transients. Missing or degraded caps can cause erratic behavior.
Cross-reference schematic symbols with the physical board layout if reverse-engineering. Silk-screened component IDs on the PCB should match the blueprint, though manufacturer revisions may introduce discrepancies.
How to Verify Power Cell Pathways with a Measurement Tool
Set the multimeter to DC voltage mode and select a range above the expected charge level–typically 20V for portable power sources. Connect the red probe to the positive terminal marked on the pack and the black probe to the negative side. A healthy unit should display a reading within 5% of its rated capacity; deviations beyond 10% indicate potential faults in the internal connections or degraded cells.
Switch to resistance mode (ohms, Ω) to evaluate the continuity of protection fuses and internal safety components. Disconnect the pack from any device before testing. Touch the probes to both ends of a fuse–values near zero confirm an intact pathway, while infinite resistance signals a blown fuse or broken link. Repeat for temperature sensors; normal readings should lie between 10–100Ω depending on design.
- Locate the charge control IC–often a small chip near the main power leads.
- Measure input voltage at the IC pins while the pack is connected to a charger.
- Expected values should match the charger’s output (e.g., 19.5V for a 20V adapter).
- Lower readings suggest voltage drops across corroded connectors or faulty traces.
For current testing, enable the meter’s amperage mode (typically 10A range for most power packs). Place the probes in series with the load–one probe on the pack’s output terminal, the other on the device’s input. A fully functional unit should deliver current within 10% of the label’s specified mAh rating; weaker output points to failing cells or damaged internal wiring.
Inspect data lines if the pack includes smart communication features. Use the DC voltage setting to measure signals between the SMBus or I²C lines and ground. Valid data lines should show fluctuations between 3.3V and 5V; static or zero voltage indicates a disrupted protocol controller or severed traces. Replace the pack if no activity is detected.
- Remove the outer casing to access the cell array.
- Identify individual elements (usually cylindrical or prismatic shapes).
- Check each cell’s voltage with the multimeter.
- Balanced voltages (±0.05V) confirm proper operation; imbalances signal weak or damaged elements.
Evaluate solder joints and PCB traces under magnification. Set the multimeter to continuity mode and touch the probes to opposing ends of each trace. A clear beep confirms conductivity; silence or erratic readings reveal cracked joints, cold solders, or corroded copper. Repair fractured paths with fresh solder to restore functionality.
Reassemble the unit only after confirming all measurements return expected results. Store the pack at 40–60% charge if unused for extended periods to prevent capacity degradation. Retest every 3–6 months to monitor long-term health and identify emerging faults before failure.
