Detailed Schematic Diagram of the Human Eye Anatomy Explained
To accurately interpret retinal scans or diagnose optical pathologies, focus first on the cornea, a transparent 0.5–0.6 mm thick dome responsible for two-thirds of light refraction. Its curvature–averaging 7.8 mm in radius–directly influences refractive errors; any deviation beyond ±0.2 mm warrants immediate correction via orthokeratology or laser intervention. Adjacent to it lies the anterior chamber, filled with aqueous humor (volume: ~250 µL), whose intraocular pressure (normal range: 10–21 mmHg) must be monitored to prevent glaucoma progression.
The lens, a biconvex structure measuring 9–10 mm in diameter, dynamically adjusts focus via ciliary muscles–accommodation declines 0.3 diopters annually after age 40, requiring progressive lenses by age 50. Its refractive index (1.41) enables fine-tuning of incoming light onto the macula, a 5.5 mm zone where cone density peaks at 150,000/mm² for high-acuity vision. Displacement of the lens by more than 0.5 mm–detectable via slit-lamp biomicroscopy–indicates zonular weakness, necessitating phacoemulsification.
Behind the lens spans the vitreous cavity, a 4 mL gel-like matrix composed of 99% water and 1% hyaluronic acid. Posterior vitreous detachment (PVD), occurring in 63% of individuals by age 80, is asymptomatic unless accompanied by Weiss ring floaters, which demand urgent ophthalmic evaluation to rule out retinal tears. The retina, a 0.5 mm thick neurosensory layer, converts photons into neural signals via rod (120 million) and cone (6–7 million) photoreceptors–rods operate at scotopic thresholds (~10⁻⁶ cd/m²), while cones dominate photopic conditions (~10 cd/m²).
For clinical applications, prioritize the optic disc, a 1.7 mm diameter circular blind spot where 1.2 million nerve fibers converge into the optic nerve. Cup-to-disc ratios exceeding 0.6 correlate with glaucoma in 40% of cases, validated by Heidelberg Retinal Tomography. The choroid, a 0.2–0.4 mm vascular layer, supplies 85% of ocular oxygen–thickness reductions below 150 µm on OCT scans indicate age-related macular degeneration (AMD) risk, warranting AREDS2 supplementation.
Key Insights from the Human Eye Anatomy Illustration
The labeled cross-section of the ocular structure reveals critical components often overlooked in simplified models. Focus on the ciliary body: its muscles adjust lens thickness for near vision, while the zonular fibers–less than 5 micrometers in diameter–anchor it with precision. The choroid, a vascular layer between the sclera and retina, supplies 90% of the eye’s oxygen via capillaries narrower than human hair. Misalignment here disrupts nutrient flow, accelerating conditions like macular degeneration.
Retinal layers demand attention–specifically the ganglion cells and photoreceptors. Rods, numbering ~120 million, detect low-light contrast at 0.01 lux, while cones (~6 million) resolve color under 50–100 lux, concentrated in the fovea (0.3 mm diameter). The optic nerve head, where fibers converge, lacks photoreceptors, creating a ~5° blind spot. Use a fixation test: cover one eye, hold a target 10 cm from your nose, and move it laterally–disappearance marks the blind spot’s location.
Examine fluid dynamics: aqueous humor (~260 µL) cycles every 1.5–2 hours to maintain intraocular pressure (IOP) at 10–21 mmHg. Blocked trabecular meshwork (visible in the diagram’s angle) raises IOP, compressing the optic nerve–tonometry should be performed every 6 months for at-risk groups. The vitreous humor, a gel comprising 99% water and 1% collagen/hyaluronic acid, liquefies by age 70, increasing floaters. Distinguish between benign floaters (shadows cast by debris) and retinal tears (sudden flashes/floaters–emergency referral required).
Key Components Labeled in the Human Eye Illustration
Refer to the retina–comprising approximately 120 million rod cells for low-light vision and 6–7 million cone cells for color detection–as the critical sensor layer. Positioned near the macula lutea, the fovea centralis delivers sharp central vision by concentrating cone cells while occupying just 1.5 mm in diameter. Optic nerve fibers (1.2 million axons) exit through the optic disc, creating the blind spot where no photoreceptors exist. Cornea curvature (radius ~7.8 mm) and lens refractive power (adjusting from 20 to 33 diopters) collaborate to focus light precisely onto the retina, with aqueous humor (refractive index ~1.336) and vitreous body (refractive index ~1.337) contributing to optical stabilization.
| Component | Function | Critical Measurement |
|---|---|---|
| Iris | Regulates light intake via pupil dilation (1.5–8 mm) | Pigmented muscle layer, 12 mm diameter |
| Ciliary body | Produces aqueous humor; anchors zonular fibers (suspensor ligaments) | Flow rate: 2–3 µL/min; pressure: 10–21 mmHg |
| Choroid | Supplies oxygen/nutrients to outer retina via choriocapillaris | Vascular layer, 0.2–0.5 mm thick |
Use fluorescein angiography to assess choroidal blood flow disruptions–common in diabetic retinopathy. Replace generic “eye chart” tests with contrast sensitivity grids (e.g., Pelli-Robson) for early cataract detection.

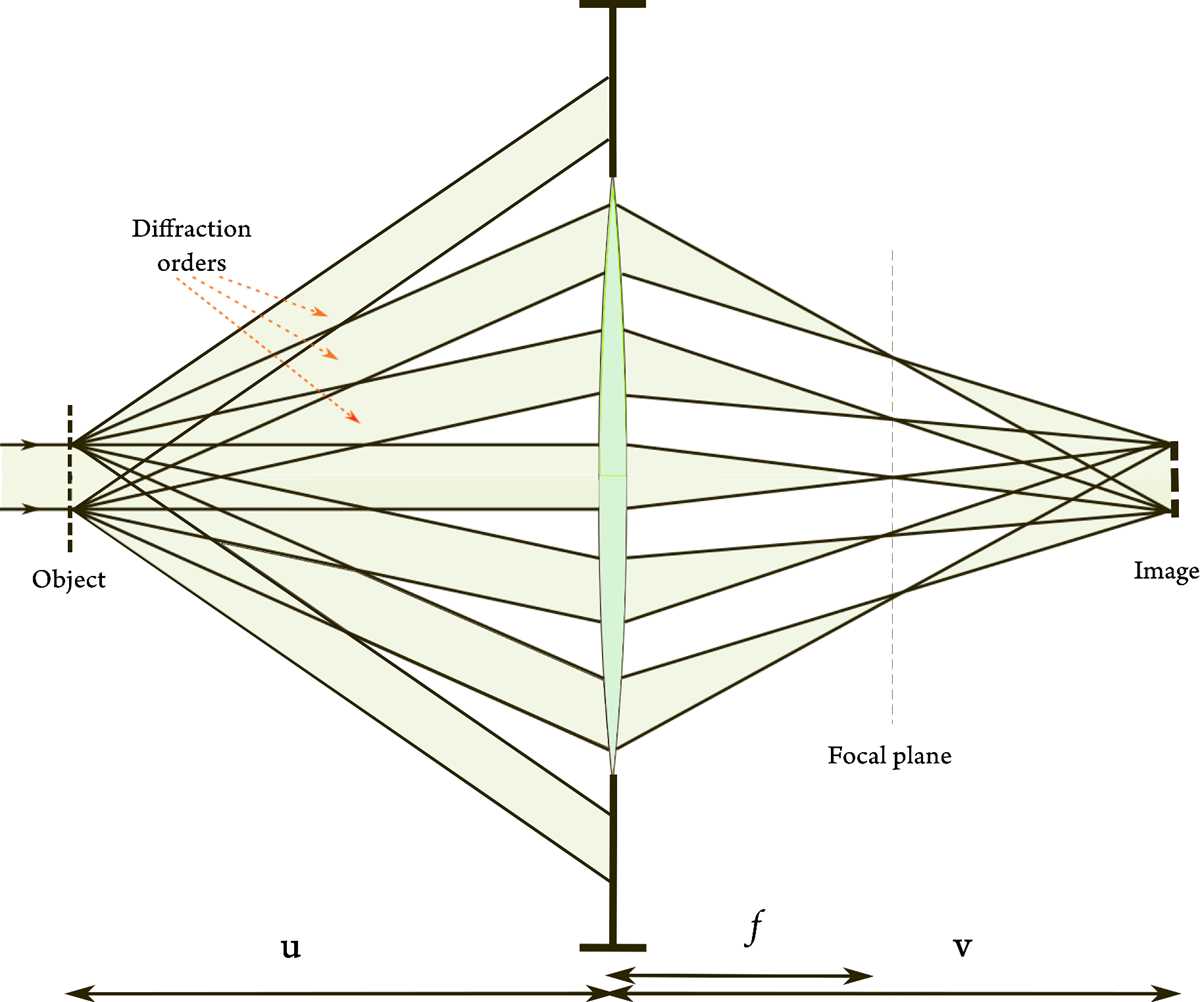

How to Read and Interpret Optical Pathways in the Eye
Begin by isolating the cornea’s refractive index–approximately 1.376–and compare it to the aqueous humor’s 1.336. This 0.04 difference explains the cornea’s primary focusing power, responsible for roughly 43 diopters of the eye’s total 60 diopters. Sketch the angle of incidence where light transitions from air to the corneal surface, ensuring the refracted ray bends toward the normal. Error here amplifies in downstream pathways.
Trace the path through the anterior chamber, noting how the pupil’s dynamic aperture (typically 2–8 mm) modulates light intensity via iris contraction. A 3 mm pupil diffracts less but attenuates depth of field; a 7 mm pupil increases spherical aberration. Log any irregularities in the pupil’s shape–corectopia or polycoria distort the subsequent focusing onto the lens.
Lens: Gradient Refractive Power
Map the lens’s gradient refractive index: 1.406 at the core, tapering to 1.386 at the periphery. This gradient compensates for positive spherical aberration introduced by the cornea. Calculate the lens’s power adjustment during accommodation–+20 diopters for near vision in a healthy 20-year-old, dropping to +1 diopter by age 60. Use the Helmholtz model: ciliary muscle contraction relaxes zonular fibers, increasing lens thickness by 0.5 mm and curvature radius from 10 mm to 5.5 mm.
Identify the vitreous body’s role as a passive medium (1.336 refractive index), but account for floaters–clusters of collagen fibrils scattering ~5% of incident light. These create entoptic phenomena, but their impact on optical quality is negligible unless density exceeds 10 floaters per mm³. Record any posterior vitreous detachment, which alters the light’s trajectory by ±0.2 diopters.
Project the focused rays onto the retina’s foveal pit, where cones achieve 0.5-minute arc resolution. Confirm the optical pathway’s alignment by verifying the nodal point’s position: 7 mm behind the anterior cornea for emmetropic eyes. Misalignment here–axial lengths deviating >±0.3 mm from the 24 mm average–indicates pathologic myopia or hyperopia.
Aberrations and Corrective Metrics
Measure wavefront aberrations using Zernike polynomials: defocus (Z²₀) and astigmatism (Z²₋₂) dominate 90% of optical errors, while coma (Z³₋₁) and spherical aberration (Z⁴₀) contribute 10%. Use a Shack-Hartmann sensor to quantify root mean square error; values >0.3 µm degrade visual acuity below 20/20.
Cross-reference the optical pathway with electroretinography (ERG) data: a 5 Hz flicker ERG amplitude below 50 µV suggests macular dysfunction, disrupting the final neural encoding despite intact optics. Anatomically, ensure the retinal pigment epithelium’s absorption coefficient (μₐ = 0.03 mm⁻¹) doesn’t attenuate photon density beyond 1%–critical for scotopic vision thresholds.
Validate the entire pathway by calculating Stiles-Crawford effect ratios: light entering the pupil’s temporal edge (3 mm from center) appears 20% dimmer than central rays due to photoreceptor orientation. Document any pupillary displacement–ectopia pupil shifting >0.5 mm laterally reduces effective optical resolution by 15%.
Identifying the Functional Roles of Each Eye Structure
Begin by isolating the cornea’s primary function: it refracts approximately 70% of incoming light, acting as the eye’s dominant focusing element. Damage here–whether from trauma, infection (e.g., keratitis), or chronic dryness–immediately reduces visual acuity. Test corneal integrity using fluorescein dye under cobalt blue light; irregular staining patterns confirm epithelial disruption. Prioritize early intervention with artificial tears or bandage contact lenses to prevent scarring, which permanently distorts light entry.
- Corneal thickness averages 540–560 microns centrally but thins toward the periphery; pachymetry readings below 500 microns heighten glaucoma risk.
- Aqueous humor turnover rate (2.5 µL/min) relies on the corneal endothelium’s pump function; dysfunction causes stromal edema, visible as Descemet’s folds on slit-lamp exam.
- UV exposure accelerates corneal aging; prescribe polycarbonate lenses with 100% UVA/UVB blocking to mitigate pinguecula formation.
Trace light’s path to the lens, where its biconvex design compensates for the cornea’s fixed curvature. Accommodation occurs when ciliary muscles contract, reducing zonular tension and allowing the lens to thicken–an average 14 diopters of additional power for near focus. Cataract identification hinges on retroillumination; nuclear sclerotic changes appear as central yellowing, while posterior subcapsular opacities manifest as granular deposits. Schedule 2.2 mm incision phacoemulsification for grades 3–4 LOCS III cataracts to avoid intraocular lens dislocation risks during capsulorhexis.
The iris modulates aperture size via pupillary reflexes, constricting to 1.5 mm under bright light or dilating to 8 mm in darkness–responses measurable with infrared pupillometry. Pharmacologic dilation (1% tropicamide) reveals peripheral retinal pathology but contraindicates in narrow-angle glaucoma; gonioscopy grading (Shaffer system) must precede dilation in eyes with angles ≤20°. Sectoral iris atrophy or transillumination defects signal prior inflammation or trauma, often co-occurring with zonular weakness in pseudoexfoliation syndrome.
- Vitreous humor occupies 80% of ocular volume, its hyaluronan-collagen mesh maintaining structural integrity; syneresis (liquefaction) after age 50 increases floaters by 10% annually.
- Posterior vitreous detachment (PVD) occurs in 50% of 60-year-olds but warrants urgent ultrasound if associated with photopsia and “cobweb” floaters to rule out retinal tears.
- Vitreomacular traction (VMT) distorts the fovea when the vitreous cortex remains adherent; OCT shows a central 50–400 µm elevation–treat with intravitreal ocriplasmin for lesions ≤1500 µm.
Retinal photoreceptors transduce photons into electrical signals: rods (120 million) dominate scotopic vision (3 cd/m²) and trichromatic color discrimination. Foveal pit excavation (1.5 mm diameter) maximizes cone density at 200,000/mm²; any disruption–cystoid macular edema, epiretinal membrane, or drusen–central scotomas on Amsler grid testing. Dark adaptation curves confirm rod dysfunction if recovery exceeds 30 minutes, a hallmark of retinitis pigmentosa or vitamin A deficiency.
Choroidal circulation supplies 85% of retinal oxygen via Haller’s and Sattler’s layers; choroidal thickness peaks at 300 µm subfoveally but attenuates toward the periphery. Enhanced depth imaging OCT reveals pachychoroid spectrum disorders (e.g., central serous retinopathy) when thickness exceeds 390 µm. Choriocapillaris dropout (visible on OCT angiography) correlates with geographic atrophy progression in dry AMD; monthly intravitreal anti-VEGF injections stabilize lesions >4 disc areas but require pretreatment FA/ICG to differentiate polyps (PCV) requiring adjunct photodynamic therapy.
Optic nerve fibers (1.2 million axons) converge at the disc, where cup-to-disc ratio (normal ≤0.4) assesses glaucoma risk. Heidelberg Retinal Tomography’s Moorfields Regression Analysis flags neuroretinal rim thinning if inferior sector falls below 95% confidence interval. Compression or demyelination (e.g., optic neuritis) reduces nerve fiber layer thickness by 17–23 µm–measure with circumpapillary OCT. Visual evoked potentials diagnose retrochiasmal lesions; P100 latency prolongation (>115 ms) indicates optic tract compression, while amplitude reduction (
