Complete Guide to Downloading and Analyzing Huawei Y6 Circuit Board Schematics

For technicians repairing mid-range devices like the Y6 (2018 or later models), obtaining the official PCB layout is critical. Start by checking authorized service portals–Huawei’s Service Support platform (account required) often provides verified PDFs with component mappings, signal pathways, and test points. Alternative sources include trusted third-party forums like XDA-Developers or Electro-Tech-Online, where schematics for similar devices (e.g., Y5, Y7) may apply with adjustments. Avoid unverified uploads; confirm file integrity via checksums (SHA-256) to prevent malware risks.

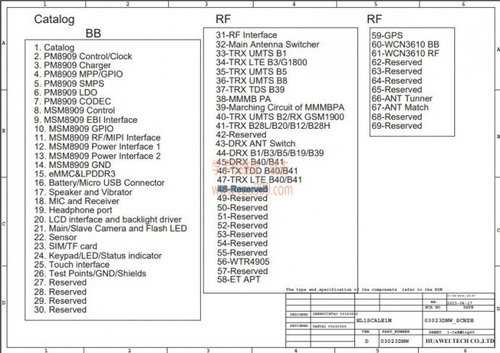

Key sections of the technical documentation include:

• Power IC Diagram: Identifies voltage rails (e.g., PMIC outputs) and decoupling capacitors. Look for markings like VREG_BUCK1 or LDO_2V8–these are common failure points.
• CPU/SoC Pinout: Critical for reballing or diagnosing signal issues (e.g., EMMC_D0-D7, UART_TX/RX). Cross-reference with datasheets for the Kirin 710 chipset.
• Peripheral Interfaces: Camera, display, and fingerprint sensor connections often include resistor networks for signal integrity. For example, the MIPI_DSI traces require meticulous soldering during screen replacements.

Use a multimeter in continuity mode to validate traces against the board layout. Probe between test points labeled in the documentation (e.g., TP_GND, TP_BOOT)–shorts or open circuits here indicate damaged components. For advanced diagnostics, an oscilloscope can reveal signal distortions in clocks (e.g., XO_OUT) or data lines (e.g., USB_DP/DM).

If official files are unavailable, create a reverse-engineered diagram using:

• High-resolution PCB photos: Inspect under a microscope to trace copper layers (use a layer-based image editor like GIMP to annotate).
• JTAG/Riff Box Logs: Extract firmware to map eMMC partitions–this reveals bootloader dependencies and persist partitions, aiding in unbricking.
• Donor Board Comparison: Compare with a functional Y6 PCB to identify missing components, especially near the charging IC or audio codec.

Store extracted files in EAGLE/KiCad format for future reference. Include annotations for component values (e.g., R2045: 10kΩ) and part numbers (e.g., PMIC: 6295X). When sharing, redact sensitive details like NFC antenna layouts to comply with proprietary restrictions.

Y6 Circuit Layout: Practical Repair and Analysis Techniques

Locate power delivery pins on the mainboard by identifying U201 (PMIC) on the reference board – its output rails (VBAT, VSYS, VREG_*) must be traced to downstream components using a multimeter in continuity mode. Shorts on VSYS often originate from decoupling capacitors C802 and C803; desolder them sequentially while measuring resistance to ground after each removal to isolate the fault.

For baseband debugging, probe the modem connector J2004’s pinouts: TXDA (pin 12), RXDA (pin 14), and GROUND (pin 1). Use a USB-to-serial adapter (3.3V logic) and terminal software (115200 baud, 8N1) to capture boot logs. If no output appears, verify the AP_CLK signal (19.2 MHz) at X200 and check R205’s resistance (should read 0Ω); common faults include open vias beneath the resistor.

Signal Integrity Checks for Display and Touch

Inspect the MIPI DSI lanes (pins 1–4 on connector J100) with an oscilloscope: CLK+ and CLK– should show amplitude >1.2Vpp @ 50Ω load. If distorted, desolder C102 and C104 (0402 packages) one at a time; failed termination often causes black screen symptoms. For touch issues, confirm I2C_SDA (pin 7) and I2C_SCL (pin 8) voltages (1.8V) and check for pull-up resistors R107/R108 (1kΩ). Stuck bus lines typically result from water damage corroding R80 (near the flash IC).

Memory testing requires accessing test points TP801–TP804 (DDR3 signals: CLK, DQS, DM). Connect a logic analyzer (set to 1.8V thresholds) to verify eye diagrams; closed eyes indicate mismatched impedances–replace R801–R804 (series resistors, 22Ω) if values drift. For persistent boot loops, measure VDDQ (1.35V) at C801; a drop below 1.25V suggests a failing buck converter (IC500).

RF path validation starts at antenna connector J300: confirm ANT_MAIN has DC continuity (0Ω) to the primary antenna trace. Use a spectrum analyzer (100 kHz RBW) at TP301 to check GSM900/1800 output power (−5 to +5 dBm). Low output often stems from PA failure–replace L301 (2.2 nH) if damaged. For GPS issues, verify GPS_AGC (pin 5 on J300) toggles between 0.8–1.2V; absent signal indicates a broken SAW filter (FL300).

Charging subsystem faults manifest as slow charging or abrupt shutdowns. Measure VBUS (pin 1, J200) with a USB load tester: should rise to 5V within 200 ms of insertion. If stalled, check Q200 (MOSFET) for shorts and R201 (0.01Ω shunt) for burn marks. For overheating, inspect thermal sensor IC400 (near battery connector) and compare readings to ambient (ΔT

Locating Official Service Manuals and Board Layouts for the Y6 Model

Begin with the manufacturer’s authorized resources. The Hilink portal (consumer.huawei.com/en/support/) hosts verified technical documentation under “Service” or “Repair” sections. Filter results by the exact model number (e.g., Y6-2019, Y6s, or Y6 II) to bypass generic guides. Registration may be required, but the files are direct OEM downloads without third-party alterations.

Specialized repair forums compile members-only archives. XDA Developers (forum.xda-developers.com) and GSMHosting (gsmhosting.com) categorize device-specific threads where premium users share password-protected RAR/ZIP files. Look for posts labeled “board view,” “PCB layout,” or “component map” with timestamps from the last 12 months–older uploads often contain corrupted links. Contributors like “MobileTechv2” or “SchemGuy” reliably post updates.

• ElectroTango (electrotango.com): Paid repository with high-resolution circuit scans. Subscriptions start at $15/month, granting access to a searchable database with filters for chipset power rails (e.g., MT6739, Qualcomm 425) and connector pinouts. Preview thumbnails confirm file relevance before download.
• AllGParts (allgparts.com): Free tier limits scans to low-resolution previews, but their “Y-series” category includes annotated layouts highlighting EMI shielding, flex cable routings, and test points for signal tracing. Create an account to request full-size copies via their ticket system.
• PDFServiceManuals (pdfservicemanuals.com): Direct downloads of factory documents. Search for “Y6 2018” or “ATU-LX3” to locate variant-specific files. Verify SHA-256 checksums against the site’s listed hashes to rule out malware.

Chinese tech portals offer alternative sourcing. Shuaji Cunchu (shuajibao.net) aggregates firmware bundles that occasionally include embedded layout files. Use Google Translate’s webpage tool to navigate sections like “维修图纸” (repair diagrams). Beware: Downloads may trigger CAPTCHAs–use a VPN to avoid regional blocks.

Telegram channels act as real-time archives. Join groups such as @PhoneSchematicsEn or @Mobile_Repair_Hub via direct links from forums. Administrators post daily updates with notes on revisions (e.g., “Y6 Prime–v2.1: Added missing ground plane for USB-C”). Enable notifications for keywords like “layout,” “BOM,” or “Gerber.”

1. Extract files using PeaZip or 7-Zip–winRAR has known vulnerabilities with Chinese compression algorithms.
2. Open layouts in KiCad or Altium Viewer to verify layers. OEM scans typically include:
   • Top/bottom copper layers (red/blue)
   • Silk screen labels (white)
   • Drill holes (crosshairs)
   • Power net highlights (bold traces)
3. Cross-reference with FCCID.io (fccid.io) internal photos if traces appear ambiguous–search the model’s FCC ID (e.g., “TNY-Y6II”) for board photos under “Exhibit Details.”

Local microelectronics labs sometimes sell physical prints. In East Asia, shops near Shenzhen Huaqiangbei list 1:1 board views on Taobao (search “Y6 原理图 彩色大图”). Request shipping to an intermediary address like that offered by Superbuy (superbuy.com) to avoid import duties. Expect $30–$50 for color-printed A2-sized schematics.

Avoid torrents and file-sharing sites. Links promising “free” downloads on Mega.nz or MediaFire often replace BGA pad arrays with advertisements or inject tracking pixels into PDFs. If unavoidable, use JDownloader 2 with plugins to detect embedded scripts, and scan files with VirusTotal (virustotal.com) before extraction. Legitimate files average 8–20MB; anything under 1MB is a placeholder.

Key Components Identified in Y6 Board Blueprint

Start repairs by locating the MT6739WW chipset–marked U1001 on the layout–near the top-right corner. Verify power delivery via capacitors C1542 (2.2µF) and C1543 (4.7µF) adjacent to the PMIC (U1200), ensuring no shorts on VBAT lines (PP_BATTERY_CONN). Check the 4G modem (U1002) traces for corrosion; oxide buildup here disrupts LTE band 5/8 connectivity, causing dropped calls. Test the USB-C port (J1501) continuity to R2051 (10KΩ) and R2052 (0Ω) pull-up resistors–common failure points during charging malfunctions.

Component	Designator	Typical Voltage (V)	Failure Symptoms
PMIC	U1200	3.8 (VOUT)	Random reboots, slow charging
4G Modem	U1002	1.8 (VIO)	No network, weak signal
Camera IC	U2200	2.8 (DOVDD)	Black screen, green flicker
Flash Memory	U1701	1.2 (VCORE)	Bootloop, app crashes

Replace L101 (1µH inductor) on the main power rail if thermal imaging shows >60°C spots–indicative of coil whine. Probe TP100 (ground) and TP101 (1.2V) near the eMMC (U1701) for stable reference; voltage drops here corrupt firmware. For audio issues, focus on the AK4376 DAC (U3001)–check R3021 (47KΩ) and C3011 (0.1µF) for dry joints. When replacing the touch controller (U2300), reflow R2301 (22Ω) first; open circuits here prevent screen responsiveness.
