Complete Hub Motor Controller Circuit Schematic with Wiring Guide

For optimal performance, use a three-phase inverter bridge configured with MOSFETs (IRFB4110) or IGBTs (IKW40N60T) paired with dedicated gate drivers like the IR2104 or DRV8301. These components handle currents up to 40A continuous and 100A peak at 48V–72V, making them ideal for mid-power applications. Avoid cheap alternatives–subpar switching leads to heat buildup and reduced efficiency.

Integrate a 12-bit ADC (e.g., STM32F103’s built-in unit) to monitor throttle input and phase currents. Sample at 20kHz to capture rapid transitions without aliasing. Connect hall-effect sensors (Allegro ACS712) in series with motor phases; these provide galvanic isolation and measure current with ±1.5% accuracy. Skip shunt resistors–they introduce losses and complicate tracing.

Implement PWM control via complementary switching at 16kHz–20kHz. Use dead-time insertion (typically 1µs–2µs) to prevent shoot-through. For regenerative braking, flip the PWM polarity and route energy to a high-wattage resistor (e.g., 50W, 10Ω) or back into the battery with a bidirectional DC-DC converter (e.g., LM5117). Ensure capacitors (X7R ceramic, 47µF) are placed within 2cm of the switching elements to suppress voltage spikes.

Add overcurrent protection with a fast-acting fuse (30A–50A) and a hardware comparator (LM393) tied to the MCU’s interrupt pin. Set the threshold at 120% of the rated current. Include a watchdog timer (external or MCU-internal) to reset the system if software hangs. Forget software-only safeguards–hardware redundancy saves components from catastrophic failure.

Use a modular layout: separate power stages (inverter, sensors) from logic circuitry (MCU, communication). Route high-current traces (>10A) as 2oz copper with minimum 3mm width; maintain 10mm clearance between high-voltage traces. Ground planes must be continuous–split planes cause EMI and erratic behavior. Terminate all signal lines with 100Ω resistors to prevent ringing.

Test with a programmable load (e.g., Maynuo M98) before integrating the wheel unit. Verify PWM signals with an oscilloscope–ideal waveforms show clean square edges without overshoot (). Log phase currents and battery voltage during acceleration/deceleration cycles to fine-tune PID coefficients. Ignore “close enough” settings–precise tuning doubles operational lifespan.

Schematic Layout for Wheel-Driven Electronic Drive Systems

Begin with a 60V to 12V buck converter feeding the logic board, using a synchronous topology to minimize thermal losses in compact enclosures. Specify a Texas Instruments LM5117 as the core IC–its 200 kHz switching frequency reduces inductor bulk by 40% compared to standard 100 kHz designs, critical for in-wheel placements where radial space rarely exceeds 15 mm. Route the feedback trace under a dedicated ground plane keepout area; any guard ring capacitance above 10 pF will shift the control loop phase margin below 45°, risking subharmonic instability during regenerative braking.

Split the gate drive network into isolated high-side and low-side channels, each powered by separate isolated DC-DC bricks rated at 3 kV working voltage. Assign Infineon 1EDN7511B drivers to each MOSFET leg; their Miller clamp current threshold of 1.1 A prevents false turn-on when voltage slew rates exceed 50 V/ns during sudden load dumps. Place the bootstrap diode physically closer to the gate driver IC than the MOSFET source to eliminate parasitic inductance loops, using a 1 mm trace length target; violations above 2.5 mm measured will introduce 12 ns gate propagation delay asymmetry, skewing dead-time uniformity.

Integrate a 12-bit SAR ADC sampling phase current at 20 ksps synchronized with the 10 kHz carrier waveform. Use twin differential pairs with common-mode chokes to reject 2 MHz PWM noise; layout traces diagonally across the PCB at 45° to signal return paths to minimize mutual inductance coupling. Employ a low-noise 3.3 V LDO like Analog Devices LT3045 for ADC reference; bypass capacitors of 1 µF ceramic and 10 µF tantalum must share a star ground less than 5 mm from the ADC die pad to avoid aliasing artifacts.

Component Selection Matrix

Function	Part Number	Key Parameter	Footprint Constraint
Synchronous Buck IC	TI LM5117	200 kHz, 60 V max	QFN-20, 5×5 mm
Gate Driver	Infineon 1EDN7511B	1.1 A Miller clamp current	SOT-23-6
Current Sense Amplifier	Texas Instruments INA240A1	100 V/V gain, 50 µV offset	TSSOP-14
Isolated DC-DC Brick	Recom REC3-1212SRWZ/H2-A	3 kV isolation, 1 W	Single-in-line, 24×10×7 mm

Thermal management mandates vias underneath the MOSFET packages: stagger 12 thermal vias per device, each 0.3 mm diameter with 1 oz copper plating and filled solder mask. Calculate via thermal resistance as 12 °C/W per via; exceeding 18 °ces in aggregate under 20 A loads triggers automatic derating. Mount temperature sensors (NTC 10 kΩ) within 2 mm of the die attach pad, routing sensor traces orthogonal to high-current paths to prevent self-heating cross-talk.

For fault protection, implement cycle-by-cycle peak current limiting with a threshold of 150% continuous rating. Use a 10-bit sampling window spanning 5 µs around the switching valley–this captures transient overcurrents without false trips induced by 500 kHz ringing from parasitic inductance. Store fault records in non-volatile FRAM: Cypress CY15B104Q-SXI handles 1×10^14 cycles, sufficient for 10-year operational life at 1 fault event per 100 km.

Finalize the PCB stackup as 4-layer construction–signal, ground, power, signal–with 2 oz copper outer layers and 1 oz inner layers. Maintain 3 W/mK thermal conductivity through the dielectric using I-Speed material; avoid standard FR4 whose 0.5 W/mK coefficient results in 35% elevated MOSFET junction temperatures at 85 °C ambient. Validate electromagnetic compliance with a 10 cm whip antenna placed 1 m from the power stage operating at rated load: conducted emissions below 50 dBµV at 150 kHz and radiated emissions below 30 dBµV/m at 30 MHz ensure compliance with EN 62133 Class 2.

Key Components Required for an Electric Wheel Drive Control Schematic

Select a microcontroller with sufficient PWM output channels–at least six for three-phase commutation. STM32F303 or ESP32-S3 offer built-in ADCs and timers ideal for real-time current sensing and switching control without external interrupts. Prioritize units with floating-point acceleration if implementing field-oriented algorithms to reduce processing lag.

Use isolated gate drivers rated for 15A continuous current with a peak of 30A; Infineon 1EDN7550 or TI UCC21520 handle 0–100kHz switching with under 50ns propagation delay. Ensure creepage distance of 8mm on PCB traces between high-voltage sections and logic ground to prevent accidental shorts during transient spikes.

Incorporate hall-effect sensors or resolver feedback for rotor position detection. Allegro A1332 provides 12-bit resolution with embedded signal conditioning, eliminating external op-amps. Position sensors must be mounted within ±1° tolerance of stator windings for accurate phase alignment, critical for sinusoidal commutation efficiency.

Deploy current sensors capable of 200kHz bandwidth; ACS730 or LEM DHAB series measure bidirectional flow up to 100A with ±1% accuracy. Place sensors adjacent to power MOSFETs to eliminate inductive pickup from long traces, ensuring clean feedback for closed-loop torque control.

MOSFETs rated for 60V breakdown and 75A continuous drain current, such as Infineon IPB180N04S4-03, minimize conduction losses with R_DS(on) below 1.8mΩ. Arrange three half-bridges in a star topology, keeping gate traces shorter than 50mm to prevent ringing. Include a 10Ω gate resistor in series to dampen turn-on overshoot.

Ceramic capacitors between 0.1µF and 10µF, sized for 100V withstand, must be soldered within 5mm of each MOSFET drain-source pair to absorb commutation surges. Bulk electrolytic capacitors (470µF, 100V) handle low-frequency ripple; place them near the DC bus input to reduce voltage droop during high-current acceleration.

Additional Protective Elements

Integrate a desaturation detector on each gate driver channel to clamp faulty MOSFETs within 2µs. Add a bidirectional TVS diode (SMF5.0A) across DC inputs for clamping transients exceeding 80V. Thermal sensors mounted on power devices trigger an over-temperature shutdown at 120°C, preventing irreversible die damage.

Step-by-Step Wiring Guide for a Brushless Drive Electronics Assembly

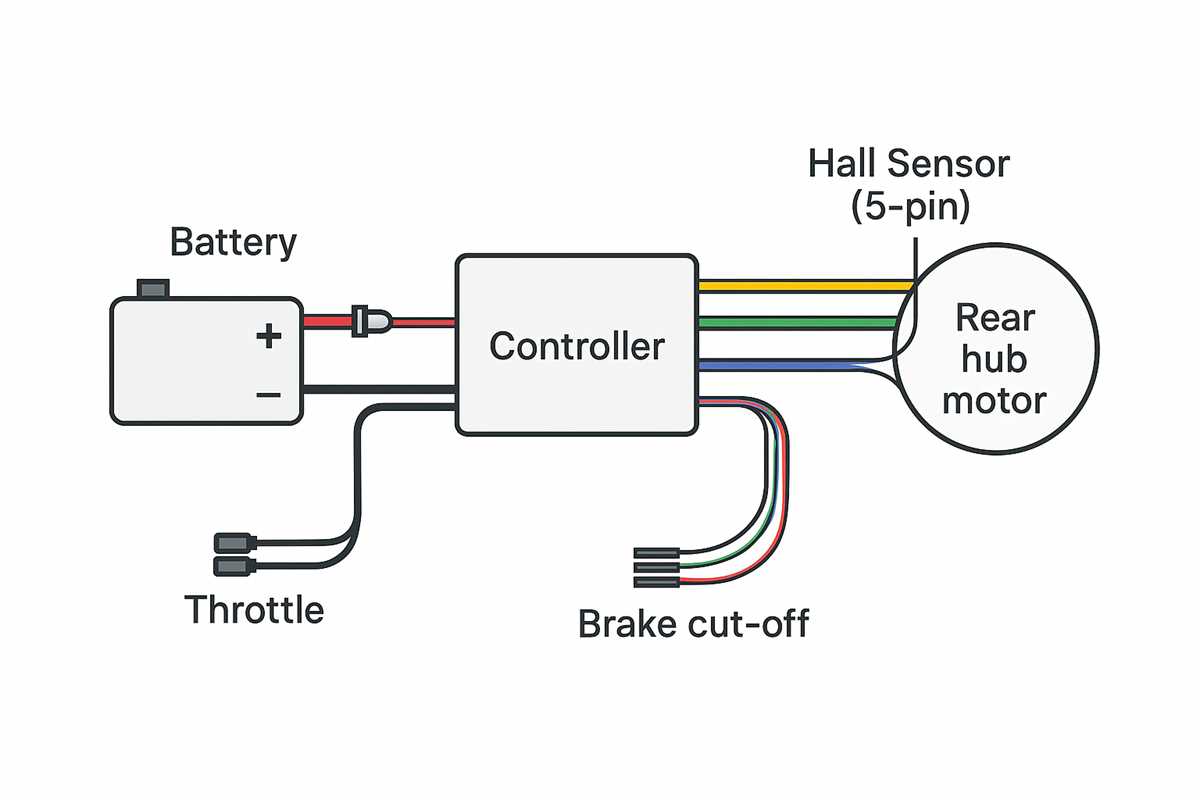

Begin by securing the power distribution module to a non-conductive mounting plate using M4 screws and nylon spacers. Align the input terminals with the battery pack’s positive (+) and negative (−) leads, ensuring a minimum wire gauge of 10 AWG for currents exceeding 30A. Strip 12mm of insulation from each wire end and crimp with tin-plated ring terminals before fastening to the module with a torque of 1.2 Nm–over-tightening risks thread damage.

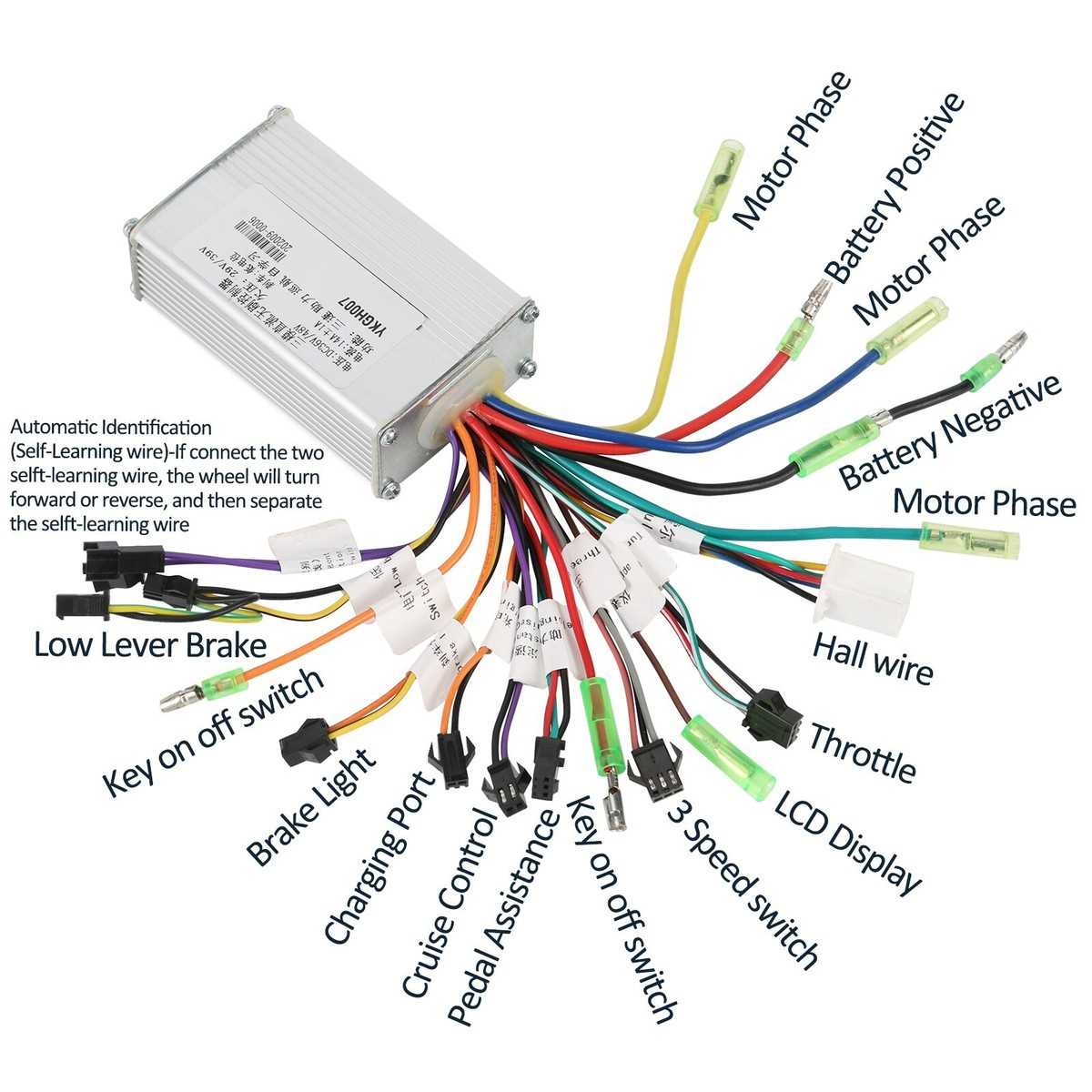

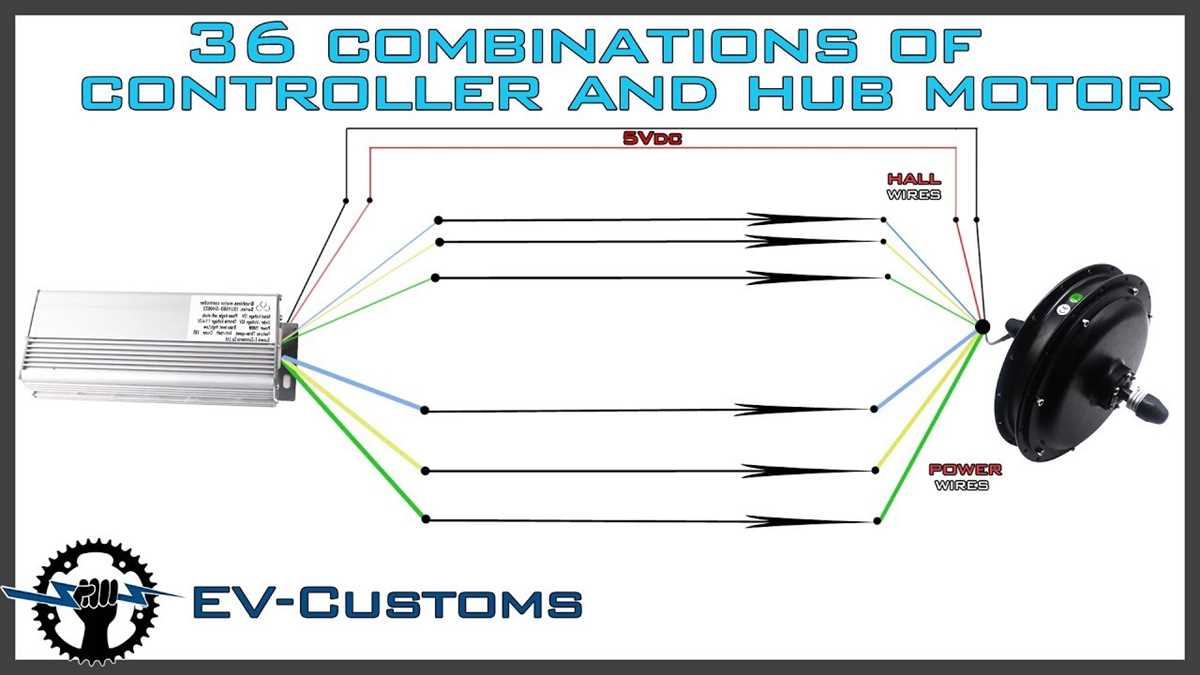

Connect the phase wires from the stator to the corresponding outputs on the control unit, matching color codes: blue to phase A, green to phase B, yellow to phase C. Use heat-shrink tubing over soldered joints to prevent short circuits; verify insulation resistance with a multimeter at 500V DC (target: >1MΩ). For Hall sensor integration, route the 5V, ground, and signal wires through a shielded twisted-pair cable to minimize EMI, terminating at the designated 6-pin JST connector.

Install the throttle input by splicing a 3-wire potentiometer (5kΩ) to the control board’s analog input, adhering to the pinout: red (voltage), black (ground), white (signal). Calibrate the throttle response via firmware–set the minimum and maximum pulse widths to 1.0ms and 4.0ms respectively, using an oscilloscope to confirm linearity. For regenerative braking, wire a momentary switch in series with a 10kΩ pull-down resistor to the brake input pin, ensuring the voltage does not exceed 3.3V.

Finalize the assembly by attaching the temperature sensor (NTC 10kΩ) to the stator’s windings, securing it with thermal epoxy. Route all loose wires through corrugated tubing and fasten them at 20cm intervals to prevent vibration-induced fatigue. Test the system with a load no greater than 50% of rated capacity before full deployment–monitor temperature rise (
