Understanding the Ignition System Electrical Circuit Layout and Components

The primary coil should receive 12V switched power directly from the ignition feed, bypassing any intermediate relays unless the vehicle’s power demand exceeds 30A. Attach the negative terminal to a dedicated ground point–avoid shared grounds with high-current components like starter motors or cooling fans. Voltage drop across this connection must not exceed 0.2V under load; test with a multimeter while cranking to confirm stability.

Distributor-based setups require precise trigger signal routing. Connect the pickup coil wires to the control module with shielded cable–braid or foil shielding reduces interference from alternator ripple or adjacent high-voltage lines. Keep leads under 45 cm to prevent signal degradation. For electronic timing control units, verify the manufacturer’s specs for input impedance; mismatched impedance causes erratic spark timing or misfires under acceleration.

High-voltage cables need a minimum insulation resistance of 10 MΩ per 25 mm at 1 kV. Test with a megohmmeter before installation–replace any wire showing less than 5 MΩ. Route cables away from sources of EMI, maintaining at least 5 cm clearance from fuel lines, alternator output wires, or ECU harnesses. Use silicone-jacketed cables for temperatures above 90°C; PVC insulation degrades at lower thresholds, risking short circuits.

Capacitive discharge modules demand specific wiring techniques. Connect the trigger input to a low-impedance source–hall-effect sensors work reliably, while inductive pickups may require a pull-up resistor (typically 1 kΩ to 4.7 kΩ). The storage capacitor’s lead length influences charge time; limit total path length to 20 cm for optimal performance. Always fuse the power input at 20% above the module’s maximum current draw to prevent overheating.

Key Schematics for Engine Spark Distribution

Start troubleshooting misfires by isolating the primary coil feed wire–typically a 12V red or yellow lead with a 0.8–1.2 mm² cross-section. Verify continuity with a multimeter (≤0.5 Ω acceptable) before testing the switching module’s ground path, often overlooked despite causing intermittent failures. A defective ballast resistor (if equipped) can drop voltage below 9V under load, check with a voltage drop test under cranking conditions.

Critical Component Locations and Testing

Locate the crankshaft position sensor (CKP) harness connector behind the harmonic balancer; probe the signal wire (blue/white stripe) for a 0.5–3V AC sine wave during startup. For distributor-based setups, remove the cap and inspect the rotor’s conductive tip–corrosion here demands sandpaper (400-grit) cleaning before recheck. Hall-effect sensors in coil-on-plug units require a scope; expect a clean 5V square wave at 10–20 kHz with minimal jitter.

High-energy control modules use a 10–15A fuse for coil packs; bypass it temporarily with an automotive relay if failures persist, but monitor amperage draw–excessive current (>25A) indicates internal coil shorting. For CDI units, confirm the capacitor discharge pulse (200–400V) at the trigger coil terminal; a weak spark here necessitates capacitor replacement, not recalibration. Always disconnect the fuel pump relay during spark tests to prevent unintended engine starts.

Label all disconnected terminals with masking tape and note wire colors–misrouted leads in multi-spark setups can fry the ECM. For single-spark coils, swap cylinders to isolate faulty units; a consistent misfire on the same plug points to the coil. Always replace spark plugs in sets, using copper-core types (0.035–0.045″ gap) for non-turbo engines; iridium plugs (0.028″) suit forced induction but require stricter voltage checks as they mask weak coil performance.

Core Elements of a Spark Generation Blueprint

Start by locating the coil on the schematic–it converts low-voltage power from the battery into high-voltage pulses required to create a spark. Verify its connections: one terminal links to the battery via the ignition switch, while the other feeds the distributor or control module. Check for resistance values: typical primary winding resistance ranges from 0.5 to 2 ohms, while secondary winding resistance spans 6,000 to 30,000 ohms. Deviations outside these ranges indicate coil failure.

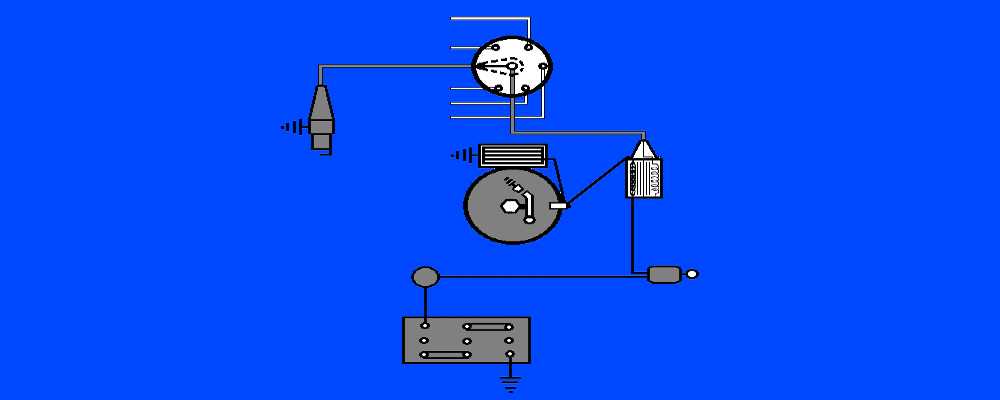

• The distributor (if present) routes high-voltage pulses to each cylinder in firing order. Examine the cap and rotor for carbon tracks, cracks, or corrosion–common failure points.
• Spark plugs demand attention: gap specifications (usually 0.028–0.044 inches) and heat ranges must match engine requirements.

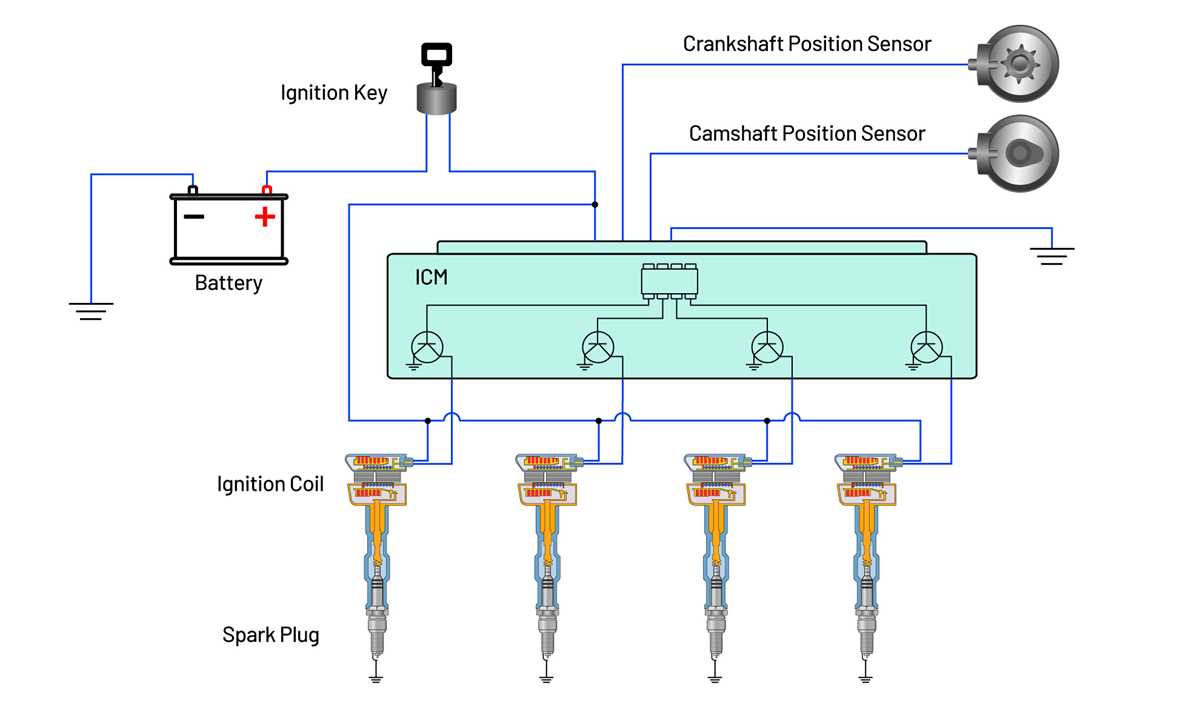

• Modern setups replace distributors with crankshaft/camshaft position sensors, sending signals to an ECU that triggers coils directly.

Switches and relays deserve scrutiny. The ignition switch must handle current loads without overheating, typically rated for 20–30 amps. Relays, often overlooked, should be tested for continuity and coil resistance (50–120 ohms). A faulty relay can mimic coil or sensor failures, leading to misdiagnosis.

Ground paths often contain hidden faults. Corroded or loose engine-to-chassis grounds disrupt voltage flow, causing intermittent spark loss. Scrape paint, rust, or grime from ground contact points and secure connections with star washers. Measure voltage drop across grounds–readings above 0.2 volts indicate resistance issues requiring correction.

How to Decipher Your Engine’s Electrical Blueprint

Locate the battery symbol first–this is your baseline for voltage. Trace the red line (positive) from the terminal to the starter solenoid, noting any fusible links or relays marked as thin black strips or labeled “FL.” Cross-reference the part number with the manufacturer’s specs to confirm amperage ratings; most passenger vehicles use 30-60A links.

Identify the coil pack or distributor inputs: look for a small square or cylindrical icon with two low-voltage connectors. The primary winding wire (thicker, often 14-16 AWG) connects to the ignition control module or ECU pin labeled “IGN” or “COIL+.” Measure resistance between this point and ground–should read 0.5-1.5 ohms; deviations indicate internal damage.

Follow high-voltage output to spark plugs via thick, ribbed cables or direct-capless coil towers. On diagrams, these appear as zigzag lines or dotted paths. Verify 5-10mm air gaps between the coil terminal and plug tip if using coil-on-plug setups. Always disconnect power before probing–capacitive discharge can exceed 30kV.

Frequent Wiring Mistakes in Engine Spark Layouts and Solutions

Swap reversed polarity on the coil’s primary connections immediately–confirmed by a weak or missing spark. Label terminals with “+” and “-” during disassembly to prevent confusion. Test with a multimeter: 12V should appear at the “+” terminal when the key turns to start. If readings flip, replug the connectors and recheck.

Skipping the ballast resistor–common in older setups–causes premature coil failure. Verify resistor presence between the ignition switch and coil’s positive terminal. Measure resistance: 1.2–1.8 ohms for correct values. Bypass only for testing, never permanently, as coil windings overheat within minutes.

Loose distributor cap fasteners allow moisture inside, corroding rotor contacts. Tighten screws to 4–5 Nm; overtightening cracks the cap. Inspect every 5,000 miles–clean terminals with 600-grit sandpaper and dielectric grease. Replace the cap if cracks exceed 2mm or carbon traces appear.

Incorrect firing order misfires cylinders–common after rotor replacement. Mark the #1 wire position on the cap before removal. Use a timing light: if sparks skip, reorder wires starting at #1, following the engine’s rotation. V6 orders differ from inline-4; cross-reference the manual for exact sequences.

Grounding issues create erratic sparks–verify battery-to-chassis resistance below 0.5 ohms. Clean paint and rust off grounding straps; secure with star washers for bite. For fiberglass bodies, add a dedicated braided strap from the engine block to the frame.

Signal wire interference from unshielded alternator cables mimics misfires. Route spark plug wires perpendicular to high-current cables; minimum 10cm separation. Add ferrite beads to coil leads if radio static occurs during acceleration.

Diagnosing Electrical Firing Sequence Problems with Schematic Guidance

Locate the power distribution module in the vehicle schematic–typically marked with battery-positive lines branching to fuses and relays. Identify the firing coil feed line (often labeled IGN or COIL+) and trace it back to its source. Measure voltage at the coil connector with a multimeter: 12V key-on, 0V key-off. If voltage reads low or intermittent, inspect the relay, fuse, and splices for corrosion or loose connections. Replace any degraded terminals with gold-plated crimp connectors to prevent oxidation.

Check the trigger signal path from the control unit to the firing module. Modern setups use either a Hall-effect sensor, inductive pickup, or optical encoder to generate timing pulses. Refer to the schematic for the expected voltage range: Hall-effect sensors output 5V square waves, inductive pickups produce AC sine waves (0.5-2V peak), and optical encoders emit clean 0-5V pulses. If signals deviate, test sensor resistance (refer to service manual specs) and probe the wiring for shorts to ground or power. Shielded cables should show between signal return and chassis ground.

Common Fault Codes and Corresponding Circuit Checks

OBD-II Code	Likely Issue	Schematic Reference Point	Test Procedure
P0351–P0354	Primary coil winding failure	Coil feed line (after relay/fuse)	Measure resistance between coil terminals (0.4–2.0Ω typical); check for open/short
P0335	Crankshaft position sensor malfunction	Sensor signal wire to ECM	Verify 5V supply and ground; scope signal with engine cranking (sine wave for inductive, square for Hall)
P0300–P0308	Random/misfire detected	Secondary coil output to spark plugs	Inspect spark plug gap (0.8–1.0mm), test coil tower for spark using inline spark tester

For distributor-based setups, examine the rotor and cap for carbon tracking–clean contacts with 1200-grit sandpaper and reapply dielectric grease. PCM-controlled wasted spark configurations require probing the ECM ground reference for each coil pack; expect between cylinders. High-resistance spark plug wires (should measure ) or fouled plugs are frequent misfire culprits–replace with iridium-tipped plugs if ceramic insulator shows excessive whitish deposits.

Isolate electromagnetic interference by routing all wiring away from alternator output, oxygen sensors, and ECU grounds. Use a non-contact inductive amp clamp to verify current draw on coil trigger lines during startup–high spikes (beyond 8–10A) indicate a failing coil or driver transistor. If the schematic shows a ballast resistor (common in older models), bypass it temporarily to confirm its role in voltage drop. Always compare readings against the vehicle-specific service manual–generic diagrams often omit critical splice points unique to certain trim levels.
