Designing a Simple and Reliable Toggle Switch Circuit Schematic Step-by-Step

Use a single-pole, double-throw (SPDT) relay as the core element for alternating current paths. Connect the common (COM) terminal to the power source, while routing the normally open (NO) and normally closed (NC) terminals to opposing load circuits. This configuration ensures immediate state inversion without additional logic gates. For 12V DC systems, incorporate a flyback diode across the relay coil to suppress voltage spikes exceeding 150% of the supply voltage.

Select resistor values based on LED forward voltage and current requirements. A 220Ω resistor limits current to 20mA for a standard 3mm indicator LED at 5V, reducing power dissipation by 45mW. For capacitor-based debouncing, pair a 0.1µF ceramic capacitor with a 10kΩ pull-up resistor–this combination filters signals below 100Hz, preventing false triggers from mechanical bounce lasting under 5ms.

Position a momentary pushbutton inline with the relay coil or microcontroller input to manually override automated states. Ensure the button’s contact resistance stays under 0.1Ω by using gold-plated surfaces, particularly in low-voltage (

Validate circuit behavior with a multimeter in continuity mode before energizing. Measure across NO and NC terminals: the active path should register

Building a Bistable Circuit for Control Interfaces

Select a dual-coil latching relay for mechanical latching circuits–models like the TE Connectivity K10P or Omron G2R offer reliable performance with 5V coils and contact ratings up to 10A. Connect one coil to the “set” momentary pushbutton and the second to the “reset” button, ensuring both include flyback diodes (1N4007) across coils to prevent voltage spikes. Power the relay from a regulated DC supply matching its coil voltage; use a decoupling capacitor (10μF) near the relay to stabilize transient currents.

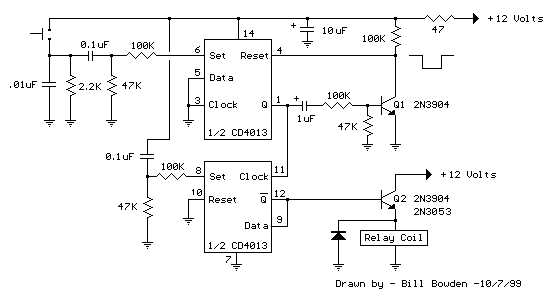

For solid-state solutions, implement a CD4013 D-type flip-flop (dual version) with its data and clock inputs pulled low through 10kΩ resistors. Wire Q and Q̅ outputs to N-channel MOSFETs (IRFZ44N) with gate resistors (220Ω) to drive loads up to 20A. Add a debounce circuit (RC network: 1kΩ + 1μF) on the clock input to filter mechanical contact bounce from momentary buttons, reducing false triggers to under 5ms.

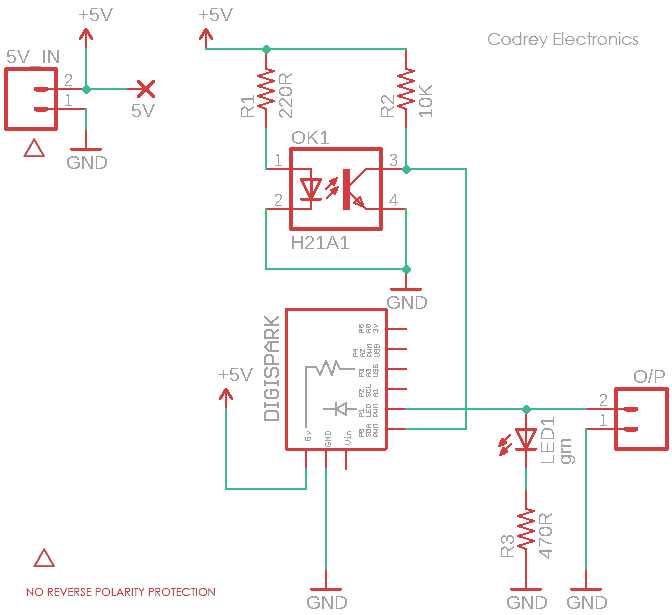

Optoisolators (PC817) isolate control signals from high-voltage loads (above 48V). Drive the isolator’s LED with a 1kΩ resistor in series, then connect its output transistor to a MOSFET gate driver (IR2304) for 300V+ applications. For AC loads, pair the flip-flop’s Q output with a triac (BTA16-600B) via a MOC3021 optocoupler, using snubber networks (39Ω + 0.1μF) to suppress dv/dt transients.

Test all circuits with an oscilloscope: verify debounce timings (1–10ms), relay switching times (≤20ms), and MOSFET rise/fall edges (

Key Elements for Designing a Reliable Mechanical Selection Mechanism

Begin with a high-quality actuator rated for at least 10,000 cycles at full load. Brands like Omron, TE Connectivity, or C&K offer models with silver-alloy contacts, ensuring minimal resistance and prolonged lifespan. Avoid generic alternatives–their conductive plating typically degrades after 2,000 cycles under 5A, leading to intermittent failures.

For current capacities above 3A, prioritize snap-action designs. These employ a spring-loaded over-center mechanism that eliminates contact bounce, a common issue in basic rocker designs. The DPDT configuration allows dual-circuit control, reducing wiring complexity in applications requiring polarity reversal or multi-state logic.

Select a housing material based on environmental conditions:

• Polyamide (PA66) for indoor use–low cost, but absorbs moisture over time.
• Glass-filled polyester (PBT) for outdoor or high-temperature environments–resists UV, chemicals, and maintains dimensional stability up to 150°C.
• Stainless steel for industrial or marine settings–corrosion-resistant but increases cost by 40%.

Contact resistance should not exceed 50 mΩ under rated load. Gold-plated contacts (0.2 µm thickness) suit dry circuits (≤100 mA), but silver-nickel or silver-cadmium oxide is mandatory for currents above 1A to prevent welding. Verify datasheets for “initial contact resistance” vs. “after 5,000 cycles”–a disparity above 20% indicates poor durability.

Lever travel distance affects both tactile feedback and durability. Shorter throws (≤2.5 mm) enable faster actuation but risk accidental triggering in high-vibration systems. Longer throws (3.5–5 mm) improve precision but require stronger springs, increasing mechanical wear over time. For panel-mounted setups, ensure the lever extends at least 8 mm beyond the enclosure to avoid accidental engagement.

Mounting options impact assembly efficiency:

• PCB mount (through-hole): Suitable for prototypes; limited to 2A unless reinforced with copper pours. Pre-tin pads to prevent solder wicking.
• Panel mount (snap-in): Quick installation; choose models with anti-rotation tabs to prevent misalignment during tightening.
• Threaded bushing: Most secure for high-vibration environments, but requires precise hole sizing (e.g., 9.5 mm for M9 bushings).

Heat dissipation becomes critical at loads above 5A. Use models with copper alloy terminals and consider adding a heat sink if ambient temperatures exceed 60°C. For 10A+ applications, opt for sealed units (IP67) to prevent arcing contamination, which can increase contact resistance by up to 300% over time.

Test for EMI susceptibility if the mechanism operates near RF sources. Unshielded actuators can act as antennas, inducing false signals. Models with built-in ferrite cores or grounded metal housings mitigate this risk. Pair with flyback diodes (for inductive loads) or RC snubbers (for capacitive/resistive loads) to suppress voltage spikes–even a 50V transient can erode contacts 10x faster.

Sketching Fundamental Circuit Representations for Single-Pole Configurations

Start by drafting the SPST symbol as a straight line interrupted by a short angled slash–never a perpendicular break. Position the slash at a 45° angle from the horizontal conductor, ensuring it points toward the open contact side. This angle prevents confusion with resistors or breaks in wiring diagrams, where conventions differ. Label both terminals with unambiguous identifiers like IN and OUT, even if the design appears elementary; clarity prevents miswiring during prototyping.

For SPDT layouts, begin with the same angled slash but extend a second conductor straight downward from the junction point. This secondary path should terminate in a small filled circle, not an open endpoint, to denote a mechanical pivot rather than a floating connection. Avoid curves–maintain strict 90° transitions for consistency. Mark each branch distinctly: COM for the common terminal, NO for normally open, and NC for normally closed, placed adjacent to each path.

Use standardized line weights: 0.5mm for conductors, 0.7mm for the angled slash in SPST, and 0.35mm for auxiliary markers like jumpers or crossovers. Deviating from these dimensions risks non-compliance with industry schematics, particularly in multi-national projects where interpretation varies. Electronic design tools often default to these measurements–verify before exporting gerber files or netlists.

Common Missteps in Symbol Construction

Overlapping the angled slash with vertical lines creates visual ambiguity, resembling a fuse or transistor symbol. Keep a minimum 2mm clearance between the slash and adjacent conductors. Similarly, avoid parallel paths in SPDT representations–opt for diverging lines at 45° from the common node to prevent misreading as a dual-throw ambiguity. Test your draft by replicating it on grid paper; if the gesture isn’t instantly recognizable, redraw.

Mechanical action indicators (like arrows or chevrons) belong in datasheets or wiring guides, never embedded in core circuit drawings. These clutter the interpretability for engineers parsing netlists automatically. Confine annotations to marginalia or separate documentation layers. If contextual behavior must be highlighted–such as momentary vs. latching–use orthogonal notes, not graphic embellishments.

Tool-Specific Adjustments for Precision

In KiCad, select the pin type explicitly–”passive” for COM, “input” for NO/NC–to ensure correct netlist generation. Eagle requires manual pin swapping disabling; failure here causes erroneous autorouting. Altium’s schematic capture prioritizes pin numbering over graphical fidelity; lock symbol orientation to prevent unintended 90° rotations during library updates. Document these settings in a project style guide.

Verify symbol behavior in simulation environments. SPST should activate a single net; SPDT must switch between two without ghosting. Tools like LTspice orngspice simulate switch resistance–default values (e.g., 1Ω for SPST) must match datasheet specifications to avoid unexpected voltage drops. Export test vectors to confirm timing characteristics align with physical switch bounce constraints.

Connecting Power Supplies and Outputs in a Bistable Control Layout

Isolate input and output sections with distinct voltage domains using series resistors for signal integrity–10Ω for logic-level transitions, 100Ω–1kΩ for inductive loads like relays. Position the power feed at the top node of the bistable circuit, ensuring cathode alignment toward ground in DC applications. For mixed-voltage layouts, incorporate a Zener diode (1N4742–1N4744) across the coil terminals when driving 12V relays from a 5V GPIO to prevent back-voltage spikes exceeding 6.8V.

Component	Min Voltage	Max Voltage	Current Rating	Placement Rule
MOSFET (IRLZ44N)	4.5V	55V	47A	Gate to resistor (1kΩ), source to ground
Bipolar Transistor (2N2222)	0.6V	40V	800mA	Base via 470Ω resistor, emitter to load
TVS Diode (P6KE15A)	13.6V	16.5V	5W	Parallel to load, anode to ground

Route high-current traces (>500mA) along the perimeter, maintaining 3mm clearance from low-level logic paths to eliminate cross-talk. For dual-power configurations (e.g., 5V logic + 24V actuator), insert a Schottky diode (1N5822) between supplies to block reverse current while permitting a forward drop of 0.35V. Verify polarity safeguards with a multimeter in continuity mode before applying full voltage to avoid thermal runaway in switching elements.
