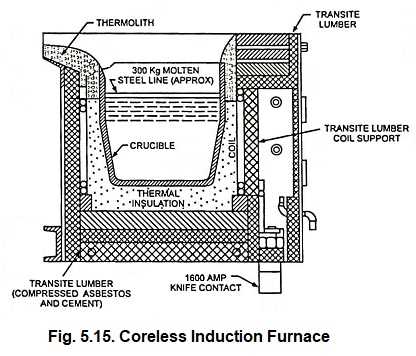

Designing and Analyzing Induction Melting Furnace Electrical Schematics

Begin with a high-frequency resonant inverter as the power stage–opt for an H-bridge topology using IGBT modules rated for at least 1200V/300A. This setup ensures minimal switching losses and handles transient loads up to 50kW without derating. Pair the inverter with a series-resonant tank circuit, where the capacitor bank (typically 0.5–2μF) and induction coil (3–6 turns of 8mm copper tube) create a natural frequency between 10–50kHz. Mismatched frequencies will drop efficiency by 20–40%, so validate with an LCR meter before energizing.

Integrate a phase-locked loop (PLL) for dynamic frequency adjustment–this compensates for thermal drift in the load. Use a current transformer (CT) with a 1:500 ratio to monitor coil current; overcurrent trips at 250A RMS should trigger within 2ms to prevent IGBT saturation. Snubber capacitors (1–2nF) across each switch reduce voltage spikes, but avoid excessive values–capacitance beyond 5nF increases turn-off losses by 12%.

For cooling, recirculate deionized water through the copper coil at 4–6L/min. A flow switch must interlock with the control board to cut power if flow drops below 3L/min; even a 30-second delay risks catastrophic overheating. Ground the crucible securely–use a dedicated 50mm² copper busbar to prevent stray currents that erode refractory linings. Pre-charge the DC link capacitors via a soft-start resistor (50Ω/25W) to limit inrush current to 30A; bypass it with a relay once voltage stabilizes at 600–800V.

Isolate the gate drivers with optocouplers (e.g., HCPL-316J) for noise immunity. PWM signals should originate from a microcontroller with dead-time adjustment (1–3μs) to prevent shoot-through. Log temperature via a Type-K thermocouple encased in ceramic; this feeds back to a PID controller that modulates power output in 5% increments. Without PID, thermal runaway occurs at 1100°C, reducing crucible life by 60%.

Finally, add a snubber diode (fast recovery, 10A) across the coil to clamp flyback voltage. Test the system with a load simulator before full operation–apply a 10Ω resistive dummy load to verify waveform purity; harmonic distortion above 5% indicates poor resonance tuning. Document all adjustments for reproducibility, as component tolerances (±5%) demand precise calibration.

Schematic for High-Frequency Heating Coil Systems

Use a three-phase rectifier bridge as the primary power conversion stage for industrial-scale thermal processing units. Pair it with high-voltage IGBT modules rated for 1200V/300A to handle transient spikes during crucible heating cycles. Bypass capacitors (1000µF, 450V) should be connected directly across the bus to suppress ripple currents exceeding 10% of nominal load.

Select a resonant tank configuration matching the crucible’s material properties–variable frequency (20-60 kHz) works best for graphite, while fixed 80 kHz suits copper-alloy applications. Include a step-down transformer with air-core secondary windings to minimize hysteresis losses at elevated temperatures. Position temperature sensors (PT100) near the coil’s innermost turn to prevent thermal runaway.

Grounding must comply with IEC 60204-1 standards: use separate protective earth for power electronics and functional earth for coil shielding. Separate earth conductors (16 mm² copper) should terminate at a dedicated electrode 3 meters from the main cabinet to avoid interference with control circuitry.

Implement phase-locked loop feedback in the inverter control to maintain resonant frequency despite crucible weight fluctuations. Adjust PID parameters (Kp=1.2, Ki=0.05, Kd=0.3) for 3-tonne capacity systems to stabilize power factor drift during initial heating. Log output waveforms at 1 MHz sampling rate to detect asymmetrical loading indicative of coil degradation.

Thermal management requires dual-loop cooling: deionized water (resistivity >1 MΩ·cm) for coil circuits and glycol-based chiller for inverter heatsinks. Maintain flow rates above 15 L/min to preserve dielectric strength, and install pressure sensors with 0.1 bar accuracy to detect blockages in serpentine channels.

For large-scale installations (750 kW+), add a snubber network (0.1 µF + 20 Ω series resistors) across each IGBT to clamp voltage overshoot. Verify switching symmetry with differential probes–peak transients should not exceed 85% of device rating. Replace gate drivers if propagation delay variance exceeds 50 ns between phases.

Isolate auxiliary circuits with reinforced insulation transformers (4 kV Hi-Pot tested) to prevent PLC corruption from back-EMF spikes. Use shielded twisted pair for encoder signals, grounding shield at one end only. Test EMI emissions via LISN (Line Impedance Stabilization Network) to ensure compliance with CISPR 11 Class A limits.

Regular maintenance should include infrared thermography of busbars during full-load operation to identify hotspots (>5°C gradient). Re-torque all connections (4.2 Nm for M12 bolts) quarterly, and replace water seals in rotating joints if leakage current exceeds 1 mA. Update firmware only during scheduled downtime to prevent mid-cycle aborts.

Critical Elements of High-Frequency Heating System Electrical Configuration

Start by integrating a robust power converter with a minimum 95% efficiency rating to minimize thermal losses during thermal processing. Silicon carbide (SiC) modules outperform traditional IGBTs in high-kilowatt applications, reducing switching losses by up to 40% while operating at frequencies exceeding 50 kHz. Ensure the converter’s DC link capacitor bank has sufficient capacitance to handle transient loads–typically 100–200 μF per kilowatt of rated output–to prevent voltage sag during peak demand cycles.

Coil Design and Cooling Mechanism

Opt for oxygen-free copper windings with a cross-sectional area of at least 1.5 mm² per ampere of current to prevent resistive heating. Water-cooled coils should maintain inlet temperatures below 35°C and flow rates of 8–12 liters per minute per coil segment to avoid localized overheating. For frequencies above 10 kHz, litz wire constructions (individual strands

Matching networks must include variable reactance components–typically motorized vacuum capacitors–to dynamically compensate for load impedance shifts during heating cycles. A parallel resonant tank circuit with a Q-factor above 10 ensures stable oscillation, while ferrite cores in the secondary coil enhance flux concentration but require thermal monitoring (T_max = 250°C) to prevent saturation. Failure to maintain resonance leads to erratic power delivery, increasing energy consumption by 30% or more.

Overcurrent protection demands fast-acting semiconductor fuses (I²t

Temperature sensors (RTDs or thermocouples) must be embedded within the coil assembly and crucible walls, with real-time feedback to the PLC to adjust power levels before thermal runaway occurs. Avoid relying solely on infrared pyrometers, as slag buildup distorts readings; cross-validate with dual-sensor redundancy. Power distribution panels should segregate control circuits from high-current paths using galvanic isolation (minimum 2.5 kV dielectric strength) to prevent EMI-induced failures.

Step-by-Step Assembly of Power Conversion Setup for High-Frequency Heating

Begin by securing a 30–50 kW solid-state inverter matched to your coil’s impedance. Verify the input voltage (400–480V 3-phase) aligns with the manufacturer’s specs–deviations exceeding ±5% risk inefficient switching or component stress. Mount the inverter on a heat-dissipating aluminum plate (5mm minimum thickness) with thermal paste and M4 screws torqued to 0.8 Nm.

1. Connect the DC bus capacitors (1000µF/600V film type) in parallel, maintaining <10mm lead spacing to minimize parasitic inductance. Use stranded copper wire (AWG 4/0) for all high-current links, crimping terminals with a hydraulic press (10-ton capacity) instead of soldering.
2. Assemble the resonant tank: pair the work coil (8–12 turns of 6mm copper tubing) with a commercial-grade water-cooled capacitor bank (100nF/1000V). Secure joints with silver-bearing solder (Sn96.5Ag3.5) and a 150W soldering iron to avoid cold junctions.
3. Integrate the IGBT gate drivers (SKYPER 32 or equivalent), routing control signals through shielded twisted-pair cables (20 AWG) with <100pF/m capacitance. Isolate driver grounds from the main power ground using optocouplers (HCPL-3120) to prevent noise coupling.

Test the switching performance with an oscilloscope (50MHz bandwidth) probing the IGBT collector-emitter voltage. Aim for a <2 µs rise time and <5% overshoot. If resonances exceed 30V peak-to-peak, add a snubber circuit (4.7Ω/10W resistor + 100nF/1600V capacitor) across the IGBT terminals. Calibrate the frequency range (20–80 kHz) via the control board’s trimpot–tolerance should not exceed ±2%.

• Water cooling: Use deionized water (<5 µS/cm conductivity) pumped at 6–8 L/min through the coil and capacitor bank. Install a flow sensor (FS100A) and thermal cutout (80°C) in series; bypasses at lower flows reduce component lifespan by 40%.
• Grounding: Bond the inverter chassis, work coil, and shielded enclosures with 10mm² copper tape, terminating at a central star point to eliminate ground loops. Verify resistance between any two points <0.1Ω.
• Startup sequence: Energize auxiliary circuits first, then enable the DC bus, followed by gate drivers. Premature activation risks latch-up–implement a 3-second delay via a CMOS 555 timer circuit (NE555).
