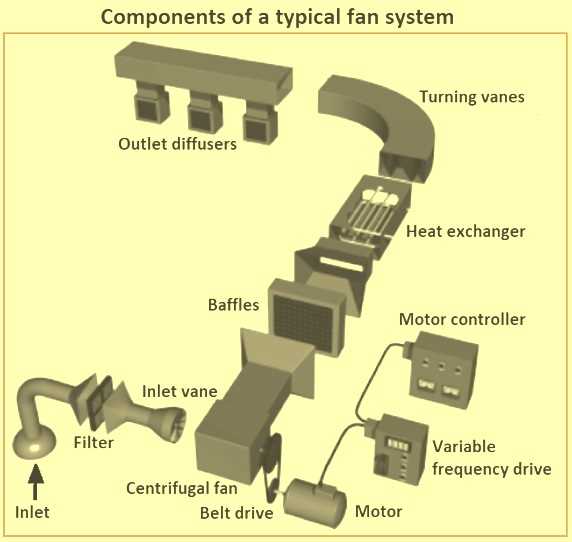

Key Components and Wiring Layout for Industrial Fan and Blower Systems

Select components based on volumetric flow rates–centrifugal units with backward-curved impellers achieve 70–85% efficiency at static pressures above 3 kPa, while axial varieties operate best below 2 kPa but deliver 40–60% higher throughput per kilowatt. Precise motor sizing prevents cavitation: a 15 kW drive suffices for 5,000 m³/h at 1.2 kPa, yet fails at 2 kPa; recalculate power requirements using the affinity laws when modifying blade angles or RPM.

Mount vibration isolators beneath bearing housings–rubber pads reduce transmitted frequencies by 65%, steel-spring units handle heavier loads but require separate anchoring. Include pressure relief ports downstream of non-return dampers to avert surge risks when start-up currents exceed 120% of rated load; integrate soft-start circuits if acceleration times surpass 1.5 seconds.

Connect ductwork with flanged joins rated for 1.5× maximum working pressure–EPDM gaskets maintain seals at 180 °C, neoprene at 120 °C. Position temperature sensors 150 mm upstream of impellers to detect overheating before bearings reach 75 °C; configure PLC alarms to trigger at 65 °C. Size inlet filters to trap 95% of particles above 10 µm–pleated cartridges clog at 250 Pa pressure drop; schedule replacements every 2,000 operating hours.

Use variable frequency drives for part-load operation–energy savings scale linearly with cube of speed reduction, yet ensure drive enclosures meet IP55 for dust resistance in mill environments. Ground all metallic casings through copper braid straps to prevent static accumulation–verify resistance below 0.1 Ω before commissioning.

Key Layouts for High-Volume Air Movement Systems

Begin with a pressure-flow curve overlay on your draft to validate performance against system resistance. Use logarithmic scaling for both axes (0.1–100 Pa/cm² on the vertical, 1–10,000 m³/h on the horizontal) to expose nonlinearities in centrifugal impellers with backward-curved blades. Annotate the intersection point (±3% tolerance) where the fan’s operating line crosses the installed ductwork loss curve; deviations above 5% void efficiency guarantees from OEMs.

Impeller Type	Max Static Pressure (kPa)	Volumetric Range (m³/s)	Motor Power (kW)
Radial blade	12.0	0.2–3.2	2.2–30
Aerofoil backward	8.5	0.5–18.0	5.5–160
Forward-curved	4.0	1.0–50.0	4.0–90

Ground noise-sensitive layouts by placing inlet silencers 1.5× duct diameter upstream of the volute entrance; cavity resonances drop 9 dB(A) when the gap is filled with 100 mm mineral wool and a perforated inner liner (20% open area). For ATEX zones, replace carbon steel casings with AISI 316L and add a purge flow port–purge rate must exceed 1.2× the maximum predicted leakage rate to prevent dust ingress into the motor chamber.

Code drive arrangements with precise pulley ratios: a 2:1 reduction yields 7% lower shaft stress (von Mises) but increases belt wear at >4,000 rpm. Use HTD-8M belts for motors >18.5 kW; groove angles ≤36° cut slip by 40% compared to classical V-belts. Mount variable-frequency drives on anti-vibration pads; allow 5 mm clearance between the VFD heatsink and any adjacent surface to prevent harmonic distortion currents from exceeding 3% THD.

Calculate bearing lifespan (L₁₀) using the formula L₁₀ = (C/P)³ × 10⁶, where C is dynamic load rating (kN) and P is equivalent dynamic load (kN). Specify sealed-for-life bearings only if relubrication intervals exceed 12,000 hours; otherwise, include a grease nipple angled 45° off horizontal to prevent over-pressurization. On twin-inlet scrolls, align impellers within 0.05 mm concentricity; misalignment >0.1 mm precipitates bearing current leakage detectable via shaft voltage readings exceeding 1 V AC.

Wireframe the electrical control circuit using IEC 60364 symbols: separate auxiliary circuits for temperature, vibration, and phase-loss detection with redundant relays rated 200% of normal current. Install differential pressure transmitters across HEPA filters downstream of the discharge plenum; a ΔP >350 Pa triggers an interlock that halts rotation within 1.8 s via DC injection braking. For absorptive silencers, select splitter ratios ≤0.4 to maintain static regain but ensure fiber diameter ≤8 μm to prevent re-entrainment into the airstream.

Validate assembly tolerances through a layered CAD export: export STEP files with PMI annotations for mating surfaces (flatness ≤0.02 mm/m) and GD&T callouts for shaft runout ≤0.03 mm total indicator reading. Overlay thermal camera footage of the motor flange at full load; hot spots >75 °C above ambient require silicone-based thermal interface material with >3 W/m·K conductivity. Seal all joints with liquid gasket compound resistant to 250 °C intermittent peaks; cure specimens at 150 °C for 2 h to confirm hardness ≥60 Shore A before operational trials.

Critical Elements and Notation in Ventilation Equipment Blueprints

Start by identifying airflow direction first–arrows must clearly indicate intake and exhaust paths without ambiguity. Use ISO 14617-1 standard symbols for consistency: a circle with horizontal line represents axial units, while a diagonal slash distinguishes centrifugal types. Label impeller types (forward-curved, backward-inclined, radial) directly on the legend to prevent misinterpretation during maintenance or upgrades.

• Power sources: depict motors with a capital “M” inside a square; include voltage (230V/400V) and phase count (single/triple) adjacent.
• Filters: show as perforated rectangles; specify filtration class (G4, F7) and replacement interval (e.g., “ΔP > 250Pa”).
• Dampers: use chevron-style symbols; mark actuators (electric/pneumatic) with control protocols (Modbus/0-10V).
• Sound attenuators: illustrate as thick parallel lines; add decibel drop values (e.g., “-12dB @ 1kHz”).

For variable speed drives, replace generic resistor symbols with VFDs depicted as a triangle atop three parallel lines–include frequency range (0-60Hz) and torque curves if nonlinear. Ductwork sizing should correspond to actual diameters (ø250mm/ø400mm); use dashed lines for flexible sections. Cross-reference rotation direction (clockwise/counterclockwise) with the motor shaft symbol orientation to avoid assembly errors.

Annotate pressure sensors (static/total) with calibration points (e.g., “0-5kPa”) and alarm thresholds (“H>4kPa”). Include explosion-proof classifications (ATEX/IECEx) next to hazardous-area components using flame icons inside hexagons. For large installations, break the layout into modular sub-diagrams linked by alphanumeric tags (A1, B3) to simplify troubleshooting and expansions.

Step-by-Step Assembly of Centrifugal Air Mover Wiring Layout

Begin by securing a 3-core, 1.5 mm² copper cable rated for 600V between the motor terminal box and the power disconnect switch, ensuring the earth conductor is properly grounded to the blower housing via a star washer. Label each conductor at both ends–L1 (brown), L2 (black), L3 (grey), and PE (green/yellow)–to prevent cross-phase errors during subsequent steps. Use a torque screwdriver set to 2.5 Nm for terminal connections; over-tightening risks thread stripping or conductor damage, while under-tightening causes arcing.

Connect the motor leads (U, V, W) to the capacitor or variable frequency drive (VFD) output in strict phase sequence–swapping U and V reverses rotation, reducing efficiency by up to 40%. For single-phase setups, wire the start capacitor (typically 20-30 µF for 1.5 kW units) between the auxiliary winding terminal (Z) and the main winding (U), then attach a centrifugal switch or current-sensitive relay to disconnect the capacitor once the motor reaches 75% of synchronous speed. Verify all connections with a megohmmeter at 500V DC for insulation resistance ≥2 MΩ before energizing.

How to Interpret Pressure and Airflow Patterns in System Blueprints

Locate pressure indicators first–typically shown as ΔP (delta P) or Ps (static pressure) near ducts or nozzles. Values in Pascals (Pa) or inches of water column (in.w.g) dictate performance limits. Cross-reference these with equipment labels to identify maximum and minimum thresholds. Forced-draft systems often display positive pressure upstream, while induced-draft setups reveal negative values downstream.

Trace airflow direction using arrow symbols–straight or curved lines linked to fan impellers or discharge points. Mismatched arrowheads signal errors in design. Check volume flow rate (CFM or m³/h) annotations adjacent to paths. If unmarked, calculate by multiplying duct cross-section by velocity–a duct 0.5 m² wide with 10 m/s velocity yields 5 m³/s.

• Highlight pressure drops–colored gradients or hash marks often denote losses across filters, coils, or dampers.
• Compare inlet and outlet pressures; differences exceeding 15% indicate system imbalance.
• Spot abrupt direction changes–90° bends incur 20-30% more loss than gradual turns.

Examine static regain markers–small triangular symbols at duct transitions. Absence in long runs suggests inefficient duct sizing. Pressure recovery ratio (PRR) should approach 70-80% for balanced distribution. Verify using PRR = (outlet static – inlet static) / inlet velocity pressure.

1. Map parallel paths–identify junction nodes where streams merge or split.
2. Ensure each branch carries proportional volume; variance >10% signals blockage or improper sizing.
3. Use color coding: red for high pressure, blue for low, yellow for neutral zones.

Decode pressure contour lines–closed loops represent stagnation zones, linear formations show uniform flow. Cross-hatch areas indicate turbulent regions requiring vortex reducers. Reference air density (ρ) annotations; neglecting ρ (default ~1.2 kg/m³) skews fan power calculations by 8-12%.

Validate total system resistance–sum all component losses (filter + coil + duct) and ensure it aligns with fan selection curves. Discrepancies mandate model revision: either trim fan RPM via VFD settings or resize ducts to match actual static pressure drops, never exceeding 5% deviation from design targets.
