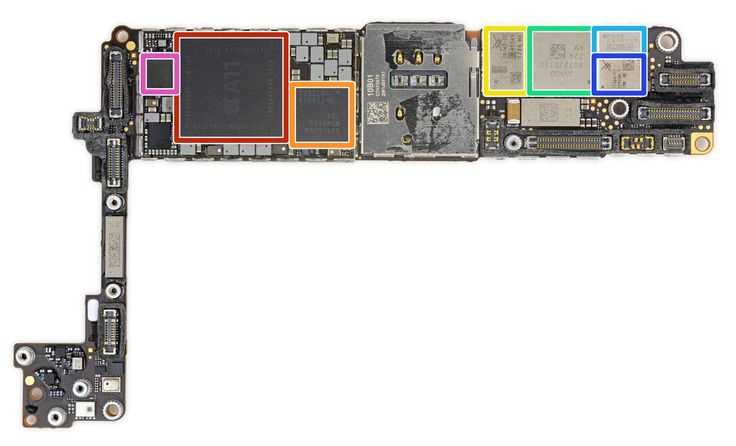

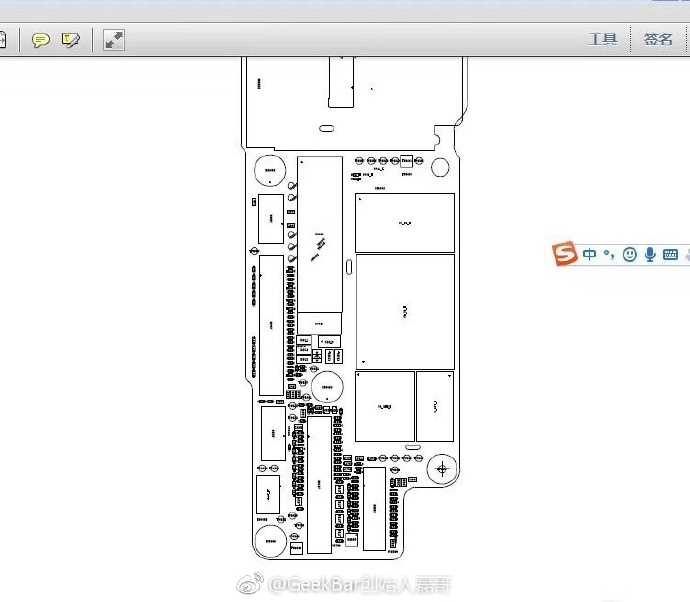

Complete iPhone 8 Schematic Diagram and Detailed PCB Layout Analysis
Begin with the A1863/A1905 reference design files–these hold the foundational signal flow for power rails (PP_VCC_MAIN, PP_BATT_VCC) and critical components like the APL1022A16P SoC. Cross-reference the BGA pin mappings with the Gerber layers to isolate noise-sensitive traces (LPDDR RAM, NAND flash). Use an oscilloscope at 10x magnification to verify trace widths: 0.1mm for high-speed lanes, 0.2mm for ground planes.
Locate the PMIC (U1900) near the battery connector–its clustered vias define the power distribution network. Measure resistance between GND and VBAT at 2.5Ω ±0.3Ω; deviations indicate failed decoupling capacitors (C1901-C1906). For signal integrity checks, probe the MIPI DSI lanes (L1-L4) at the display connector (J5700) with a differential probe set to 50Ω termination.
Reverse-engineer the RF section by tracing the QFE3335 transceiver’s LNA inputs (ports 28-32) back to the main antenna switch (SW1801). Use a spectrum analyzer to confirm LTE band coverage (700MHz-2600MHz). For debugging Wi-Fi, isolate the BCM4355 module–check its SPI interface (CLK, DATA) at test points TP1801-TP1804. Failures here manifest as packet drops above -70dBm RSSI.
When reconstructing the audio subsystem, focus on the TAS2557 amplifier’s I²C bus (TP4601/TP4602). Corrupt firmware often triggers mic distortion; reflash via DFU mode using iBEC/iBSS patches. For power cycling tests, monitor PP5V0_USB at 4.98V ±0.03V under 1A load. Voltage sag beyond 4.85V suggests a degraded inductor (L3000).
Understanding the Internal Blueprint of Apple’s 2017 Flagship Device
To analyze the hardware architecture of the A11-powered model, prioritize locating the power management IC (PMIC) first. This chip, marked as U1800 in repair manuals, sits adjacent to the battery connector and governs charging cycles, voltage regulation, and system power distribution. Verify its solder pads for corrosion or hairline fractures–common failure points after liquid exposure.
Critical signal paths:
- Baseband processor (U2800) interfaces with RF modules via dedicated traces–inspect for continuity near antenna flex connectors.
- NAND flash (U1201) relies on low-resistance vias; use a multimeter (200Ω setting) to check impedance between test points TP1301 and TP1302.
- Touch controller (U2201) communicates via I2C bus–probe SCL/SDA lines for 3.3V pulses during boot.
Board-Level Troubleshooting for Common Faults
When diagnosing no-power issues, start with the Tristar IC (U3600). This USB-C accessory manager triggers boot sequences; its failure mimics dead-battery symptoms. Replace it with pre-balled microchips from verified suppliers–standard reflow risks nearby EMI shields melting.
Component-level replacements:
- Audio codec (U3000): Desolder using hot air (340°C, 15s) while applying flux to avoid pad lift. Clean residual adhesive with isopropyl alcohol (99%).
- Wi-Fi module (U_X90): Align new chips within ±0.1mm tolerance–misalignment causes packet loss. Post-installation, reflow antenna traces with low-temp paste (Sn42Bi58).
- Proximity sensor flex: Bypass shorted circuits by scraping solder mask from repair jumper J4301 to J4302.
For display artifacts, trace the AP-to-DisplayPort lanes back to the Tate chip (
Use thermal imaging to identify power-draw anomalies. During boot, the PMIC should not exceed 85°C. Hotspots above this threshold indicate substrate-level shorts–apply liquid flux beneath suspect ICs and reheat to draw solder bridges into wicking braid. For persistent shorts, remove copper pour near capacitors C1501-C1504 with a Dremel.
Reference board repair files from ZXW Tools for specific net names. The net VCC_MAIN must show 3.8V steady-state; fluctuations suggest parasitic loads. Measure current consumption with a uCurrent adapter–expected values are 120-180mA at idle. Exceedances point to compromised buck-converter circuitry (L_TBD coils).
Critical Circuit Elements and Data Paths in the 2017 Apple Handset
Trace power delivery first: the APL1W8580 PMIC integrates six DC-DC converters feeding the A11 Bionic at 1.05 V, 1.8 V, and 3.8 V rails. Measure across C1801, C1802, and C1803–each 10 µF X5R–before probing U1800. Confirm input voltage on PP_VCC_MAIN at ≥4.2 V; dropout below 3.9 V triggers U1800’s internal over-discharge lockout. Decouple interference with a 22 µF tantalum capacitor between PP_VDD_BOOST (pin 12) and ground reference.
Review baseband flow: the MDM Intel XMM7480 modem interfaces via SBI signals–SCL, SDA, and SPI–routing through EMI filters FL601-FL604. Inspect solder bridges under FL603 for cold joints; failure breaks LTE Carrier Aggregation Bands 1, 3, 7, and 38. Signal integrity checks require a 1 GHz oscilloscope on TP101 (MIPI D-PHY lane 0) with persistence mode: glitches exceeding 200 mV indicate corroded flex connectors J5400.
Test audio codec synchronisation next. The TAS2770 amplifier pairs with APL1085 codec via I2S lines routed adjacent to USB Type-C port J4900. Probe R7401 (10 kΩ) for clock stability at 44.1 kHz; variance above ±0.02% causes crackling. For microphone input, measure DC bias on LDO PP2V85_MIC–deviation from 2.85 V corrupts ANC data.
Verify display driver communication. The DRV2026 controller communicates over MIPI lanes 0-3 terminated by R8401-R8404 (51 Ω each). Check continuity between U8400 pin 85 and connector P8400 pad A1–resistance exceeding 0.5 Ω requires reflow. For backlight, examine Q1001 (DMP2240UDM) gate drive; pulses below 3 µs duration dim Zone 5 unevenly.
Identifying the Power Management IC and Charging Components on Board Traces
Begin by locating the primary power regulation chip near the device’s battery connector. On most compact mobile assemblies, this integrated circuit sits adjacent to the thickest traces carrying voltage rails. The power management IC (PMIC) typically measures 5x5mm or larger, often marked with identifiers like APL1092, TI BQ25895, or Qualcomm PMI8950. Use a multimeter in continuity mode to trace connections from the battery terminal to confirm proximity to this chip.
Charging circuitry components cluster around the USB port input. The key elements include the charging IC (often paired with the PMIC), input capacitors, and protection MOSFETs. Look for a small 3x3mm chip labeled CYPD3177 or NXP PTN5110, responsible for USB Power Delivery negotiation. Input filtering capacitors–usually 22µF or 47µF–will align along the VBUS path near the port, identifiable by their larger package size compared to adjacent decoupling caps.
| Component | Typical Markings | Package Size | Voltage Rails |
|---|---|---|---|
| Primary PMIC | APL1092, PMI8950 | 5x5mm | 3.8V, 4.35V |
| Charging IC | BQ25895, CYPD3177 | 3x3mm | 5V-20V (VBUS) |
| Buck Converter | TPS62743 | 2x2mm | 1.8V, 2.5V |
Protection MOSFETs for overcurrent and reverse polarity appear as dual transistors in DFN-6 or SOT-23-6 packages. They connect directly to the VBUS line, often labeled SIRA00DP or FDMC86500. These components link the charging IC to the main PMIC, forming a critical path for current flow. Examine silkscreen labels or reference board photos to distinguish them from identical-looking power switches nearby.
Voltage rails fan out from the PMIC to subsystems like the application processor, memory, and peripherals. The main rails–VDD_MAIN (3.8V) and VSYS (4.35V)–carry thick copper traces, wider than data lines. Use a thermal camera or isopropyl alcohol evaporation to observe power paths if trace visibility under soldermask proves difficult.
Thermal design around these circuits prioritizes heat dissipation. Expect multiple via clusters beneath the PMIC and charging IC, connecting to inner copper layers for thermal relief. The inductor for the switching regulator sits adjacent, identifiable by its toroidal or shielded package, often marked 744770 or XAL6060. Confirm functionality by probing inductor output–it should yield the target rail voltage (e.g., 1.8V) under load.
CPU and RAM Module Positioning for Efficient Board-Level Servicing
Locate the central processing unit beneath the EMI shielding near the logic board’s midpoint–typically soldered via BGA with a 12×12 ball grid at 0.4mm pitch. Use a preheater set to 180°C to minimize thermal shock before applying hot air at 320°C with a 3mm nozzle, directing airflow in circular motions to avoid localized overheating. For memory chips, identify the paired NAND modules adjacent to the CPU; these often sit on the upper third of the board, characterized by 96-ball layouts. Reflow memory separately from the CPU if diagnosing boot loops–memory corruption manifests as persistent reboots, while CPU failure usually renders the device unresponsive.
Apply flux generously at BGA sites before rework to prevent oxidation; use no-clean flux for memory repairs to reduce post-solder residue. Verify chip orientation via silkscreen markings–CPUs usually feature a dot on pin 1, while memory chips have notched corners. For validation, probe the reset line (PP3V0_NAND_RESET) with a multimeter post-repair; readings below 2.8V indicate incomplete solder joints or trace damage. Replace thermal paste on CPUs only if delidding is necessary–avoid conductive compounds near vias.
Mapping RF Signal Paths in Circuit Documentation
Begin by locating the primary transceiver IC on the electrical blueprint. Trace connections from its RF output pins–typically labeled as TX, RX, or ANT–to the antenna feed point. Look for impedance matching networks, often composed of inductors and capacitors, immediately following the transceiver stage. These components adjust signal integrity before transmission.
Inspect the RF switch network that routes signals between cellular, Wi-Fi, and Bluetooth modules. On most board designs, this appears as a series of small-scale ICs or MEMS components with control lines connected to the baseband processor. Verify voltage levels on these control traces–usually 1.8V or 3.3V–to confirm proper functionality.
Identify antenna diversity paths, where multiple feeds from a single radio module connect to separate antennas. These pathways frequently include bandpass filters for harmonic suppression. Cross-reference each filter’s frequency with the device’s supported bands to confirm alignment.
Examine coax-like traces that transition from the main circuit board to the antenna assembly. These lines often use controlled impedance–typically 50 ohms–and may include ground shielding to minimize interference. Measure trace width and spacing against the design guidelines for the board’s dielectric properties to prevent signal degradation.
Check for decoupling capacitors near the RF front-end components. These parts suppress noise from power rails and must be placed within millimeters of the IC’s power pins. Verify their values align with the reference documentation–commonly 0.1µF for high-frequency noise and 10µF for bulk decoupling.
Use a spectrum analyzer to validate RF signal strength at key points: the transceiver output, matching network, and antenna feed. Expected power levels vary by band–-20 to -30 dBm for Bluetooth, -80 to -90 dBm for cellular RX. Discrepancies indicate either component failure or layout parasitics.
Review ground plane continuity surrounding RF traces. Voids or splits in the reference plane can introduce impedance mismatches, leading to resonance or detuning. Ensure the board’s stack-up includes a solid ground layer adjacent to the signal layer carrying RF traces.
