Complete IRFZ44 MOSFET Circuit Diagram Explanation with Example Schematics
For switching inductive loads up to 55V/49A, select a TO-220 package with a gate threshold voltage of 2–4V and a total gate charge below 63nC. Connect the source directly to the return path of the load with a minimum 2mm copper trace or a 12AWG wire to prevent voltage drops exceeding 0.1V at peak current. Bypass the supply rail with a 470µF low-ESR electrolytic capacitor and a 0.1µF ceramic capacitor within 10mm of the device’s drain to suppress transients.
Isolate the control signal with an optocoupler or dedicated gate driver IC like the IR2304 to avoid ground loops. Apply a 10kΩ pull-down resistor on the gate to ensure rapid turn-off if the driver fails open. For PWM frequencies above 20kHz, reduce gate resistance to 10Ω to minimize switching losses–each ohm adds ~0.2W per ampere at 50kHz. Verify thermal performance with a heatsink rated for 0.5°C/W or lower; derate junction temperature to 125°C under continuous operation.
Measure drain-source voltage drop under full load–values above 0.5V indicate inadequate cooling or excessive trace resistance. Use a freewheeling diode (Schottky, 60V/50A) directly across the load to clamp inductive kickback. For motor control, add a 100nF snubber capacitor in parallel with the diode to reduce EMI. Test the setup with a current-limited bench supply at 1.5× rated current for 30 seconds to confirm thermal stability before full load application.
Log transient responses with an oscilloscope: ensure rise/fall times under 50ns and no ringing exceeding 20% of supply voltage. For variable loads, implement soft-start circuitry using a P-channel MOSFET and RC network to limit inrush currents to 3× steady-state. Document all connections in a KiCad schematic with clear pin labels and net classes for traces carrying >10A.
MOSFET Control Schema: Practical Setup for Power Switching
Use a 10kΩ pull-down resistor between the gate and source terminals to prevent false triggering from noise. This stabilizes the component during transitions, especially in high-frequency applications where interference can cause unintended conduction. For inductive loads, pair the transistor with a Schottky diode (e.g., 1N5819) across the load to clamp voltage spikes exceeding 50V.
Apply a gate drive voltage between 10V and 15V for optimal performance. Voltages below 10V increase the device’s on-resistance, leading to excessive heat dissipation. For logic-level control, use a dedicated gate driver IC like the TC4427, which ensures rapid switching and minimizes turn-on/turn-off delays, critical for PWM signals above 20kHz.
Critical Component Pairings
When driving motors or solenoids, add a 0.1µF ceramic capacitor between the drain and source to suppress high-frequency oscillations. This prevents parasitic effects that degrade efficiency. For battery-powered designs, ensure the power supply can deliver peak currents exceeding the load’s stall current by at least 30%–commonly 5A for small DC motors.
Measure the thermal resistance of the chosen heatsink. A TO-220 package with no heatsink handles ~0.5W safely; beyond this, attach a heatsink with θJA
Test the assembly with an oscilloscope to confirm rise/fall times meet design targets. Slow switching, often caused by inadequate gate drive strength, results in linear operation zones and heat buildup. Adjust gate drive resistance to balance speed and overshoot: 22Ω-47Ω works for most 12V-24V systems.

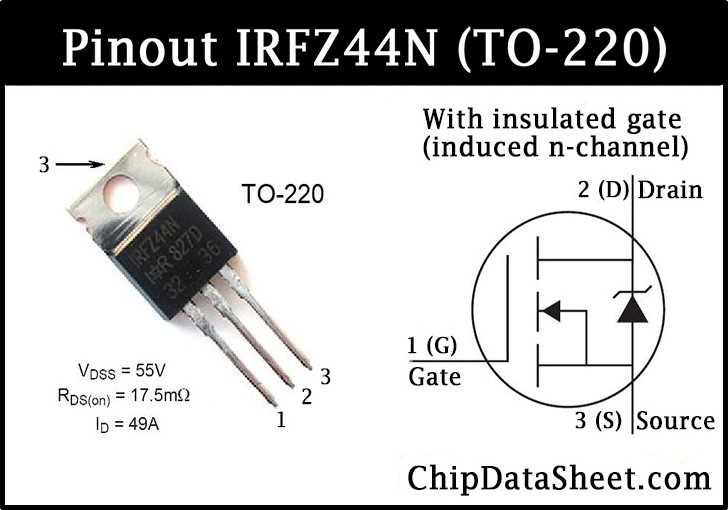

Pin Configuration and Functional Roles of the N-Channel Power Transistor
The Gate (G) terminal demands precise voltage control for optimal performance. Apply a threshold between 2V to 4V to initiate conduction, but ensure the input signal peaks below the absolute maximum of ±20V to prevent oxide breakdown. Use a gate driver with a low-resistance path (≤10Ω) to minimize switching losses and avoid false triggers from noise. A pull-down resistor (10kΩ–100kΩ) prevents floating states, critical in inductive load applications where flyback currents could damage the component.
Drain (D) and Source (S) Specifications
The Drain-Source voltage rating of 55V defines the upper boundary for safe operation. Exceeding this risks avalanche breakdown–design for a 20% derating (44V max) in continuous operation. The Source pin serves as the reference point, but bypass it with a 0.1µF ceramic capacitor directly soldered to the pad to suppress high-frequency transients. For high-current setups (≥10A), double-sided PCBs with 2oz copper or dedicated thermal vias under the Drain tab reduce junction temperatures by up to 30%.
Thermal management dictates long-term reliability. The exposed metal tab (internally connected to the Drain) must interface with a heatsink using thermal compound (0.5–1W/m·K). At 25°C ambient, the RθJC of 1.5°C/W translates to a maximum power dissipation of 62W–reduce this by 50% for elevated ambient temperatures. Parallel connections require individual gate resistors (5Ω–15Ω) to balance currents and prevent thermal runaway.
Step-by-Step Assembly for a Power MOSFET Control Setup
Begin by securing a 12V DC power supply with a current rating at least 30% higher than your load requirement. For example, if driving a 5A motor, use an 8A supply to prevent voltage sag under load. Connect the positive terminal directly to the drain pin of the N-channel device, ensuring the wire gauge matches the expected current–18 AWG for 5A, 16 AWG for 10A, or 14 AWG for 15A. Avoid daisy-chaining connections; each wire should terminate individually at the pin to minimize resistance.
Attach the load–such as a DC motor, solenoid, or LED array–between the source pin and the negative terminal of the power supply. Verify polarity before energizing; reversing connections risks immediate damage to inductive loads like motors. For high-current applications, solder joints are mandatory; crimped connectors introduce micro-resistances that degrade performance. Add a flyback diode (1N4007 or equivalent) across inductive loads, cathode to the positive supply, to absorb voltage spikes during switching.
Gate Drive Configuration
Control the gate with a 5V logic signal from a microcontroller or manual switch. Insert a 10kΩ pull-down resistor between the gate and ground to prevent floating-gate turn-on, which can destroy the device. For faster switching, reduce the gate resistor to 100Ω–1kΩ, but ensure the driving source can supply the required current (typically 1mA per 1kΩ). Use a dedicated gate driver IC (e.g., TC4427) for reliable 12V–15V gate signals if working with 3.3V logic.
| Component | Recommended Value | Purpose |
|---|---|---|
| Gate resistor | 100Ω–10kΩ | Controls switching speed |
| Pull-down resistor | 10kΩ | Prevents unintended activation |
| Flyback diode | 1N4007 | Suppresses back-EMF |
| Power supply | 12V, current-rated +30% | Maintains stable voltage |
Thermal management is critical. Mount the MOSFET on a heatsink if dissipating over 1W. Apply thermal paste between the device and heatsink, securing with screws tightened to 0.5Nm–0.7Nm torque. For continuous high-current operation (e.g., 10A), use a fan or passive cooling. Without proper heat dissipation, the junction temperature will exceed 175°C, causing permanent failure. Test with a multimeter in diode mode before powering; measure between drain and source–readings should show reverse bias (~0.4V–0.6V) with the gate off.
Finalize by adding a 0.1µF ceramic capacitor between the power supply terminals, positioned as close to the MOSFET pins as possible. This decouples high-frequency noise generated during switching, stabilizing the setup. Verify all connections with a continuity tester before initial power-up. Gradually increase voltage while monitoring current draw; unexpected deviations indicate wiring errors or component failures. For debug, use an oscilloscope to check gate signals–ringing or slow rise times suggest incorrect gate resistance or parasitic inductance in wiring.
Common Load Types and Required Driver Configurations for N-Channel MOSFETs
For resistive loads like heaters or incandescent lamps, ensure gate drive voltage meets the threshold (typically 4–10V) with minimal series resistance. Use a 10–15V gate supply paired with a 10Ω–22Ω resistor to limit inrush current, as resistive loads maintain linear behavior during switching. Avoid excessive gate voltage to prevent oxide breakdown, especially with inductive coupling in noisy environments.
Inductive loads such as relays or solenoids demand a flyback diode (e.g., 1N4007) rated for 1.5× the load current to clamp voltage spikes. Drive the gate with a 12–18V supply via a 15Ω resistor to ensure rapid turn-off, reducing dissipation in the MOSFET’s avalanche region. For high-frequency operation (>1kHz), add a zener diode (18–22V) across the gate-source junction to suppress transients from leakage inductance.
Capacitive loads–like motor start capacitors or snubber networks–require soft-start control to prevent destructive gate current surges. Implement a series resistor (50Ω–100Ω) and parallel gate-source resistor (1kΩ–10kΩ) to bleed charge. For large capacitance (>100µF), use a current-limiting pre-driver stage (e.g., TC4427) to avoid thermal runaway during charging cycles.
- DC motors: Combine flyback diode with an RCD snubber (e.g., 10Ω/0.1µF/1N4148) to dampen commutation spikes. Drive the gate with a dead-time-controlled signal (PWM
- Stepper motors: Use a dual MOSFET bridge (e.g., DRV8825) with synchronous rectification for microstepping. Isolate gate drivers with optocouplers (e.g., PC817) if operating above 30V to avoid latch-up.
- Peltier modules: Pair with a current-mode controller (e.g., UC3843) and sense resistor (DS(on) losses under high ΔT conditions.
High-power LEDs (1W+) need constant-current drivers (e.g., LM3404) with PWM dimming (>1kHz) to avoid flicker. Use a 4–6V gate drive with a Schottky diode (e.g., BAT54) to clamp negative transients during reverse recovery. For arrays, balance load sharing with individual sense resistors (0.05Ω) to prevent thermal runaway in parallel strings.
Switching power supplies (buck/boost converters) require a galvanically isolated driver (e.g., ISO5500) with 1µs dead-time to avoid cross-conduction.
Pulse loads–like laser diodes or welding arcs–need precise gate timing to avoid overshoot. Use a low-inductance gate resistor (10A, employ a gate driver IC (e.g., UCC27511) with split outputs to minimize source inductance effects. Always verify thermal dissipation: RθJA 50°C ambient.
