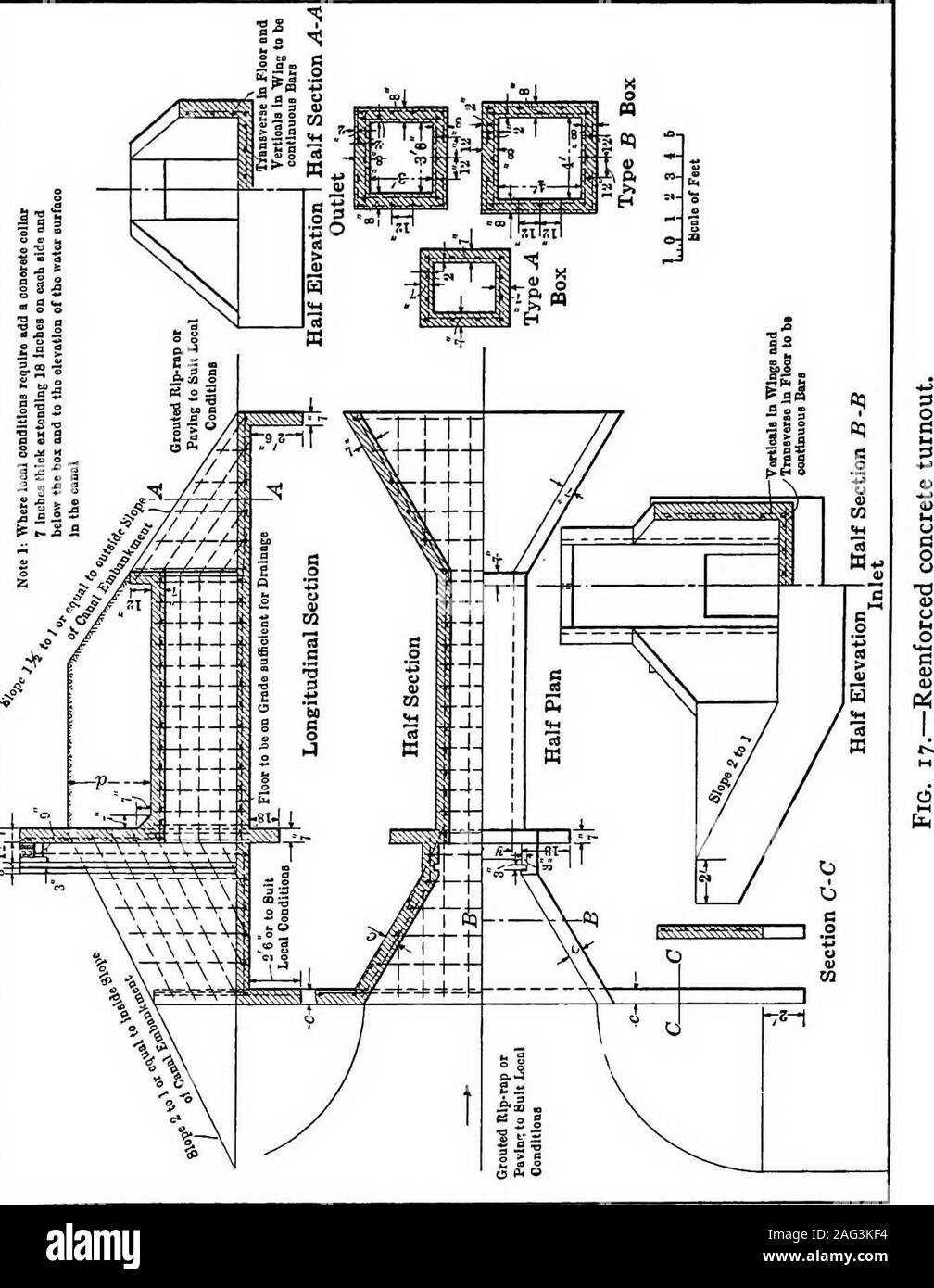

Step-by-Step Guide to Designing an Irrigation System Schematic
Begin with a detailed contour map of the site–every 0.5-meter elevation change dictates feeder line placement. Lay out lateral distribution pipes at 1.2-meter intervals for clay soils, adjusting to 0.9 meters for sandy substrates to prevent uneven moisture dispersion. Use schedule 40 PVC for main conduits (minimum 32mm diameter) and polyethylene tubing (16mm) for secondary branches to balance pressure loss and durability.
Position emitters at 30cm spacing for high-value crops like strawberries, increasing to 45cm for row crops such as corn. Incorporate pressure-compensating drippers (2.0 L/h) on slopes steeper than 5% to maintain uniform flow rates. Install backflow preventers (reduced pressure zone type) ahead of each valve manifold to comply with ISO 16071 standards for contamination control.
Calculate total dynamic head by summing pipe friction losses (Hazen-Williams formula), elevation changes, and component resistances. For a 1-hectare block, a 1.5 kW centrifugal pump (4-inch inlet) delivering 25 m³/h at 35 meters head is typically sufficient. Integrate automatic solenoid valves (24V AC) with soil moisture sensors (capacitance-type, ±3% accuracy) to trigger irrigation cycles when volumetric water content drops below 22% in loam.
Route wiring in conduit-separated circuits, using 14 AWG copper for sensor leads and 12 AWG for valve actuators. Ground all metallic components to a copper-bonded rod (minimum 2.4-meter depth) to dissipate stray voltages below 1V. Label each circuit with UV-resistant tags specifying function, amperage, and voltage tolerance (±10%).
Verify system integrity by pressurizing to 1.5× working load (minimum 6 hours) and checking all joints for weepage below 0.1 mL/h. Document each segment’s flow rate with a ultrasonic meter (±2% accuracy) before finalizing the blueprint. Store schematics in vector-based CAD (DWG format) alongside PDF field annotations, including component serial numbers and maintenance intervals (e.g., filter cleaning every 120 operating hours).
Designing Precision Water Delivery Systems
Start with a main supply line sized at 1.5–2 inches for fields under 5 acres, reducing to 1 inch for lateral branches to maintain pressure uniformity. Use PVC Schedule 40 pipe rated for 160 psi when burying lines below 18 inches to prevent crushing from soil compaction or machinery.
Position control valves at elevation changes and every 500 feet along laterals to isolate sections for maintenance or localized watering. For drip networks, install air vents at high points to prevent vacuum formation after shutdown cycles that can collapse tubing.
| Component | Spacing (feet) | Flow Rate (GPM) | Pressure Drop (PSI) |
|---|---|---|---|
| 1″ lateral | 40 | 4 | 2.1 |
| 3/4″ lateral | 30 | 2.5 | 1.8 |
| 1/2″ drip tape | 12 | 0.5 | 0.4 |

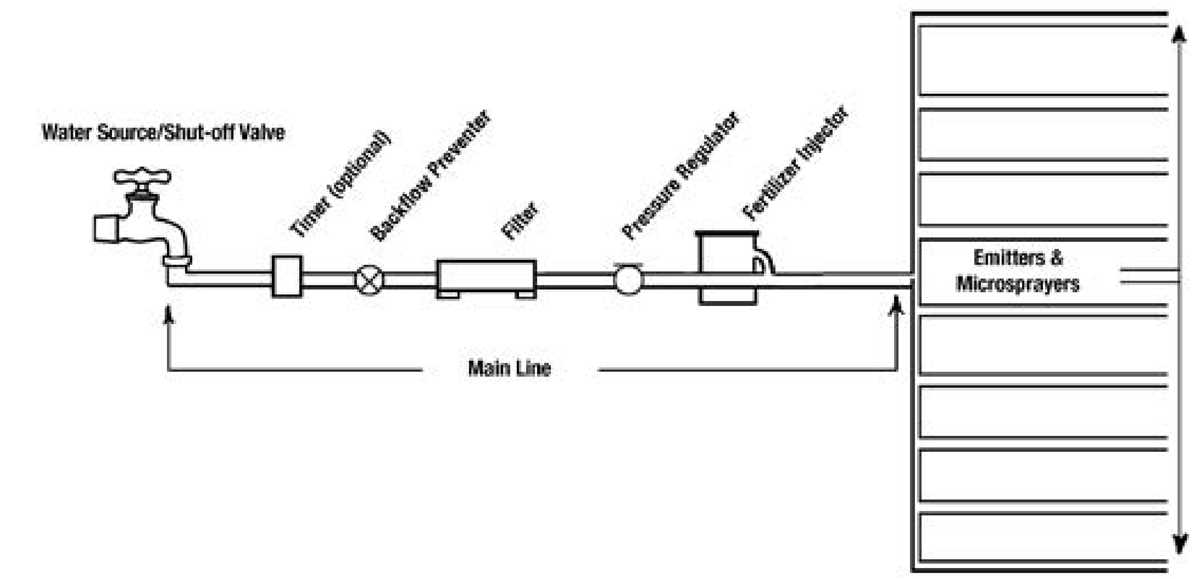

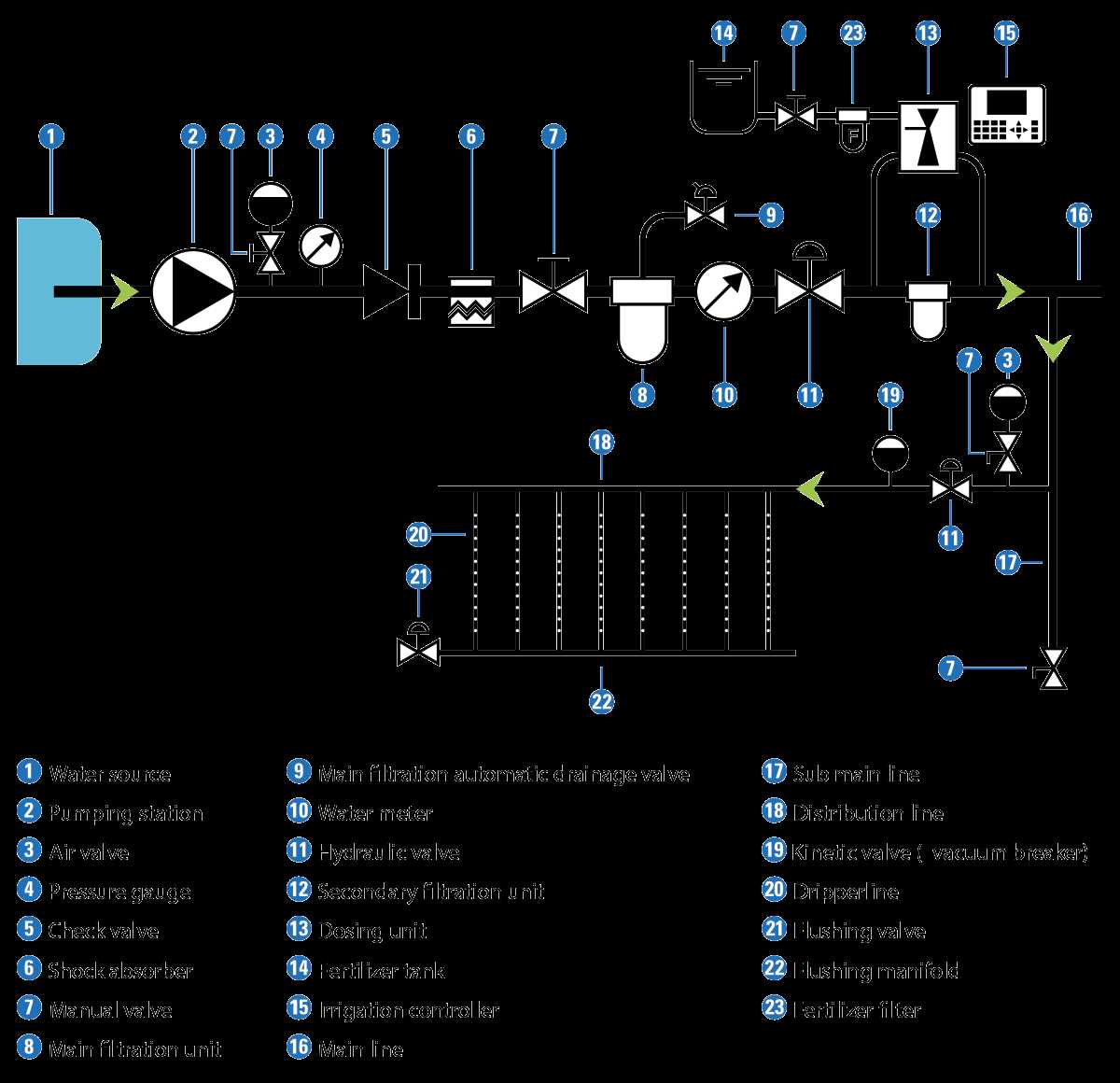

Integrate a backflow preventer immediately downstream of the pump or municipal connection; choose reduced pressure models if chemical injectors are present. Add a sediment filter upstream of fertigation points to protect emitters with orifice sizes below 0.04 inches.
Route wiring for solenoid valves in waterproof conduits buried 12 inches deep, using direct burial cable rated for 600V and UV-resistant junctions. Label each cable run with aluminum tags stamped at both ends to match controller terminals.
Install pressure regulators at every manifold to trim inlet pressures of 50 psi down to 20–25 psi for surface sprays or 8–12 psi for micro-sprinklers. Select adjustable regulators with brass bodies for zones requiring varying flow rates during seasonal crop rotations.
For hillside applications, lay out contours at 3-foot vertical intervals, using subsurface dripline buried 6 inches deep with outlets spaced every 12 inches along rows. Add a flush valve at the lowest point of each contour to purge sediment after winterization.
Verify design calculations with a field pressure gauge: attach a pitot tube to sample flow velocity at three random emitters per acre, then cross-check against manufacturer tables to confirm uniform discharge within ±10% deviation.

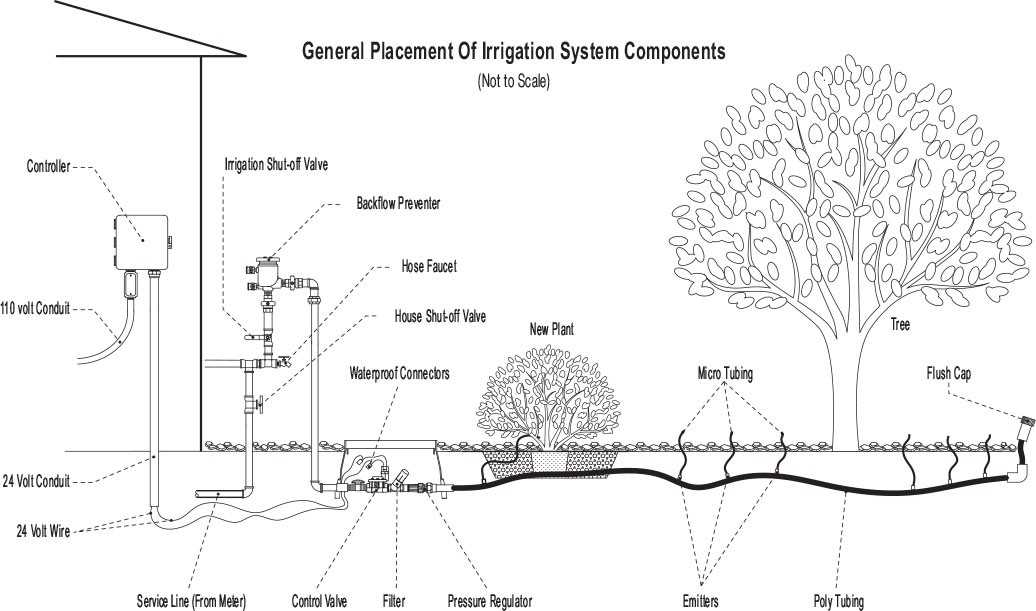

Core Elements for an Optimal Watering System Plan
Start with a precise water source assessment–measure flow rate (GPM/GPH) and pressure (PSI) at the supply point, accounting for seasonal variations. Municipal lines typically deliver 40–60 PSI, while wells or tanks may require pumps to maintain 20–50 PSI for drip networks. Include a pressure regulator if fluctuations exceed ±10 PSI to prevent emitter blowouts or uneven distribution. Calculate total demand by summing the output of all zones; oversizing by 15% accommodates future adjustments or system inefficiencies.
Zone valves should be positioned within 100 feet of the controller to minimize voltage drop, using direct burial 18-gauge wire for solenoid connections. Group plants with similar moisture needs–succulents at 0.5–1 GPH, shrubs at 2–4 GPH, and turf at 4–8 GPH per 100 sq ft–into separate circuits. Install manual drain valves at low points in freeze-prone climates to prevent pipe ruptures; automatic models add cost but eliminate manual winterization.
Emitter spacing depends on soil type: sand requires 12-inch intervals (0.5 GPH drippers), clay tolerates 24-inch spacing (2 GPH drippers), while loam averages 18 inches. For rotary heads, overlap spray patterns by 10% to avoid dry spots; use matched precipitation rate nozzles to prevent runoff. Bury main lines 12–18 inches deep, laterals 6–12 inches, with schedule 40 PVC for mains and polyethylene (PE) for laterals. Flag all buried components with color-coded tape: red for mains, blue for laterals, yellow for valves.
Integrate a backflow preventer at the connection point if the system draws from potable water, selecting reduced-pressure (RPZ) models for high-risk areas or double-check valves for residential use. Controller programming should mirror evapotranspiration (ET) data–adjust runtimes weekly, extending durations by 10–20% during heatwaves. Add a rain sensor with a 0.2-inch threshold to override scheduled cycles; paired moisture sensors in root zones reduce waste by 30–40%.
Inspect filters every 4–6 weeks; screen filters catch 150–200 micron debris, while disk filters handle finer particles down to 75 microns. Replace filter elements when pressure drops 5–10 PSI below baseline. Include a flush valve at the end of each lateral to clear sediment buildup during startup; automate this with a programmable timer for seasonal blowouts. Document all components on graph paper or software, noting pipe diameters, emitter counts, and valve locations–this reduces troubleshooting time by 50% during repairs.
Step-by-Step Guide to Drafting a Precision Watering Blueprint
Measure the planting area first. Use a laser distance meter or a 50-meter tape for accuracy within 5 cm. Record dimensions in a grid format, noting elevation changes–every 30 cm drop requires an additional pressure regulator for uniform flow. Sketch the layout on graph paper with a 1:50 scale, marking existing structures like trees (trunk diameter ≥ 15 cm), garden beds, and pathways. Indicate the water source location, including its pressure (PSI) and flow rate (GPH), measured with a portable gauge at the point of connection.
Select emitter spacing based on plant type and soil texture:
- Clay-heavy soil: 45 cm between drippers, 1.0 L/h flow rate
- Loamy soil: 30–40 cm, 0.5–0.8 L/h
- Sandy soil: 25 cm, 0.4 L/h
- Vegetable rows: 1 line per 40 cm row width, 0.6 L/h emitters
- Trees (trunk ≥ 20 cm): 2–4 drippers per tree, 2.0–4.0 L/h each
Plot emitter positions directly on the grid, accounting for root zones (extend 20 cm beyond the drip line for shrubs). Group plants with similar water needs into separate zones, using colored pencils for clarity. Install a 200-mesh screen filter at the source if water contains particles >75 microns; backflush weekly during peak season.
Pipe Routing and Component Placement
Route mainlines (16–25 mm polyethylene) along the longest edge of the plot, minimizing bends (max 90° per 5 m). Use 6 mm micro-tubing for lateral connections, securing with 25 mm saddle clamps every 1.5 m to prevent sagging. Place shut-off valves at the start of each zone, sized 1.5× the pipe diameter to maintain pressure. Install air vents at high points (≥0.5 m elevation change) and a flush valve at the end of mainlines to purge sediment. Calculate total dynamic head: add 1.2 m for every 10 m of elevation gain + 0.3 m per 90° elbow + emitter lift (0.1 m per emitter).
- Test flow rates before finalizing. Run each zone for 3 minutes; collect discharge in a graduated cylinder. Adjust emitter spacing if variance exceeds ±8%.
- Label all valves and junctions with UV-resistant tags (engraved identifiers, eg, “ZONE-A: SECTOR-3, FILTER-ON”).
- Anchor mainlines with 20 cm rebar stakes at intervals ≤5 m, burying 10 cm deep in high-traffic areas.
- Set the controller to run deficit cycles: 60% of evapotranspiration rate, split into 2–3 daily sessions (pre-dawn + late afternoon) for sandy soils.
Common Mistakes When Designing Sprinkler System Plans
Placing sprinkler heads too close to buildings or hardscapes wastes water and creates uneven coverage. A minimum distance of 1.5 meters from walls, fences, or walkways prevents runoff and ensures adequate spray radius. Use pressure-compensating nozzles if spacing exceeds manufacturer guidelines–standard heads lose efficiency at distances beyond 4.5 meters under low pressure.
Ignoring elevation changes leads to dry spots or oversaturation. Slopes steeper than 5% require staggered head placement or low-angle nozzles to prevent water pooling at the base. For every 30 cm of elevation drop, adjust nozzle pressure by 0.3 bar to maintain uniform distribution. Include contour lines in your layout to identify problem areas before installation.
Overlapping spray patterns by more than 30% causes chronic wetness, encouraging fungal growth in turf. Zone heads with identical arc and reach together to avoid misaligned overlaps. If mixing 90-degree and 180-degree heads in the same zone, separate them into adjacent circuits–pressure differences will disrupt coverage consistency.
Underestimating pipe sizing accelerates wear and reduces system lifespan. Standard 25mm PVC pipes handle up to 4 sprinkler heads at 3.5 bar; adding a fifth head drops pressure by 20%. For larger zones, upsize to 32mm or 40mm pipes–pressure loss over 30 meters of 25mm pipe exceeds 1.2 bar, while 40mm pipe loses only 0.3 bar. Always cross-reference pipe diameter with total dynamic head calculations.
Skipping backflow prevention voids warranty coverage and violates local codes. Install a reduced pressure zone assembly upstream of the main valve if the system connects to potable water. In cold climates, position the device below frost line–in warm regions, mount it vertically to avoid sediment buildup in horizontal configurations.
