Complete Guide to Jandy Aqualink Pool System Wiring Schematics and Setup

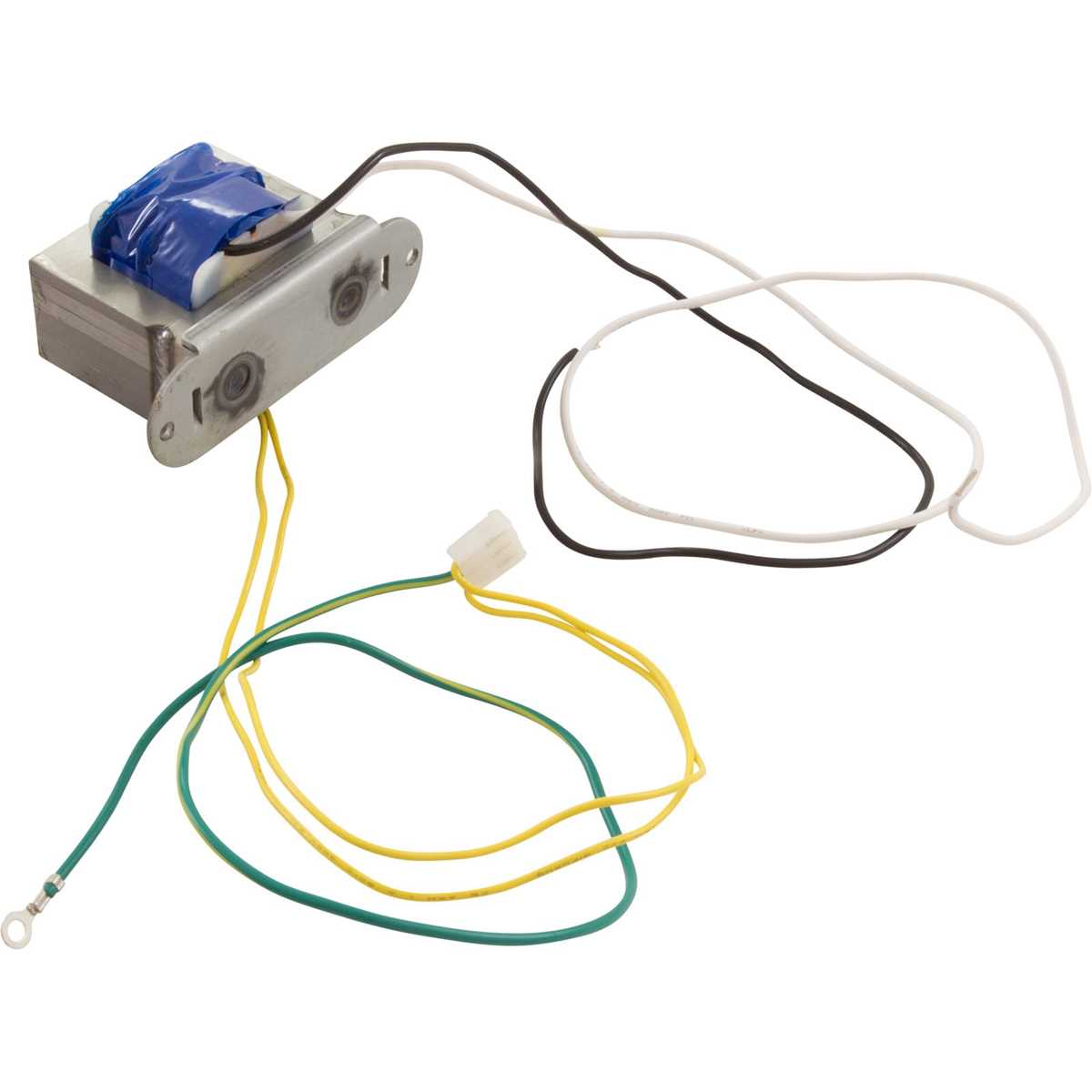

Start by locating the main power disconnect switch–typically a 240-volt, double-pole circuit breaker rated for 30 to 50 amps. Verify it’s off before handling any connections. The control panel houses the low-voltage transformer, usually 24 volts AC, which powers the system’s relays and interface. Identify the transformer terminals; secondary wires (often blue and orange) must feed directly into the terminal strip marked “24V” on the board. Incorrect pairing here will prevent the unit from powering up.
Connect equipment sensors–temperature, pressure, and flow switches–using shielded 18-gauge wire. Route these through the dedicated “Sensor” terminals, ensuring polarity matches the labels: red for positive, black for negative. Miswiring sensors triggers false alerts, locking the system into error mode. For salt chlorine generators, use the labeled “Cell” terminals. The generator’s power cable (120V or 240V) must align with the panel’s voltage rating; mismatches risk damaging the cell or tripping the breaker.
Label all wires at both ends before securing them. Use waterproof wire nuts or crimp connectors rated for outdoor use–exposure to moisture causes corrosion, leading to intermittent failures. The RS-485 communication bus (two twisted pairs) connects the control board to remote keypads. Route this cable separately from high-voltage lines to avoid interference. If using wireless remotes, pair devices via the panel’s “Remote” menu before mounting transmitters; distance limits are 150 feet in open spaces, less through walls.
Test each circuit sequentially. Begin with high-voltage inputs, then low-voltage controls, followed by equipment sensors. Use a multimeter to confirm 24V AC at the transformer secondary and 120/240V at the pump and heater outputs. Check RS-485 continuity with the panel’s diagnostic tool–no signal will disable remote functions. Finalize by tightening all terminal screws to 8-10 inch-pounds; loose connections overheat, causing preemptive shutdowns.
Understanding Pool Automation Connection Schematics
Verify compatibility between the control unit’s terminal block and your equipment’s voltage ratings before making connections. The RS series interfaces typically require 120V or 240V power feeds, with dedicated lines for pumps, heaters, and auxiliary circuits. Label each wire according to its function–use color-coded markers or heat-shrink tubing for clarity, reducing troubleshooting time during installation or repairs. Check the manufacturer’s documentation for torque specifications on terminal screws; overtightening can damage conductors, while loose connections cause arcing.
Key Terminal Pinouts and Signal Paths
Connect the primary relay outputs to high-amperage devices first, ensuring the control panel’s internal breaker or fuse matches the load requirements. For variable-speed pumps, link the dedicated communication cable (usually RJ-12 or RS-485) to the system’s microcontroller, confirming proper baud rate settings in the setup menu. Heater circuits often demand isolation relays; wire these to the control board’s designated “heater” terminals, bypassing them if using a standalone ignition system. Auxiliary relays–such as those for lights or water features–should attach to low-voltage outputs, with jumpers configured to avoid signaling conflicts.
Ground all metallic components to a central bonding grid, including the automation enclosure, pump housings, and heater casings. Use solid copper wire (minimum 8 AWG) and crimp connectors with anti-corrosion coating at termination points. For automated saltwater systems, integrate the chlorine generator’s control cable into the panel’s designated port, ensuring polarity matches the generator’s requirements. Test each circuit with a multimeter before powering on–measure resistance, voltage, and continuity to confirm no shorts exist between active and neutral lines.
Core Elements of the Pool Automation Control Network

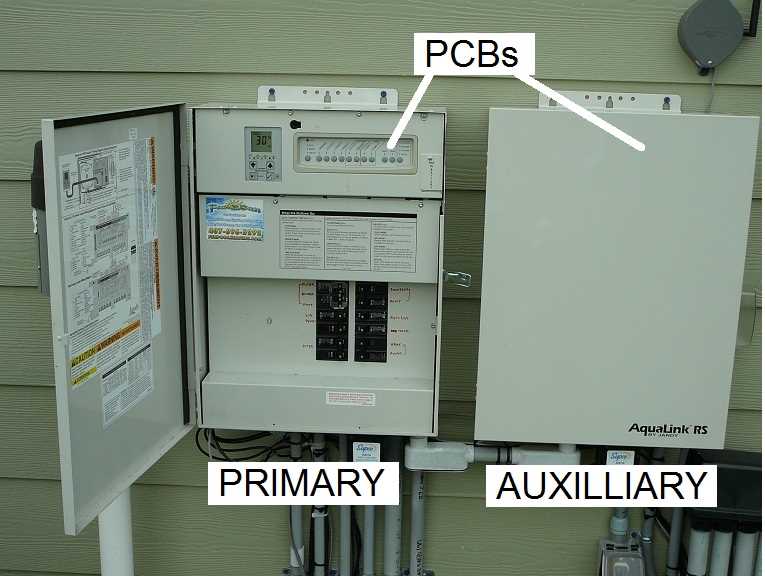

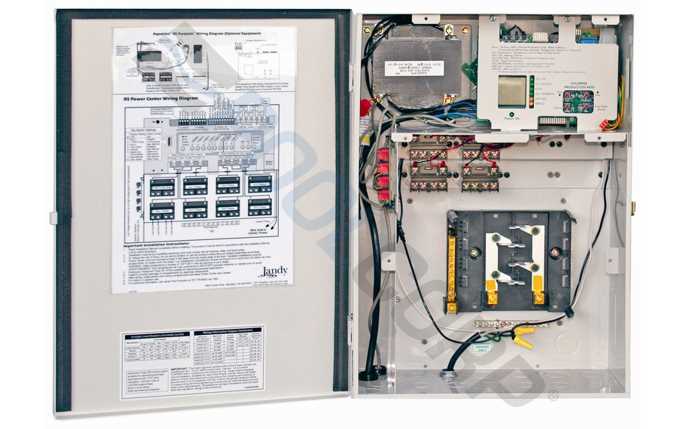

Begin by identifying the main control panel, typically installed indoors near the equipment pad. This unit acts as the central hub, coordinating signals between sensors, actuators, and user interfaces. Verify the panel’s power supply meets the manufacturer’s specifications–usually 120V or 240V AC with a dedicated circuit breaker. Ensure the transformer output matches the required low-voltage DC for communication buses; deviations often cause intermittent faults.
The relay modules manage high-voltage devices like pumps, heaters, and lights. Each module supports specific load ratings–check surge protection for inductive loads (e.g., pump motors) to prevent coil burnout. Label all connections clearly, noting voltage and amperage ratings, and cross-reference with the equipment manual to confirm compatibility. Replace any corroded terminals immediately; oxidation disrupts signal integrity.
| Component | Voltage Rating | Typical Load | Troubleshooting Tip |
|---|---|---|---|
| Dual-Speed Pump Relay | 120/240V | 1.5–3 HP | Test with multimeter for continuity at both speed terminals |
| Heater Contactor | 240V | 150–400K BTU | Inspect for pitted contacts; replace if resistance exceeds 1Ω |
| Lighting Transformer | 12V AC | 50–300W | Check secondary voltage under load; drop >0.5V indicates faulty transformer |
Temperature sensors must be calibrated within ±2°F of actual readings. Connect the water sensor directly to the auxiliary input port–avoid splices, as resistance changes skew data. Air sensors require sheltered mounting away from direct sunlight or spray zones. If readings fluctuate erratically, test for loose wiring or moisture ingress; recalibrate using the panel’s diagnostic mode.
Remote interfaces (e.g., wall-mounted keypads or smartphone apps) rely on a stable RS-485 bus. Confirm bus termination resistors (120Ω) are installed at both ends of the line; missing resistors cause communication dropouts. Use shielded twisted-pair cable (22–18 AWG) for all low-voltage runs, grounding the shield at a single point to prevent ground loops. For Wi-Fi modules, position the access point within 30 feet of the panel to avoid latency.
Step-by-Step Connection Guide for RS Automation Interface
Power down the main electrical supply before handling any terminals to eliminate shock risks. Verify the breaker or fuse box is fully off by testing output voltage with a multimeter–readings should show zero. If residual current persists, locate and disengage secondary disconnects.
Identify the RS panel’s input terminals, typically labeled L1, L2 (or Line 1/Line 2 for 240V systems), and a neutral (N) slot. For single-phase setups, connect both live conductors to L1 and L2; for split-phase, link one hot wire to each. Secure connections with torque-rated screwdrivers–over-tightening damages threads, while under-tightening causes arcing.
- L1/L2: 20-30 lb-in (2.3-3.4 Nm) torque
- Neutral (N): 15-20 lb-in (1.7-2.3 Nm)
- Ground (GND): 25-35 lb-in (2.8-3.9 Nm), ensure bare copper contacts the busbar directly
Route sensor leads–thermostat, pressure, and flow–through dedicated ports. Match labels on the panel (e.g., TH1, TH2) to corresponding device wires, stripping only 5mm of insulation to prevent shorts. Twist stranded cores lightly before insertion, then crimp with insulated ferrules if gauge exceeds 18 AWG. Avoid solder; vibrations in pool environments degrade joints over time.
For actuator integration, use shielded cable (minimum 18 AWG, 300V rating) between the panel’s relay outputs and motorized valves. Polarity matters–connect red to “COM” and black to “NO” (normally open) for fail-safe operation. Test each relay by activating the panel’s manual override; listen for a distinct click and verify 24VAC across terminals with a probe.
- Attach bonding wire (minimum 8 AWG solid copper) to the panel’s grounding lug. Run uninterrupted to the pool’s equipotential bonding grid–do not splice or coil excess length.
- Seal all entry points with waterproof gland fittings (IP68 rating). Threaded ports should accept ½” NPT or PG13.5, depending on enclosure design.
- Re-energize the system incrementally: first the main breaker, then sub-circuits. Monitor for unusual heat at connections (normal operating temp: 40-50°C/104-122°F).
Calibrate sensors post-installation. For temperature probes, submerge in a bucket of ice water (0°C) and adjust the panel’s offset until the display reads 32°F (0°C). Pressure transducers require zero-point validation–remove the sensor from the plumbing, expose to atmospheric pressure, and confirm a 0 PSI reading. Failures necessitate replacing the sensor, not recalibrating.
Common Installation Errors and Prevention Techniques
Mislabeling terminal connections leads to immediate system failures. Verify each port against the control panel’s reference sheet before securing any cables. Confusing power inputs with signal lines risks damaging sensors or actuators. Use a multimeter to confirm 24V AC outputs for low-voltage devices and 120V AC for pumps, ensuring polarity matches documented specifications. Skipping this step voids warranties and can trip circuit breakers during startup.
Overtightened terminal screws strip threads or crack plastic housings. Apply 0.5 Nm torque with a precision screwdriver–exceeding this value deforms contact surfaces, causing intermittent faults. Loose connections generate heat buildup, detectable with a thermal camera before insulation melts. Secure strain relief clamps on cable entries to prevent conductor fatigue from poolside vibrations or equipment movement.
Ground Loop Issues
Ground loops create erratic behavior in automation panels. Connect all grounds–pool equipment, heaters, and controllers–to a single dedicated copper bus bar bonded to the pool’s rebar grid. Separate grounds by function: safety grounds (≤5 ohms), signal grounds (star topology), and lightning protection grounds (independent path). Test resistance between grounds with a megohmmeter; values above 0.5 ohms indicate corrosion or insufficient bonding.
- Ignoring cable gauge ratings overloads circuits. Use 14 AWG for runs under 20 ft, 12 AWG for 20–50 ft, and 10 AWG for longer distances to prevent voltage drops exceeding 3%.
- Mixing shielded and unshielded cables near 3.3 kW pumps induces EMI. Route sensor lines (thermostats, flow switches) in metal conduit or use twisted pair wiring to maintain signal integrity.
- Skipping surge protectors on outdoor connections exposes control boards to transient spikes. Install MOV-based protectors rated for 20 kA on both power and communication lines.
Moisture ingress corrodes terminals within weeks. Apply dielectric grease to every connection, then seal with heat-shrink tubing rated for 105°C. Replace factory terminal boots if cut during installation–exposed conductors invite shorts. For buried cables, encase splices in epoxy-filled junction boxes; standard waterproof tape degrades under UV exposure and pool chemicals.
