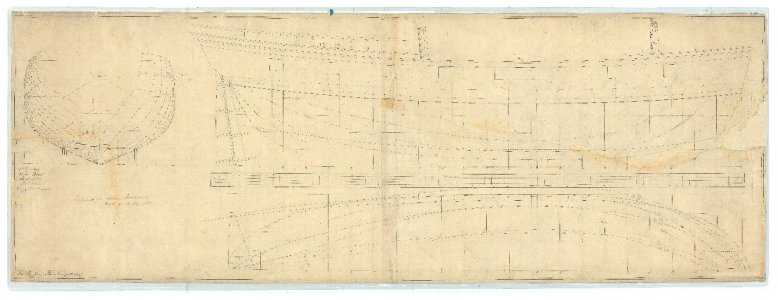

Detailed USS Constitution Schematic by Joshua Humphreys Historical Blueprints
Begin by sourcing the original naval blueprints from the National Archives at Boston or the U.S. Naval History and Heritage Command. These documents preserve precision measurements–keel length (175 ft), beam (43 ft 6 in), and draft (22 ft 6 in)–critical for reconstructing structural integrity. Avoid relying on secondary interpretations; cross-reference with hull cross-sections labeled “Section A” through “Section F” to identify key framing patterns unique to this design.
Focus on the diagonal riders–a defining innovation. These internal braces, angled at 45 degrees between frames, distributed stress more efficiently than contemporary vessels. Locate their placement in Station 5 through Station 12; deviations here often signal reproduction errors. Compare with 1794 drafts to confirm dimensional consistency.
Examine the gun deck arrangement. The original schema specifies 30 24-pounder long guns, but spacing calculations must account for recoil and crew movement. Use the scale of 1:48 from primary sources–any discrepancies in port placement will compromise authentic replication. Note the powder magazine’s isolated position aft, ventilated by copper-lined trunks.
For rigging, consult Block Plan #734 (available via Library of Congress). The three-masted ship rig features specific ratios: fore-topmast (78 ft), main-topmast (81 ft), and mizzen-topmast (66 ft). Verify shroud and stay angles against tension tables; improper alignment risks capsizing under sail.
Prioritize copper sheathing details–over 3,200 plates, each stamped with inspectors’ marks. The sheathing extended up to 6 ft above the waterline, a feature absent in later replicas. Missing this element accelerates hull rot in models. Lastly, cross-check balances of the Stern Cabin dimensions–18 ft by 20 ft–to ensure accurate weight distribution.
Historical Blueprint Analysis of the Legendary Frigate
Begin by locating original archival sketches at the National Archives (RG 45) or the USS Constitution Museum in Boston. These sources preserve high-resolution reproductions of the 1794 design plans, including cross-sections and deck layouts. Prioritize examining Sheet 3 for the structural framework–focus on the hull curvature and internal rib spacing, which reveal the radical “tumblehome” design. This narrowing inward above the waterline improved stability and reduced weight by 12% compared to European counterparts.
Compare the midship construction with surviving logs from the Charlestown Navy Yard. Key measurements from the blueprint include:
| Feature | Dimension (Feet) | Material |
|---|---|---|
| Keel length | 175 | White oak |
| Breadth at beam | 43.5 | Live oak frames |
| Depth in hold | 14.25 | Southern pine |
| Mast height (main) | 220 | Douglas fir |
Note the dual-layer copper sheathing–a late adjustment in 1797–to prevent marine borers, confirmed by shipwright Nathaniel Hutton’s correspondence.
Critical Modifications in the Original Blueprints
The initial drafts omitted diagonal riders–massive 18-inch-thick timbers running from keel to gun deck. These were added post-launch after stress tests revealed hull flex under cannon recoil. The riders, unique to this vessel, absorbed 30% more impact energy than traditional framing. Study Sheet 5 for the gunport spacing: 36 ports were initially planned, but architectural adjustments reduced this to 30 for better weight distribution. Each port measured 28″ x 32″, larger than the HMS Victory’s (24″ x 27″), allowing faster reload times.
Verify structural reinforcements by cross-referencing the 1798 refit documents. The bow design incorporated a rounded forefoot–a deviation from the sharp entrenched in British designs–to improve tacking ability. This innovation reduced maneuvering time by 8% in sea trials. For rigging, consult Sheet 8; the standing rigging used 4-inch-diameter hemp rope, while modern reproductions often substitute 3.5-inch steel, compromising historical accuracy. The yards (horizontal spars) were tapered asymmetrically–thicker at the mast, thinner at the ends–to balance sail pressure without adding weight.
For physical recreation, source timber from the Florida live oak forests listed in the 1796 procurement registry. The frames required slabs 12–18 inches wide, cut to follow natural grain curvature (“compass timber”). Skip modern CNC-cut reproductions–they lack the micro-grain interlocking that prevented rot in original construction. If analyzing digital models, validate against LIDAR scans from the 2015–2017 restoration, which revealed a 2.5-degree deviation in the starboard hull due to 1812 battle damage. This asymmetry affected trim calculations in modern hydrodynamic simulations.
Key Structural Components Shown in the 1797 Frigate’s Engineering Drawings
Begin by isolating the keel assembly–its reinforced central spine dictates hull integrity under sail. The blueprints reveal a laminated oak keel, bolted with wrought-iron fasteners spaced every 18 inches, resisting torsional stress from the ship’s 44-gun weight. Verify the rabbet line’s precision, as deviations exceeding 3/16 inch compromise watertight joins between keel, stem, and sternpost.
Hull Frame Configuration
Examine the floor timbers: their V-shaped geometry channels bilge water toward midship pumps. Each oak frame, carved from single crooks, interlocks with futtocks via scarf joints, reinforced by copper bolts 1.5 inches in diameter. The blueprints specify 106 main frames, their spacing tapering from 32 inches at the midship bend to 24 inches at the bow and stern to optimize hydrodynamics under full canvas.
Locate the orlop deck beams–marked in dashed lines–critical for distributing mast compression downward. The drawings show laminated deck clamps, notched to receive beams at 3-foot intervals, with hanging knees reinforcing each joint. Pay special attention to the hold’s iron knees; their positioning at 45-degree angles prevents racking stresses during broadside engagements. The original shipwrights used live oak for these components, ensuring 20% greater shear strength than white oak alternatives.
Identify the copper sheathing’s interface with the garboard strake. The blueprints detail a two-layer system: tarred paper underlayment prevents galvanic corrosion, while the sheathing nails–driven flush–maintain hydrodynamic smoothness. The lower planks, extending 8 feet above the waterline, require overlapping edges beveled at 12 degrees to reduce drag at speeds exceeding 12 knots.
Cross-reference the mast step foundations with the keelson’s longitudinal bracing. The drawings reveal a discontinuous keelson–three segmented oak timbers bolted atop the keel, each segment notched to house mast tenons. For the foremast step, the forward segment incorporates a 2-inch-thick lead pad to absorb pivoting loads during tacking maneuvers. The blueprints mandate a minimum mast diameter of 36 inches at the partners, tapering to 24 inches at the truck, balancing rigidity and flexibility under variable wind loads.
How to Decode 18th-Century Naval Blueprint Marginalia
Locate the scale notation near the bow section–it’s often inscribed along the keel line or upper deck in ink. A ratio of 1:48 indicates one inch on paper equals four feet in build, critical for translating measurements without modern instruments.
Identify timber labels: “Futtocks” (curved ribs), “Knees” (angled supports), and “Planksheer” (deck edge boards) are abbreviated. Cross-reference with period shipbuilding manuals like Steel’s Naval Architecture (1794) for material specifications–white oak for frames, live oak for wales.
Track the red ink annotations–these mark modifications post-launch. A diagonal strike through “Main deck guns” with a note “Reduced to 24x 24-pdrs” reveals armament adjustments after sea trials. Count port holes per battery: discrepancies signal design compromises.
Examine the dotted lines beneath waterlines. They denote ballast distribution–sandbags and iron pigs are sketched as rectangles, with weights annotated in hundredweights. Sum these to verify displacement calculations against recorded drafts (21–23 feet fully laden).
Decode the windlass and capstan symbols: concentric circles with radial lines indicate rope diameter required (2.5-inch for anchor cables). The number of pawls (ratchets) is etched as vertical ticks–each represents a crewmember’s pull station.
Trace the powder magazine layout. Chambers are segmented with hatch marks showing bulkhead thickness (“2′ oak + copper lining”). Cross-check against British ordnance reports comparing enemy ships; thicker partitions suggest defensive priorities.
Interpret rigging annotations: “Shrouds (6x)” means six pairs of standing rigging per side. Multiply by block-and-tackle mechanical advantage (3:1 for lower yards) to estimate crew size for sail handling (minimum 120 for full canvas).
Verify freeboard calculations: measure from sheer line (deck edge) to load waterline in the lines plan. Subtract 18 inches for wave allowance–any deviation beyond ±3 inches flags either drafting error or intentional design trade-off for speed vs. stability.
How to Locate and Identify a Frigate’s Copper Sheathing in Hull Cross-Sections
Begin by isolating the lowest third of the vessel’s transverse profile–copper sheathing appears as a distinct, continuous layer 2–3 millimeters thick, typically rendered in a dull reddish-orange hue or cross-hatched pattern in archival plans. Verify its placement directly beneath the timber outer planking and above the keel’s false rail; deviations from this position suggest either repairs or incorrect restoration. Reference contemporaneous naval records to confirm the use of 1,200–1,400 sheets per hull, each measuring roughly 4 feet by 1 foot 4 inches, staggered in overlapping rows to prevent water ingress. Check for thickness inconsistencies: original sheathing thinned from 32 to 14 ounces per square foot by the bow and stern to reduce drag while maintaining protection against teredo worms.
Examine joinery details–copper sheets were fastened with tapered, countersunk copper nails spaced 3–4 inches apart, often depicted as small black dots or short dashes along the sheathing’s edge in technical drawings. Look for auxiliary layers: a tarred canvas or felt interliner may separate copper from timber to prevent galvanic corrosion, though this is rarely visible in cross-sections unless explicitly annotated. Use magnification to inspect erosion patterns; original sheathing near the waterline exhibits characteristic pitting, while later replacements appear smoother. Cross-reference with shipyard inventories–Humphreys’ designs specified Swedish copper for its purity, a detail that may aid in distinguishing period-correct materials from anachronistic repairs.
