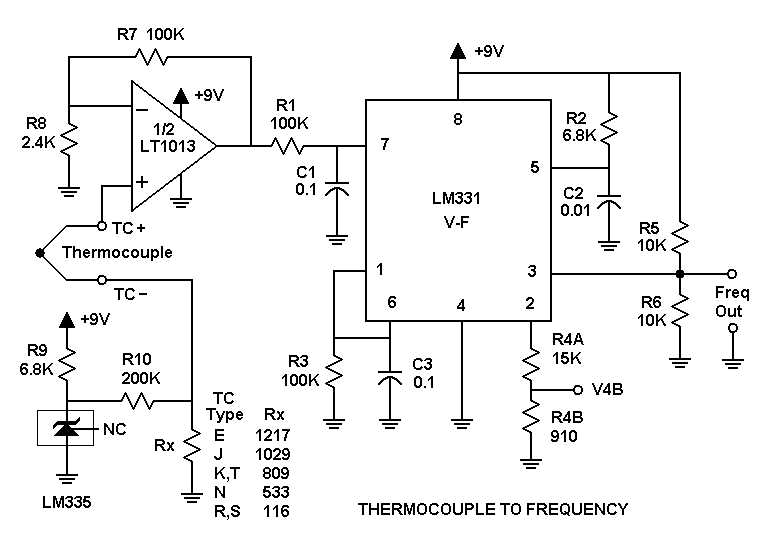

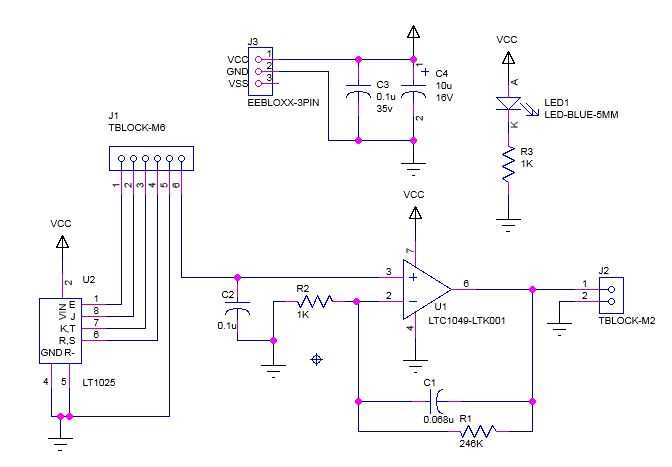

Complete K-Type Thermocouple Wiring Schematic with Cold Junction Compensation

For reliable readings, connect the chromel (+) and alumel (–) wires directly to a voltmeter with input impedance >10 MΩ to prevent signal degradation. Cold-junction compensation remains critical–use an ice bath or an integrated reference (e.g., AD595) when measuring below 0°C. Avoid twisted pairs longer than 5 meters without shielding; capacitive coupling distorts millivolt readings.

Power supplies near the sensor induce errors. Keep the excitation current <100 µA if using a signal conditioner–exceeding this risks self-heating artifacts. Ground the sheath but isolate it from the voltmeter’s negative terminal to eliminate ground loops. For raw wiring, a differential amplifier (noise gain = 200) cleans signals before ADC conversion.

Calibrate using IEC 60584-1 tables or NIST ITS-90 coefficients. A 0°C–1372°C range yields 0–54.886 mV; deviations beyond ±2.2°C at 300°C indicate damaged leads or poor contacts. Store leads coiled but not tightly–strain alters Seebeck voltage. Replace sensors if drift exceeds 1.5 µV/°C after thermal cycling.

For embedded systems, optoisolators (e.g., ISO124) isolate sensor grounds from microcontroller noise. Use 16-bit ADCs for ±0.1°C resolution in industrial environments. Thermowell installations require thermal paste between sensor and wall; air gaps skew readings by up to 3°C at 500°C.

Constructing a Nickel-Chromium Sensor Electrical Layout

Start with a cold junction compensation block using an integrated temperature sensor like the MAX6675 or AD595. These ICs linearize the millivolt output while correcting for ambient variations–critical for readings above 0°C. Wire the sensor’s positive leg (nickel-chromium) to the IC’s non-inverting input and the negative leg (nickel-alumel) to the inverting input. Ground the IC’s reference pin to stabilize readings.

For analog amplification, add an operational amplifier (OP07 or LM358) with a gain set to 100–200 via feedback resistors. This boosts the sensor’s microvolt signal to a usable 0–5V range. Ensure the amplifier’s power supply is clean–use a 3.3V or 5V regulated source with decoupling capacitors (0.1µF) across power pins to suppress noise. Avoid shared power rails with inductive loads (e.g., motors) to prevent voltage spikes.

Noise Reduction Techniques

• Twist the sensor wires tightly for at least 10cm before connecting to the PCB–this cancels electromagnetic interference from nearby cables.
• Place a 10nF ceramic capacitor directly across the sensor’s terminals for high-frequency filtering.
• Route signal traces away from switching components (e.g., PWM outputs) to minimize crosstalk. Use a ground plane beneath analog traces.
• For long runs (>1m), add a 22µF tantalum capacitor at the receiving end to dampen line reflections.

For digital output, pair the amplifier with a 16-bit ADC like the ADS1115. Configure the ADC’s input range to match the amplifier’s output (e.g., 0–4.096V for ±156.25µV resolution). Use a I²C isolator (e.g., ISO1540) if connecting to a microcontroller over noisy environments. Calibrate by measuring a known temperature (e.g., boiling water) and adjust the gain/offset registers accordingly.

Common Pitfalls

1. Reversed polarity: Nickel-chromium-positive/alumel-negative–flipping legs inverts the signal.
2. Thermal shunting: Avoid mounting the sensor directly to metal surfaces; use a thermal epoxy or air gap.
3. Ground loops: Connect the cold junction IC’s ground to a single star point to prevent offset errors.
4. ADC overload: Confirm the amplified signal doesn’t exceed the ADC’s reference voltage–clip excess with a Zener diode (4.7V).

Selecting Parts for a K-Series Temperature Sensing Assembly

Begin with an instrumentation amplifier like the AD8495 or MAX31855, designed for direct integration with nickel-chromium/nickel-alumel probes. These ICs handle cold-junction compensation internally, reducing errors to ±2°C over −200°C to +1372°C. The AD8495 offers a fixed gain of 247.3, while the MAX31855 outputs linearized digital data via SPI, simplifying signal processing.

For analog setups, pair the amplifier with a 0.1µF ceramic capacitor between its reference pin and ground to filter noise from long lead wires. Keep trace lengths under 50mm from probe to amplifier input; exceeding this risks EMI-induced errors up to 5°C. Use a twisted-shielded pair for wiring, grounding the shield only at the amplifier end to prevent ground loops.

Component	Recommended Model	Key Spec	Cost (USD)
Instrumentation Amp	AD8495	±2°C accuracy	7.50
Digital Converter	MAX31855	14-bit resolution	4.20
Isolation Barrier	ISO124	±0.05% linearity	12.00
Low-Pass Filter	LT1028 (op-amp)	0.8nV/√Hz noise	3.80

Avoid cheap connectors; gold-plated contacts (e.g., Molex 105021) prevent oxidation that can introduce ±3°F errors in humid environments. For high-temperature applications (≥800°C), replace standard probes with magnesium oxide-insulated variants (e.g., Omega KMTSS), which withstand thermal cycling without signal drift.

Power supplies must deliver ≤1% ripple; a linear regulator like LM317 configured for 5V cuts noise by 40dB compared to switching supplies. Add a 10Ω resistor in series with the amplifier’s power pin to isolate it from transient voltages on the bus. For battery-powered setups, use a low-dropout regulator (e.g., TPS7A4901) for ≥90% efficiency at 20mA loads.

Calibrate the system at two points: ice water (0°C) and boiling water (100°C at sea level). Adjust amplifier gain or apply a correction factor in firmware if readings deviate beyond ±1.5°C. For industrial environments, isolate the sensing assembly with ISO124 (1kV isolation) to block ground potential differences that can skew readings by ±20mV.

Select resistors with 0.1% tolerance or better for gain-setting circuits; standard 1% resistors introduce errors of ±0.5°C per 10°C ambient shift. Store probes horizontally to prevent sagging, which alters thermal coupling. Replace probes if insulation resistance drops below 100MΩ at room temperature, indicating moisture ingress or conductor degradation.

Step-by-Step Wiring of a K-Series Sensor with Cold Junction Offset

Begin by stripping 5 mm of insulation from the ends of the chromel (positive) and alumel (negative) leads, ensuring no stray strands remain. Twist each conductor pair clockwise with a 90° turn before inserting into a terminal block rated for at least 250 °C–avoid solder, as it melts under sensor temperatures. Connect the block’s output to an instrumentation amplifier with a CMRR above 120 dB to reject 50/60 Hz noise; a precision resistor (e.g., 10 kΩ ±0.1 %) must bridge the amplifier’s inverting and non-inverting inputs to maintain bias stability. Place a 100 nF ceramic capacitor directly across the amplifier’s power pins, within 2 mm of the IC body, to filter transients exceeding 10 mV.

Calibrating the Reference Point

Attach a semiconductor-based cold-junction sensor (e.g., LM35 or DS18B20) adjacent to the terminal block, securing it with thermal epoxy–ensure it reads ambient within ±0.5 °C. Wire the sensor’s output to a microcontroller’s 12-bit ADC input, sampling at 10 Hz; use a lookup table or polynomial (Seebeck coefficients: 41 µV/°C for chromel, -11 µV/°C for alumel) to compute thermal EMF correction. Ground the shield of the leads at the measurement end only, leaving the other end floating to prevent ground loops. Verify the setup by immersing the probe tip in ice slurry (0 °C) and boiling distilled water (100 °C); deviations above ±1.1 °C indicate stray thermoelectric junctions or mismatched leads–replace the entire harness if resistance exceeds 0.5 Ω/cm.

Voltage Amplification Techniques for Low-Level Sensor Signals

Use a precision instrumentation amplifier with a gain of 100–1000 for microvolt-range inputs, ensuring CMRR exceeds 120 dB. The AD8421 or INA333 provides sub-microvolt noise performance while rejecting common-mode interference from industrial environments. Place the amplifier within 10 cm of the sensor junction to minimize pickup, and use a guarded input trace on a four-layer PCB to reduce stray capacitance effects.

Differential vs. Single-Ended Configurations

Convert the signal to differential mode immediately after the sensing element–this doubles the effective resolution by canceling ground loops and noise. For a 0–50 mV output, a differential gain of 50 yields 0–2.5 V, compatible with most ADCs. Avoid single-ended setups unless the environment is shielded, as they amplify both signal and noise equally, degrading SNR by 20–30 dB in unshielded applications.

Implement a cold-junction compensation network using a precision RTD or silicon sensor (e.g., MAX31865) placed at the termination point. Compensate for parasitic thermals by calculating the Seebeck coefficient mismatch–typically 40–60 µV/°C for nickel-based alloys–and applying an offset via software or a trimmer resistor network, ensuring ±0.5°C accuracy over 0–200°C.

For battery-powered systems, use a chopper-stabilized amplifier (e.g., LTC1050) to eliminate 1/f noise below 10 Hz, extending usable bandwidth to DC. Power the amplifier from a regulated 3.3–5 V supply with

Common Error Sources and Troubleshooting in K-Series Sensor Networks

Check for ground loops first–measure the voltage between the probe’s negative terminal and the measurement device’s ground. Readings above 10 mV indicate a parasitic current flow, likely from shared grounding with high-power equipment. Isolate the reference junction using a dedicated power supply or a battery-powered signal conditioner. If isolation isn’t feasible, install a 10 kΩ resistor in series with the negative lead to dampen loop currents without sacrificing accuracy.

• Cold-junction compensation errors degrade readings by 0.1 °C per °C ambient drift. Use an ice-point reference (0 °C) or a precision RTD at the connector for verification. Replace generic compensation algorithms with factory-calibrated modules; budget options often assume 25 °C ambient, introducing ±0.5 °C deviation.
• Nickel-chromium and nickel-alumel alloys oxidize above 700 °C, reducing Seebeck coefficient consistency. Replace probes after 100 hours at temperatures above 800 °C. For intermittent high-temperature use, opt for probes with magnesium oxide insulation–oxide growth is slower than with alumina.
• EMI from 50/60 Hz power lines corrupts low-level signals. Route sensor wires perpendicular to power cables, maintain 30 cm separation, and shield pairs with foil tape grounded at one end. Ferrite beads on the leads attenuate 10 kHz–1 MHz interference by 20 dB.

Connection corrosion introduces resistance imbalances. Clean terminals with isopropyl alcohol, then apply antioxidant paste before mating metal surfaces. For screw terminals, torque to 0.3 Nm–over-tightening deforms threads; under-tightening allows micro-vibrations to loosen contacts. Verify contact resistance with a milliohm meter; values above 0.1 Ω shift readings by 0.2 °C per ohm.

Ambient temperature gradients between the sensing junction and the measurement instrument distort readings. Place connectors and wiring within 5 °C of each other. For benchtop meters, stabilize temperatures by enclosing the reference junction in an insulated block with thermal mass. Outdoor installations benefit from a passively heated enclosure maintaining ΔT

1. Voltage offset errors appear as non-zero readings at uniform temperature. Measure probe voltage with both leads open; if > ±5 µV, recalibrate the meter or replace the probe. Offset voltages often stem from thermoelectric effects at termination points–use copper-to-copper connections exclusively.
2. Wire gauge mismatch between the probe and extension cables causes thermal errors. Pair 24 AWG probes with 24 AWG extensions; thicker wires sink heat from the junction, skewing readings by 0.05 °C per AWG difference.
3. Long cable runs (>100 m) introduce resistance losses. Use twisted-pair cable with characteristic impedance matching the probe’s output. For runs >300 m, switch to 4–20 mA transmitters–voltage drops otherwise invalidate readings by 0.1 % per 10 m.
