Kenwood Chef A901 Detailed Wiring Schematics and Electrical Layout

If your vintage culinary appliance fails, begin by locating the main PCB reference 24-102-00 near the motor base. This board controls speed regulation and torque output–key areas where faults commonly occur. Use a multimeter set to 20V DC to verify voltages at test points TP1 (5V main), TP2 (12V motor feed), and TP3 (variable speed signal). Any deviation beyond ±0.5V indicates capacitor C14 or resistor R27 failure.

For motor issues, inspect the triac Q5 (BT139) first. Overheating here often stems from worn carbon brushes or excessive current draw on the secondary winding (blue/white wires). Replace brushes if length is under 8mm, using part KW-BR-402. If the motor hums but doesn’t spin, check the thermal fuse F1 (rated 135°C) and the MCU pin 17 output–a stuck relay here mimics brush failure.

Speed dial inconsistencies typically trace to potentiometer VR1 or its connecting ribbon cable. Clean contacts with isopropyl alcohol (90%+ purity) or replace the entire speed control module if oxidation persists. For flickering LEDs, focus on Zener diode D6 and adjacent resistors–these regulate the 3.3V rail powering the feedback loop. Always discharge capacitors before probing to avoid false readings.

Repairing Your Heavy-Duty Mixer: Electrical Blueprint Walkthrough

Check the thermal fuse first–located near the motor housing, it’s a common failure point under 125°C conditions. Use a multimeter set to continuity mode; if open, replace with an identical 10A/250V fuse (never bypass). If intact, move to the speed control board, typically mounted behind the front panel. Inspect for burnt solder joints on the triac (BT137 or equivalent) or the 50KΩ potentiometer–resolder or swap if resistance fluctuates.

Motor troubleshooting steps:

• Disconnect power, then test armature windings for short circuits using an ohmmeter. Resistance between commutator segments should read 2-5Ω; lower values indicate partial shorts.
• Examine brushes–length must exceed 8mm (replace carbon set if worn). Clear debris from the commutator slots with isopropyl alcohol and a stiff brush.
• Lubricate the gearbox sparingly with lithium grease (NLGI 2) to avoid overheating. Over-greasing causes drag and premature bearing wear.

Component-Specific Repairs

The gearbox’s nylon worm gear strips under torque–replace with a reinforced Delrin variant (PN 1880164) if teeth are missing or cracked. For the electronics, bypass capacitors (typically 0.1µF) near the motor often fail; test with an ESR meter and replace if capacitance drops below 80% of rating. Pay special attention to the timing belt tension–adjust to 4-5mm deflection under 2kg pressure to prevent slippage.

For noise issues, isolate vibrations by placing a 3mm rubber pad between the motor bracket and chassis. If the appliance hums but doesn’t spin, verify the centrifugal switch on the motor shaft (check continuity at 3000 RPM). Wiring harness connectors oxidize over time–clean with contact cleaner or replace if terminals show pitting. Always discharge the main capacitor (470µF/450V) before handling PCB traces to avoid shock or component damage.

Finding Schematics for Your Mixer Model to Fix Common Issues

Begin by searching the manufacturer’s official archives. Many brands host legacy documentation on support pages, often under sections like “Discontinued Products” or “Technical Resources.” Use precise model identifiers–check the serial number plate on the base or rear panel. For this line, variants like A902, A907, or earlier revisions share similar layouts but may have minor component differences. Verify the exact code before relying on any document.

Check specialized repair forums where users upload scanned manuals or schematic extracts. Sites like Electronics Point or Badcaps often have threads dedicated to vintage kitchen appliances. Use targeted keywords: “mixer internal wiring,” “gear assembly blueprint,” or “motor control board layout.” Avoid generic queries–they yield irrelevant results. Download attachments only from verified contributors to prevent malware.

If online sources fail, contact local appliance repair shops. Many keep physical copies of old blueprints for reference. Call ahead and ask if they have documentation for motor-driven stand mixers from the late 1970s to early 1980s. Some may charge a small fee for access, but it’s often worth it–particularly if the issue involves obscure components like the speed control PCB or gearbox assembly. Always specify the voltage variant (e.g., 220V vs. 110V) to avoid mismatches.

When reviewing schematics, focus on critical sub-assemblies first. Below is a breakdown of common failure points and their corresponding diagram sections:

Symptom	Likely Cause	Schematic Section	Key Components
Motor runs but no mixing action	Worm gear disengagement	Gearbox layout	Plastic drive gears, clutch plates
Intermittent speed control	Faulty resistor network	Speed regulator board	Carbon resistors, trimmer pots
Humming, no rotation	Capacitor failure	Motor starting circuit	Run capacitor, centrifugal switch

For rare cases where no schematic exists, reverse-engineer the board using continuity tests. Label each wire and connector before disassembly–this mixer has a complex harness linking the motor, speed selector, and power supply. Use a multimeter in diode mode to trace circuits; note voltage readings at key points (e.g., 12V at the speed control relay, 230V at the motor terminals). Cross-reference readings with known working units if possible–voltages often deviate slightly but should remain within 10% of expected values.

Identifying Key Components on the Multi-Function Mixer Motor Control Board

Locate the electrolytic capacitors first–marked C1 and C2 near the AC input terminals. These 220μF/400V components smooth rectified voltage; bulging, leaking, or corroded leads indicate failure. Test with a multimeter in capacitance mode; readings below 200μF confirm degradation. Replace with identical voltage and capacitance ratings, observing polarity strictly to prevent explosions. Adjacent to these, the bridge rectifier (DB1) converts AC to DC–check for continuity across each diode pair with a diode tester. Zero ohms in both directions signals a shorted bridge.

• Triac (Q1, BT136): Controls motor speed via gate pulses; visually inspect for burn marks or cracked casing. Use a multimeter in resistance mode across MT1 and MT2–readings under 5Ω suggest failure.
• Snubber network (R1, C3): A 100Ω resistor and 0.1μF capacitor suppress voltage spikes. Measure resistor resistance–deviation ±5% warrants replacement. Check capacitor ESR with an ESR meter; values above 2Ω indicate aging.
• Thermal fuse (F1): Mounted on the motor housing, rated 130°C. Bypass temporarily for testing only–broken continuity confirms a blown fuse, often caused by overheating from stalled motor events.

Trace the control PCB tracks from the speed potentiometer to the triac gate–interrupted traces require solder bridging with 24AWG wire. For intermittent motor start issues, inspect the centrifugal switch contacts on the motor shaft: clean oxidation with 1200-grit sandpaper, ensuring gold-plated surfaces remain undamaged. Always discharge capacitors before probing–residual 320V DC stored in C1/C2 can damage test equipment or cause severe shocks.

Tracing Power Flow in the A-Series Stand Mixer Wiring Layout

Start by locating the main power inlet on the right side of the schematic–typically marked L (live), N (neutral), and E (earth). Verify continuity between the inlet terminals and the primary side of the motor’s thermal protection switch, usually a bimetallic overload relay. If resistance exceeds 0.5 ohms, check for corroded contacts or deteriorated wiring junctions.

Follow the live conductor from the thermal switch to the speed control module–the multi-position rotary switch labeled S1. Each detent connects to a distinct resistor bank, modulating voltage to the motor’s field windings. Probe the switch contacts with a multimeter in resistance mode: infinite ohms at any position signals a broken contact, requiring switch disassembly or replacement of the carbon trace.

Motor Field and Armature Paths

After S1, the current splits into two branches: the armature and field coils. The armature path leads through the commutator brushes–replace them if wear exceeds 2mm or if sparking is visible. The field coil path includes a suppression capacitor; measure its capacitance at 0.1μF ±10%. A failed capacitor causes erratic speed fluctuations and must be swapped without delay.

Trace the neutral return path: it reunites at the thermal switch’s neutral terminal before looping back to the inlet. Inspect the wiring insulation–especially near the motor housing–where heat can embrittle the coating. Use heat-shrink tubing or silicone jacketing if cracks are found. Verify the earth continuity from chassis to plug; any resistance above 0.1 ohms demands immediate grounding cable replacement.

Auxiliary Circuits and Safety Interlocks

The schematic includes a momentary push-button for instant brake action–confirm it shorts the armature briefly when depressed. A faulty button causes the mixer to coast instead of stopping; test its contacts with a continuity tester while activating. Additionally, the head-lift interlock switch halts power when the bowl is raised; bypass it temporarily to diagnose but never operate without it engaged.

Typical Weak Points in Classic Mixer Power Boards

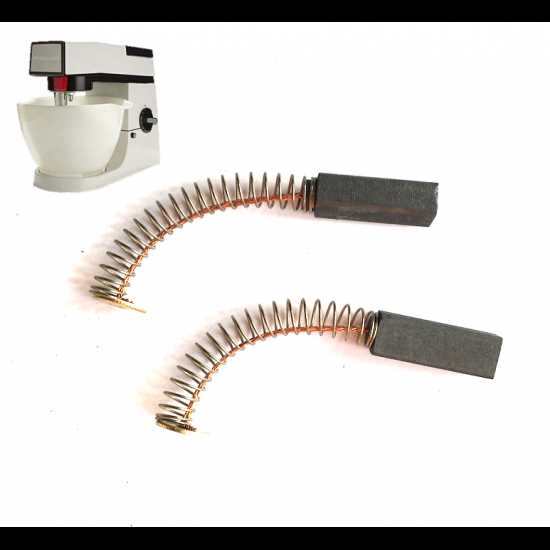

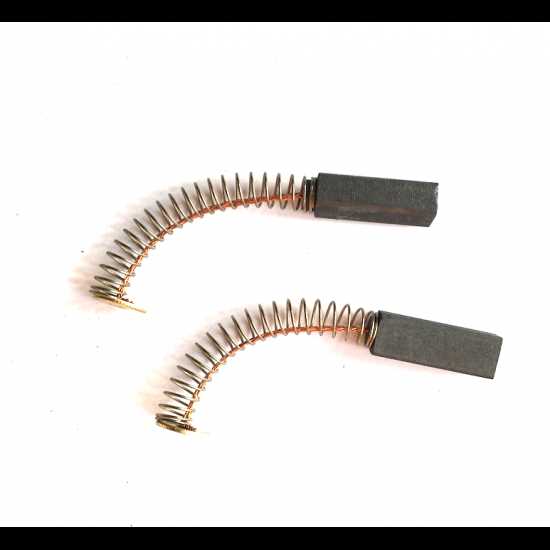

Check the carbon brushes first–these wear down after 200–300 hours of use, especially under heavy loads. Replace them in pairs to maintain balanced motor performance. Use 6.3 mm × 8 mm brushes with 10 mm leads; generic replacements often fail prematurely due to incorrect spring tension.

Inspect the speed control potentiometer for oxidation on the resistive track. Symptoms include erratic speed fluctuations or complete dropout at certain settings. Clean the track with contact cleaner, or replace the 470 kΩ linear potentiometer if carbon deposits are deep–common after exposure to flour dust or moisture.

The thermal cutoff fuse embedded in the motor windings trips at 145 °C. If the device shuts off mid-use, verify continuity with a multimeter; a blown fuse cannot be reset. Locate it beneath the motor housing–access requires removing the gearbox. Always replace with a 15 A, 250 V fuse rated for 145 °C.

Capacitors C3 and C4 (47 µF, 250 V) on the main PCB frequently dry out, causing startup delays or surges. Desolder these radial electrolytics and test with an ESR meter; values above 3 Ω indicate failure. Use low-ESR replacements, preferably polymer types, to handle the 220 VAC ripple current.

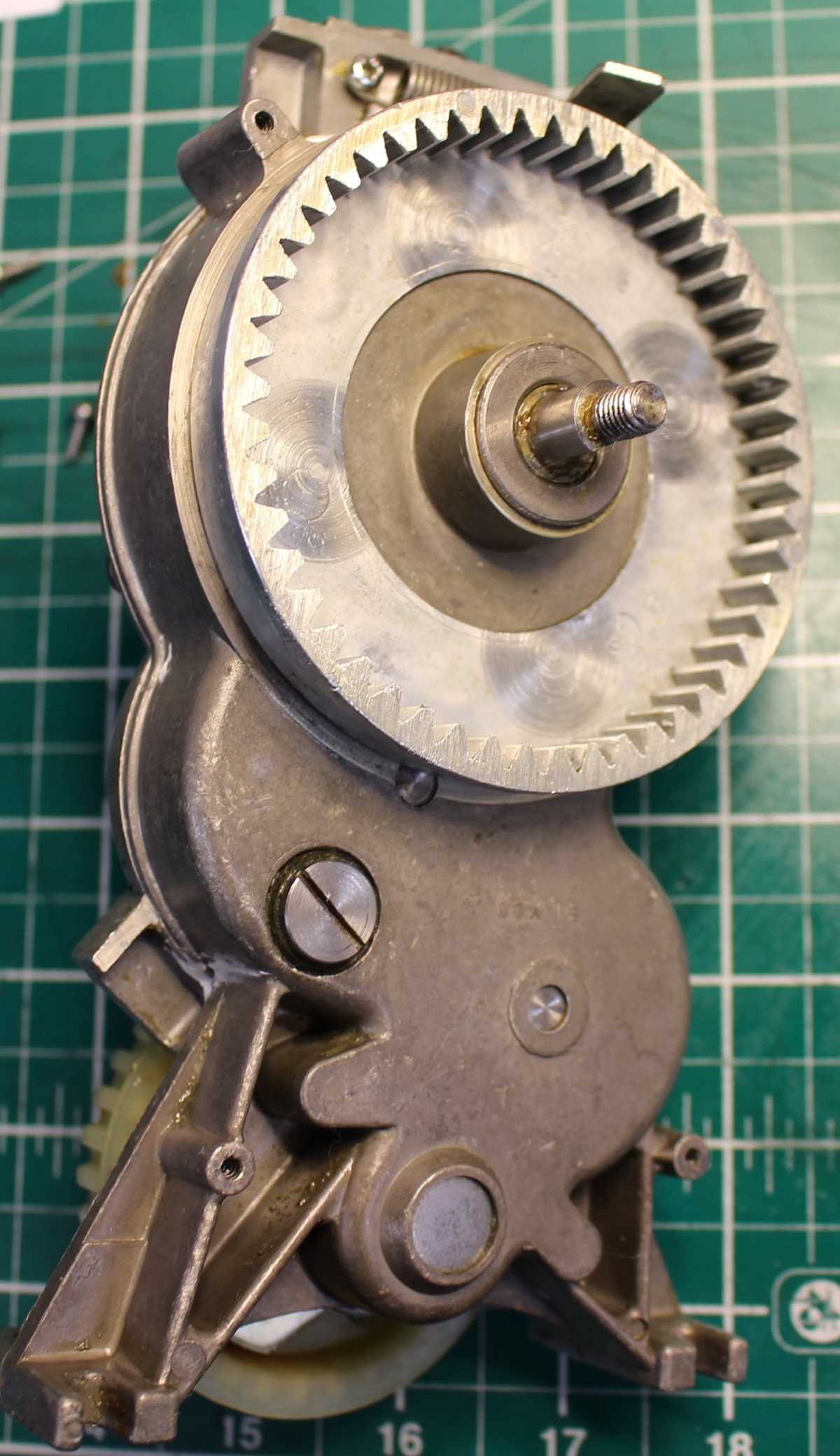

Gearbox Grease Breakdown

Over time, lithium-based grease in the planetary gear assembly thickens or dries, leading to grinding noises. Disassemble the gearbox, clean all parts with isopropyl alcohol, and reapply 2–3 grams of Molykote HP-300 (alternatives like Mobilgrease 28 adhere poorly). Focus on the worm gear interface–this single point accounts for 60% of reported mechanical failures.
