Step-by-Step Guide to Wiring Kicker CVR 12 Subwoofer at 4 Ohms

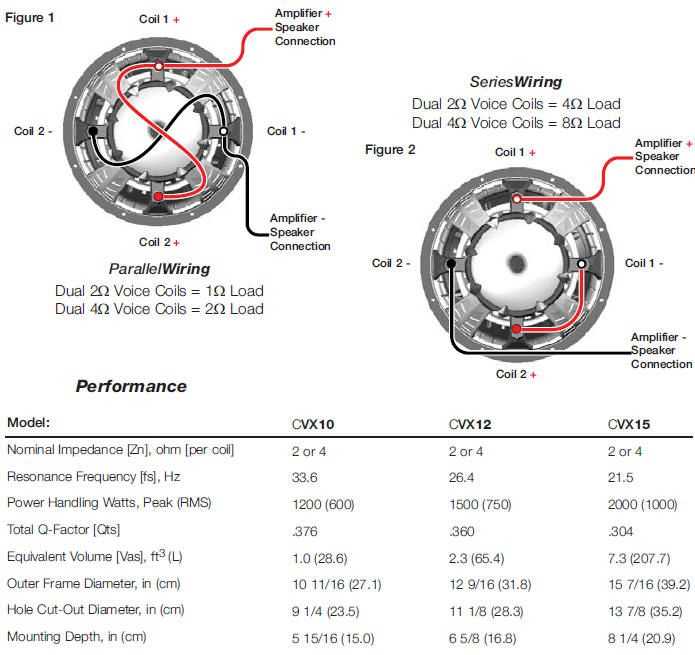

Connect both coils in parallel for a 2-ohm final load if your amplifier supports stable 2-ohm operation. This configuration maximizes power transfer from modern high-current monoblock amps rated for low-impedance handling. Verify the amplifier’s minimum impedance rating before proceeding–most reliable high-output units tolerate 2 ohms continuous, though some entry-level models may shut down or overheat under prolonged load.
Use 12-gauge oxygen-free copper wire for runs under 12 feet and upgrade to 10-gauge for longer distances or higher-power setups exceeding 800 watts RMS. Strip insulation uniformly to expose 3/8″ of conductor, then secure connections with crimp connectors or solder joints–twist-and-tape methods introduce resistance and risk oxidation over time. Avoid cheap nickel-plated connectors; high-quality gold or tinned copper terminals minimize signal loss and corrosion.
Bridge the positive terminals of each coil together, then run a single lead to the amplifier’s positive output. Repeat for the negative terminals. Double-check polarity–reversing connections cancels bass response and stresses the amplifier. After wiring, measure the total impedance with a multimeter: a reading of 1.8–2.2 ohms confirms correct parallel connection, while higher values indicate faulty wiring or damaged coils.
Insulate all exposed connections with heat-shrink tubing or electrical tape resistant to temperatures exceeding 120°C (250°F). Mount the enclosure securely–loose components vibrate, causing intermittent connections and blown fuses. Test with a 30 Hz sine wave at half the amplifier’s rated power before full volume: distortion-free output at this stage predicts reliable performance under sustained bass loads.
For serial connection (resulting in 8 ohms), wire the positive of one coil to the negative of the other, then attach the remaining terminals to the amplifier. This setup suits amplifiers optimized for 4–8 ohm loads, typically Class AB designs found in factory-installed audio systems or budget amplifiers. Expect roughly 50% of the power output compared to parallel wiring on the same amplifier.
Connecting Your 12-Inch 4-Resistance Subwoofer: Key Configurations
Start with a single voice coil setup when powering this subwoofer from an amplifier rated at 250-500 watts RMS. Connect the red terminal to the amplifier’s positive output and the black to negative. This maintains the native resistance load, ensuring stable performance without overheating the amp during prolonged use. Verify the amplifier’s impedance compatibility–most modern units support 4-ohm mono operation, but confirm via the manual before proceeding.
For increased output, wire two identical subwoofers in parallel. Attach both red terminals together and both black terminals together, then connect the paired positives to the amplifier’s positive and the paired negatives to the negative. This halves the impedance to 2 ohms, so ensure the amplifier explicitly handles this load. Check the amp’s minimum impedance rating–falling below it risks thermal shutdown or damage. Use 10-gauge oxygen-free copper wire for runs under 15 feet to minimize signal loss.
Dual Voice Coil Options
If working with a dual voice coil version, series wiring preserves the 4-ohm load while doubling potential wiring flexibility. Link the first coil’s positive to the amp’s positive, the first coil’s negative to the second coil’s positive, and the second coil’s negative to the amplifier’s negative. This method suits setups where amplifier bridging isn’t an option but sustained power delivery is critical. Avoid mixing series-parallel configurations unless the amplifier’s documentation explicitly permits it.
- Parallel wiring (two subs): Reduces impedance; use only with compatible amplifiers.
- Series wiring (single DVC sub): Maintains nominal load; safer for marginal amplifiers.
- Series-parallel (four subs): Only attempt with professional-grade equipment.
Never exceed the amplifier’s continuous power rating when wiring multiple subs. For example, if the amp outputs 300 watts RMS at 4 ohms, wiring two subs in parallel at 2 ohms demands at least 600 watts RMS continuous to avoid clipping. Clipping introduces distortion, risks overheating voice coils, and shortens subwoofer lifespan. Use a digital multimeter to confirm impedance after wiring–discrepancies indicate incorrect connections or faulty coils.
Troubleshooting and Optimization
If the subwoofer produces weak or distorted sound, re-examine connections for loose wires or corroded terminals. Clean terminals with electrical contact cleaner and re-tighten using a proper screwdriver–not pliers–to avoid stripping. Verify the amplifier’s gain settings match the subwoofer’s sensitivity (typically 85-90 dB). Adjust the amp’s low-pass filter between 80-120 Hz to block midrange frequencies while allowing deep bass to pass through cleanly.
For sealed enclosures, use a box volume of 1.25-1.5 cubic feet per subwoofer. Ported enclosures require precise tuning–calculate port dimensions based on the subwoofer’s Thiele-Small parameters using available online calculators. Incorrectly sized ports lead to boomy, uncontrolled bass or reduced output. Always secure the subwoofer to the enclosure with all mounting screws to prevent vibrations from loosening components over time.
- Inspect wire gauge adequacy: 8-gauge for runs over 15 feet.
- Monitor amplifier temperature during operation.
- Recheck connections if distortion appears after initial setup.
Key Specifications for 4-Ohm Competition-Grade 12-Inch Subwoofers
Select a 12-inch competition subwoofer with a nominal impedance of 4 Ω only if your amplifier bridges to a single 4 Ω load or runs in stereo at 2 Ω per channel. Verify the RMS power rating matches the sub’s 300–600 W range; exceeding this risks thermal shutdown or cone distortion. Always pair with oxygen-free copper wire (12–10 AWG) to minimize resistance drop–even a 0.5 Ω rise can cut output by 15%.
Power Handling and Sensitivity Metrics
- RMS Rating: 500 W (continuous) ensures reliability under aggressive bass lines; avoid amplifiers rated below 400 W to prevent clipping.
- Peak Power: 1,000 W (dynamic) defines transient capability–crucial for EDM or trap bass drops exceeding 60 Hz.
- Sensitivity: 86 dB at 1 W/1 m translates to louder output per watt; compare to competitors at 84 dB for efficiency gains.
- Frequency Response: 25–500 Hz (-3 dB) covers sub-bass fundamentals; sealed enclosures hit 30 Hz, ported designs extend to 20 Hz.
Dual 4 Ω voice coil configurations demand parallel wiring (resulting in 2 Ω total) for amplifiers that require lower impedance loads. Confirm the amplifier’s minimum impedance spec supports this; most Class D monoblocks handle 1–2 Ω, while multi-channel units often cap at 2 Ω. Use a digital multimeter to measure final impedance after wiring–deviations beyond ±0.2 Ω indicate faulty connections or coil damage. Replace any subwoofers with DC resistance below 3.6 Ω immediately.
Enclosure Matching and Thermal Considerations
- Sealed boxes (1.0–1.5 ft³) deliver tighter bass but require 20% more power than ported designs (2.5–3.5 ft³).
- Vented enclosures must tune to 32–36 Hz for optimal excursion control; mismatches cause port noise or bottoming out.
- Thermal vents or aluminum frames improve cooling–critical for 5+ minute continuous play at peak volumes.
- Foam or rubber surrounds degrade faster under UV exposure; install in trunk or sealed compartments to extend lifespan.
Mechanical Qts (0.45) and compliance (Vas = 48 L) dictate enclosure volume; overfilling sealed boxes compresses excursion limits, while underfilling vented enclosures risks port turbulence. Use modeling software (e.g., WinISD) to validate dimensions before construction. Polypropylene cones paired with high-temp adhesives prevent delamination under 90°F+ ambient temperatures–common in summer car interiors.
Step-by-Step Installation for a 12-Inch Loaded Enclosure at 4Ω Impedance
Begin by disconnecting the vehicle’s battery terminals to eliminate electrical hazards. Identify the subwoofer’s positive (+) and negative (-) terminals, typically marked in red and black. Use a multimeter set to continuity mode to verify terminal polarity if markings are unclear–a reading of 0Ω confirms correct identification.
Select 8-gauge oxygen-free copper cable for amplifier connections, ensuring the length matches your system’s layout. Strip 1/2 inch of insulation from each wire end and crimp ring terminals for secure attachment. For grounding, avoid paint or rust; sand a chassis point near the amplifier down to bare metal and bolt the ground wire directly to the frame.
Mount the amplifier within 18 inches of the subwoofer enclosure to minimize signal loss. Position it on a vibration-resistant surface–plastic trim panels or carpeted surfaces degrade thermal performance. Drill pilot holes if necessary, using self-tapping screws for secure fastening.
Connect the subwoofer’s voice coil to the amplifier’s output terminals, matching polarity. Tighten terminal set screws to 15 inch-pounds of torque–over-tightening damages internal connections, while under-tightening causes intermittent failures. Verify impedance with the multimeter: touch the probes to the amplifier’s output terminals; a stable 4Ω reading confirms proper configuration.
| Component | Wire Gauge | Recommended Length (ft) | Torque Spec (in-lbs) |
|---|---|---|---|
| Power Cable | 8 AWG | 12-16 | N/A |
| Ground Cable | 8 AWG | ≤3 | 20 |
| Speaker Wires | 12 AWG | ≤8 | 15 |
Route signal cables perpendicular to power wires to avoid electromagnetic interference. Maintain a 6-inch separation between RCA and power cables; bundle with zip ties every 12 inches. Secure loose cables under door sills or along existing vehicle harness channels–never tape or loosely drape wires.
Reconnect the battery, then power on the system and test with a 50Hz sine-wave signal at half volume. Observe the subwoofer’s excursion–symmetrical movement confirms correct polarity. If distortion occurs, recheck connections, impedance, and amplifier gain settings; most faults stem from improper grounding or loose terminals.
Critical Troubleshooting Checks
If no sound emits, verify fuse integrity on both the amplifier and battery side–a blown 80A fuse often indicates a short. For overheating, ensure airflow around the amplifier and inspect for corroded terminals. Humming noises require shielding RCA cables; relocate them away from alternators or ignition systems.
