Kohler Engine Ignition Coil Wiring Guide with Diagram and Connections
Check the primary circuit first by disconnecting the spark plug lead and grounding it to the engine block. Use a multimeter set to ohms and probe the terminals–expected resistance ranges from 0.5 to 1.5 ohms for the primary side. Values outside this window indicate a faulty component needing replacement. Secondary circuit readings should fall between 6,000 to 15,000 ohms; lower figures signal internal shorts, while higher ones suggest open windings or corroded terminals.
Inspect the trigger signal source–the magneto–by testing for AC voltage at the input leads while cranking. A healthy system delivers 5 to 15 volts AC. If absent, examine the flywheel key and stator plate alignment. Misalignment throws timing off by 3–10 degrees, causing weak or no spark. Clearance between the flywheel magnets and stator should measure 0.010–0.015 inches–use a feeler gauge to verify.
For dual-output configurations, trace each lead back to its source. The kill switch wire–often black–must connect to ground through a normally closed contact. A broken or oxidized switch interrupts the circuit, preventing shutdown. Test continuity with the switch engaged and disengaged. Replace if resistance exceeds 0.5 ohms in the closed position.
Use heat-shrink tubing on all splices to prevent moisture ingress. Corrosion in connectors accounts for 40% of ignition failures. Apply dielectric grease to terminals after reassembly. Label each wire before disassembly–factory schematics may omit color-coding for aftermarket components, complicating reassembly.
If voltage drops below specifications at the output terminal, check the battery (if applicable). A fully charged 12V battery should read 12.6V at rest; 10.5V or lower indicates a weak or sulfated cell. Replace batteries with less than 80% cranking amps of their rating. For capacitor-discharge systems, ensure the charge circuit delivers 200–400V DC to the storage capacitor before firing.
Connecting Engine Spark Components: A Practical Guide
Begin by identifying the two primary terminals on the magneto assembly: the high-voltage output and the ground reference. The former typically connects to the spark plug lead via a thick, insulated cable, while the latter must attach to the engine block using a braided or solid wire of at least 16-gauge thickness. Verify the gap between the flywheel magnets and the stator core–it should measure between 0.010 and 0.014 inches (0.25 to 0.35 mm) for optimal electrical induction. Adjust the air gap by loosening the stator mounting screws and sliding the component into position before retightening.
Use a multimeter set to the 20 kΩ scale to test the internal resistance of the electromagnetic generator. The expected reading falls between 2.5 and 5 kΩ; deviations indicate either internal shorts or open circuits. If resistance is outside this range, replace the component immediately to prevent misfires or erratic engine behavior. Ensure all connections are free of corrosion–clean terminals with a wire brush and apply dielectric grease to inhibit oxidation, particularly in humid environments.
Route the wiring harness away from moving parts and heat sources, securing it with zip ties or clamps at 6-inch intervals. The high-tension lead must maintain a minimum 0.5-inch clearance from metal surfaces to prevent voltage leakage. If the system includes an auxiliary circuit (e.g., for battery charging), confirm that the rectifier’s AC inputs correspond correctly to the stator’s output terminals–miswiring here can reverse polarity and damage sensitive electronics.

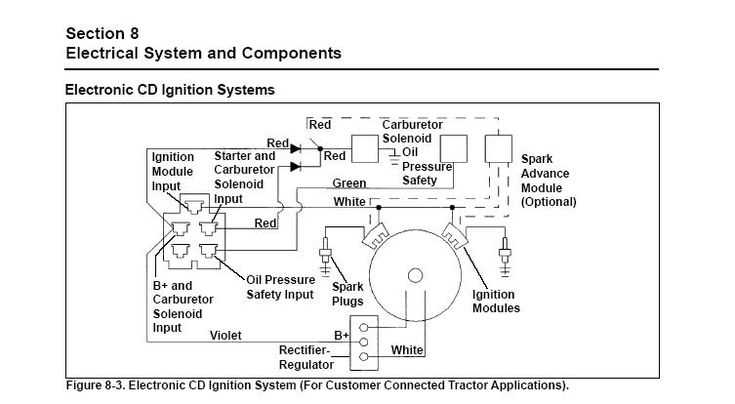

For engines with capacitor discharge modules, the trigger wire (usually blue) attaches to the ignition control unit’s specified terminal. Check the service manual for the precise pinout, as configurations vary by model year. Incorrect pairing may cause delayed spark timing or no spark at all. After installation, crank the engine while observing the spark plug tip with an insulated tool–consistent blue sparks confirm proper operation; orange or intermittent sparks suggest a faulty assembly, improper gap, or insufficient ground.
Revise the timing if the engine runs unevenly at idle. Locate the timing mark on the flywheel and align it with the pointer while the piston is at top dead center. Rotate the stator plate incrementally–no more than 2 degrees at a time–until the strongest spark occurs. Lock the stator in place and recheck the air gap to ensure no accidental displacement occurred during adjustment.
Locating Engine Magneto Terminations and Their Roles
Trace the primary connection points by examining the component’s casing for labeled ports–typically marked with “+”, “–” (or GND), and “S”–or physically distinguished by blade or bullet connectors. The positive terminal delivers pulsed voltage to the spark plug, while the ground ensures circuit closure; swap these, and misfiring or engine stalling occurs instantly. For single-cylinder setups, the “S” (if present) links to the stop switch–grounding it halts combustion. Verify polarity with a multimeter: attached probes should read 0.5–2.0 ohms across primary terminals and 5,000–15,000 ohms across secondary leads when testing resistance.
| Terminal | Common Color Codes | Function | Failure Symptoms |
|---|---|---|---|
| Positive (+) | Red, orange, or striped | Transmits high-energy pulse to plug | Weak spark, hard starting |
| Ground (–) | Black, brown, or bare wire | Completes circuit; returns to chassis | No spark, engine cuts out |
| Stop (S) | Green, blue, or blue-striped | Shorts charge when grounded | Engine won’t shut off |
Inspect terminal corrosion every 50 operating hours–oxidized contacts drop voltage by 20–30%, degrading performance. Use dielectric grease on connectors to prevent moisture ingress, especially in high-vibration applications. If replacing the unit, match the primary resistance spec (±10%) to avoid timing advance or retard issues, which manifest as pinging or rough idle.
Step-by-Step Electrical Linking for Standalone Engine Ignition Systems
Begin by locating the primary power source terminal on the engine’s magneto assembly–typically a threaded stud marked with a “+” symbol. Attach a 14-gauge copper conductor directly to this point, ensuring the connection is secured with a lock washer and nut torqued to 8-10 in-lbs. Avoid overtightening, as distortion of the insulator can disrupt signal integrity.
Route the conductor to the corresponding input on the control module (often labeled “ARM” or “POS”). For engines equipped with a condenser, bypass it entirely–modern capacitor-based modules eliminate the need for this component, reducing misfire risks. If the system includes a kill switch, wire it in series between the magneto and module, using a normally closed switch to maintain circuit continuity during operation.
Key Grounding Practices
Identify the engine’s grounding point, usually a clean, unpainted metal surface near the flywheel housing. Scrape away corrosion and secure a second 14-gauge conductor here with a star washer to ensure minimal resistance. Connect this lead to the module’s “GND” or “NEG” terminal. For dual-lead modules, verify the ground path excludes the spark plug boot–improper grounding here can cause voltage leakage and erratic firing.
Test continuity between the magneto frame and the module’s ground terminal using a multimeter set to ohms. Readings above 0.5 ohms indicate surface oxidation or loose connections; disassemble and reassemble until resistance drops below this threshold. Repeat this check after each major component installation to isolate faults early.
Finalize connections by verifying polarity at the spark generator: the primary lead (from the magneto) must align with the module’s input, while the secondary output–sheathed in heat-resistant silicone–should route directly to the plug without sharp bends. Use dielectric grease on all terminals to prevent moisture ingress, extending service intervals by up to 40%.
Diagnosing Electrical Faults in Small Engine Electrical Components
Begin by testing the primary electrical circuit with a multimeter set to continuity mode. Attach one probe to the terminal leading to the control module and the other to the ground connection. A reading below 5 ohms confirms proper conductivity; values above 20 ohms indicate corrosion or broken strands in the conductor. Replace any compromised leads immediately.
Inspect the magnetic pulse generator for correct spacing–typically 0.012-0.016 inches. Loosen the mounting screws, slide a non-magnetic feeler gauge between the trigger wheel and sensor, then retighten. Misalignment causes erratic signaling, resulting in inconsistent spark delivery or no start conditions. Verify sensor resistance: 150-500 ohms at room temperature.
Examine connectors for oxidation or pushed-out pins. Disconnect power, then gently probe each terminal with a fine wire–bent pins won’t seat properly. Clean contacts with electrical cleaner and a small brush; dielectric grease prevents future corrosion. Check for voltage drop across connections: anything over 0.1V suggests resistance buildup requiring re-termination.
- Primary resistance: 0.5-1.5 ohms
- Secondary resistance: 5,000-15,000 ohms
- Spark plug gap: 0.030 inches
- Laminated core air gap: 0.010-0.020 inches
Look for intermittent faults by wiggling harnesses while monitoring spark output. A test light or inductive pickup tool connected to the high-tension lead reveals dropouts. Concentrate on areas where wires bend or pass near sharp edges–chafing often occurs there. Reinforce vulnerable spots with spiral wrap or reroute away from moving parts.
Evaluating Environmental Factors
Measure insulation resistance after exposure to moisture. Disconnect all terminals, set the multimeter to 20MΩ, and probe the conductor against the metal housing. Values below 10MΩ indicate deteriorated insulation; dry thoroughly and apply silicone-based sealant to the entry points. Extreme temperature swings can cause connector expansion and contraction, leading to loose connections–use crimp sleeves with adhesive lining for permanent repairs.
Compare readings against the original spec sheet for deviations. Subtle shifts in resistance can hint at internal faults before total failure occurs. Record baseline measurements during initial setup for accurate trend analysis. Replace components showing more than a 10% drift from factory specs.
- Disconnect battery negative terminal first
- Label each lead with masking tape for correct reattachment
- Remove fasteners securing the assembly’s cover
- Visually inspect internal leads for melting or discoloration
- Test continuity through both primary and secondary circuits
- Reassemble, ensuring all seals are intact to prevent water ingress
Final Verification Steps
Reconnect power and monitor for smooth operation under load. Listen for abnormal buzzing or clicking indicating arcing. A portable oscilloscope connected parrallel to the output lead provides a waveform view–distorted patterns reveal faulty triggering or internal short circuits. Keep spare modules on hand for quick swaps during diagnostics.
