Complete L6 30 Plug Wiring Diagram Guide for Electricians
The L6-30 twist-lock connector follows a standardized pinout for 240V single-phase or split-phase power delivery. Terminal X (brass-colored) connects to the hot line (L1), terminal Y (silver) serves as the second hot line (L2) or neutral in split-phase setups, and the U-shaped G (green) terminal grounds the system. Verify correct alignment by matching the keyed slot on the receptacle to the male prong orientation–misalignment risks short circuits or reversed polarity.
For high-amperage equipment (up to 30A), use minimum 10 AWG copper conductors with THHN/THWN insulation rated for 75°C. Strip insulation back 0.5 inches and secure wires with a torque screwdriver set to 12 in-lbs to prevent loosening under load. Avoid aluminum conductors–their lower conductivity requires larger gauges (8 AWG) and antioxidant compound at termination points.
Test continuity using a multimeter set to ohms (Ω) before energizing. Probe between X-Y (should read ~0.1Ω for valid connection) and X-G/Y-G (infinite resistance confirms no ground faults). For 3-phase adapters, relocate the J-box neutral to the neutral bus and connect the remaining hot to Y–label wires clearly to prevent future misconfiguration.
Common pitfalls include damaged twist-lock mechanisms (replace if prongs bend >5°) and undersized strain relief clamps. Use a 1-inch NM cable clamp for 10 AWG wire bundles to comply with NEC Section 314.17. If extending circuits, splice with listed solderless connectors in a sealed junction box–exposed splices violate NEC Article 300.13.
L6-30 Connector Assembly: Step-by-Step Configuration
Start by identifying the terminal slots: X, Y, and G. Slot X handles the live (hot) conductor, while Y secures the return (neutral). The G terminal grounds the connection–non-compliance risks equipment damage or electrical hazards. Verify conductor gauge matches the 30A rating: use 10 AWG copper wire minimum; thinner strands will overheat under load.
Strip insulation precisely–0.75 inches–for each conductor. Excessive bare wire increases short-circuit risk, while insufficient exposure weakens contact. Twist strands tightly to prevent fraying; loose strands cause arcing. Insert wires into their designated terminals, ensuring no insulation enters the terminal clamp. Tighten screws to 15 in-lbs torque; under-tightening leads to high-resistance joints, over-tightening deforms terminals.
Follow the rotation sequence: X → Y → G when attaching to the receptacle. This order minimizes accidental contact with live components during installation. Test continuity with a multimeter–set to resistance mode–before energizing. A reading above 0.5 ohms indicates a faulty connection; disassemble and re-check contacts.
Neutral bonds differ for portable vs. hardwired setups. For plug-in devices, maintain isolation between neutral and ground–they must never connect downstream of the main panel. Hardwired configurations allow ground-neutral bonds only at the service entrance, per NEC 250.142(B). Violations create parallel paths for fault currents, compromising safety.
Use strain relief where cables enter the connector shell. Bend the cable gently–no sharper than an 8-inch radius–to avoid conductor fatigue. Secure the shell halves with screws torqued to 8 in-lbs. Loose shells expose conductors to environmental hazards; overtightening cracks the housing, reducing IP rating.
Label circuits clearly during installation. Mark both the connector body and breaker panel with voltage (250V), current (30A), and phase type (single-phase). Mislabeling causes cross-feeds in multi-device setups, damaging equipment or voiding UL certifications.

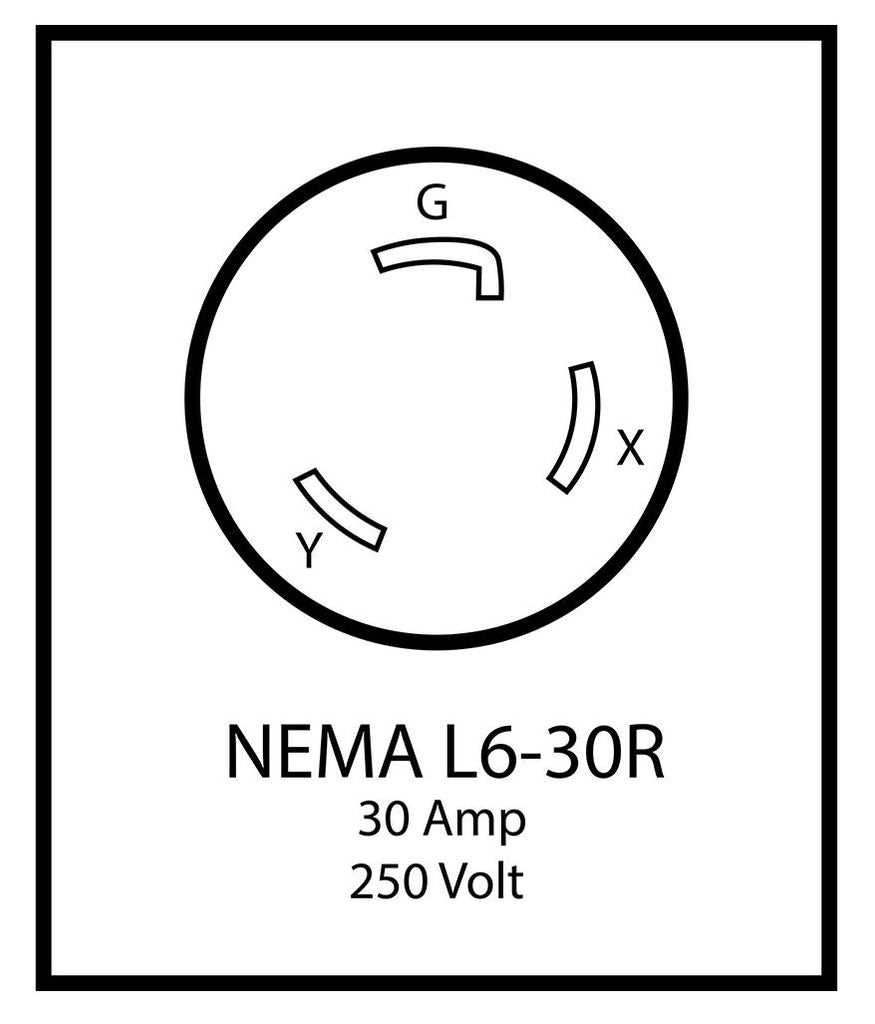

Identifying the L6 30 Connector Terminals and Their Roles
Locate the ground terminal first–marked with a green hex nut or embossed “G” on the male L6 30 assembly. This prong sits opposite the neutral and hot contacts, ensuring safe dissipation of fault currents. Verify continuity between this terminal and the equipment chassis using a multimeter set to ohms; readings should approach zero. For female receptacles, confirm the ground slot aligns with the longest blade opening to prevent miswiring.
Labeling and Testing Active Terminals
- Hot terminal (X): Positioned at the “9 o’clock” angle (viewed from the front), this brass-colored screw connects to the black or red conductor. Measure 240VAC between this and the ground terminal; incorrect voltage indicates reversed polarity.
- Neutral terminal (W): Silver screw at “3 o’clock” links to the white wire. Test for 120VAC between this and hot–readings should match; deviations suggest an open neutral or load imbalance.
- Key identification: Male terminals use flat blades (with the neutral blade wider for NEMA compliance), while female outlets feature corresponding slots. Misaligned insertion risks overheating; always compare against NEMA L6 30 specifications before energizing.
For stranded conductors, twist strands clockwise before securing under screws to prevent fraying. Torque terminal screws to 12–15 in-lbs–overtightening damages threads, while under-tightening causes arcing. If replacing an assembly, label conductors with heat-shrink tubing to preserve phase orientation.
Step-by-Step Assembly for L6 30 Connector Configurations
Disconnect power at the source and verify voltage absence with a multimeter before manipulating terminals. Strip ¾ inch of insulation from each conductor–black (hot), red (hot), white (neutral), and green (ground)–using 12 AWG wire strippers. Insert the black wire into the terminal marked “X” or “1,” torquing the screw to 12 in-lbs; repeat for red in “Y” or “2,” white in “W” or “N,” and green in the grounding slot. Ensure no exposed copper extends beyond the terminal clamp–excess must be trimmed to prevent short circuits. Twist stranded wires clockwise before insertion to maintain bundle integrity and inhibit fraying.
Verification and Safety Checks
Reconnect power and measure voltage between terminals: 240V across hot terminals (black-red), 120V from each hot to neutral (black-white, red-white), and zero voltage between ground and neutral. If readings deviate by more than 5%, recheck connections for improper seating or corrosion. Secure the connector housing with the provided strain-relief clamp, compressing it until the cord resists tugging with 10 lbs of force. Apply insulating tape over the back of the assembly if exposed conductors are visible, ensuring no gaps remain. Test operation under load before deploying in fixed installations.
Common Mistakes When Connecting an L6-30 Connector and How to Prevent Them
Reversing the line and neutral terminals is one of the most frequent errors during installation. The L6-30 configuration requires the hot wires (X and Y) to occupy the two flat prongs, while the neutral (W) connects to the U-shaped slot. Swapping these leads to improper grounding and potential equipment malfunction. Always verify terminal labels before securing conductors–X and Y should carry 120V each relative to neutral, forming a 240V circuit. Use a multimeter to confirm phase relationships; the voltage between X and Y should measure 240V, while readings between either hot and neutral should be 120V.
Omitting strain relief causes gradual conductor fatigue, especially in high-vibration environments. The L6-30 housing includes a built-in clamp designed to grip the cable jacket–not the individual wires. Failing to tighten this properly allows movement inside the connector, leading to intermittent connections or short circuits. Secure the cable with the clamp before attaching conductors, ensuring the jacket extends 1/4 inch past the clamp. For extra protection, wrap the cable entrance with electrical tape to prevent fraying from sharp edges inside the housing.
Underestimating torque specifications often results in loose terminals. The L6-30’s screw terminals require 12–15 inch-pounds of torque–just enough to prevent wire slippage without damaging the threads. Over-tightening strips screws, while under-tightening causes heat buildup at connection points. Use a calibrated torque screwdriver and check tightness after initial installation, then again after 24 hours of operation. Copper conductors should be looped clockwise under screws to match tightening direction; aluminum wires require antioxidant compound applied before securing.
Incorrect Wire Gauge Selection
| Current (A) | Minimum Copper Wire Size (AWG) | Maximum Distance (ft) |
|---|---|---|
| 20 | 12 | 50 |
| 25 | 10 | 40 |
| 30 | 8 | 30 |
Using undersized conductors creates voltage drop and overheating risks. The L6-30’s 30A rating demands 8 AWG copper wire for runs up to 30 feet. Longer distances require larger gauges; every additional 10 feet beyond 30 feet necessitates one size increase (e.g., 6 AWG for 40 feet). Aluminum conductors must be two sizes larger than copper for equivalent ampacity. Measure run length from breaker panel to device, not just receptacle, and account for all bends and elevation changes that increase resistance.
Neglecting to test continuity after assembly invites latent failures. After connecting all terminals, verify each conductor’s path with a continuity tester. Check for shorts between hots (X/Y), hot-to-neutral, and hot-to-ground. Then, energize the circuit and recheck voltages under load. A proper L6-30 setup should show 240V across the hots and 120V from either hot to neutral–deviations indicate crossed wires or a faulty breaker. Always test with both a digital multimeter and a non-contact voltage detector; the latter confirms no stray current on the housing.
Misidentifying the ground terminal compromises safety. The L6-30’s ground should connect to the green hexagonal screw, not the U-shaped neutral slot. Some installers confuse the neutral and ground due to similar shapes, creating a parallel ground path through neutral–a violation of NEC Article 250. Label the green ground screw before starting work, and wrap it with green electrical tape to prevent accidental swaps. Remember that neutral and ground should only meet at the service panel; separating them at the connector ensures proper fault current return during shorts.
Inadequate Insulation Preparation
Stripping too much insulation exposes conductive material to adjacent terminals, while leaving too much prevents proper contact. The L6-30 requires 0.5 inches of exposed conductor–just enough to wrap halfway around the screw terminal. Use wire strippers calibrated for 8–10 AWG to avoid nicking the copper, which weakens the wire and accelerates corrosion. For stranded wire, twist strands tightly before insertion; loose strands can short against neighboring screws. After securing, tug each conductor to confirm mechanical strength–if it pulls free, strip an additional 1/8 inch and reattach.
