Step-by-Step Guide to Building a DIY Lamp Dimmer Circuit

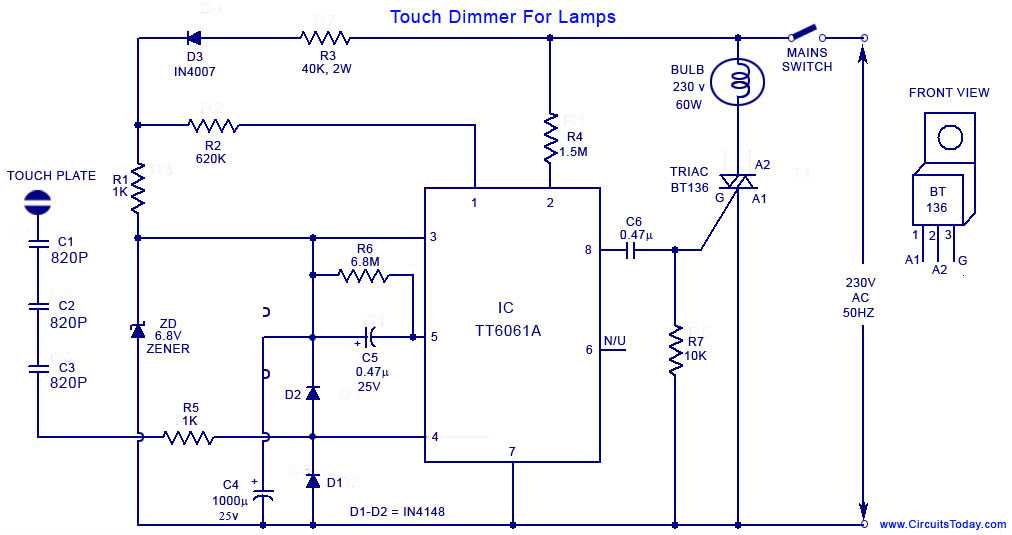

lamp dimmer schematic diagram

Use a triac-based regulator to adjust brightness levels for resistive loads like incandescent bulbs. A MOC3021 optocoupler isolates the microcontroller from high-voltage AC, while a BT136 triac handles switching. Connect a 100KΩ potentiometer to set the firing angle, with a 0.1µF capacitor smoothing the trigger pulse.

For safety, add a snubber circuit (470Ω resistor + 0.01µF capacitor) across the triac to suppress voltage spikes. Ensure the PCB traces handling mains voltage are at least 3mm apart to prevent arcing. Test with a 120V/230V AC source but limit initial trials to low-power loads (≤60W).

Critical components: a DIAC (DB3) for stable gate triggering, a 1N4007 diode to protect the optocoupler, and a 10KΩ resistor to bleed residual charge from the capacitor. Avoid soldering directly to the triac’s heat sink–use a TO-220 insulated mounting kit.

If flickering occurs, recalculate the RC timing network using τ = R * C (target 2–10ms delay). For dimming LEDs, replace the triac with a MOSFET driver and adjust the PWM frequency to >1kHz to eliminate audible hum. Verify ground continuity before powering on.

Adjustable Lighting Circuit Blueprint

Start by selecting a triac with a current rating at least 20% above the maximum load. For a 60W bulb, a BTA16-600C handles up to 16A, providing sufficient overhead for inrush currents.

Wire the AC input through a fuse rated for 1.5x the expected current–use a 2A slow-blow fuse for 230V circuits. Position it immediately after the mains connection to protect downstream components.

The phase control element–typically a DIAC like DB3–triggers the triac. Pair it with a 47K potentiometer and a 0.1μF capacitor to form the RC timing network. Ensure the capacitor is X2-rated for 275VAC to withstand voltage spikes.

Include a snubber circuit (100Ω resistor in series with a 0.01μF capacitor) across the triac’s MT1 and MT2 terminals. This suppresses commutation noise, preventing false triggering and extending component lifespan.

Ground the metal parts of the assembly, especially if the enclosure is conductive. Use a 4.7K resistor between the triac’s gate and MT1 to stabilize triggering and reduce EMI.

Component Layout Considerations

Mount the triac on a heatsink for loads exceeding 40W. Use thermal paste and secure it with M3 screws, ensuring the tab is isolated if electrically live. For compact designs, a TO-220 package with a 5°C/W heatsink suffices for 100W loads.

Separate high-voltage and low-voltage traces by at least 3mm on the PCB. Use 2oz copper for power paths to prevent overheating. For DIY projects, wire-wrapping or perfboard with 1mm spacing works, but avoid breadboards–they lack current capacity.

Test with an oscilloscope before full assembly. Probe the triac’s gate at minimum and maximum settings to confirm a smooth 0–180° conduction angle. Irregular waveforms indicate faulty timing components or poor solder joints–recheck the RC network.

For modular designs, add a bypass switch to disable the control circuit, allowing full brightness. Use a DPDT relay rated for 250VAC to isolate the circuitry completely when engaged.

Choosing the Right Triac for Your Light Control System

Select a triac with a current rating at least 30% higher than the maximum load. For resistive loads like incandescent bulbs, a BTA16-600B (16A, 600V) handles 10A reliably, while inductive loads demand BTA25-600B (25A) or similar. Check the datasheet’s I_T(RMS)–never exceed 70% of this value in sustained operation. Snubberless triacs (e.g., BTA12-600CW) eliminate the need for an RC network, simplifying PCB layout for low-power setups.

Voltage headroom matters more than maximum ratings. A 600V triac (e.g., MAC223A8) tolerates 230VAC mains with 10% spikes, but 800V models (e.g., Q4025R5) are mandatory for 400V industrial circuits or areas with unstable grids. For dual-phase systems, use isolated-tab devices like the BTB24-800BRG–non-isolated tabs risk shorting phases through heatsinks. Always pair the triac with a gate driver that matches its I_GT (gate trigger current); optocouplers like MOC3021 drive triacs up to 1A I_GT, while MOC3063 handles 10mA–50mA for sensitive gates.

Key Parameters to Verify Before Purchase

I_TSM (Surge current): Ensure 70A+ for 25A triacs (e.g., BTA25-600B) to survive inrush from tungsten filaments or motor starts.
dV/dt (Critical rate of rise): Choose ≥500V/µs for noisy environments; ≤100V/µs triacs (e.g., Z0103MA) misfire with dimmed LED drivers.
Package: TO-220 isolates tabs for board mounting; RD91 (e.g., BT137) suits chassis-mount applications but requires insulating pads if grounded.
I_H (Holding current): Triacs with I_H >35mA (e.g., BTA12) prevent false triggering in low-power standby modes.

For PWM-controlled brightness adjusters, prioritize triacs with low t_q (turn-off time). Standard triacs like BTA08-600C need ≥5ms between AC zero-crosses to reset; high-speed variants (e.g., T410-600T) recover in <1ms, enabling 20kHz pulse modulation without flicker. Snubberless triacs pair well with microcontrollers–eliminate RC components, reducing BOM cost by ~$0.30 per unit. Test prototypes with an oscilloscope: verify gate pulses align with zero-crossing ±100µs to avoid audible hum in transformers.

Thermal management dictates lifespan. A triac dissipates ~0.8W at 5A; attach a heatsink with ≤6°C/W thermal resistance for ambient temperatures up to 50°C. Torque screws to 0.5Nm–overtightening cracks ceramic cases. For sealed enclosures, derate current by 20% or use liquid-metal thermal pads. Replace electro-mechanical relays in legacy designs with triacs: a single BTA25-800B replaces up to 10A SPST relays, cutting switching noise and contact wear entirely.

Assembling a 230V AC Light Control Circuit: Practical Guide

Gather components rated for 250V or higher: a TRIAC (e.g., BT136), DIAC (DB3), potentiometer (470kΩ linear), 100nF capacitor (X2 class), 10kΩ resistor (1W), and a heatsink for the TRIAC. Verify each part’s voltage tolerance matches the mains supply before soldering.

Connect the TRIAC’s gate to the DIAC’s cathode, then wire the DIAC’s anode to the potentiometer’s wiper. Mount the potentiometer on an insulated panel–metal casings require isolation to prevent shorts. Solder the 100nF capacitor in parallel with the potentiometer’s outer terminals to stabilize phase control under variable loads.

Attach the 10kΩ resistor in series with the live wire to limit inrush current; failure risks damaging the TRIAC’s gate.
Fix the TRIAC to the heatsink using thermal paste and a mica insulator–mains voltage mandates proper grounding of the heatsink.
Enclose the circuit in a non-conductive housing; drill ventilation holes if continuous operation exceeds 100W.

Test with a multimeter in AC voltage mode across the TRIAC’s MT1 and MT2 terminals–adjust the potentiometer to observe smooth voltage ramping from 5V to 230V. If flickering occurs, replace the 100nF capacitor with a 220nF unit to broaden the conduction angle. Calibrate the potentiometer’s full rotation to ensure full dimming range without sudden brightness spikes.

For inductive loads (e.g., transformers), add a snubber circuit: a 47Ω resistor in series with a 100nF capacitor across the TRIAC’s MT1/MT2 terminals. This prevents turn-off voltage spikes from triggering unintended conduction. Double-check all connections with a continuity tester before powering the circuit–reverse polarity of the mains wires will destroy the TRIAC instantly.

Calculating Resistor and Capacitor Values for Smooth Light Control

For a 220V AC circuit with a triac-based regulator, use a phase-shift network to achieve gradual intensity adjustment. Start with a 470kΩ resistor for coarse tuning–this value balances responsiveness and stability. Pair it with a 0.1µF X2-rated capacitor for mains applications to ensure safety under voltage spikes. For finer control, reduce the resistor to 220kΩ and add a 0.047µF capacitor; this combination delays the gate pulse by ~2.5ms, smoothing transitions.

Phase-angle calculations follow t = RC ln(1/(1−V_gate/V_peak)). At 50Hz, V_peak = 311V. To trigger at 90° (half brightness), solve for R and C where t = 5ms. A 330kΩ resistor with a 0.022µF capacitor yields ~4.7ms delay, suitable for mid-range adjustments. Below 30% intensity, increase capacitance to 0.068µF to prevent flicker.

Intensity Range (%)	Resistor (kΩ)	Capacitor (µF)	Phase Delay (ms)
90-100	470	0.01	1.2
60-80	330	0.022	2.4
30-50	220	0.047	4.7
0-20	150	0.1	9.5

Thermal drift affects resistor values: metal-film types (±1%) outperform carbon-film (±5%) for consistency. For transient suppression, place a 10Ω resistor in series with the capacitor to limit inrush current. Verify timing with an oscilloscope–adjust R/C ratios empirically if the load exceeds 50W, as inductive kickback alters phase behavior.

For low-voltage DC applications (12V), use a MOSFET driver with R = (V_gate − V_threshold) / I_gate. A 10kΩ gate resistor and 1µF tantalum capacitor provide ~10ms rise time, preventing abrupt on-off cycling. Prolonged hold times require adding a pull-down resistor (1MΩ) to discharge residual gate charge.

Parallel RC networks offer linear dimming profiles. Combine a 1kΩ resistor with a 10µF electrolytic capacitor for a 10Hz cutoff frequency–sufficient for smooth PWM control. For audio-sensitive environments, use polypropylene capacitors (low ESR) to eliminate buzz from switching harmonics.

Safety margins dictate derating: resistors should handle 2× the expected wattage, and capacitors must exceed line voltage by 20%. For 220V AC, select a 400V capacitor. Leakage currents in capacitors (>0.5µA) degrade performance–test with a multimeter in DC mode after 1 minute of charging.

Hysteresis in manual potentiometers causes abrupt jumps near endpoints. Replace linear-taper pots with logarithmic (audio) types–200kΩ logarithmic pots pair well with 0.1µF capacitors, reducing sensitivity at low settings. For digital control, use a 16-bit DAC with a 4.7kΩ series resistor to interface with triac drivers.
