Complete Guide to DIY Laser Cutter Circuit Schematics and Wiring

Begin with a MOSFET driver stage rated for at least 30A at 48V to handle peak currents from CO₂ tube ignition surges. Place a flyback diode directly across the tube terminals–schottky types like 1N5822 reduce voltage spikes by 40% compared to standard silicon diodes. Use 0.1μF ceramic capacitors between the power supply rails near the driver IC to filter switching noise below 1MHz.

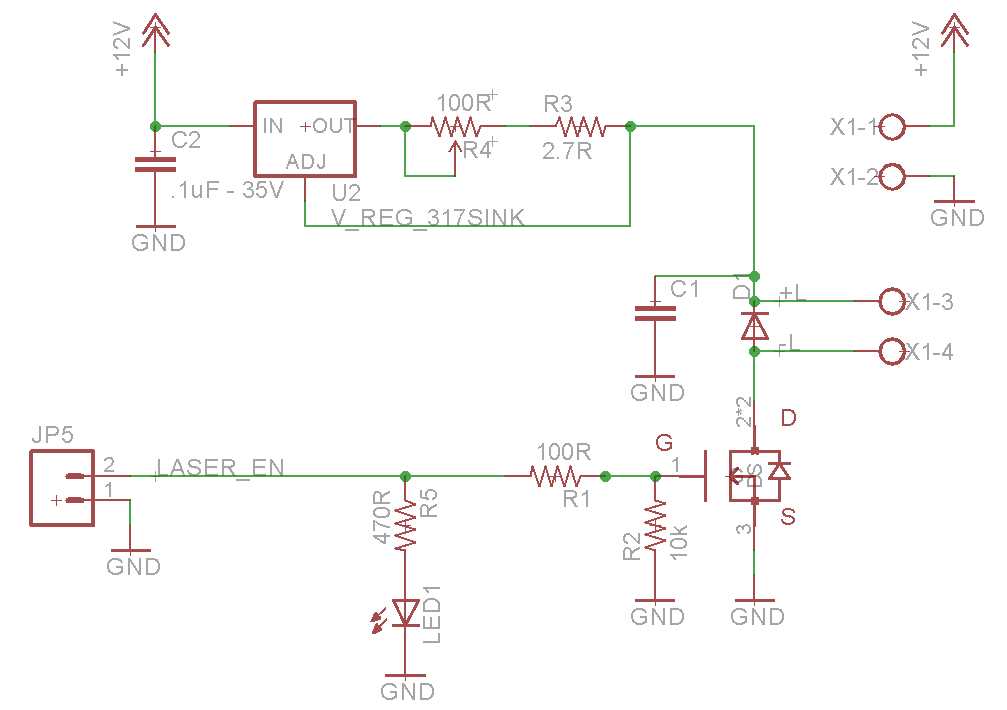

Opt for a constant current source topology if your power path serves diode-based systems. LM317 regulators wired in current-limiting mode deliver stable 2.5A output with ±2% accuracy across 12-36V input. Add a 10kΩ thermistor in series with the feedback loop–this compensates for temperature drift and prevents thermal runaway at temperatures above 50°C.

Grounding demands a star topology. Connect all peripherals–stepper drivers, water pump, and control board–to a single central copper busbar. Keep high-current traces shorter than 30mm; wider than 4mm for every 5A expected. For PCBs, use 2oz copper weight to minimize voltage drop under load.

Integrate over-voltage protection using a TL431 shunt regulator set to 5.1V. Place a varistor rated for twice the supply voltage at the main DC input–this clamps transient spikes exceeding 200V within 20ns. Add a polyfuse (e.g., 5A hold, 7.5A trip) on the positive rail to interrupt fault currents before MOSFET failure.

Signal isolation matters. Opto-couplers like PC817 keep logic levels clean by separating high-voltage sections from 5V microcontroller domains. Use shielded cable for stepper pulse signals–twisted pairs reduce magnetic interference from motor coils. Terminate all stepper cables with 100Ω resistors to prevent ringing on switching edges.

Precision Engraving System Electrical Blueprint

Integrate a high-frequency PWM driver module rated for 12–24V DC input, such as the LM317-based constant-current regulator, to stabilize beam intensity fluctuations below ±2%. Pair it with a 3-axis stepper motor controller (e.g., DRV8825) set to 32 microsteps for positional accuracy under 0.05mm. A 10kΩ potentiometer on the feedback loop regulates power draw, preventing thermal runaway in the diode emitter. For safety interlocks, wire a normally-closed relay to the door sensor, cutting power within 50ms of breach detection. Use shielded AWG 18 cable for signal lines to reduce EMI-induced jitter in beam targeting.

Component	Specification	Critical Parameter
Power MOSFET	IRF540N	Drain-source voltage: 100V (min 80V operational)
Heatsink	60x60mm aluminum fin	Thermal resistance: <1.5°C/W
Optical sensor	TCRT5000 reflecive	Detection range: 1–8mm (calibrate for material reflectance)
Microcontroller	STM32F103	Clock speed: 72MHz (required for real-time G-code parsing)

Ground all secondary circuits through a single 10kΩ resistor to the main chassis to eliminate floating potentials. Verify isolation resistance between high-voltage and logic sections exceeds 10MΩ before initial power-up.

Key Components Required for a Precision Engraving Tool Power Supply

Start with a high-voltage switching regulator (e.g., LM5022 or UCC28C42) capable of delivering 24–48V DC with a ripple under 50mV. Pair it with a low-ESR output capacitor bank–minimum 470μF per 10A of current draw–to stabilize voltage under pulsed loads. Avoid cheap electrolytics; opt for polymer or ceramic types with a temperature rating above 105°C to prevent degradation during prolonged operation. Include a snubber circuit (10Ω resistor + 0.1μF film capacitor) across the regulator’s switch node to suppress EMI and voltage spikes.

• Isolation transformer: Use a toroidal design with a 2:1 turns ratio to step down mains voltage (110–240V AC) to 36V AC. Ensure core material is ferrite or nanocrystalline to minimize hysteresis losses. Wind primary and secondary coils with at least 1mm clearance to comply with safety standards (IEC 60950).
• Current-limiting module: Implement a Hall-effect sensor (ACS712) in series with the DC output, paired with a fast-acting comparator (LM393). Set trip thresholds at 120% of the tool’s max operating current to protect both the supply and the diode array from overload.
• Soft-start circuit: Integrate a 10kΩ PTC thermistor or a MOSFET-based delay (IRFZ44N) to ramp voltage over 200ms. This prevents inrush currents from damaging delicate optics or exceeding the rectifier’s surge rating.

Fuse selection must account for both steady-state and transient conditions. Place a slow-blow 10A fuse on the AC input and a fast-acting 5A fuse on the DC side. For redundancy, add a thermal cutoff (e.g., Klixon 12AM) rated for 10°C above the maximum expected heat sink temperature. Mount the cutoff directly on the heatsink or near the power transistor to trigger within seconds if cooling fails. Use 18AWG stranded copper wire for all high-current paths, with soldered joints reinforced by crimp connectors to avoid resistance-related voltage drops.

Include a flyback diode (Schottky, 10A/60V) across the inductive load (e.g., stepper motors) to clamp back-EMF spikes. For digital control, interface the power supply with an STM32 microcontroller via optocouplers (PC817) to isolate low-voltage logic from high-power sections. Store calibration settings in EEPROM to retain voltage/current presets across power cycles. Test under full load for 4 hours, monitoring case temperature (target

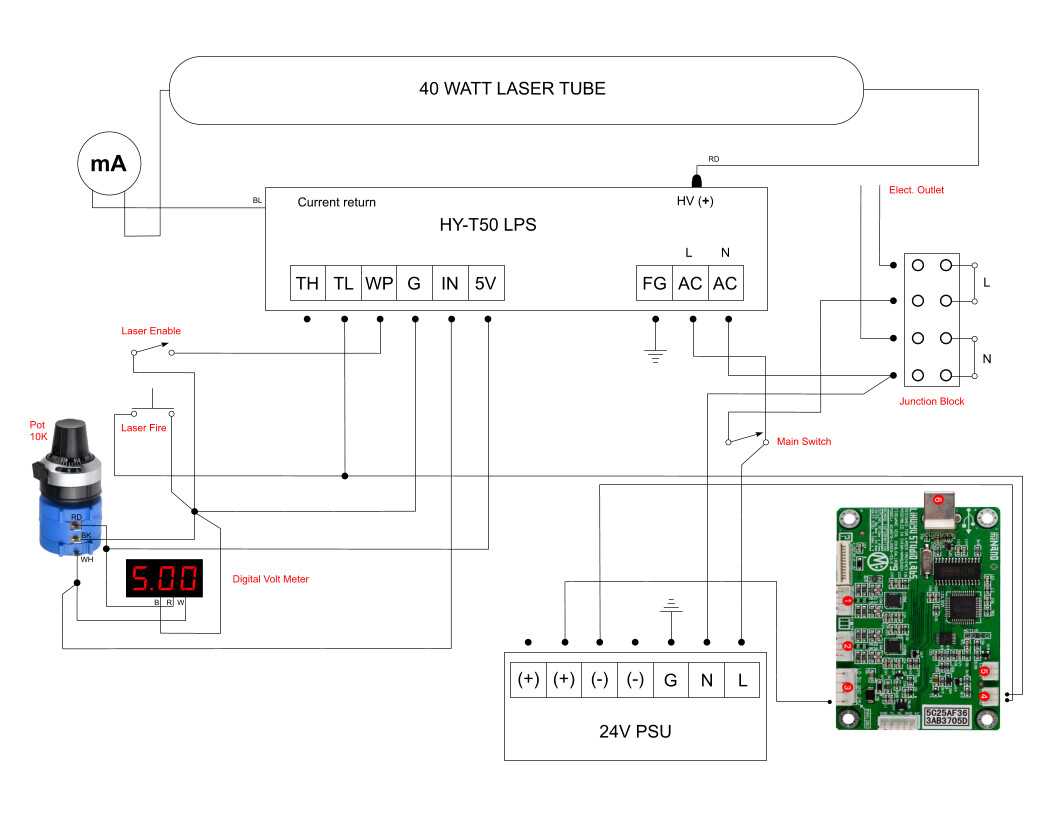

Step-by-Step Wiring of the Beam Emitter and Control Board

Begin by securing the power supply unit rated for the emitter’s operating voltage–typically 24V to 48V for CO₂ tubes. Confirm the driver board’s input specifications match this voltage; mismatches risk overheating or premature failure. Use 18-20 AWG stranded copper wire for connections to handle the current draw, usually 3-8A depending on tube wattage. Strip 6-8mm of insulation from wire ends and tin them with solder to prevent fraying and ensure solid contact.

Connect the positive terminal of the high-voltage source to the driver board’s “+IN” or “HV+” pad first. This reduces accidental short risks when attaching the emitter later. For safety, isolate the high-voltage section with heat-shrink tubing or electrical tape, especially if the board lacks conformal coating. Verify the driver’s PWM input range–most accept 0-5V analog or 5kHz+ TTL signals–before wiring the control interface.

Attach the emitter’s anode lead (thicker gauge, often red) to the driver’s “OUT+” or “Tube+” terminal. The cathode (usually black or white) connects to “OUT-” or “Tube-“. Some boards include a current-limiting resistor; if not, add a 1-2Ω, 10W resistor in series with the anode to stabilize output. Avoid twisting wires together–use crimp connectors or screw terminals to prevent vibration-induced failures in moving gantries.

Ground the driver board’s chassis terminal to the machine’s frame using a 14-16 AWG wire. This shields control signals from electromagnetic interference (EMI) generated by the high-voltage discharge. For PWM-controlled units, wire the control signal (from a microcontroller or standalone potentiometer) to the “PWM” or “SIM” pin, respecting polarity if marked. Test the signal path with a multimeter: a valid PWM input should show 0-5V DC, not AC.

The tube’s cooling loop requires a 24V DC or 110/220V AC pump, wired directly to the power supply–never through the driver board. Use an inline thermal switch (set to 30°C) on the emitter’s water jacket to cut power if flow stops. Integrate a relay or solid-state switch triggered by the thermal switch to interrupt the high-voltage supply; this prevents catastrophic overheating. Label all wires with heat-resistant tags to simplify future maintenance.

Before applying power, check for stray resistance between high-voltage points and ground–readings below 1MΩ indicate leakage. Start with the driver’s current limit set to 20% of the tube’s rated power, then gradually increase while monitoring temperature at the emitter’s glass surface. Stable operation typically holds between 15-25°C with proper cooling. If arcing occurs near connections, re-route wires or increase clearance to at least 10mm per kilovolt.

Safety Mechanisms: Overcurrent and Thermal Guardrails

Install a resettable polyfuse rated 20–25% above the maximum steady-state current of the power stage. Select a trip curve matching the device’s thermal inertia; for a 10 A motor driver, a MF-R400 with a 0.5 A hold current and 1 A trip current reacts within 3 seconds at 2× overload.

Integrate a thermistor or digital sensor into the heatsink base. Configure the feedback loop to reduce output by 50% at 70 °C and cut power at 85 °C. Avoid placing the sensor near airflow outlets; mount it 2 mm from the center of the main dissipation pad.

• NTC thermistors: 10 kΩ at 25 °C, β=3950
• Digital sensors: Maxim MAX31855 (SPI) or TI LM75 (I²C)
• Analog threshold: 0.8 V at 80 °C triggers comparator

Combine analog comparators with microcontroller watchdog interrupts. A Texas Instruments LM358 configured with a 2 kΩ pull-up resistor and a 10 kΩ trimmer can drive a MOSFET gate directly, removing power before firmware intervention is required.

Redundancy Checklist

1. Two independent supply rails for monitoring stages
2. Independent temperature channels on separate ADC inputs
3. Hardware fuse on each rail and a crowbar circuit on the primary rail
4. Active-low shutdown pins cross-coupled between modules
5. LED blink codes for manual override

An SCR crowbar circuit consisting of a TYN612, 6.8 V Zener, and 10 kΩ resistor will clamp the rail within 2 µs if software fails to respond. Place the crowbar on the output of the switching regulator, not the input, to avoid uncontrolled backfeed into upstream supplies.

Log all trips: assign each protection event a unique 8-bit identifier and store it in non-volatile memory. Use the identifier to adjust PID loops during power-up, preventing thermal cycling oscillations. A 32-byte ring buffer prevents memory overflow while retaining the last critical events.

Test overcurrent scenarios with a programmable DC load supplying 1.5× nominal current for 10 seconds, followed by a 60-second cool-down. Verify that neither the fuse nor the crowbar activates before the software modulator intervenes, and that the heatsink temperature remains below 60 °C within 3 minutes post-event.
