How to Build a Simple LED Bulb Driver Circuit with Schematics

For a 12V constant-current source, use an MT7819 or PT4115 controller paired with a 1N4007 freewheeling diode and a 100µH inductor. Adjust output amperage by selecting Rsense–1.2Ω for 300mA, 0.6Ω for 600mA. Input capacitors should be 100µF electrolytic for smoothing, followed by a 1µF ceramic for noise filtering. Keep trace widths at 2.5mm minimum for current paths to prevent overheating.

High-voltage applications demand isolation. A flyback topology with a TNY280PN IC and EE16 core transformer achieves 2kV isolation. Primary winding: 50 turns of 0.3mm wire; secondary: 15 turns of 0.5mm wire. Use a 22µF/400V bulk capacitor on the output to handle transient loads. Add a TL431 shunt regulator with a 470Ω resistor for voltage feedback–this combination stabilizes output within ±3% under 20-100% load variations.

Thermal management dictates longevity. Place a copper pour under the controller IC, extending it to vias connected to a ground plane. For 10W+ designs, pair the IC with a 1°C/W heatsink. PWM dimming requires a MOSFET gate driver like the MIC4127, triggered by a 5V logic signal. Series resistors (1kΩ) on all control lines prevent EMI-induced false triggering. Avoid PWM frequencies below 1kHz–audible noise becomes problematic with cheaper inductors.

Flicker-free operation mandates precise timing. For buck-boost drivers, the LM3409 has built-in 2MHz switching for minimal filter capacitance. Input ripple should stay under 200mV peak-to-peak; use a pi filter (10µH + 2×10µF) if needed. Snubber circuits (10Ω + 1nF) across switching nodes suppress voltage spikes common with long cable runs. Test prototypes with a 60Hz dimming curve to catch subharmonic oscillations before mass production.

Designing a Compact Switching Power Supply for Solid-State Lighting

For consistent illumination performance, select a non-isolated buck regulator with a 600 kHz switching frequency–this balances efficiency and component size. Use an AP3041 controller paired with a 10 μH inductor (saturation current ≥ 800 mA) and a Schottky diode (e.g., 1N5819) to minimize voltage drop. Input capacitance should be 22 μF (X7R dielectric) to suppress ripple, while output capacitance (10 μF) ensures stable current delivery. Adjust feedback resistors to target 250 mA; a 0.2 Ω sensing resistor provides accurate current regulation without excessive power loss.

Critical Component Tolerances

Thermal management demands attention: mount the MOSFET (AO3400A) on a 2 oz copper pour (50 mm² minimum) to prevent derating below 70°C ambient. Select capacitors with ±10% tolerance or better–cheaper alternatives risk premature failure due to voltage spikes. If dimming is required, integrate a PWM input with a pull-up resistor (10 kΩ) to avoid flicker; bypass the IC’s VCC pin with a 0.1 μF ceramic capacitor to filter noise from the auxiliary winding.

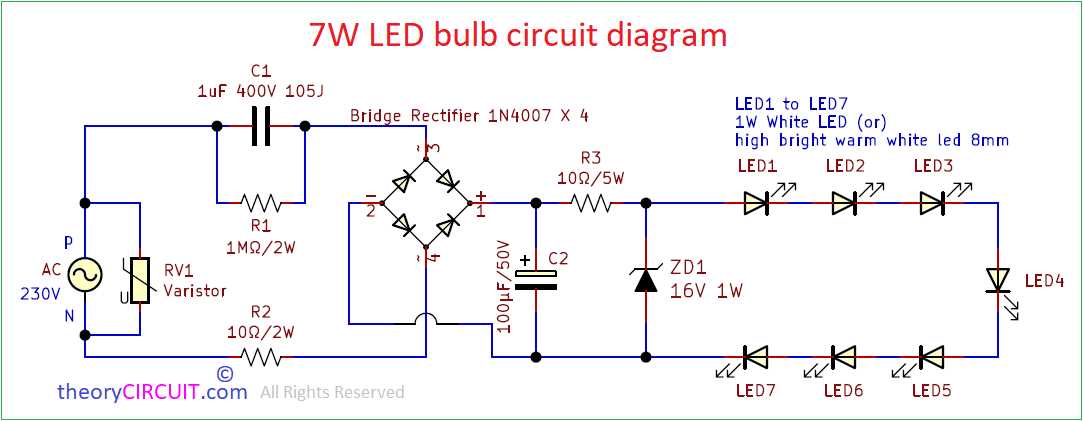

Key Components of a 230V AC to Illumination Source Converter

Begin with a high-voltage bridge rectifier–1N4007 diodes suffice for most setups handling up to 1A. Select diodes with reverse voltage ratings at least 1.5× the peak input voltage (230V AC peaks at ~325V) to prevent breakdown under transient surges. Arrange them in a full-wave configuration to maximize efficiency; half-wave designs waste half the input cycle and introduce flicker at lower frequencies.

Next, incorporate an electrolytic capacitor (22–47μF, 400V) post-rectification to smooth DC ripples. Choose capacitors with low ESR (equivalent series resistance) to minimize heat buildup; low-ESR models last longer under continuous operation. Film capacitors offer superior longevity but occupy more space–weigh trade-offs based on application size and expected lifespan.

Critical to constant-current operation is a switching element–typically a MOSFET like IRF840 or a dedicated IC such as ST’s VIPER series. The chosen component must handle peak currents 2–3× the nominal load current. Drive the gate/base via a dedicated controller or optocoupler if galvanic isolation is required, especially for systems exposed to moisture or dust.

The current-limiting stage relies on either a resistor network or an inductor-based topology. For low-power systems (<10W), a simple 1–5Ω power resistor in series with the output works, but efficiency drops to ~70–80%. For higher power, a buck converter with a ferrite core inductor (1–10mH) and Schottky freewheeling diode (e.g., SB560) boosts efficiency to >90%. Ensure the inductor’s saturation current exceeds the maximum load current by 30%.

Overvoltage protection is non-negotiable. Use a Zener diode (15–25V, 1W) across the output to clamp voltage spikes. For enhanced safety, add a varistor (MOV) at the AC input–panasonic ERZ-V10D471 offers robust surge suppression up to 1.5kA. Place the varistor before the rectifier to shield all downstream components from line transients.

• Thermal management: Use TO-220 packages for switching components and mount them on a heatsink with >10°C/W thermal resistance. Aluminum substrates or copper-clad PCBs improve dissipation in compact designs.
• Isolation: Maintain 8mm creepage/clearance between high-voltage AC and low-voltage DC traces if the enclosure lacks grounding. Use reinforced insulation (e.g., UL-rated tape) for medical or outdoor applications.
• Flicker mitigation: Ensure the output capacitor’s ripple voltage stays below 10% of the nominal DC level. Larger capacitance reduces flicker but increases inrush current–balance with NTC thermistors if soft-start is needed.

For dimming compatibility, integrate a 0–10V control signal or PWM input. A linear regulator (LM317) with a potentiometer adjusts current linearly, while a PWM-driven MOSFET (e.g., IRLZ44N) offers more precise control. Avoid resistive dimming–it generates excessive heat and wastes power. Test dimming range down to 1% to confirm smooth operation without strobing.

Finally, validate the design with a double-insulated enclosure for Class II safety compliance. Use optocouplers (e.g., PC817) for feedback loops to isolate high voltage. Conduct hipot testing at 3kV for 1 minute to confirm insulation integrity. For CE/UL certification, document traceability of components rated for 20% above nominal conditions.

Practical Guide to Building a Direct-Coupled Solid-State Power Supply

Begin by securing a switching regulator IC rated for at least 20% above the intended load current–common choices include MP2451 or LM3409. Calculate the required inductor value using the formula L = (V_in – V_out) × T_on / I_ripple, where T_on is the switch-on time and I_ripple should not exceed 30% of the average current. For a 12V input and 9V output at 700mA, a 47µH inductor with a saturation current of 1.2A ensures stable operation.

Mount input and output capacitors as close as possible to the regulator pins–use a 22µF ceramic for input and a 47µF electrolytic for output. Bypass capacitors (0.1µF) on both input and output suppress high-frequency noise. Ensure the feedback resistors (R_FB1 and R_FB2) are precision 1% types: for a 9V target, set R_FB1 to 10kΩ and R_FB2 to 12kΩ, adjusting the latter for fine tuning. Solder the Schottky diode (1N5822) across the inductor to prevent backflow voltage spikes.

Thermal and Layout Considerations

Allocate a copper pour on the PCB equal to at least 2 cm² per watt of dissipation for the regulator. Thermal vias (0.3mm diameter, spaced 1.2mm apart) under the IC pad enhance heat transfer to the opposite PCB layer. Avoid traces thinner than 2mm near the switching node to prevent parasitic inductance, which can cause voltage overshoot. The grounding scheme must be star topology–connect the input/output capacitors and feedback resistors to a single low-impedance ground node near the IC.

Attach the load–high-brightness emitters wired in series–to the output with 18AWG stranded wire. Verify the forward voltage drop across the array matches the calculated output; if it differs by more than ±0.2V, recalculate R_FB2. A dummy load resistor (10Ω, 5W) during initial testing prevents open-circuit voltage spikes. Measure the switching frequency with an oscilloscope–it should align within 10% of the datasheet value (typically 500–1200 kHz). Deviations indicate layout issues or incorrect component values.

Final Checks and Adjustments

Before applying full input voltage, test continuity and insulation resistance between all high-voltage nodes–leakage paths can cause unpredictable failures. Use a current-limited bench supply (e.g., 100mA) to verify the output voltage rises smoothly without oscillation. If the regulator enters hiccup mode (rapid on-off cycling), check the feedback network for correct resistor values or solder bridges. Calibrate the output to ±0.1V using a precision multimeter; minor adjustments to R_FB2 should suffice. Once stable, enclose the assembly in a non-conductive housing if operating near flammable materials–polycarbonate or ABS are suitable for ambient temperatures up to 60°C.

Calculating Resistor and Capacitor Values for Smoothing Rectified Output

For a bridge rectifier outputting 12V DC with a 10% ripple tolerance at 100mA load, calculate the smoothing capacitor as:

• C = I_load / (2 * f * V_ripple)
• Where f = 100Hz (for 50Hz mains), V_ripple = 1.2V (10% of 12V).
• Result: C = 0.1A / (2 * 100Hz * 1.2V) = 416µF (use 470µF, next standard value).

Add a series resistor (R) if surge current exceeds the component’s rating. For a 1N4007 diode (1A max), limit inrush with:

1. R = (V_peak - V_forward) / I_surge
2. V_peak = 17V (12V RMS * √2), V_forward = 0.7V, I_surge = 0.8A.
3. Result: R = (17V - 0.7V) / 0.8A ≈ 20Ω (use 22Ω, 1W to handle 0.8A * 17V = 13.6W transient power).

Verify ripple with an oscilloscope: measure V_pp at the capacitor’s output. Expected V_pp ≈ 1.2V for the above values. If ripple exceeds tolerance, increase capacitance (e.g., 680µF) or add a pi-filter (two capacitors with an inductor/resistor between them).

Key Pitfalls

Common errors include:

• Underestimating ESR: Low-ESR capacitors (e.g., tantalum) reduce ripple but cost more. Aluminum electrolytics may need 20-30% higher capacitance.
• Ignoring temperature derating: Capacitance drops 20% at 50°C; specify 25% higher values for hot environments.
• Skipping voltage headroom: Use capacitors with 1.5× V_peak (e.g., 25V for 17V V_peak).

For high-frequency noise (kHz range), add a 0.1µF ceramic capacitor in parallel with the electrolytic. This bypasses switching noise without affecting ripple smoothing.
