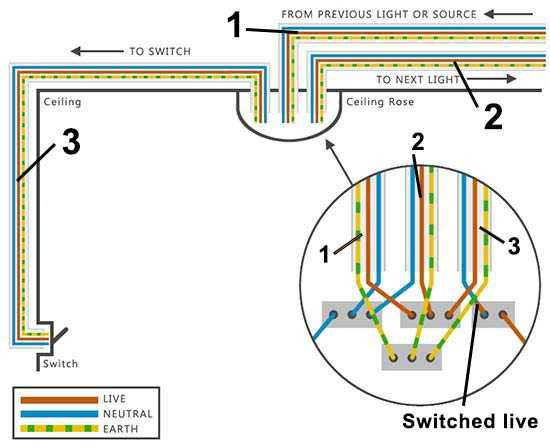

Step-by-Step Guide to Wiring Your LED Ceiling Light Correctly

Start by identifying the power supply’s neutral, live, and ground wires before making any connections. Neutral wires are typically white or light gray; live wires are red, black, or brown; ground wires are green, yellow-green, or bare copper. Confirm the voltage rating of the fixture–most overhead installations operate on 120V or 230V AC–and ensure the circuit breaker matches this specification. Overloading a 10A circuit with a 15A fixture risks tripping or overheating.

Use a junction box rated for suspended applications, such as a 4-inch square or octagonal box with a bracket designed for drywall or concrete mounting. Secure the box with screws or anchors based on the ceiling material–toggle bolts for gypsum board, masonry screws for concrete. Avoid plastic boxes for fixtures exceeding 50W; metal boxes dissipate heat more effectively and meet NEC (or local) code requirements for enclosed spaces.

Twist wire nuts clockwise with a slight upward pressure to prevent loosening–use sizes appropriate for the wire gauge: red for 14-12 AWG, blue for 16-14 AWG. Wrap connections with electrical tape to insulate against vibration in installations above fans or HVAC vents. For recessed or flush-mounted units, attach the housing’s grounding screw to the box’s ground wire before feeding wires through conduit or cable clamps. Never leave splices exposed; encase them in an approved cover plate.

Test polarity with a non-contact voltage tester before finalizing connections. If the fixture flickers or hums after installation, check for loose nuts, reverse polarity, or insufficient grounding. Dimmer switches require compatible drivers–verify compatibility by locating the driver’s model number on the fixture housing and cross-referencing with the switch’s datasheet. Replace generic dimmers with those rated for capacitive loads if the unit uses PWM.

For multi-head arrays, daisy-chain power from one unit to the next using 18 AWG or thicker stranded wire, ensuring each joint is double-crimped with a butt connector. Label each wire segment at the junction box to simplify future maintenance. In commercial settings, adhere to local fire codes by using rated cable (e.g., NM-B or armored cable) and installing a dedicated circuit for fixtures exceeding 200W to prevent voltage drop over runs longer than 50 feet.

How to Connect Modern Illumination Fixtures: A Practical Schematic

Start by identifying the power source voltage–most integrated panels operate at 12V or 24V DC, but some adapt directly to 110-240V AC mains. Use a multimeter to verify the input before proceeding, as mismatched voltage will damage the components or create fire risks. For low-voltage setups, a compatible transformer must be installed between the mains and the fixture to step down the current.

Match the fixture’s terminals to the transformer outputs–typically labeled “+” (positive) and “-” (negative). Reversing polarity won’t harm most solid-state emitters but may cause flickering or premature failure. For AC-powered units, connect the live (L) and neutral (N) wires directly to the fixture, ensuring the circuit breaker is off during installation. Ground (G) connections should never be omitted, particularly in metal housings.

For multi-panel arrangements or dimmable setups, follow these steps:

• Verify the dimmer’s compatibility–most integrated panels require trailing-edge dimmers, not leading-edge models.
• If connecting multiple fixtures in parallel, ensure the transformer’s wattage rating exceeds the total load by at least 20%.
• Use 18-22 AWG stranded copper wire for low-voltage connections; solid wire risks breakage under vibration.
• Avoid daisy-chaining more than three fixtures–voltage drop over distance can reduce brightness or cause uneven illumination.

Install a fuse or circuit breaker rated for 125% of the fixture’s maximum current draw. For example, a 60W fixture at 12V draws 5A, so a 6.25A fuse is appropriate. Position the fuse as close to the power source as possible to protect the entire circuit. Avoid relying on the main panel’s breaker alone–shorts in low-voltage sections may not trip it.

Secure all connections with insulated wire nuts or terminal blocks. Twist the stripped ends clockwise before capping them to prevent loosening. For AC lines, use junction boxes to enclose exposed wires, and seal entries with cable glands to prevent dust or moisture ingress. Clamp down loose wiring with cable ties or clips to avoid strain on the terminals.

Test the setup with a non-contact voltage tester before restoring power. Observe the fixture for 10 minutes–overheating (above 60°C) indicates undersized wiring or an inadequate transformer. If dimming is intended, adjust the dimmer’s minimum setting until flickering stops; this varies by model and requires trial and error. For color-tunable installations, follow the manufacturer’s pinout schema–miswiring RGB or RGBW arrays can scramble the signal.

Document the final configuration with a sketch noting wire colors, terminal assignments, and breaker/fuse ratings. Label the circuit at the distribution panel to simplify future troubleshooting. Store spare fuses and the transformer’s datasheet near the installation for quick reference. Regularly inspect connections every six months–loose wires are a leading cause of intermittent failures or arcing.

How to Connect a Single Overhead Illuminator: Practical Steps

Turn off the circuit breaker handling the power supply to the installation area. Verify absence of current with a non-contact voltage tester, holding it near the wires where the fixture mounts. Live conductors pose severe shock risks, even at low voltages.

Identify the junction box terminals: typically one bare or green ground wire, one white neutral, and one black (or red) live conductor. Strip 12mm of insulation from each wire using wire strippers, ensuring copper strands remain intact. Twist strands clockwise to prevent fraying.

Securing the Fixture Wires

Match colors precisely: white to white, green/bare to green/bare, and black to black (or red). Align stripped ends parallel, ensuring copper strands overlap completely. Rotate pliers gently clockwise until a tight, uniform spiral secures the connection–no loose strands should remain.

Slide a small twist-on wire nut over each joint, turning clockwise until resistance increases. Tug lightly to confirm the connection holds under tension. Wrap electrical tape clockwise around each nut base for added insulation, covering the entire joint plus 3mm of insulated wire.

Tuck wires neatly into the junction box, avoiding sharp edges. Secure the illuminator base to the box using provided screws, ensuring alignment with the ceiling opening. Tighten screws evenly to prevent tilting or gaps.

Restore power at the circuit breaker. Test the illuminator by flipping its switch. If flickering occurs, recheck wire connections–loose strands often cause intermittent faults. Repeat insulation steps if necessary to eliminate exposed conductors.

How to Pinpoint Hot, Return, and Safety Conductors in Your Fixture Receptacle

Turn off power at the breaker panel, then check wires with a non-contact voltage tester–any signal indicates the hot conductor, typically black, red, or another unmarked color in older installations. Strip 5 mm of insulation from each wire and connect a multimeter set to AC voltage; the hot wire will show 120V or 240V against the grounded metal junction box or a bare copper strip (safety conductor). Return wires (neutral) in modern systems are white or gray, but in older setups they may lack insulation–verify by testing voltage between hot and return; the reading should match the system’s nominal voltage. If the safety conductor is absent, confirm grounding by checking continuity between the bare or green wire and the box with the multimeter in resistance mode–zero ohms confirms a valid path.

For systems without color coding, place one multimeter probe on the hot wire and the other on a suspected return–120V or 240V confirms the pair. Test the safety conductor separately by measuring continuity to the junction box or a known earth point. Label each wire immediately with tape: “H” for hot, “R” for return, “G” for ground to avoid errors during installation.

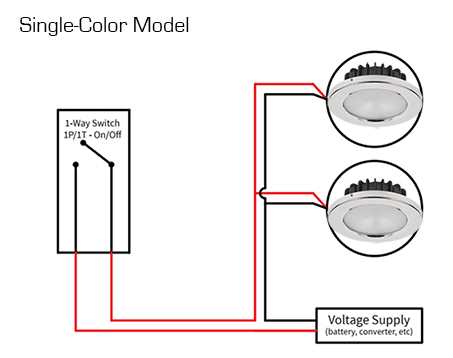

Parallel vs. Series Connections for Fixtures in Overhead Installations

Opt for parallel connections when linking multiple overhead fixtures. This method ensures each unit receives the full supply voltage, maintaining consistent brightness regardless of the number of fixtures added. If one fails, others remain operational. Use a dedicated circuit for high-power setups (12V/24V DC or 120V/230V AC) with appropriately rated conductors–14 AWG for 15A circuits, 12 AWG for 20A–to prevent voltage drop over distances exceeding 50 feet. Employ a central junction box to distribute power, connecting each fixture’s positive and negative leads directly to the main feed. Avoid daisy-chaining more than three 40W equivalents per 15A circuit to stay within 80% load limits.

• Parallel pros:

1. Uniform output across all fixtures
2. Fault isolation–single failure doesn’t affect others
3. Scalable with minimal voltage loss

Series drawbacks:

1. Voltage divides across fixtures–dimmer output with each added unit
2. Total failure if any single connection breaks
3. Impractical for AC circuits due to safety risks

For DC installations, calculate total current draw (watts/volts) and size conductors to limit drop to ≤3%. Use a multimeter to verify voltage at the farthest fixture after installation. AC systems require GFCI protection for circuits near wet areas. Always secure connections with wire nuts or WAGO clamps, then seal with heat-shrink tubing for outdoor or high-humidity environments.
