How to Connect LED Correctly Understanding Positive and Negative Terminals

Always connect the longer terminal–marked as the anode–to the current source’s higher potential side. The shorter lead, or cathode, must link to the lower potential. Reversing these positions will prevent illumination and risks permanent damage, especially in components rated below 5V. Use a multimeter in diode test mode to confirm orientation before soldering.

Include a current-limiting resistor in series when working with standard 3mm or 5mm indicators. For a 5V supply, a 220Ω resistor limits current to approximately 20mA, ensuring safe operation without degrading brightness. When driving multiple elements in parallel, each should have its own resistor to avoid uneven current distribution.

Check schematic symbols carefully: the anode is typically denoted by a triangle or vertical line, while the cathode appears as a straight or perpendicular bar. Mismatching these in custom boards leads to silent failures. For high-efficiency emitters like SMD 3528, keep trace lengths short to minimize voltage drop across copper.

Use a constant-voltage regulator instead of raw supply lines if operating near the component’s maximum forward voltage. A 3.3V source with a 150Ω resistor stabilizes output for sensitive blue or white diodes, extending lifespan beyond 50,000 hours. Always verify forward voltage specs before selecting resistor values.

Powering Semiconductor Devices: Anode and Cathode Guide

Always connect the longer leg (anode) of a light-emitting component to the higher voltage side of a direct current source–typically 2–5V above the opposite terminal, depending on forward voltage specs (e.g., 2V for red, 3.2V for blue). A resistor inline with the anode prevents burnout; calculate its value using Ohm’s law: (Source Voltage – Forward Voltage) ÷ Desired Current. For a 12V supply and 20mA target, a 470Ω resistor works, but verify with a multimeter–real-world tolerances shift readings.

Reverse polarity instantly damages most emitters: the cathode (shorter leg or flat side) must link to ground or the lower potential. Test connections with a battery snap before soldering–briefly touch wires to confirm illumination. Avoid USB ports for direct drive; their 5V exceeds many small devices’ limits without current limiting.

For arrays, use a common cathode layout for NPN transistor switching or a shared anode for PNP control. SMD variants mark cathodes with a dot or notch; through-hole types have a chamfer. Never exceed the max reverse voltage–usually 5–6V–and place a 1N4007 diode antiparallel to protect against inductive loads.

Determining the Anode and Cathode on a Light-Emitting Diode

Check the component’s physical length first–most manufacturers cut the cathode lead shorter than the anode. If both leads seem equal, inspect the housing for a flat edge or notch; this marks the cathode side. For surface-mount types, a small dot or line near one pad indicates the cathode.

Examine the internal structure through the lens: the larger metal contact inside the casing belongs to the cathode, while the smaller post connects to the anode. This visual method works reliably for clear or lightly tinted housings. Ambient light may help, but direct illumination can wash out details.

Using a Multimeter for Confirmation

• Set the meter to diode-check mode (marked with a diode symbol).
• Touch the red probe to one lead and the black probe to the other–only one orientation will produce a faint glow or a forward voltage reading (typically 1.8 to 3.3 V depending on color).
• Reverse the probes if no reading appears–the correct polarity will show the voltage drop.
• Note the orientation when the display shows a value; the lead touching the red probe is the anode.

For boards where components are pre-assembled, trace the copper traces–wider or filled planes usually connect to the cathode, especially near ground points. Schematics often label the cathode with a bar or triangle, while the anode lacks these symbols. If silk-screen markings exist, a “K” denotes the cathode.

Quick Identification Without Tools

1. Grasp the component between thumb and forefinger, noting which side feels slightly angled or reduced in diameter–that’s the cathode.
2. For through-hole types, press the leads flat against a surface; the cathode will bend more easily due to its shorter length.
3. Tilt the component under a bright light–diffused light often reveals the internal lead shapes, distinguishing the larger cathode contact.

If all methods fail, apply a 3 V coin cell (e.g., CR2032) between the leads–bright emission confirms the anode lead touches the cell’s positive side. Avoid voltages above 3.5 V, as reverse bias can damage the junction.

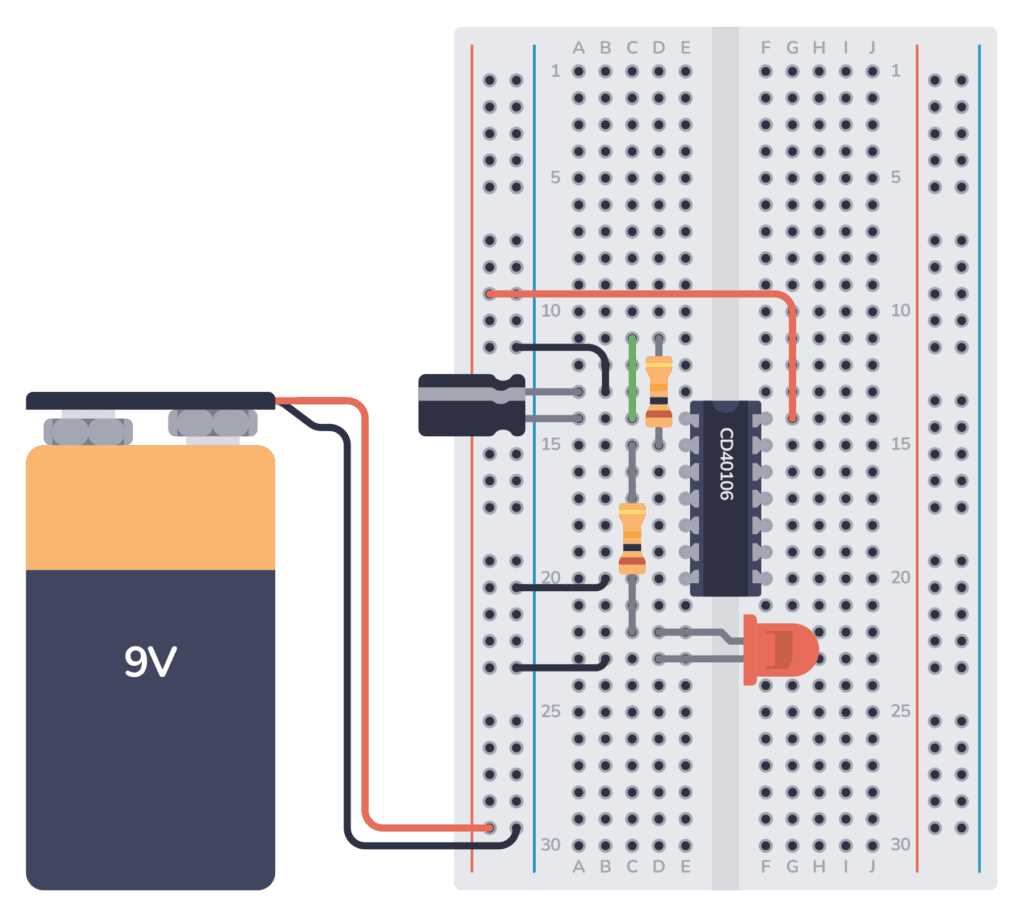

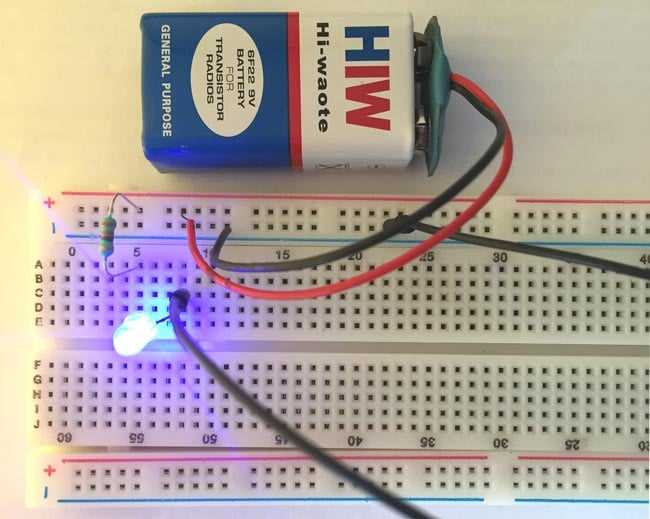

How to Assemble a Basic Light-Emitting Component Setup Using a Power Source

Select a 5mm glow element with a forward voltage between 1.8V and 3.3V and a current rating of 20mA. Calculate the required dropping resistor using Ohm’s law: R = (Vs - Vf) / I, where Vs is the battery output (e.g., 9V), Vf the glow element’s forward voltage, and I the rated current. For a 2.1V glow element on a 9V supply, this yields R = (9 - 2.1) / 0.02 = 345Ω; choose the nearest standard value, 330Ω. Keep power dissipation under 0.25W to prevent resistor overheating.

Connect the longer leg of the glow element to the battery’s anode terminal via the dropping resistor. Attach the shorter leg directly to the cathode terminal, ensuring polarity is never reversed–doing so permanently damages the component. Secure junctions with a 25W soldering iron or wire nuts; verify no exposed wires risk shorting. For temporary setups, use alligator clips but avoid sustained current over 50mA to prevent clip oxidation.

Test continuity with a multimeter set to diode mode–expect 0.5V–3.3V across the glow element depending on its type. If it fails to illuminate, swap connections, inspect for broken wires, or replace the glow element. For low-voltage supplies (e.g., 3V coin cell), omit the resistor and monitor current with an ammeter to stay below 25mA. Always disconnect the power source before modifying the setup to avoid accidental shorts.

Common Mistakes When Reversing Semiconductor Polarity in Home Builds

Always verify the orientation of the light-emitting component before soldering or inserting it into a breadboard. Most epitaxial diodes have a shorter cathode leg, often marked by a flat edge on the plastic casing. Confusing this with the anode can cause instant failure, especially in low-voltage setups under 5V where reverse breakdown isn’t tolerated. A multimeter in continuity mode confirms polarity: the device should conduct when probes touch the correct terminals.

Ignoring current-limiting resistors is a frequent error that shortens component lifespan or destroys it outright. Calculate resistor value using Ohm’s law: subtract the forward voltage (typically 1.8–3.3V depending on color) from the supply voltage, then divide by the desired current (usually 10–20mA). Skipping this step applies excessive current, causing thermal runaway. Common resistor values for 5V supplies are 220–470Ω; for 12V, 680Ω–1kΩ works reliably.

Miswiring Configurations

• Connecting multiple emitters in parallel without individual resistors overloads the weakest unit, leading to uneven brightness or burnout.
• Assuming all SMD packages follow the same cathode marker – some use a dot, others a notch, and certain high-power types reverse the standard.
• Using AC adapters without rectification damages polar-sensitive components; a bridge rectifier and smoothing capacitor are mandatory for AC sources.

Mixing component types in series chains creates voltage mismatches. A red indicator (1.8V) paired with a blue (3.3V) on a 5V rail leaves the blue underpowered or the red overdriven. Group similar forward voltages to ensure consistent performance. Where mixed voltages are unavoidable, use separate current paths or adjustable buck converters for each segment.

Overlooking thermal management in high-brightness builds can cook the junction even with correct polarity. Mount star-type PCBs on aluminum heatsinks when driving currents above 350mA. Thermal paste improves conductivity; without it, die temperatures can exceed 100°C in minutes. Check datasheet for maximum junction temperature–most epoxy packages are rated for 125°C, while metal-core types handle up to 150°C.

Resistor Selection for Optimal Light-Emitting Diode Performance in Polarized Configurations

Choose a series resistance based on the forward voltage drop and desired current of the semiconductor. A 220Ω resistor suits most 5V supplies with a 20mA target, while 330Ω works for 12V setups. Higher voltages require proportional increases in resistance to prevent excess current flow.

Calculate the exact value using Ohm’s law: R = (Vsupply – Vforward) / Itarget. For a 3mm indicator with a 2V drop at 15mA on a 9V source, the formula yields (9 – 2) / 0.015 = 466.67Ω. Round up to the nearest standard value (470Ω) to ensure margin of safety.

Standard resistor values for common scenarios:

Supply Voltage	Forward Drop	Target Current (mA)	Calculated Resistance (Ω)	Nearest Standard Value (Ω)
5V	1.8V	20	160	160
9V	2.2V	15	453	470
12V	3.0V	10	900	910
24V	3.5V	5	4100	4.3k

Power dissipation must not exceed the resistor’s rating. Multiply the voltage across the resistor by the current to find wattage: P = (Vsupply – Vforward) × I. A 1/4W resistor suffices for currents below 30mA on 12V or lower, but 1/2W is necessary for higher loads or voltages above 20V.

Discrete components with tight tolerances (1% metal film) reduce brightness variation across multiple installations. Carbon film resistors introduce inconsistency due to ±5% tolerance, leading to visible differences in luminosity when several units operate in parallel or series arrays.

For pulsed applications (e.g., PWM dimming), derate resistance by 20-30% to compensate for transient spikes. A 560Ω resistor on a 5V rail with 1kHz PWM should be replaced with 470Ω to maintain nominal current during rapid switching cycles.

Reverse polarity withstands voltage spikes only if the resistor’s voltage rating exceeds the supply’s potential. A 250mW resistor rated for 200V fails under 24V reverse bias; select a 1W unit for such cases, even if power dissipation calculations suggest lower requirements.
