Leviton Motion Sensor 3-Way Switch Wiring Guide with Clear Diagram
For a reliable multi-point activation circuit, begin by identifying the common (traveler) terminals on both control units. The power-carrying conductor must connect to the designated input point–typically marked in dark brass–while the remaining two terminals handle the intermediary linkage between devices. Always verify the manual’s color-coding before proceeding, as mismatched connections will render the setup inoperative.
Use 14-gauge solid copper wire for all splices, and secure each twist with a properly rated cap nut before routing through conduit. Strip exactly 5/8 inch of insulation to ensure full engagement without exposed strands. If integrating a neutral path–required for modern programmable variants–confirm the absence of voltage leakage by checking continuity at each junction point with a non-contact probe.
Before energizing the circuit, test all possible trigger scenarios: confirm that either device initiates the load independently, and that disengaging one does not disrupt the other’s function. Adjust sensitivity settings post-installation to eliminate false activations from ambient heat sources or minor vibrations within a five-meter radius.
For installations in high-humidity areas, apply a thin layer of dielectric grease to terminal blocks to prevent oxidation. Label each conductor at both endpoints to simplify troubleshooting–mark the hot lead in red tape, neutral in white, and travelers in clear shrink tubing.
When positioning the detection modules, ensure direct line-of-sight and avoid obstructions taller than 30 cm within the target zone. Wall-mounted units should be angled downward at a 15-degree tilt for optimal coverage, while ceiling-mounted variants require a minimum clearance of 2.4 meters above floor level.
Installing an Automated Dual-Location Occupancy Detector
Begin by identifying the power source at the primary control point–verify the hot wire using a non-contact voltage tester before handling any conductors. The supplier’s model typically requires a dedicated line (black) connected to the common terminal (marked “COM” or “dark screw”), unlike standard toggle setups where load sharing follows a different convention.
Route the traveler wires (red and white in most installations) between both junction points–these must remain uninterrupted, as they form the circuit backbone for multi-point activation. Confusion often arises here; label each conductor at both ends before disconnecting existing fixtures to prevent miswiring. A common error involves treating travelers as neutral or ground, which neutralizes functionality.
| Terminal | Wire Color (Typical) | Function |
|---|---|---|
| Common (COM) | Black | Incoming power or load output |
| Traveler 1 | Red | Alternate path between switches |
| Traveler 2 | White | Alternate path between switches |
| Ground | Green/Bare | Safety grounding |
Neutral wires (if present) must be grouped together at the first control box–tape off unused neutrals securely to avoid accidental shorts. Some units require neutral access for internal circuitry; failing to connect these properly will prevent detection from functioning, despite correct traveler and common wiring. Check the manufacturer’s specifications–omission here is the leading cause of post-installation troubleshooting.
Attach the grounding conductor to the green terminal on both devices, ensuring continuity across the entire network. Many retrofit installations neglect this step under the assumption that ground paths remain intact through outlet boxes, but modern occupancy-responsive units often rely on consistent grounding for reliable performance.
Test intermediate settings before finalizing the cover plates–adjust sensitivity and timeout parameters at the master location. Default settings frequently trigger false positives or premature shutoffs; fine-tuning luminance thresholds and activation delays during this phase reduces calls for rework.
For stairwells or corridors where two control points govern a single fixture, confirm that both units are set to “auto” mode during configuration. Manual override options may interfere with motion-based control if not properly initialized. Some systems default to partial functionality unless explicitly programmed for dual-point operation.
If the connected load exceeds the device’s rated capacity (usually 500W for incandescent or 200W for LED), an external relay or additional switching mechanism must be installed. Never bypass current limits–exceeding these risks overheating and component failure.
Final verification involves simulating occupancy at both endpoints–ensure triggering from either location produces consistent illumination and that delays align with intended usage. If sporadic behavior persists, re-examine traveler continuity and neutral bonding before assuming product defect.
Finding the Primary and Secondary Conductors in Multi-Location Control Paths
Start by turning off power at the circuit breaker and verifying all voltage with a non-contact tester before handling any terminals. The primary conductor (often called the “line” or “feed”) connects directly to the power source and will show voltage with the main breaker on while the secondary unit is disconnected. Use a multimeter in voltage mode between the bare ground wire and each colored conductor in the junction box–only one will register active.
Trace the switched conductor paths by labeling wires with tape as you inspect. The secondary conductors (often two in number) will alternate hot status depending on the toggle position of the secondary control point. At one box, locate the pair that carries voltage when the remote switch is in one position but not the other; these are the interchangeable lines splitting the load between locations.
Identify the load terminal by checking continuity once the power is off. The fixture wire connects to only one unit; it will show continuity with the terminals of the light assembly when both points are toggled. Avoid confusing this with the secondary lines–only the true load will remain constant regardless of the other switch state.
Color coding helps but never rely on it exclusively. Older setups may use red for secondary lines, black for primary, and white for neutral, while modern installations often adopt different conventions. Always cross-reference markings with physical tests rather than assuming function based on sheathing alone.
Use a continuity tester between terminals when the circuit is de-energized. With both control points in the “off” position, the primary feed terminal will complete a circuit with only one secondary conductor. Flip the remote switch and repeat–the switched line that now shows continuity is the alternate secondary path, confirming proper identification.
Document terminal designations immediately after verification to avoid confusion during installation. Sketch the box layouts, noting which screw connects to power, which to the fixture, and which pair toggles between them. Keep this reference visible when attaching devices to prevent incorrect hookups that could damage components.
Double-check all connections under load before closing the enclosure. Restore power and toggle both switches while monitoring the fixture. If the light responds correctly to both positions, the conductors have been properly assigned. Misidentification will cause erratic operation or no response–recheck labels and tests if behavior deviates from expected patterns.
Direct Installation Guide for Dual-Location Occupancy Detector
Disconnect power at the circuit breaker before handling any live terminals. Verify absence of voltage using a non-contact tester on both traveler wires and common terminals in each electrical box.

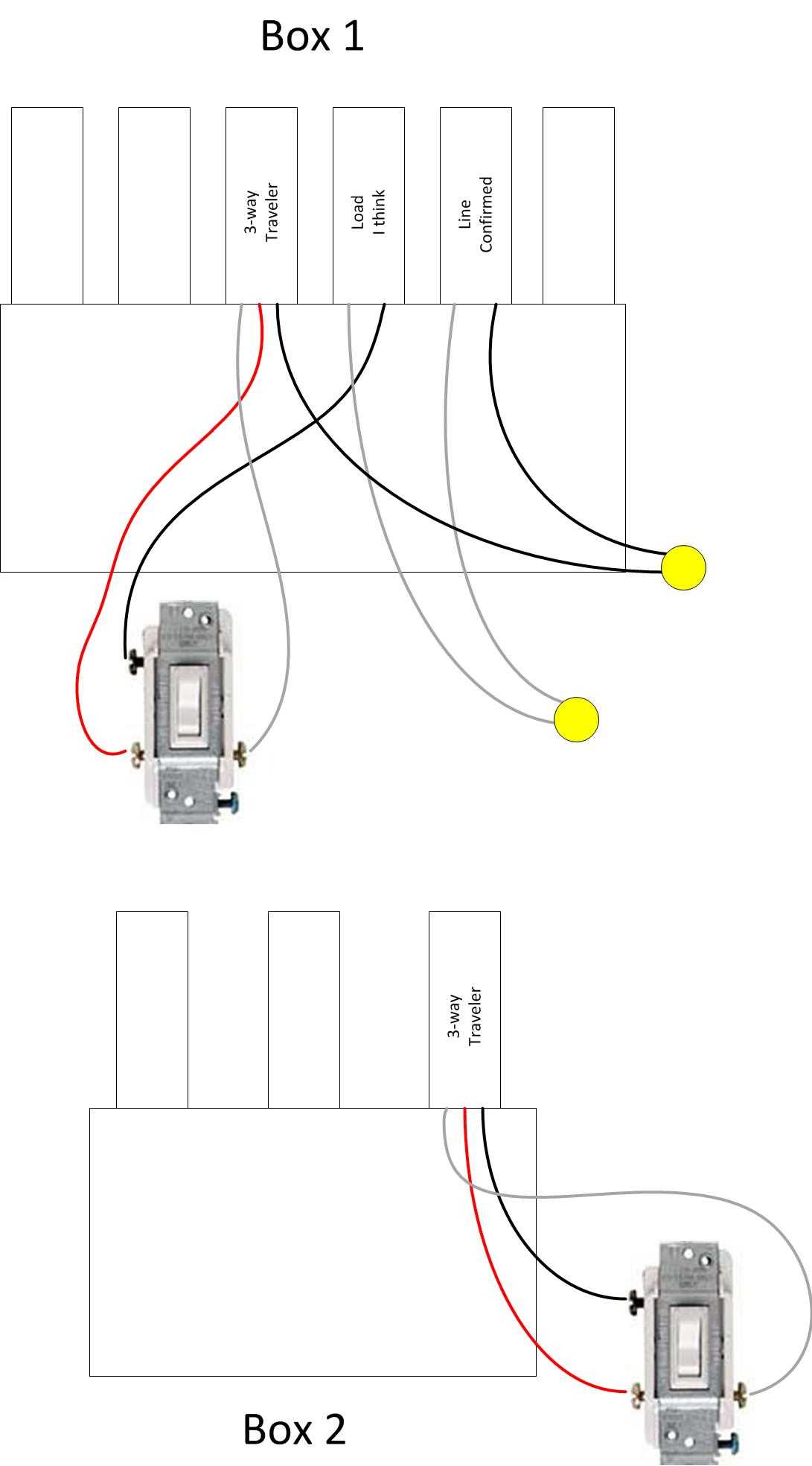

Identify the existing multi-location control setup. The primary control unit typically connects to the power source via a black common wire, while the secondary unit links through red and white travelers or equivalent color-coded conductors. Label each wire with masking tape near screw terminals to prevent confusion.

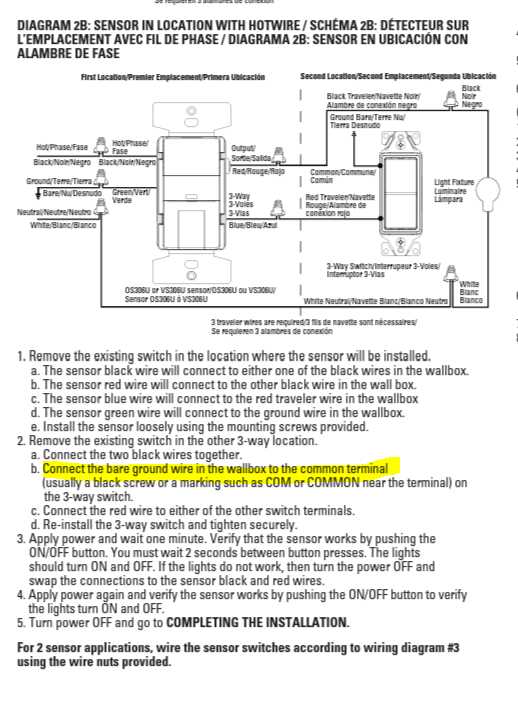

Remove the existing secondary control by unscrewing its mounting straps and disconnecting all wires. Attach the new occupancy-responsive device in its place, ensuring the ground wire (bare or green) secures firmly to the grounding screw first. Connect the red traveler from the existing network to the corresponding terminal marked “traveler” or “load” on the new device, then the white traveler to its designated input.
In the primary box, leave the common and traveler connections intact. If the new device package includes a neutral wire (usually white or gray), strip 3/8 inch of insulation and splice it with the bundle of neutral wires in the box using a wire nut. This connection is mandatory for proper operation of the sensing mechanism.
Reattach power. Test functionality by toggling the remaining traditional control–lights should activate upon detected presence in the monitored area. Adjust the range and time-delay settings on the sensing device according to manufacturer-specified jumpers or dials; consult the product sheet for exact values.
Troubleshooting Immediate Issues
If lights flicker or fail to respond, check for reversed traveler connections. Ensure both traditional and sensing controls share a correctly wired common terminal. Loose wire nuts can cause intermittent operation–re-tighten all splices and verify secure terminal screws.
For persistent problems, measure voltage between the common wire and ground at both locations using a multimeter. Expected readings: 120V at the primary side common terminal, zero volts at the secondary when lights are off, and 120V during activation. Deviations indicate incorrect wiring or a faulty device.
