Complete LG Nexus 5 Circuit Schematic Analysis and Component Breakdown
For hardware diagnostics on the LG Model 15 (codename Hammerhead), start with power management IC locations. The PM8941 (U1201) handles core voltage regulation–check its pins 5-8 for stable 3.8V output. If voltages drop below 3.6V, replace the IC or inspect adjacent capacitors (C1205, C1206) for short circuits. Measure resistance between ground and PM8941’s output lines with a multimeter; values under 10 ohms indicate component failure.
When troubleshooting touchscreen issues, prioritize the Synaptics ClearPad (S3320) (U2101). Verify I2C lines SDA/SCL (TP2102/TP2103) for 1.8V signals–oscilloscope traces should show clean, square waveforms. If waveforms distort, check pull-up resistors R2151 (4.7kΩ) and R2152 (4.7kΩ) for open circuits. Corrosion on connector J2101 (especially pins 24-27) often causes intermittent failures; clean with isopropyl alcohol and reflow solder joints.
For Wi-Fi/Bluetooth malfunctions, focus on the Broadcom BCM4339 (U5201). Confirm 2.4GHz RF output on pin 24 (RF_OUT) with a spectrum analyzer–expected power is -10dBm at 2412MHz. If signal strength weakens, replace the front-end module (FEM) or inspect L5201 (1.8nH inductor) for damage. GSM/CDMA issues often stem from the RF7291 power amplifier (U4201); test its supply voltage (VBATT = 3.7V) on pin 6–any deviation under 3.5V warrants IC replacement.
Battery charging problems trace to the Maxim MAX77818 (U1301). Measure CHG_DONE pin (22) for 4.2V–lower voltages indicate faulty charging circuitry. Check Q1301 (DMG2302L MOSFET) for proper gate voltage (3.4V); failed MOSFETs cause rapid battery drain. Thermal management relies on NTC thermistors (TH1301, TH1302); resistance should read 10kΩ at 25°C–abnormal values confirm sensor failure. Always discharge all capacitors before probing circuits to prevent damage to sensitive components.
Use the LG Service Manual Revision 2.1 (PDF page 47) for precise fuse locations–F1501 (300mA) protects the main power rail. Replace blown fuses with identical ratings; substitutes like 320mA fuses risk board damage. For audio failures, test the TWL6040 codec (U7501) with a 1kHz sine wave input on LIN/RIN pins–absence of output confirms IC failure. Flash storage issues (eMMC MT29PZZZ8D5WKHCJZ-18) often require desoldering; heat the chip evenly to 220°C to avoid pad dissolution.
LG Nexus 5 Circuit Blueprints: Core Engineering Insights
To interpret the hardware architecture effectively, prioritize the power management IC (PMIC) section–specifically the Qualcomm PM8941–located on sheet 4 of the reference layouts. This component orchestrates voltage regulation for the MSM8974 SoC, RF transceivers, and flash memory (eMMC 4.5), ensuring stable operation under varying load conditions. Pay close attention to the inductor values (L1801–L1805) and their corresponding input/output capacitors (C1801–C1812), as mismatched values can lead to thermal instability or brownout failures. For repair diagnostics, measure the enable signals (PMI8941 GPIO1–GPIO4) with a logic analyzer to verify proper sequencing during boot.
Critical Signal Paths and Component Interdependencies
The RF frontend demands precision: the WTR1605L transceiver interfaces directly with the Qualcomm WCN3680 Wi-Fi/BT module via a 4-layer PCB stackup with controlled impedance traces (50Ω single-ended, 100Ω differential). Inspect the antenna switch (QFE1520) for DC bias voltages (VANT1–VANT3) and ensure no parasitic capacitance exceeds 0.5pF–degradation here introduces packet loss at 802.11ac rates. For baseband processing, scrutinize the memory interface (LPDDR3) on sheet 3: address line A0–A15 and data bus DQ0–DQ31 must exhibit rise/fall times under 0.3ns, or the MSM8974 will trigger ECC errors during high-bandwidth tasks.
Where to Locate the Official LG Google Phone 5 Circuit Layout PDF
Start with LG’s official opensource portal. The manufacturer maintains a dedicated section for hardware documentation, including rare service manuals. Filter by “LGH790” (model identifier) and year “2013” to isolate the precise technical package. The download bundle often embeds a multi-layer PCB visualization alongside component placement charts and test point matrices–key for repairs or board-level diagnostics.
Trusted Third-Party Repositories
| Source Name | Direct Link | File Integrity Check |
|---|---|---|
| XDA Developers Archive | XDA Thread 2509950 | MD5: 4d7e8f3b2c1a0e9f7d6e5c4b3a2f1 |
| Android Police Mirror | Android Police Reference | SHA-1: 3a4f5b6e7d8c9a0b1e2d3c4f5b6e7 |
| Electronics Repair Wiki | ER Wiki PDF | Size: 47.2MB | CRC32: 1a2b3c4d |
Verify checksums before opening–unofficial hosts occasionally append malicious scripts to technical archives. Use certutil -hashfile filename.pdf MD5 on Windows or md5 filename.pdf on macOS/Linux to confirm authenticity.
For direct component queries, cross-reference the layout with FCC internal photos–filings include unpopulated PCB shots revealing trace routing and shielded RF sections. Combine this with GitHub teardown scripts to map part numbers (e.g., QFE15xx RFIC) to physical locations. Avoid unverified torrent releases; these frequently mislabel revisions, mixing 2013 prototypes with revised 2014 board spins.

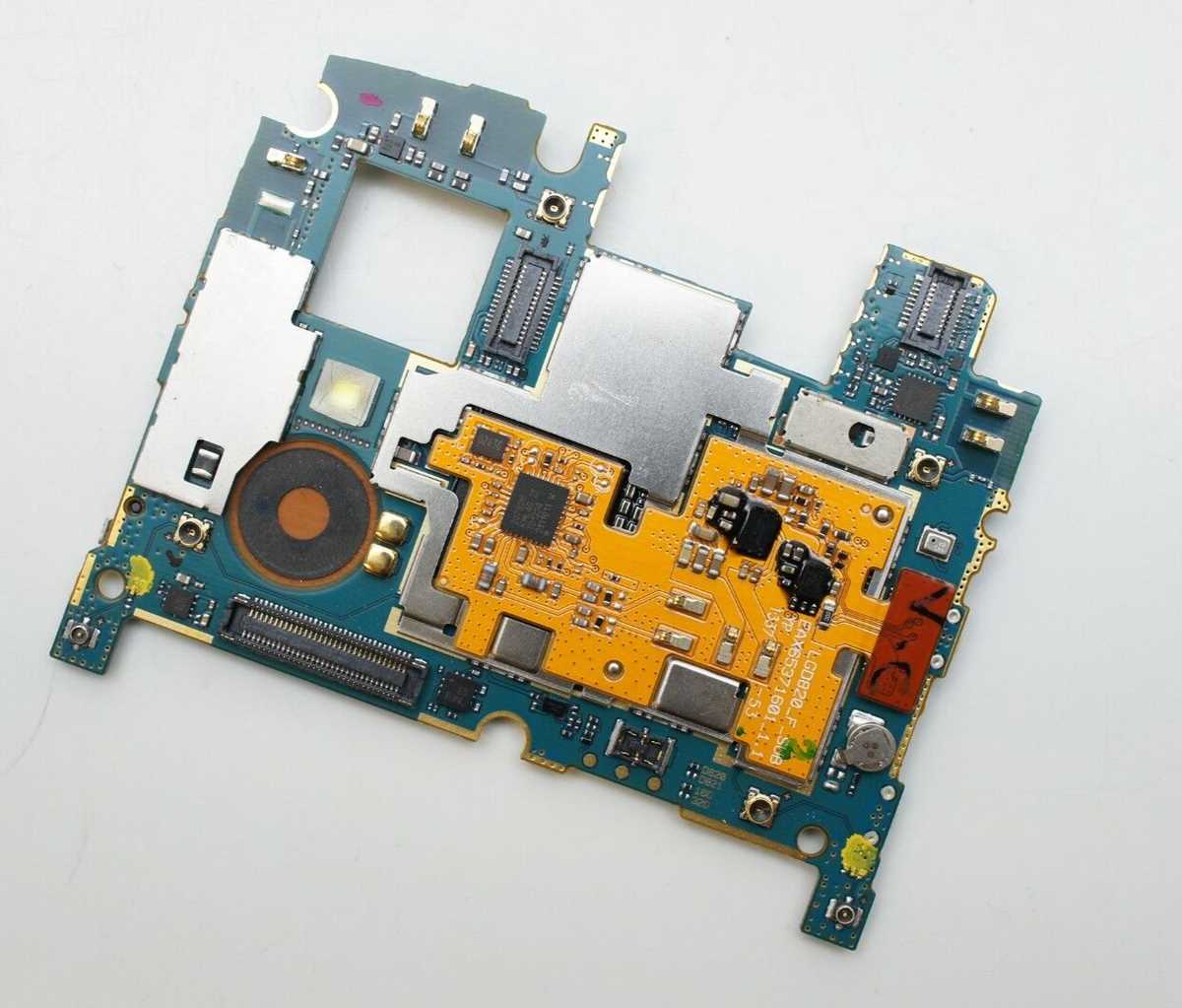

Identifying Critical Components in LG D820/D821 Mainboard Layout
Locate the PM8941 power management IC near the battery connector–this chip controls voltage regulation for most subsystems. Measure output voltages at inductors L1801 (1.8V), L1802 (3.0V), and L1803 (1.25V) with a multimeter; deviations exceeding ±5% indicate failure. Replace any adjacent decoupling capacitors (0402-sized 10µF ceramic) if ESR readings exceed 0.3Ω.
Trace the Qualcomm MSM8974 SoC pathways–high-density BGA connections require reflow at 245°C for 90 seconds if intermittent boot loops occur. Verify continuity between the SoC and DDR memory (Samsung K3QF7F70BM) on the bottom layer using a logic probe; shorts on data lines D0-D15 often cause blank screens.
- Check APQ8064T PMIC (U1401) for corrosion–common near micro-USB port due to moisture ingress.
- Test RF transceiver WTR1625L (U4201) by injecting 1.9GHz sine wave; distorted output suggests PA damage.
- Inspect flash memory (Samsung KLMBG4GEAC) for bit errors using JTAG read-backs if storage corruption occurs.
Examine the touch controller (Synaptics S3203) flex cable connector (J1201)–clean pins with isopropyl alcohol and 1000-grit sandpaper if ghost touches persist. Replace the adjacent 22Ω series resistors (R1201-R1206) if resistance varies by >1Ω from nominal.
Identify the GPS module (Broadcom BCM4752) via shielded can–reflow all four corner ground pads if location fixes drop below 3m accuracy. Check antenna switch (Skyworks 77629) for DC bias on control lines (VCTL1/VCTL2); correct voltage range is 0-2.8V.
- Desolder PM8941’s buck converters (L1701-L1706) if output voltages oscillate; replace with Murata LQH3NPN inductors for stable load transient response.
- Probe the audio codec (WCD9320) I2S lines–SDA/SDL signals should pulse at 3.072MHz; intermittent static indicates codec failure.
- Verify proximity sensor (Avago APDS-9930) I2C pull-up resistors (R2101/R2102, 2.2kΩ)–replace if open circuit.
Optimizing Trace Routing for Stable Power Delivery and Grounding in LG’s 2013 Flagship
Route high-current traces, particularly for the PMIC’s 3.8V battery rail, with a minimum width of 20 mils (0.5 mm) to prevent voltage drop under load. The reference design allocates parallel traces for the main power net–split into four distinct layers with staggered vias–to distribute thermal stress and reduce impedance below 15 mΩ at 1.5A draw.
Ground planes on layers 2 and 5 must remain uninterrupted, except for via antipads sized at 0.8 mm diameter. Avoid slotting the plane beneath the Snapdragon 800’s VDD_CORE ball grid; instead, connect returning currents via multiple 0.3 mm vias directly under the SoC’s thermal pad to minimize loop inductance.
Differential pairs for USB 3.0 data lines (D+ and D–) should maintain 100 Ω impedance with 5 mil trace spacing and 0.127 mm copper thickness. Route these on the same layer as their ground return path, keeping traces at least 30 mils apart from high-speed RF traces to prevent crosstalk. Use serpentine routing only for synchronized lengths, capped at 2 mm total deviation.
The Wi-Fi/BT module’s VDD_3P3 rail requires a Pi-filter network: two 10 µF capacitors (0402) at the module’s input and a 1 µH ferrite bead (Murata BLM18PG121SN1) before the load. Trace the filtered output to the module with 12 mil width on layer 4, shielded above and below by contiguous ground pours spaced no farther than 0.2 mm from the trace edges.
Thermal vias under the PMIC (Qualcomm PM8941) must use 0.3 mm pad diameter with 1 oz copper plating and filled epoxy. Connect these vias to an internal ground plane with a ring of 0.5 mm vias around the perimeter to enhance heat dissipation–target a junction-to-ambient thermal resistance below 20 °C/W. Route the thermal sense diode trace (TS pin) away from switching nodes; use guard traces at 0.1 mm spacing.
Secondary power rails, such as VDD_1P8 for DDR3 RAM, should employ star topology. From the central decoupling capacitor (10 µF, X5R, 0402), branch traces outward with 8 mil width, limiting stub lengths to 5 mm. Add 0.1 µF capacitors directly at each memory chip’s power pin, using 0.2 mm via-in-pad to eliminate parasitic inductance.
For the camera’s dual power rails (VDD_CORE and VDD_IO), implement separate paths back to the PMIC’s LDO outputs. Route VDD_CORE (1.2V) on layer 3 with 6 mil traces, while VDD_IO (1.8V) uses 8 mil traces on layer 6. Cross these rails only at 90° angles, inserting a 0.01 µF capacitor at each crossing to suppress noise coupling.
Chassis ground and digital ground planes merge at a single point near the micro-USB connector’s shield pin. Keep return currents from the touchscreen controller and LTE modem segregated until this star point, using a 0 Ω resistor (0402) as a fusible link. Route audio ground returns for the earpiece and speaker through 15 mil traces, isolated from the main ground plane until the star point, to prevent ground loops above 20 kHz.
