Complete LG Washing Machine Drain Pump Electrical Connection Guide
Locate the service manual specific to your LG model–SME297W, WM3900, or WT7300 series–as schematics vary by 5-10%. Each document includes a color-coded chart: red for live (120V AC), blue for neutral, green/yellow for ground. Verify the 3-pin connector (CN1) on the motor assembly matches the pinout in section 4-3; reversing L and N risks tripping the thermal fuse (TH1, 10A).
Begin diagnosis by isolating the float switch (FL) line–disconnect the harness at the main control board (PCB-A) to rule out false overload signals. Test continuity across contacts with a multimeter: infinite resistance on FL indicates a blockage in the discharge path, while
For models with self-cleaning filters (e.g., WM3600), trace the auxiliary heater circuit (HL) separate from the main pump loop. The HL relay (RL1) activates only when water temperature exceeds 50°C–if the cycle stalls, inspect the NTC thermistor (TH2) for a 10kΩ resistance drop. Connector CN3, marked “UVW,” carries three-phase current in inverter-driven units; reverse polarity here will trigger error code LE within 400ms.
When reassembling, torque the impeller securing bolt to 8-10 N·m–over-tightening cracks the plastic vanes, while under-tightening allows seal leakage. Apply dielectric grease to O-rings at fitting P2/P3 to prevent corrosion on the stainless-steel shaft. After assembly, run a 6-minute test cycle with the front panel removed to monitor LED indicators: a blinking Power light indicates a failed-capacitor scenario (C1, 15µF ±5%), whereas a solid Delay Start confirms proper rotation direction.
Understanding Electrical Connections in LG Appliance Fluid Removal Systems
Begin troubleshooting by locating the technical schematic typically affixed inside the rear access panel or documented in the service manual. LG models like WM3900HWA, WT7300CW, and WT7800HWA share a standardized layout: two spade terminals on the motor assembly connected to a four-wire harness (neutral, live, signal, and ground). Verify continuity between pins using a multimeter–expect 3-5 ohms across the motor windings and infinite resistance to the chassis.
For direct-drive variants (e.g., WM2032HW), the impeller motor receives 120V AC from the control board via a relay. Trace the gray and blue wires from the PCB to the pump housing; corrosion at these junctions is a common failure point. Clean contacts with 600-grit sandpaper if oxidation is present, then reapply dielectric grease before reconnection. Never bypass safety interlocks–these models integrate a thermal fuse rated at 135°C, tripping under overload conditions.
| LG Model Series | Motor Type | Voltage Supply | Winding Resistance |
|---|---|---|---|
| WM3x00 | Synchro drain | 120V AC | 3.2–4.8 Ω |
| WT7x00 | Direct drive | 120V AC | 2.9–4.5 Ω |
| WM2x32 | Impeller-based | 120V/24V (relay-switched) | 4.0–5.5 Ω |

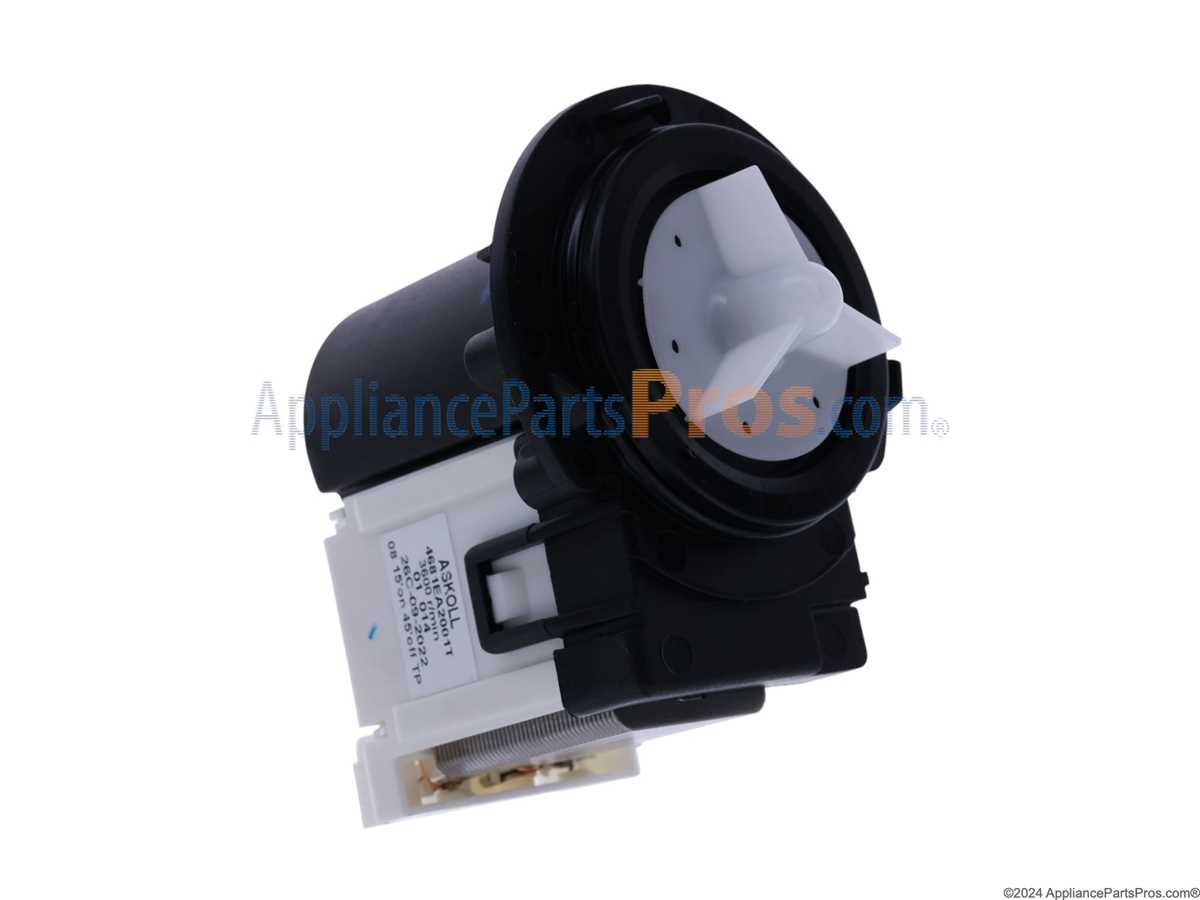

Replace the assembly if resistance exceeds 20Ω or drops below 2Ω–indicative of open or shorted coils. LG part numbers 4681EA2001T (standard) and 5221FR2044L (high-capacity) accommodate most configurations. Cross-reference with the model’s serial number using LG’s online parts database before purchase; incompatible variants exist for ventless condenser units (e.g., WM3488HW). Installation requires Torx T20 driver for the housing screws.
During reassembly, ensure the rubber gasket seats fully in the channel–improper alignment causes water leaks that trigger E5E error codes. For models with integrated debris filters (e.g., WT7100CW), remove trapped lint from the impeller blades before power-up testing; residual material mimics motor failure by impeding rotation. Use an LED continuity tester to confirm the control board sends a 24V signal to the pump relay during the evacuation cycle.
If the system hums but doesn’t spin, suspect seized bearings–disassemble the unit by prying the impeller cap with a flathead screwdriver. Apply lithium-based bearing grease to the shaft, then manually rotate the blades 30+ times to distribute lubricant. Reinstall the impeller with the arrow pointing clockwise when viewed from above. For persistent issues, replace the Hall sensor (located beneath the impeller) with LG part 6201ER1004A–failure here generates LE error codes.
Post-repair, run a diagnostic cycle via the service menu (press Power + Start/Pause for 3 seconds on most models) to verify normal operation. Monitor current draw with a clamp meter–expect 0.3–0.6A during standard evacuation. Values exceeding 0.8A suggest internal friction or incorrect reassembly.
Locating the Electrical Leads on an LG Appliance Outflow Component

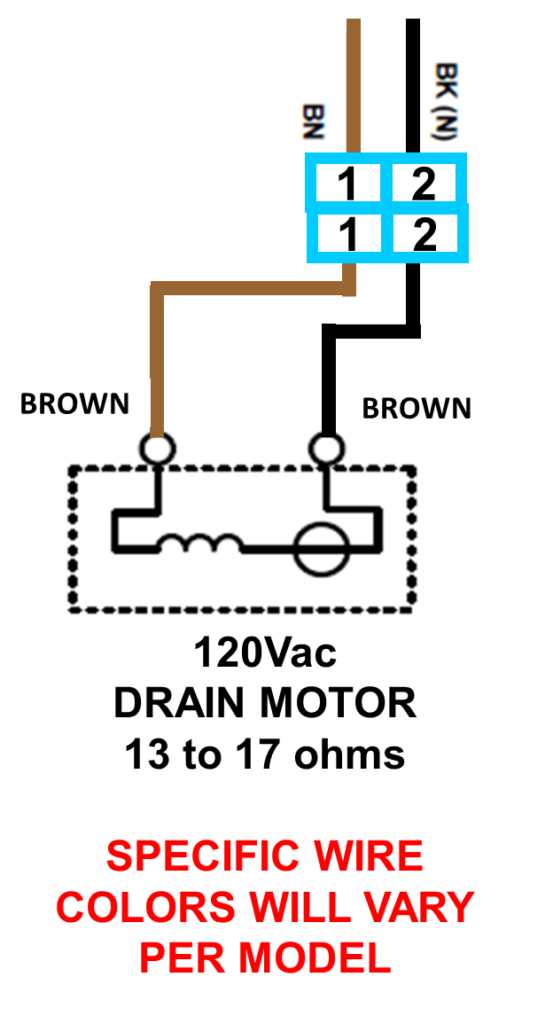

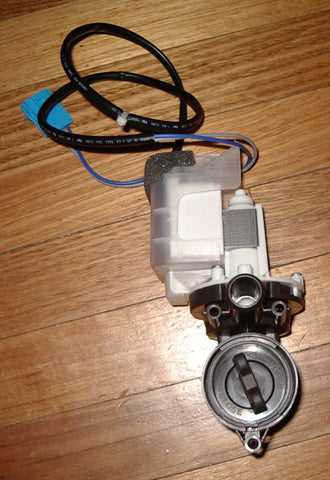

Begin by unplugging the machine from its power source before inspecting any internal connections. LG models typically group the outflow component’s leads near the lower rear panel–look for two thin wires (often white or gray) attached to a small motor encased in plastic. These wires terminate in spade connectors or bullet-style terminals, distinct from the thicker harnesses used elsewhere in the unit.
Consult the tech sheet stored inside the appliance, usually behind the front panel or taped to the cabinet sidewall. The schematic labels the outflow component’s leads as “M” and “T” or color-codes them “R” (red) and “W” (white), though variations exist between series. Newer LG lines may use “BRN” (brown) and “BLU” (blue) instead–verify against the specific model’s documentation.
Tracing the Circuit Path
- Identify the main control board, often positioned behind the top panel or side cover. Follow the harness from the board’s “Pump Out” or “Discharge” relay pins; these route directly to the outflow component.
- Check for inline connectors between the board and motor–main harnesses split into smaller branches, with the outflow leads branching off last, typically secured by zip ties or adhesive clips.
- Use a multimeter set to continuity mode to confirm connections. Probe the spade terminals while activating a test cycle via the machine’s diagnostic mode–confirmed active leads will register near 0 ohms.
LG’s direct-drive units (marked with “DD” on the outer casing) simplify identification by integrating the outflow motor into a single modular assembly. Here, wires exit the motor in a short pigtail (3–6 inches), terminating in a 3-pin connector that mates with the main harness. The outer pins correspond to power, while the center pin is ground–never modify or bypass this configuration.
Troubleshooting Lead Issues
- Inspect for corrosion at terminals, especially in humid environments. Clean with electrical contact cleaner and gently bend spade connectors to restore tension if loose.
- Examine insulation for cracks or melting–a common failure point if the motor overheated. Replace damaged wires with the same gauge (typically 18–20 AWG) to prevent voltage drop.
- Test for voltage (120V AC for North American models) at the motor terminals during active outflow phases. Absence indicates a board-level failure, not a lead issue.
Note the orientation of connectors when disconnecting them. LG uses asymmetrical designs (e.g., keyed tabs or offset pins) to prevent incorrect reassembly. Swapping leads risks reversing polarity, damaging the motor or control circuitry. For European models operating on 220–240V, verify compatibility before applying test voltages to avoid hazardous arcing.
How to Find Electrical Schematics in LG Appliance Documentation
Begin by visiting LG’s official support portal at lg.com/support. Enter your model number in the search bar–this number is typically located on a sticker behind the kickplate, inside the door frame, or on the side panel. If the label is illegible, check purchase receipts or packaging for the exact designation.
Once on the product page, navigate to the “Manuals & Documents” section. LG organizes files by document type; look for PDFs labeled “Service,” “Technical,” or “Repair.” These files often contain internal layouts, including the electrical connections for components. If no such file appears, broaden your search by selecting “All Documents” and scanning titles for terms like “schematic,” “circuit,” or “exploded view.”
Identifying the Relevant Section

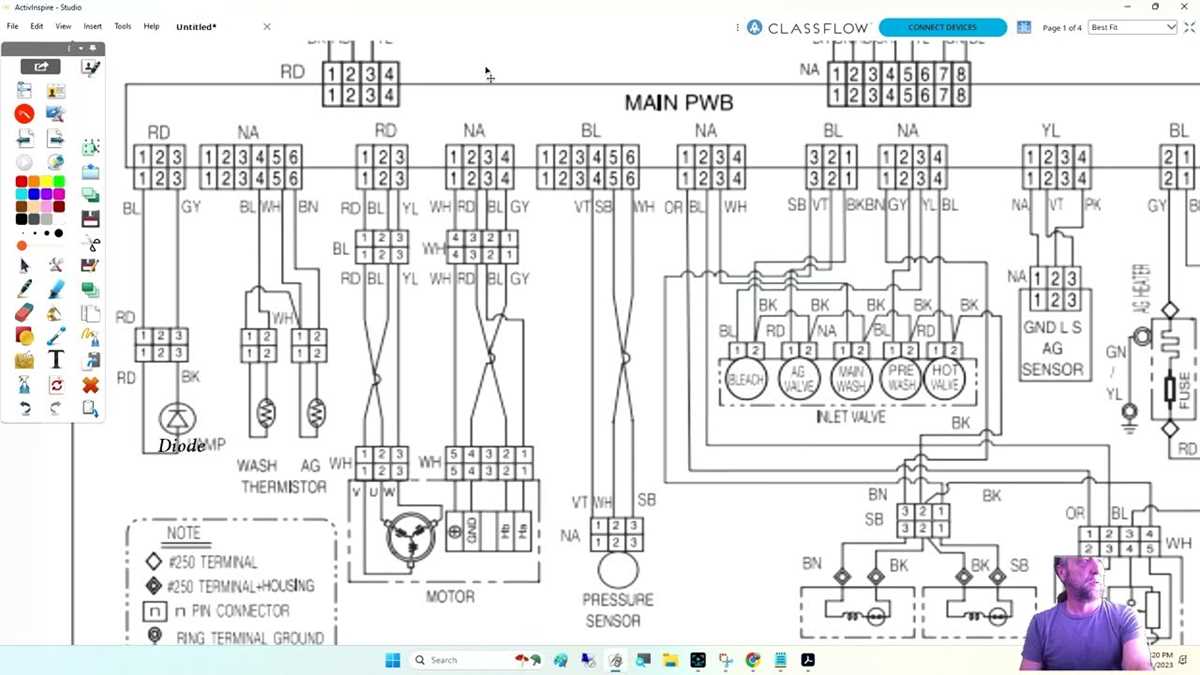

Open the downloaded PDF and use the search function (Ctrl+F or Cmd+F) to locate key identifiers. Common keywords include “motor,” “PCB,” “harness,” “connector,” or the specific part number linked to your issue. LG’s schematics are frequently embedded within larger diagrams–look for dashed lines or color-coded paths connecting the part to the main control board.
- Check the table of contents for a “Wiring” or “Electrical” chapter.
- Refer to the index if the document includes one–pages listing symbols or abbreviations often precede detailed layouts.
- For European models, schematics may be labeled “EB” (electrical blueprint) followed by a revision number.
If the standard manual lacks clarity, download the “Service Bulletin” archives for your model. These bulletins address common failures and often include revised schematics or annotated corrections not present in the original documentation. LG releases these updates quarterly, so ensure you’re viewing the latest version.
Alternative Sources for Obscure Models
For discontinued units or rare variants, visit third-party repositories like appliancepartspros.com or samsungparts.com (despite the name, they host LG files). Enter your model number to retrieve exploded views and connection maps. Note that these sites may require a subscription for full access. Another option is forum threads on Electrolux’s community page or Fixya, where technicians upload scans of hard-to-find schematics.
