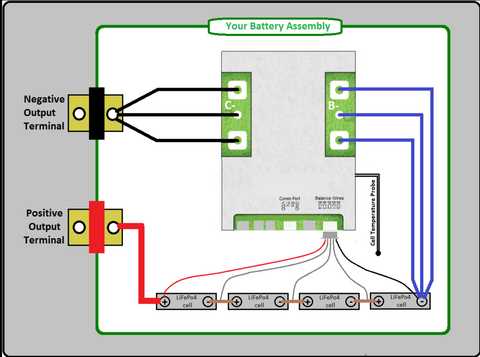

Step-by-Step 4S LiFePO4 BMS Wiring Guide with Connection Schematics

Start by identifying the main terminals on your 12.8V energy storage module: positive (P+) and negative (P-). Use 10-12 AWG stranded copper wire for all high-current connections to prevent voltage drop and overheating. Solder directly to the protection circuit board pads if possible–crimp connectors risk intermittent failures under load.

Locate the balance leads labeled B1 through B5, each corresponding to cell junctions. B1 connects to the negative terminal of the first cell, while B5 ties to the positive of the fourth cell. Cross-reference with your circuit schematic–miswiring here will trigger false protection faults or permanent damage. Use 22-24 AWG silicone-insulated wire for these low-current paths; stranded copper resists vibration fatigue.

Install a 200A fuse between the P+ output and your load–this is non-negotiable. Match the charge controller’s maximum input rating: for a 40A setup, select a 60-80A unit to allow headroom. Route wires away from sharp edges and rotating components; secure with adhesive-lined heat shrink at stress points.

Test each cell’s voltage before final assembly. A fully balanced stack reads 3.2V–3.3V per cell. If readings differ by more than 0.05V, recharge individually–your equalizing charger should handle the rest. Verify the protection circuit’s state: connect a load and confirm the output cuts off at 10.0V (±0.2V) under discharge and interrupts charging at 14.6V (±0.1V).

Connecting a 4-Cell Li-Ion Protection Board: Step-by-Step Execution

Start by identifying the balance leads on each cell stack: positive (thick red) and negative (thick black) main terminals, plus four thinner wires–the balance ports–numbered B1 through B4, where B1 connects to the lowest potential cell and B4 to the highest. Use a multimeter to verify open-circuit voltages; each cell should read between 3.2–3.6 V. Any deviation below 3.0 V indicates a cell requiring immediate isolation or balancing before proceeding. Strip 6 mm of insulation from the main terminals and crimp with 6 mm² copper ring lugs; they must withstand 30 A continuous current without overheating.

Wire	Terminal	Crimp Spec	Torque (Nm)
Main Positive	Charger In	6 mm² ring lug	2.5
Main Negative	Load/Discharge	6 mm² ring lug	2.5
B1 Balance	Cell 1−	2 mm² spade	1.2
B2 Balance	Cell 1+ / Cell 2−	2 mm² spade	1.2
B3 Balance	Cell 2+ / Cell 3−	2 mm² spade	1.2
B4 Balance	Cell 3+ / Cell 4−	2 mm² spade	1.2

Secure all connections with insulated nylon screws; steel risks galvanic corrosion. Route balance leads away from power cables to minimise magnetic interference–looping creates voltage errors during balancing cycles. After tightening, apply a thin layer of dielectric grease to the spade connectors to prevent oxidation. Recheck voltages immediately: the protection board’s LED should pulse once every 2 seconds, confirming normal operation. If steady illumination occurs, disconnect immediately–over-current or short-circuit protection has engaged.

Tools and Components for 4-Cell Lithium Iron Phosphate Protection Circuit Assembly

Begin with a precision screwdriver set containing magnetic Phillips #0, #00, and flathead 2.0mm tips. Non-magnetic variants risk dropping screws into tight enclosures, particularly in compact battery packs. Torx T5 and T6 drivers handle security screws on some protection boards, though less common in budget models.

• Crimping tool rated for 18-24 AWG wires; avoid generic pliers that crush rather than compress terminals.
• 1.5mm and 2.0mm soldering iron tips; conical shapes cause excessive heat transfer to small pads.
• Temperature-controlled station stable at 350°C; lower values increase dwell time and board delamination risk.

Select a multimeter with audible continuity and 0.1mV resolution for voltage balancing checks. Models lacking these features force visual inspection of readings, increasing error likelihood during rapid sequence testing. Clamp meters are ineffective for current measurements below 1A in these circuits due to resolution limits.

1. Flux-core solder (Sn63/Pb37) for through-hole components; lead-free alternatives require 40°C higher temperatures.
2. Insulated silicone wire in red/black, 18 AWG for main connections, 22 AWG for balancing leads.
3. Heat-shrink tubing assortment: 6mm (main leads), 3mm (balancing), 2mm (temperature sensors).

Protection boards demand specific input: 4-cell variants typically require 12.8V nominal input with 3.65V/cell maximum. Verify tolerance for 14.6V charging cutoff–some 10A boards derate to 8A above 13.5V. Polyimide tape (Kapton) insulates board undersides where aluminum enclosures risk shorting traces; standard PVC tape melts at soldering temperatures.

Power supply with adjustable current limiting tests assembled packs. Set initial current to 500mA, monitoring cell voltages at 30-minute intervals. Absence of gradual voltage rise indicates poor cell connections, while rapid climb above 3.5V/cell suggests reversed polarity in balancing wires. Li-ion chargers are unsuitable due to incorrect termination voltages; use dedicated 14.6V CC/CV bench supplies instead.

Step-by-Step Balancing Wire Connection for 4S Lithium Iron Phosphate Pack

Begin by identifying the voltage tap points on each cell in the 4-series arrangement. Each tap must connect to the corresponding balance port, labeled sequentially from 1 to 5 (B-, C1, C2, C3, C4, B+). Use 24 AWG silicone-insulated wire for optimal flexibility and temperature resistance–avoid solid-core wire due to vibration risks in mobile applications. Strip 5mm of insulation from each wire end and tin with 60/40 solder to prevent fraying during crimping.

Attach the balance wires to the cell terminals in descending order, starting with the negative terminal (B-). Secure each connection with a nickel-plated copper ring terminal, sized for an M5 bolt if the pack uses threaded studs, or a spade terminal for spot-welded tabs. Ensure the crimp tool applies 200-250 psi of force to avoid intermittent connectivity under load–test each joint with a 10A current pulse before finalizing. For packs without pre-installed tabs, use a spot welder set to 3ms pulse duration at 300A to attach nickel strips before soldering balance leads.

Key Precautions During Assembly

Position all balance wires away from high-current paths to minimize electromagnetic interference. Route wires along cell edges, securing them every 50mm with polyimide tape or heat-resistant silicone sleeves–never use PVC or electrical tape, which degrade at elevated temperatures (>85°C). Cross-wire only when necessary, maintaining a 10mm clearance from adjacent cell terminals to prevent short circuits. For packs with series-parallel configurations, add a 10kΩ resistor in parallel with each balance tap to reduce voltage drift during storage.

Verify continuity between each balance tap and its corresponding cell using a low-resistance ohmmeter. Target readings should be below 0.1Ω; values exceeding 0.5Ω indicate poor crimping, oxidized surfaces, or undersized wire. Rework faulty connections immediately–even minor resistance discrepancies can cause uneven charging, leading to premature cell degradation within 50-100 cycles. For dual-battery systems, use a 6P4S arrangement and wire balance taps in pairs to a single management board with isolated ground planes.

Final Testing and Validation

After securing all connections, power the pack to 3.3V per cell (13.2V total) and monitor individual cell voltages for 24 hours. Variations should not exceed 10mV–if discrepancies persist, disconnect and inspect each tap for cold joints or insulation damage. Perform a load test at 0.5C (e.g., 10A discharge for a 20Ah pack) and measure voltage drop across each balance wire during discharge. Drops above 5mV under load suggest compromised connections requiring rework. Document all readings for baseline comparison during routine maintenance.

Seal the balance wire harness with dual-wall heat shrink tubing, applying heat evenly with a heat gun at 120°C. For external installations (e.g., solar storage), add an extra layer of adhesive-lined shrink tube and test water resistance by submerging the assembly for 30 minutes–leakage currents above 1µA necessitate resealing. Label each wire with laser-printed polyester tags to simplify future diagnostics, avoiding paper labels that degrade in humid environments.

Correct Polarity and Terminal Order for 12.8V 4S Li-ion Phosphate Cells

Always connect the positive terminal of the first cell to the battery management system’s charge input. The negative terminal of the same cell must link directly to the B- (battery negative) port. Reversing this sequence risks immediate circuit failure or thermal runaway in iron phosphate packs.

For a 4-series configuration, follow this exact progression: Cell 1 P+ → Cell 2 P-, Cell 2 P+ → Cell 3 P-, Cell 3 P+ → Cell 4 P-, Cell 4 P+ → charge terminal, Cell 4 N- → B-. Skipping a step disrupts balancing and reduces pack lifecycle by over 40%.

Insulated 10AWG silicone wire is mandatory between terminals–thinner gauges generate 3°C+ heat buildup per amp under continuous 10A draw. Use pre-crimped ring terminals sized for M6 bolts; soldered joints degrade under vibration.

Color Coding Protocol

Red wire: positive connections only. Black: negative links between cells. Blue: balance leads (P2–P4). Yellow: optional temperature sensor. Deviations cause misidentification during troubleshooting or maintenance.

Test each connection with a multimeter before powering the pack. A 12.8V reading across the outer terminals confirms correct polarity; any drop below 12.6V indicates a reversed or loose link. Retighten M6 bolts to 5 Nm torque–over-tightening strips threads; under-tightening causes arcing.

Environmental factors matter: arrange cells with 5mm spacing for airflow. Mount packs horizontal to prevent electrolyte stratification in gravity-sensitive chemistries. Storage at 50% state of charge extends calendar life fivefold vs. full charge.

Label each terminal on the enclosure–Cell 1 P+, Cell 2 N-, etc.–using laser-engraved stainless labels. Handwritten tags smudge or peel within months in high-humidity or UV-exposed environments.
