How to Wire a Light Socket Step-by-Step Installation Guide
Before handling any electrical connections, ensure the power is shut off at the circuit breaker. Use a non-contact voltage tester to verify no current flows through the wires. A wrong move can trigger short circuits or severe shocks–never skip this step.
Identify the three core wires in the junction box: hot (black or red), neutral (white), and ground (green or bare copper). The hot wire carries the current, the neutral completes the circuit, and the ground acts as a safety measure. Confusing them risks damaging the fixture or causing a fire.
Strip the wire ends to expose 1/2 inch of copper using wire strippers. Twist the exposed strands tightly to prevent fraying. Loose connections lead to overheating and poor performance. For secure fastening, match each wire to its corresponding terminal on the fixture’s base or mounting bracket.
For standard screw terminals, loop the wire clockwise around the screw before tightening it. This ensures the wire wraps in the direction of the screw’s rotation, preventing unwinding. For push-in connectors, insert the stripped wire fully until it clicks–partial insertion causes intermittent failures.
If the fixture includes a bridge for multiple bulbs, check the manufacturer’s schematic for parallel or series connections. Parallel wiring maintains consistent brightness across bulbs, while series connections dim them uniformly. Incorrect bridging can overload the circuit.
After securing all wires, fold them neatly into the junction box and attach the fixture’s mounting bracket. Turn the power back on and test with a bulb rated for the correct wattage. Flickering or dim output often signals a loose connection–reopen the box and double-check every joint.
For older homes, verify the box’s amperage rating. A 15-amp circuit with 14-gauge wire suffices for most setups, but 20-amp circuits require 12-gauge. Exceeding these limits overheats wires, degrading insulation over time.
If the fixture includes a dimmer, confirm compatibility with the bulb type. LED bulbs need dimmers rated for low-wattage loads, while incandescent bulbs work with standard dimmers. Mixing incompatible components causes buzzing or premature burnout.
Illuminating Fixture Connection Guide
Begin by identifying the three critical conductors within your installation: the live (hot) wire (typically black or red), the neutral wire (white), and the ground wire (green or bare copper). Use a multimeter to confirm the live conductor registers 120V AC (or 230V for EU systems) relative to the neutral. Attach the live wire to the brass screw terminal on the fixture base, ensuring the connection is tight–loose contacts can arc, creating fire risks. Secure the neutral wire to the silver terminal, and bond the ground to the designated green screw or chassis point.

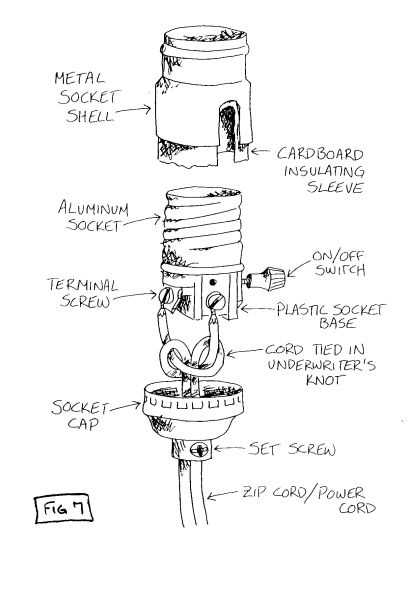

For bayonet or screw-base installations, observe the right-hand rule: the live conductor must connect to the center contact (the small metal tab at the base). Reversing polarity–even if the circuit functions–poses a shock hazard, as the fixture’s outer shell may remain energized. Test this immediately after assembly: a non-contact voltage tester should detect zero current on the metal housing. If it glows, revisit the terminal assignments.
In parallel circuits (e.g., multi-bulb chandeliers), daisy-chain the conductors: connect the live wire to the first fixture, then run a jumper wire from its output terminal to the next fixture’s input. Repeat for neutral and ground. For LED retrofits, verify the driver’s wattage matches the fixture’s rating–exceeding 20% over may cause flickering or premature failure. When in doubt, refer to the UL listing label inside the junction box for maximum load specs.
Essential Gear and Supplies for Installing a Fixture Connector
Begin with a non-contact voltage tester rated for 120–277V AC to avoid false negatives. Choose models with auto-calibrating sensors (e.g., Klein NCVT-3) for reliable readings around switch loops with neutral returns. Keep insulated screwdrivers with magnetic tips (Phillips #2 and flathead 3/16″)–verify their insulation rating meets IEC 60900 Class 0 for 1000V protection. A circuit tracer or tone generator becomes indispensable when tracing wires concealed behind drywall; prioritize units with adjustable frequency settings to prevent interference from adjacent circuits.
Required Components
- Fixture-rated wire nuts (red or tan, for 18–12 AWG)
- Stranded copper pigtails (14 AWG, THHN/THWN-2)
- Flexible metal conduit (1/2″ EMT) or armored cable (AC-90) for movable mounts
- Terminal blocks (Euro-style, 20A rating) for multi-branch connections
- Heat-shrink tubing (3:1 ratio, polyolefin) for strain relief on exposed splices
Optional but Useful Extras
- Fish tape (steel, 1/8″ x 25′) with glow-in-the-dark leader for attic/crawlspace work
- Wire strippers with crimping jaws (Klein Katapult or equivalent) preset to 14–10 AWG gauges
- Multimeter with min/max hold function (e.g., Fluke 17B+) to measure inrush current
- Plastic junction box extenders (4″ square) for shallow wall cavities
- Label maker (thermal, waterproof tape) for marking breaker panels and feeders
For outdoor installations, select RG-6 coaxial grounding blocks (brass) instead of standard clamps–they resist corrosion better when exposed to moisture. Always match conductor ampacity to the fixture’s maximum load; undersized wires risk overheating splice points even at rated current.
Step-by-Step Guide to Safely Disconnect Power Before Modifying Fixtures
Locate the circuit breaker panel first. Verify the correct switch by identifying labels–most residential panels mark dedicated lines for ceiling or wall outlets. Flip the switch fully to the “off” position; partial disconnection risks residual current. Use a non-contact voltage tester to confirm zero electrical flow at the junction box before proceeding. Avoid relying on wall switches alone–these may control only a single wire while others remain live.
For older installations without clear labeling, shut off the main breaker temporarily. Ensure all connected devices (lamps, appliances) are unplugged to prevent surge damage when restoring power. Wear insulated gloves rated for at least 600 volts and use tools with rubber-coated handles. Never assume wires are dead based on color–not all black wires carry current, and white wires may sometimes serve as hot leads in switch loops. Double-check connections with a multimeter set to AC voltage, probing between each conductor and ground; readings should register 0 volts.
Color Coding and Conductor Identification in Illumination Fixtures
Always verify conductor colors against local regulations before handling connections–standards differ by region. In North America, the ungrounded (hot) lead is typically black, red, or another non-white, non-green color, while the neutral is white or gray. The protective earth must be green, bare copper, or striped green-yellow. Europe follows IEC 60446, designating brown for phase, blue for neutral, and green-yellow for earth. Deviations exist in older installations; use a multimeter to confirm voltage on suspected phase conductors.
When retrofitting existing circuits, label each conductor at both ends during disassembly. Use heat-shrink tubing or adhesive markers with letters (L for line, N for neutral, E for earth) to prevent confusion during reassembly. For fixtures with integrated dimmers or smart controls, additional conductors (e.g., orange for switched phase, purple for communication) may appear–consult the manufacturer’s documentation to avoid miswiring.
Regional Color Standards Table
| Region | Phase (Line) | Neutral | Earth | Notes |
|---|---|---|---|---|
| North America (NEC) | Black, Red, Blue | White/Gray | Green/Bare/Green-Yellow | 208V systems may use orange for high legs |
| Europe (IEC) | Brown | Blue | Green-Yellow | Single-phase; three-phase adds black (L2), grey (L3) |
| UK (BS 7671) | Brown | Blue | Green-Yellow | Older installs may use red (phase), black (neutral) |
| Australia/NZ (AS/NZS 3000) | Red (active), Brown | Black, Blue | Green-Yellow | Blue may be neutral or active in multi-phase |
| Japan | Black, Red | White | Green | Neutral or phase may be black in two-wire systems |
For circuits exceeding 120V, marking becomes critical–use sleeving or striped tape to distinguish phase conductors (e.g., black/red stripe for L1, black/blue for L2). In conduit systems, spacer tapes or printed labels help trace conductors back to their origin. Avoid relying solely on insulation color; physical verification with a non-contact voltage tester or continuity check is mandatory when dealing with undocumented systems.
Specialized circuits, such as those with emergency backups or isolated grounds, introduce exceptions. An isolated ground (orange sheath) must terminate at a separate ground bus, not the neutral. Emergency circuits (red conductors) should remain isolated from standard feeds to prevent accidental tripping of protection devices. Always isolate power at the breaker before testing–assume all conductors are live until proven otherwise.
When replacing outdated components, upgrade to compliant color schemes even if the existing installation violates standards. Document discrepancies in panel schedules or fixture tags to inform future technicians. For mixed-voltage systems (e.g., 24V controls with 120V power), use distinct connectors (e.g., spade terminals for low voltage) to prevent cross-connection. In multi-phase installations, maintain consistent phase rotation–reverse rotation can damage motors and compressors.
