Step-by-Step Guide to Wiring a Light Switch with Clear Diagrams
Before handling any live circuits, ensure the power is completely disconnected at the circuit breaker. Verify absence of voltage using a non-contact voltage tester on all wires–failure to do so risks severe electric shock. Standard residential setups typically involve three conductor types: hot (black or red), neutral (white), and ground (green or bare copper). The hot wire carries current from the panel, neutral returns it, and ground provides safety by redirecting stray current.

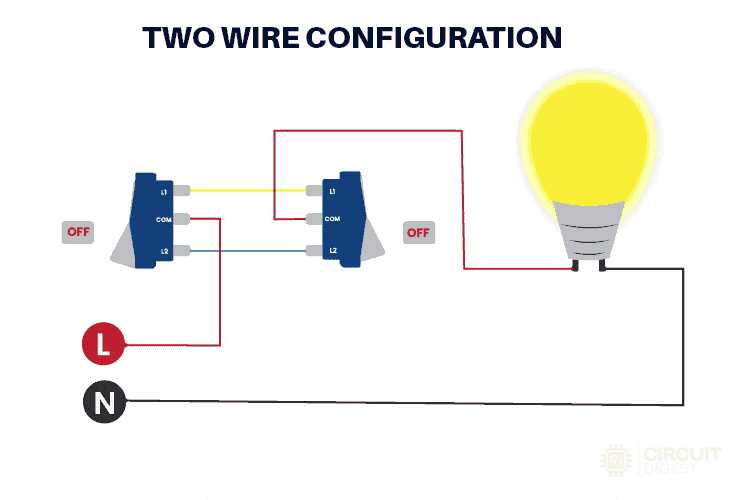

Single-pole toggles require only a hot and neutral connection, but modern installations often include a ground wire for compliance with electrical codes. For a basic two-way setup, connect the incoming hot wire to the toggle’s common terminal (usually marked “COM” or “LINE”), then attach the load wire (leading to the fixture) to the other terminal. If rewiring an existing box, label wires before disconnecting to avoid confusion–mismatched connections can cause short circuits or fixture malfunctions.
Three-way toggles introduce complexity by allowing control from two locations. Each toggle has three terminals: a common (dark-colored screw) and two traveler screws (brass or lighter-colored). The incoming hot wire connects to the common screw of the first toggle, while the load wire attaches to the common screw of the second. Traveler wires (usually red and black) link the two switches. Ground screws must always be connected to the box’s ground wire or grounding conduit–omitting this step violates safety standards.
For smart toggles, consult the manufacturer’s schematics–these devices often require a neutral wire at the box, which older homes may lack. If neutral isn’t present, consider a neutral-free model or reroute wiring with an electrician. Dimmer units follow similar principles but require compatible bulbs (LED or incandescent); mismatched components can cause flickering or failure. After wiring, cap all unused conductors with wire nuts and tuck them safely into the box–exposed copper poses a fire hazard.
Final step: test operation before securing the toggle plate. Restore power and verify the fixture responds correctly. If the device doesn’t activate, recheck connections–common errors include loose screws, reversed traveler wires in three-way setups, or an unintentional open circuit. Never assume wiring is correct based on color alone; always confirm with a multimeter or voltage tester.
Electrical Toggle Connection Guide
Install a single-pole control using two black conductors: connect one to the brass terminal and the other to the common terminal marked by a darker screw. Verify power is off at the circuit breaker before handling any conductors–test each wire with a non-contact voltage detector. Strip 12 mm of insulation from the end of each conductor to ensure a secure contact. Twist strands tightly if using stranded wire to prevent loose connections that can lead to arcing.
Three-Way Configuration Steps
For a multi-location setup, identify the common terminal on each toggle–it’s often black or copper-colored. Attach the traveler conductors (red and black) to the remaining brass terminals on both devices. The neutral (white) conductor should bypass the toggles entirely and connect directly to the fixture’s neutral terminal. Label all conductors at each junction box to avoid confusion during future inspections.
Use 14 AWG solid copper for 15 A circuits and 12 AWG for 20 A circuits–never mix gauges in a single run. Secure all connections with wire nuts rated for the conductor size, twisting clockwise before capping. Tug each conductor to confirm it’s firmly seated in the nut. Leave a 10 cm tail on spliced connections to allow for rework without restripping. Avoid backfeeding power through traveler conductors in uninstalled positions.
Common Pitfalls and Fixes
If the fixture fails to energize, first check for loose connections–vibration from installation can dislodge conductors. Ensure the neutral is continuous from the power source to the fixture; an open neutral will prevent operation even if the control is functional. For flickering output, inspect the fixture’s transformer or LED driver–older ballasts may not handle modern loads smoothly. Replace any corroded terminals immediately; oxidation increases resistance and generates heat.
Grounding is non-negotiable: attach a bare or green conductor to the green grounding screw on each toggle, then bond it to the metallic box if present. In plastic enclosures, run the grounding conductor through to the fixture. Use a torque screwdriver to tighten terminal screws to manufacturer specs–typically 12-15 in-lbs. Exceeding torque can strip threads or crack the toggle body; insufficient torque leads to high-resistance joints.
Step-by-Step Guide to Installing a Standard On/Off Control
Turn off power at the circuit breaker before handling any electrical components–verify absence of current using a non-contact voltage tester on both terminal screws and wires. If the tester beeps or lights up, the circuit remains active; recheck the breaker panel. Working on live circuits risks severe shock or fire hazards.

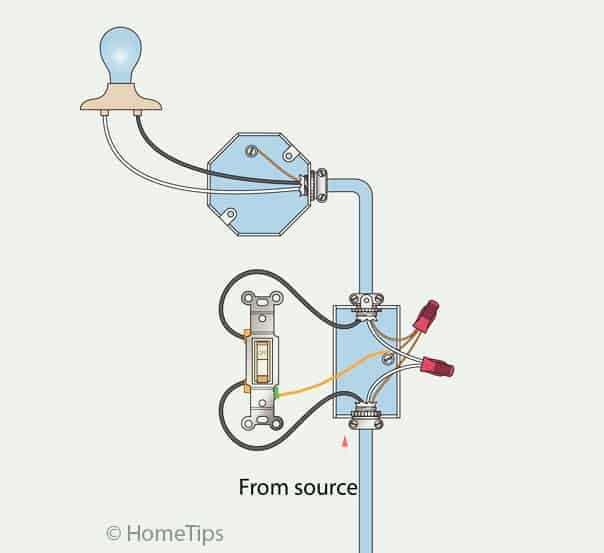

Identify the live feed (typically black or red), neutral (white), and ground (bare copper or green) conductors. A single-pole setup uses two terminals: one for the incoming live feed, the other for the outgoing conductor to the fixture. Strip ½ inch of insulation from each conductor using wire strippers–ensure no nicked strands remain, as they weaken connections.
| Wire Type | Color Code | Connection Point |
|---|---|---|
| Live feed | Black/Red | Common terminal (brass screw) |
| Fixture lead | Black/Red | Switched terminal (brass screw) |
| Ground | Bare/Green | Ground screw (green or unmarked) |
Loop each stripped end clockwise around its respective screw–this direction matches the screw’s threading, preventing the wire from unraveling when tightened. Secure connections with a screwdriver, applying firm pressure (approximately 12-15 inch-pounds of torque) to avoid loose contacts that cause arcing. Wrap electrical tape around the frame once to insulate terminal screws, covering all exposed metal.
Attach the device to the electrical box using mounting screws, ensuring it sits flush against the wall. Restore power at the breaker and test operation–if the fixture fails to respond, power off again and recheck connections for reversed wires or loose screws. Miswired setups can damage appliances or create short circuits.
Connecting a Multi-Point Toggle Control for Extended Reach

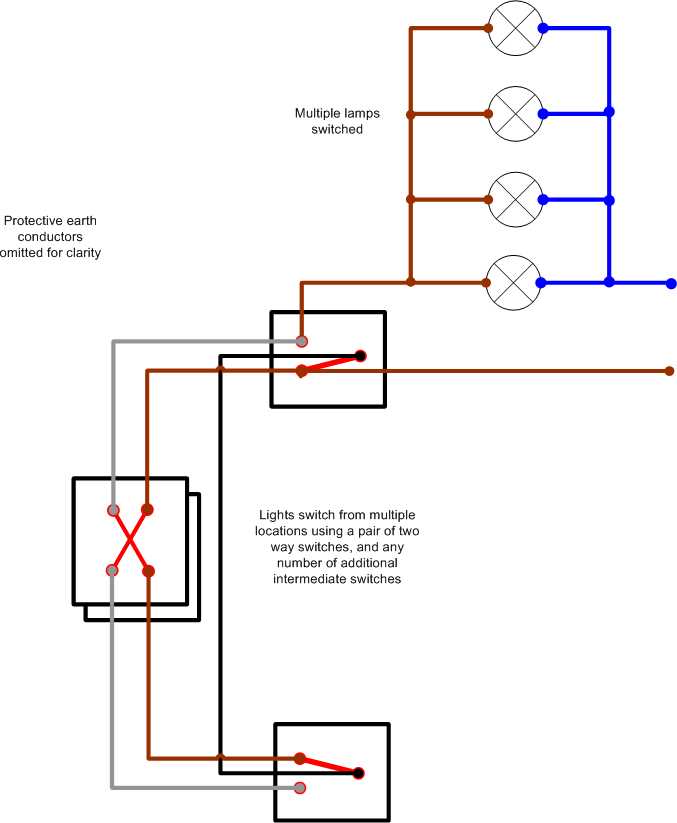

Install a 14/3 or 12/3 NM cable between the first and second control points–ensure the red and black conductors serve as travelers, while the white remains neutral and the bare ground connects to all metal frames. At each location, attach the common screw (usually darker) to the incoming power feed (for the first box) or the fixture wire (for the last box), securing travelers to the brass terminals in matching pairs across all units.
Key Terminal Pairing Across Panels
Label traveler conductors at both ends before stripping insulation to prevent cross-wiring. The red and black wires must terminate identically at every control point: swap them only if the toggles operate backward–this confirms consistent circuit paths. Use wire nuts rated for three 14-gauge wires minimum when joining neutrals in the final junction box, twisting clockwise before tightening the nut.
Test each toggle in sequence after power restoration: if only one position fails to energize the load, isolate the affected panel and verify the common terminal has tension–no 120V reading there indicates an open neutral or misaligned traveler pair, requiring disassembly of that unit alone without disturbing others.
Installing a Variable Control Device in Place of Standard Regulation
Shut off power at the breaker panel before handling any conductors. Verify absence of current with a non-contact tester–probing both the live feed and neutral terminals–before detaching existing hardware. A single-pole variant replaces standard on-off mechanisms with identical terminal counts; multi-way setups demand matching components to maintain circuit continuity. Label each wire with masking tape to streamline reconnection, especially if dealing with three-way or four-way configurations where sequence errors disrupt functionality.
Choose a dimming unit compatible with the fixture’s load type. Incandescent and halogen bulbs pair with standard resistive models, whereas LED or CFL loads require electronic low-voltage or universal variants. Check the device’s wattage rating: sum the connected fixture’s total consumption, ensuring it stays 20% below the regulator’s upper limit. Failure to match load characteristics risks flickering, humming, or premature component failure. For mixed loads, select a universal model with adjustable response curves to accommodate different technologies.
Terminal Connection Protocol
Connect the incoming supply conductor to the “common” or “line” terminal–typically marked by brass or dark screws–and secure tightly with a screwdriver, ensuring no exposed copper extends beyond the clamp. Attach the conductor leading to the luminaire to the “load” terminal. For multi-way installations, identify the traveler wires by tracing them through the conduit or cable sheath; attach these to the designated traveler terminals, often distinguished by same-color screws. Ground the unit by affixing the bare copper or green-insulated wire to the device’s grounding screw or integrated pigtail, unless the mounting box is plastic, in which case cap the ground wire with a wire nut.
Remount the device into the electrical box, ensuring no conductors are pinched between the device frame and the box edges. Restore power and test the adjustment range; if the unit doesn’t respond smoothly or emits a buzzing sound, verify load compatibility and terminal tightness. For multi-way setups, ensure all devices in the circuit are of the same type to prevent erratic behavior. If flickering persists, consult the manufacturer’s datasheet for bypass capacitors or install a dedicated phase-control module to stabilize output.
