StepByStep Guide to Understanding and Drawing Lighting Circuit Diagrams

Begin with a single-pole switch controlling a basic setup if you’re wiring a room for the first time. Connect the hot wire from the power source to the switch terminal, then run a second conductor from the switch’s output to the fixture’s input. This approach minimizes voltage drop in runs under 15 meters and eliminates flicker in LED units rated below 15 watts. Always use 12 AWG copper wire for runs exceeding 10 meters–14 AWG is insufficient for sustained 15-amp circuits and may violate local electrical codes in commercial spaces.

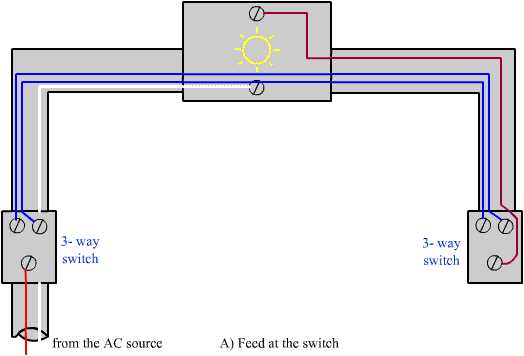

For multi-location control–such as a hallway with three entrances–install a three-way switch configuration. Label the common terminal on each switch (usually darker or brass-colored) and pair it with the traveler wires (typically red and black). Connect the hot wire to the first switch’s common terminal, then link the travelers between both switches. The second switch’s common terminal should feed the fixture. Avoid pairing mismatched switch brands; differences in terminal placement can complicate future troubleshooting and increase resistance at connection points.

Integrate a dimmer only after verifying compatibility with the bulb type. Phase-cut dimmers designed for incandescent loads will overheat when paired with electronic low-voltage LEDs, causing premature failure within 6–12 months. For outdoor fixtures exposed to moisture, use a weatherproof junction box with silicone-sealed conduit entries and apply dielectric grease to all splice connections. Separate grounding wires from neutral conductors in the box; stray capacitance on shared neutrals leads to detectable light flicker under 120Hz, which violates energy efficiency standards in jurisdictions following ENERGY STAR guidelines.

Test every connection with a non-contact voltage detector before enclosing the panel. Verify that the measured resistance across each complete path does not exceed 0.5 ohms–values above this threshold indicate loose wire nuts or corroded terminals, which generate heat under sustained load. For circuits supplying halogen fixtures above 75 watts, include a dedicated 10-amp breaker and run a separate neutral back to the distribution board; shared neutrals on high-wattage loads cause nuisance tripping and violate NEC Article 210.11(C).

Document each wiring path with color-coded labels and photographs. Use a red permanent marker to trace live wires, blue for neutrals, and green for grounds in conduit installations. Photograph the connections inside every junction box and switch before installing drywall–these records reduce troubleshooting time by 70% when modifications are required later. Store documentation digitally in a cloud service with offline access to ensure availability during power outages.

Replace any aluminum wiring immediately. Though rated for electrical applications, aluminum oxide formation at connections creates resistance hotspots, elevating fire risk by 55% compared to copper over a 10-year period. If retrofit isn’t feasible, apply antioxidant paste and torque all terminals to 14 inch-pounds to minimize oxidation. Avoid back-stab connections on switches and outlets–they loosen over time and contribute to 40% of household electrical fires involving illumination devices.

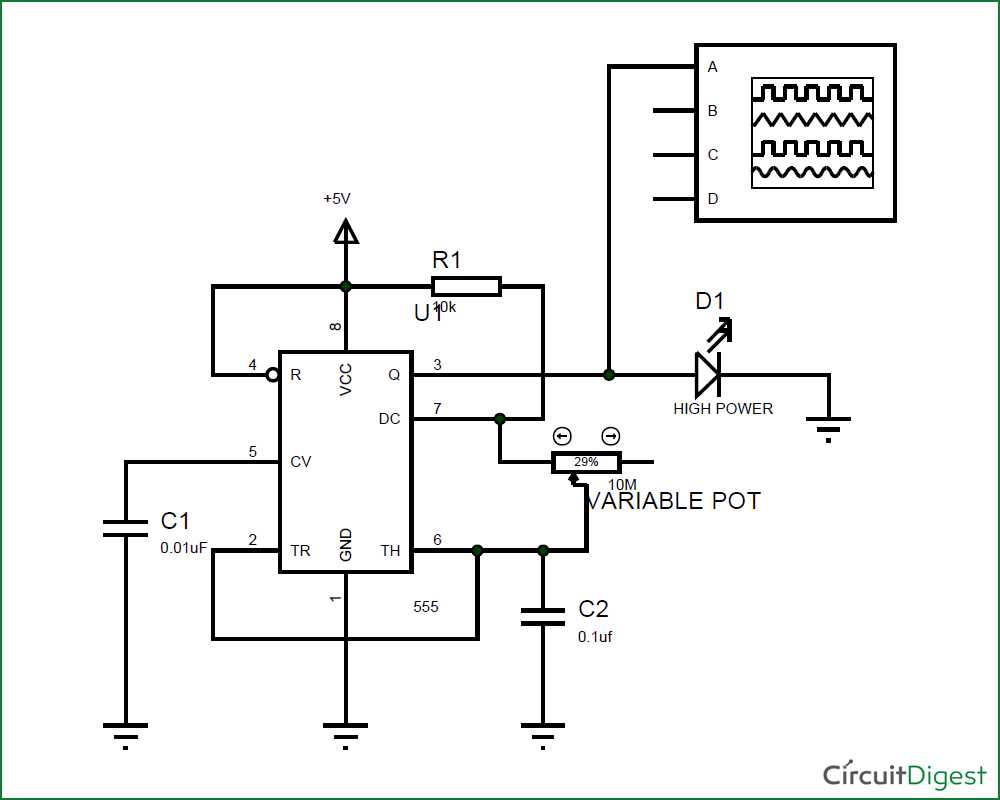

Wiring Schematics for Illumination Systems

Use a 1 mm² cross-sectional wire for branch connections under 3 A to prevent overheating. Copper conductors outperform aluminum in durability and conductivity, especially in humid environments where corrosion accelerates. Label each wire at both ends with heat-shrink tubing or durable tags–color-coding alone fails under poor visibility.

Install a 10 A residual-current device (RCD) upstream of parallel branches to isolate faults without cutting power to the entire system. For dimmable setups, pair resistive loads with leading-edge dimmers and inductive loads (e.g., transformers) with trailing-edge dimmers–mixing types causes flicker. Confirm compatibility using the dimmer’s datasheet before wiring.

Key Layout Considerations

Route wires through conduit with a minimum 20 mm diameter for groups of four or fewer cables, increasing the diameter by 5 mm per additional cable. Avoid sharp bends; maintain a 6x wire diameter bend radius to prevent insulation damage. For outdoor runs, use UV-resistant conduit and seal entries with silicone to block moisture ingress.

Connect switches in series for multi-way control, ensuring the common terminal links to the live supply. Position junction boxes at least 300 mm from water sources, even in dry locations–condensation forms indoors. Test continuity with a multimeter set to 200 Ω range after installation to verify all connections before energizing.

For emergency illumination, separate dedicated wiring from standard branches and fuse at 6 A. Battery-backed units must recharge within 24 hours; oversized batteries drain if the charging voltage mismatches (typically 13.8 V for 12 V systems). Ground all metallic fixtures directly to the main panel, not through intermediate connections.

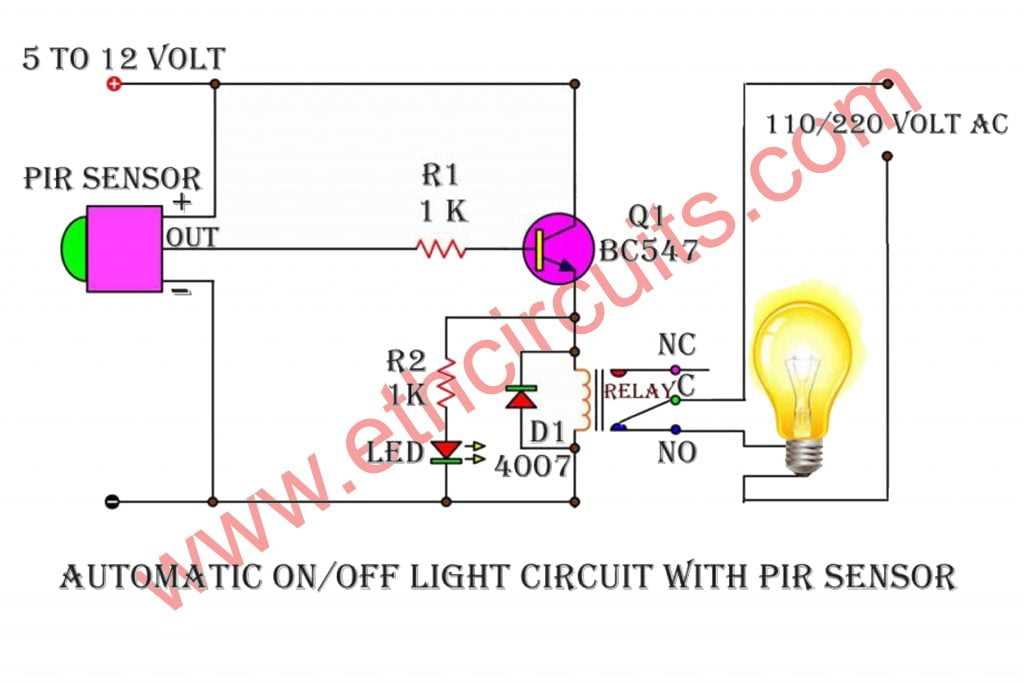

Key Elements in Electrical Wiring Schematics for Illumination

Begin by identifying the power source in your schematic–typically a mains supply (230V AC in Europe, 120V AC in North America) or a battery system for low-voltage setups. Mark the live (hot), neutral, and ground (earth) conductors clearly, ensuring the live wire connects to the switch first. A common mistake involves reversing these, which creates safety hazards or malfunctioning fixtures. For AC systems, use a double-pole circuit breaker rated for 10A to 16A to protect the wiring from overloads.

Switches regulate current flow and must match the load requirements. A single-pole switch controls one fixture from one location, while three-way or four-way switches enable multi-location control–critical for stairwells or large rooms. For dimming, integrate a triac-based dimmer (compatible with LED or incandescent loads) or a 0-10V dimming module for advanced setups. Always verify the switch’s amperage rating; most residential switches handle 10A, but industrial-grade models support up to 20A.

Fixtures and bulbs require careful selection based on voltage and wattage compatibility. LED modules often operate on 12V or 24V DC, necessitating a transformer or driver to step down mains voltage. Halogen and incandescent bulbs dissipate heat, so ensure heat-resistant wiring (e.g., silicone-coated or fiberglass-insulated cables) is used within 30 cm of the fixture. For outdoor installations, use IP65-rated or higher enclosures to prevent moisture ingress, which degrades conductors over time.

Conductors must adhere to local codes, such as IEC 60364 or NEC Article 310. Copper wires (1.5 mm² for 10A, 2.5 mm² for 16A) are standard, but aluminum may be used in large-scale projects with proper termination techniques to avoid oxidation. Label each wire in the schematic–use brown (live), blue (neutral), green/yellow (ground), and additional colors (e.g., black, red) for secondary circuits. Avoid daisy-chaining more than five fixtures to a single circuit to prevent voltage drop, especially in low-voltage systems.

Fuses and protective devices are non-negotiable. Install a residual-current device (RCD) or ground-fault circuit interrupter (GFCI) at the origin of the wiring to detect leaks as low as 30 mA, cutting power within milliseconds. For circuits feeding multiple fixtures, add branch fuses (5A for LEDs, 10A for incandescents) to isolate faults. In schematics, denote these components with standardized symbols (e.g., IEC 60617) to ensure clarity across jurisdictions.

Step-by-Step Guide to Sketching a Basic One-Lamp Electrical Scheme

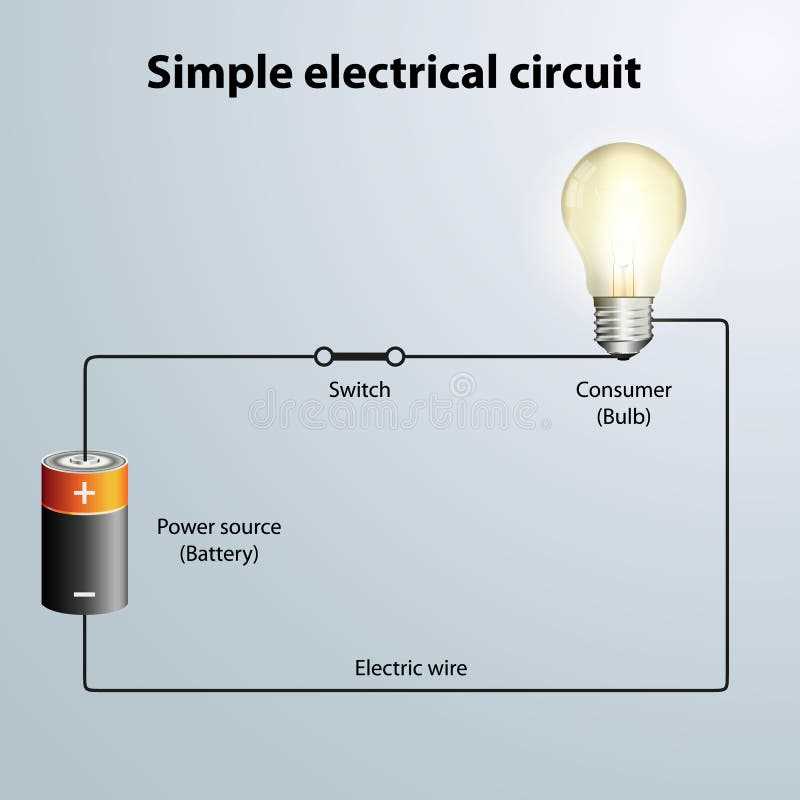

Start by tracing a power source–typically a battery or mains supply–at the top left of your sketch. Use a straight vertical line to represent the live wire, marking it in red or with a “+” symbol for clarity. The neutral wire should run parallel below it, drawn in blue or with a “-” symbol.

Position the switch 10–15 cm below the power source. Sketch a short horizontal line connecting the live wire to the switch, then another vertical line descending from the switch toward the lamp. Ensure the break in the live wire clearly indicates the switch’s OFF state in the default illustration.

Place the lamp 8–12 cm directly below the switch. Draw a small circle or oval for the bulb, with two short lines extending horizontally–one to the descending live wire and one to the neutral wire, completing the path. Label each component: “SW” for switch, “LAMP” for the bulb socket, and “N” for neutral.

Critical Connections and Safety Details

• Ground wire (bare copper or green) must run from the bulb socket to a grounding point–sketch it as a dotted line diverging downward from the socket.
• Use a ruler for straight lines; curved or angled wires complicate readability.
• Verify wire intersections: crossed wires without a dot indicate no connection; a dot signals a joint.
• For AC mains, add a fuse or circuit breaker symbol–a rectangle with an “F” label–between the power source and switch.

Double-check polarity: the live wire must engage the switch first, not the bulb. Reverse connections risk shorting. Trace the neutral line from power source to bulb without interruption–no switches or breaks allowed in this path.

Refining the Layout for Precision

1. Measure intervals between components. Maintain 5 cm minimum spacing for easy adjustments.
2. Erase construction lines–keep only final connections.
3. Add voltage ratings next to the power source if known (e.g., 12V DC, 230V AC).
4. Use arrows to indicate current flow direction (optional for DC, mandatory for debugging).

Scan for floating components–every wire must terminate at another element. Missing links or orphaned parts invalidate the scheme. Test continuity by mentally flipping the switch: current should travel from power source through switch to bulb and return via neutral.
